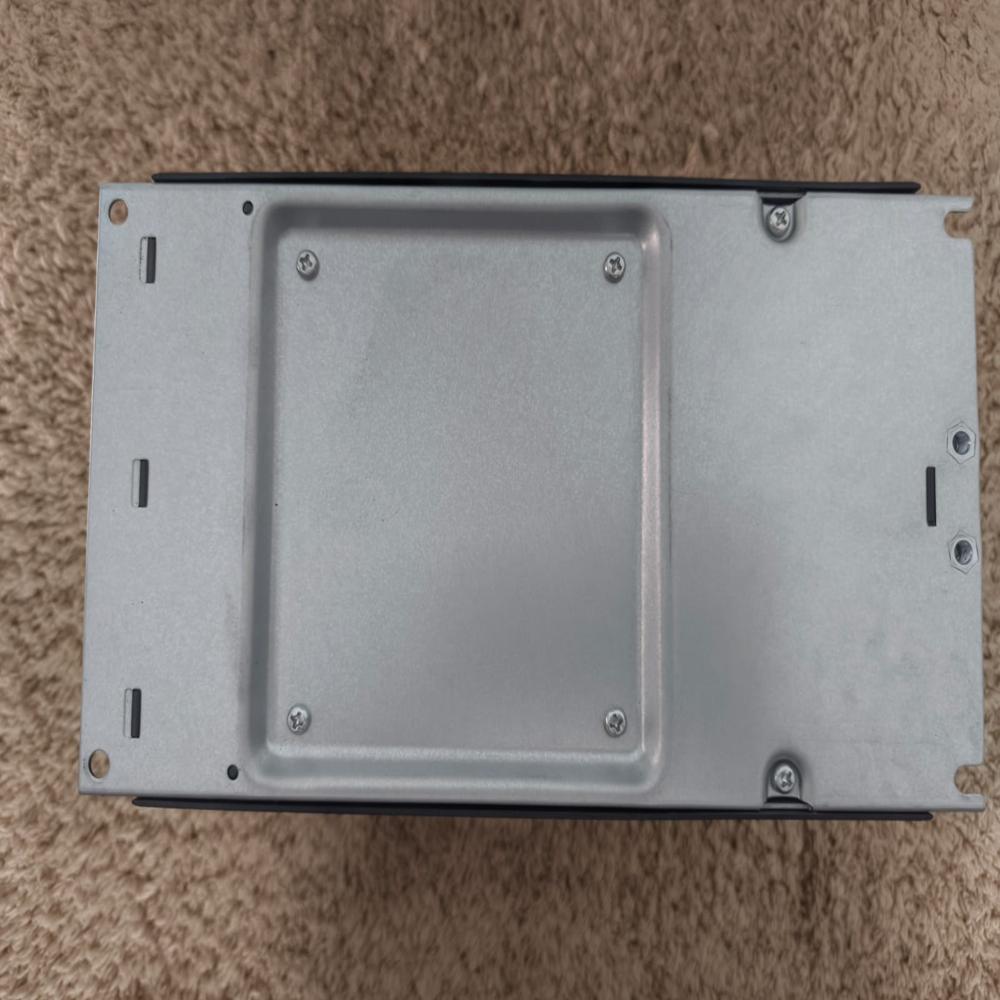

MD310T5.5B - 7.5HP - MD310 - 3 Phase - Inovance Ac Drive

Name: MD310T5.5B - 7.5HP - MD310 - 3 Phase - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 16400.0 INR
Availability: InStock

Price 16400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD310T5.5B - 7.5HP - MD310 - 3 Phase - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
2.5 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD310T5.5B - 7.5HP - MD310 - 3 Phase - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD310T5.5B - 7.5HP - MD310 - 3 Phase - Inovance Ac Drive

The Inovance MD310T5.5B is a high-performance 7.5 HP (5.5 kW) 3-phase AC drive. This model moves into Frame Size 3 of the MD310 series, offering increased power handling and sophisticated motor control in a compact package.

Dimensions & Weight

According to the Inovance MD310 Technical Manual, the dimensions for Frame Size 3 are:

Specification	Metric Value	Inch Value (Approx.)
Height (H)	234 mm	9.21 in
Width (W)	140 mm	5.51 in
Depth (D)	171 mm	6.73 in
Weight	2.5 kg	5.51 lbs

Technical Specifications

Rated Power: 5.5 kW (7.5 HP).
Rated Output Current: 13.0 A.
Input Current: 14.6 A (3-phase 380V).
Efficiency: 98% Inovance Catalog.
Overload Capacity: 150% for 60 seconds; 180% for 2 seconds. [1, 2, 3, 4, 5]

Core Functions

Advanced Control: Features Sensorless Vector Control (SVC) and V/F control, providing 150% starting torque at just 0.25 Hz.
Braking: Includes a built-in dynamic braking unit (chopper) as standard (denoted by the "B" in the model name).
Communications: Standard Modbus-RTU and CANlink communication ports are built-in for easy automation integration.
Protection: Equipped with comprehensive diagnostics for overcurrent, overvoltage, and overheating, along with conformal-coated PCBs for harsh environments.
