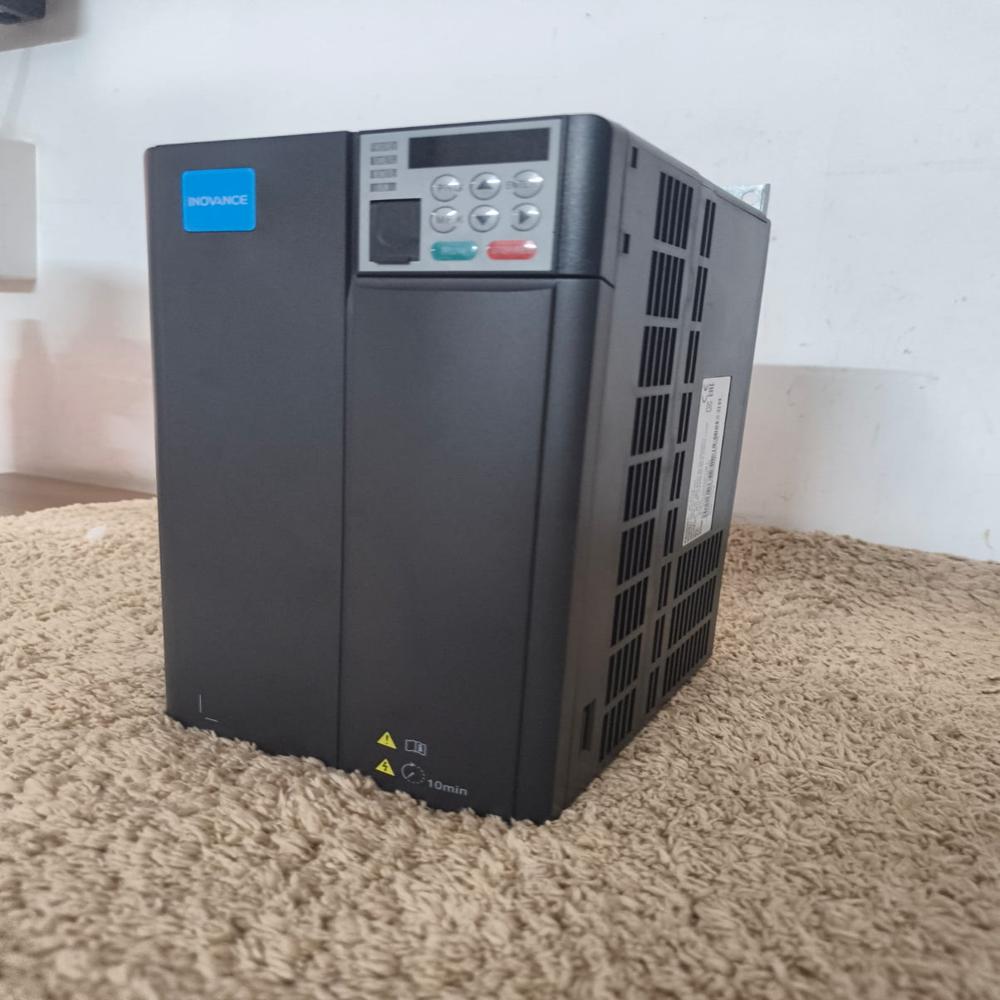

MD5202T7.5BS-INT AC Drive, Three Phase, 200V to 240V,7.5kw - Inovance Ac Drive

Price 24100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5202T7.5BS-INT AC Drive, Three Phase, 200V to 240V,7.5kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Grey And Black

Usage & Applications
Industrial Machinerry

Weight
4.3 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5202T7.5BS-INT AC Drive, Three Phase, 200V to 240V,7.5kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5202T7.5BS-INT AC Drive, Three Phase, 200V to 240V,7.5kw - Inovance Ac Drive

The Inovance MD520 7.5 kW Low-Voltage Drive (Model: MD5202T7.5BS-INT) is a high-performance vector variable frequency drive (VFD). The 2T designation specifies its three-phase 200 V to 240 V AC input rating, making it distinct from 400V class models. The B indicates an integrated, built-in braking chopper, and the S denotes standard Safe Torque Off (STO) support. [1, 2, 3]

This specific 7.5 kW (10 HP) capacity model is constructed within the compact T4 frame size footprint. [1, 2]

Device Measurements (T4 Frame Size)

The physical footprint dimensions and net weight converted to imperial units from the manufacturer's technical specifications are: [1, 2]

Height (Total Length): 11.02 inches (\(280\text{ mm}\))
Width: 7.09 inches (\(180\text{ mm}\))
Depth (Thickness): 6.65 inches (\(169\text{ mm}\))
Net Weight: 9.48 lbs (\(4.3\text{ kg}\))

Panel Mounting Layout

If you are planning internal backplate mapping or pre-drilling cabinet subpanels, utilize these exact centerline parameters: [1]

Horizontal Pitch Spacing: 6.54 inches (\(166\text{ mm}\))
Vertical Pitch Spacing: 10.47 inches (\(266\text{ mm}\))
Mounting Screw Diameter: 0.24 inches (Designed for standard M5 fixing bolts)

Electrical & Operational Specifications

Specification Metric [1, 2, 3, 4, 5]	Engineering Data Value
Manufacturer	Inovance Technology
Line Input Supply	Three Phase, 200 V AC to 240 V AC (-15% to +10%)
Heavy Duty Power (HD)	7.5 kW (10 HP)
Rated Output Current	Approx. 32 A (at 200V class scaling)
Overload Capacity Profile	Heavy Duty: 150% for 60s / Normal Duty: 110% for 60s
Output Frequency Spectrum	0 Hz to 599 Hz
Braking Unit Hardware	Built-in internal chopper circuit (requires external resistor only)
Safety Integration	Standard dual-channel Safe Torque Off (STO) certified to SIL3 PL e
Enclosure Protection	IP20

System Integration & Environment

Unified Control Algorithms: Seamlessly toggles software configurations to drive standard induction motors, permanent magnet synchronous motors (PMSM), and synchronous reluctance motors. [1, 2, 3]
Atmospheric Resilience: Built with standard 3C3 and 3S2 level conformal board coatings to insulate complex circuitry against conductive factory dust, humidity, and corrosive chemical vapors. [1]
Industrial Communication: Standard Modbus-RTU terminals onboard with plug-in network card support for PROFINET, EtherCAT, and CANopen protocols. [1, 2]
