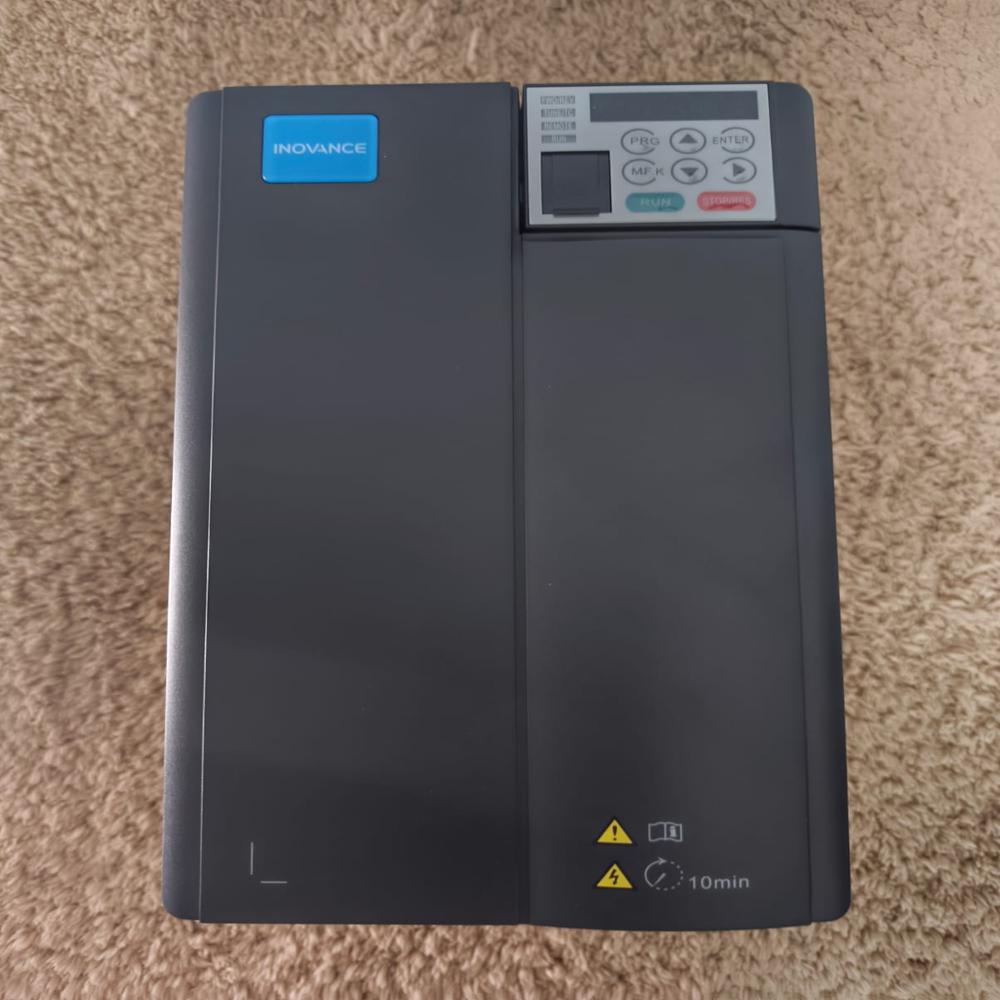

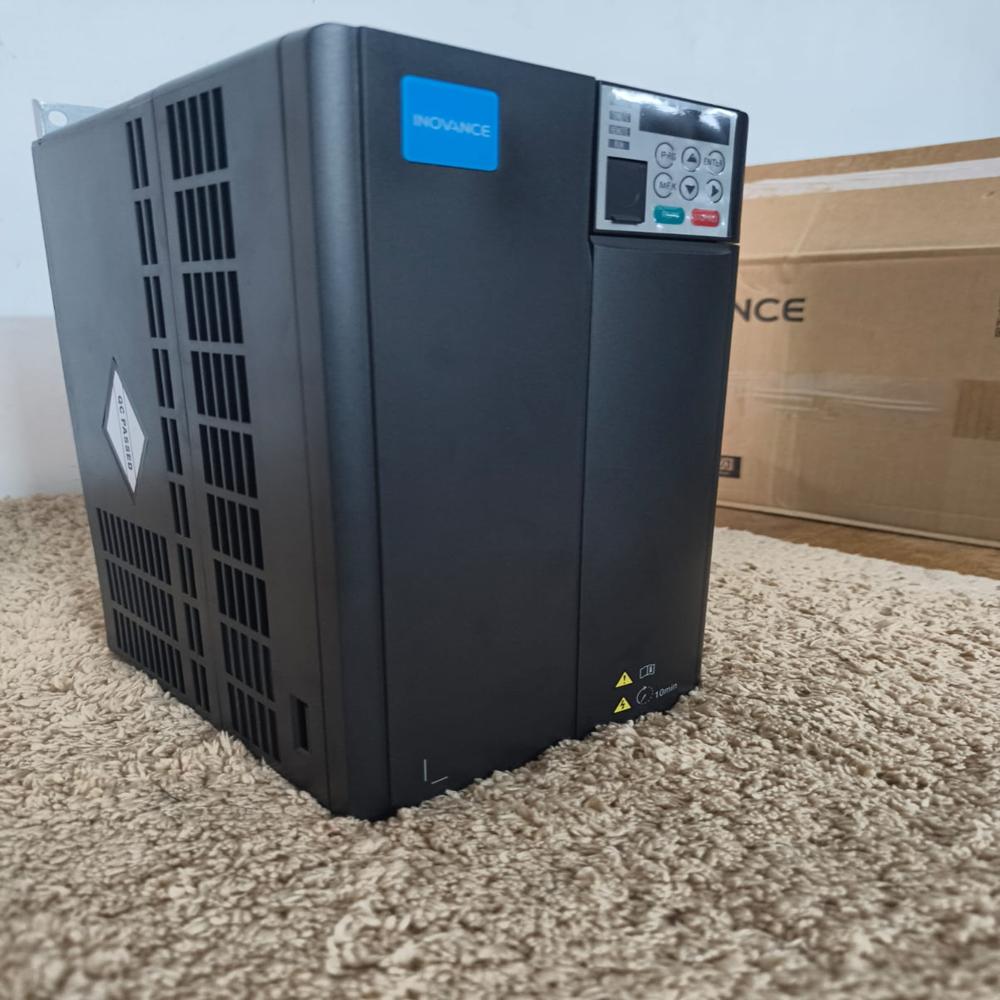

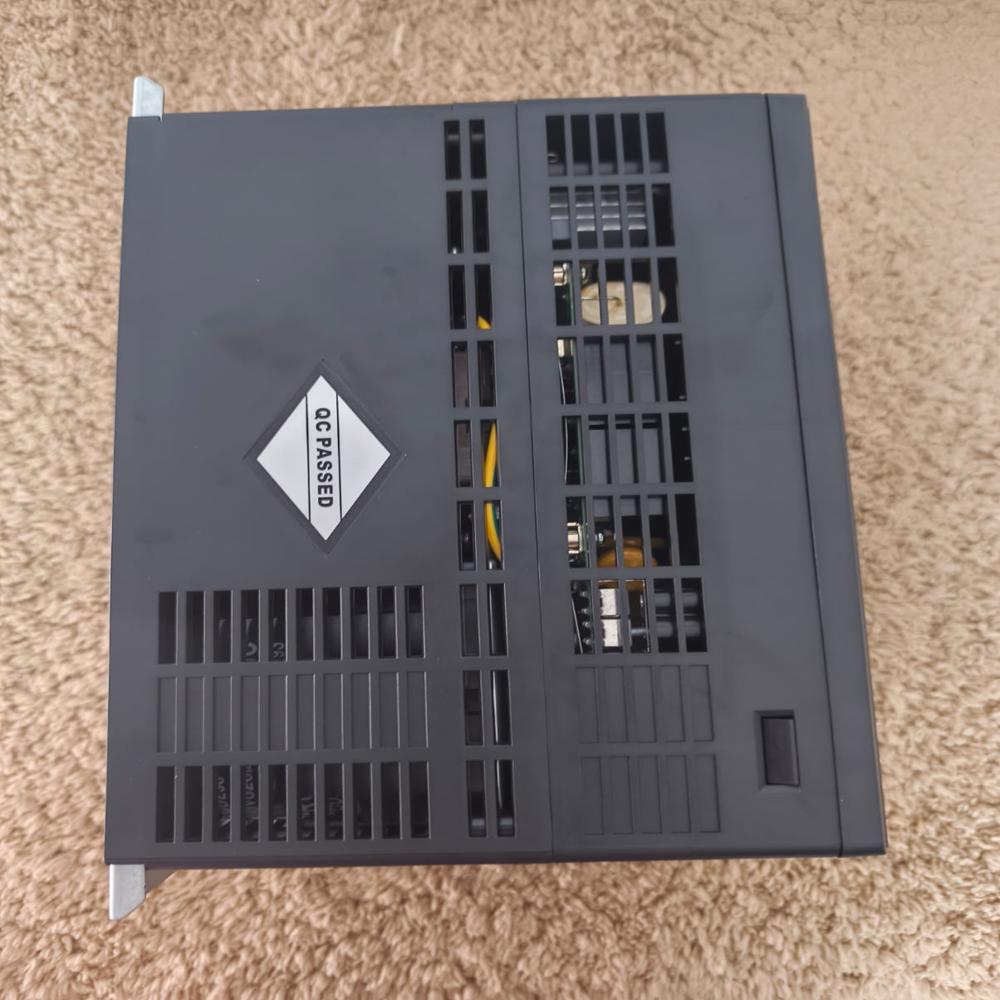

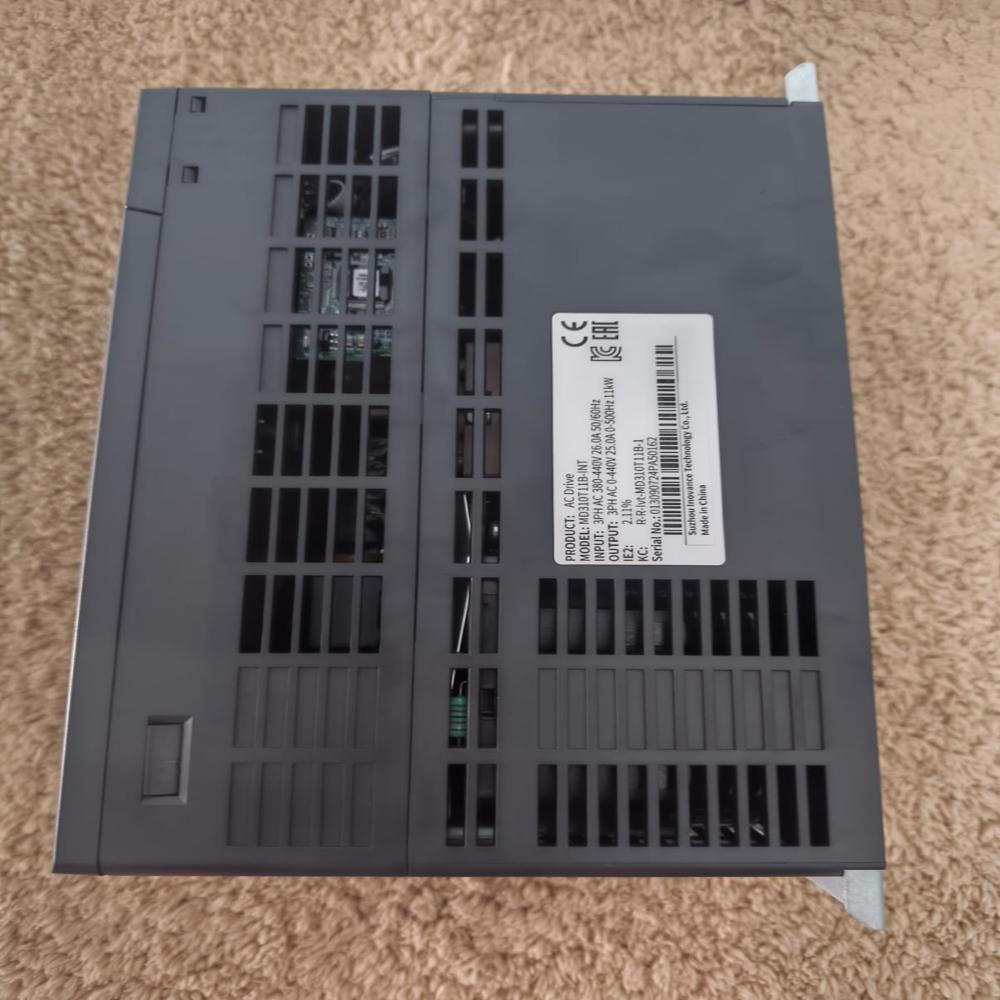

MD5204T1.5BS-INT AC Drive, Three Phase, 380V to 480V,1.5kw - Inovance Ac Drive

Price 12100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T1.5BS-INT AC Drive, Three Phase, 380V to 480V,1.5kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
1.6 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T1.5BS-INT AC Drive, Three Phase, 380V to 480V,1.5kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T1.5BS-INT AC Drive, Three Phase, 380V to 480V,1.5kw - Inovance Ac Drive

The Inovance MD520-4T1.5BS-INT is an expanded-capacity model that continues to share the exact same T1 compact frame size housing as the 0.4kW and 0.7kW versions. [1, 2]

Core Control & Software Functions

Unified Motor Control: Smoothly drives three-phase AC induction motors, permanent magnet (PM) synchronous motors, and synchronous reluctance motors.
Advanced Control Modes: Employs Open-loop V/F control, Sensorless Vector Control (SVC), and high-precision Closed-loop Vector Control (FVC).
Application-Specific Logic: Features a built-in textile wobble control function and Master-Slave load-sharing control (torque and speed).
Dynamic S-Ramps: Uses 4 independent programmable S-ramps for smooth, jerk-free mechanical acceleration and deceleration.
Brake Logic Control: Integrated safety logic sequences for safe external mechanical brake release and engagement.
DC-Injection Braking: Variable DC injection stops motors rapidly without locking mechanisms.
Multi-Motor Switching: Houses 4 completely independent sets of internal motor parameters to swap control between different motors. [1, 2, 3, 4]

Product Specifications

1. Electrical Capacity (1.5kW Model) [1, 2]

Input Line Voltage: 3-phase, 380 V to 480 V AC, fluctuation tolerance of -15% to +10%.
Maximum Output Frequency: 0 Hz to 599 Hz.
Heavy Duty (HD) Operation: 1.5 kW (2.0 HP) | 3.8 Amps rated output current | 150% overload for 60 seconds.
Normal Duty (ND) Operation: 2.2 kW (3.0 HP) | 5.1 Amps rated output current | 110% overload for 60 seconds. [1, 2, 3, 4]

2. Physical & Hardware Subsystems

Dynamic Braking Unit: Integrated internal chopper circuit; requires an external braking resistor with minimum 32 \(\Omega \) resistance.
Safe Torque Off (STO): Dual-channel functional safety isolation circuit certified to SIL 3 PL e.
EMC Filter: Pre-installed internal Category C3 RFI filter to reduce electromagnetic interference.
Enclosure Rating: IP20 protection level.
Environmental Protection: Conformal coated PCBs tested against 3S2 (dust) and 3C3 (chemical/corrosive) environment standards. [1, 2, 3, 4, 5]

3. Input/Output (I/O) & Automation Interfaces

Analog Inputs: 1 bipolar input (-10 V to +10 V DC) and 1 standard input (0 to 10 V / 4-20 mA).
Motor Protection: Dedicated built-in PTC thermistor input terminal for direct motor thermal monitoring.
Standard Network Ports: Built-in Modbus RTU (RS485) and CANlink serial communication protocol.
Optional Expansion Networks: Slots accept card modifications for PROFINET, EtherCAT, Ethernet/IP, CANopen, and PROFIBUS-DP systems. [1, 2]

Dimensions and Weight (Inches & Pounds)

Height: 7.87 inches (200 mm)
Width: 5.12 inches (130 mm)
Depth (Length): 5.98 inches (152 mm)
Weight: 3.53 lbs (1.6 kg)

Electric Ratings & Capacity

The upgraded internal architecture yields a higher amperage capability designed to control 1.5 kW (2.0 HP) motors: [1]

Parameter [1, 2, 3]	Heavy Duty (HD) Rating	Normal Duty (ND) Rating
Output Power	1.5 kW (2.0 HP)	2.2 kW (3.0 HP)
Rated Output Current	3.8 Amps	5.1 Amps
Input Current Rating	4.6 Amps	5.0 Amps
Overload Capacity	150% for 60 seconds	110% for 60 seconds
