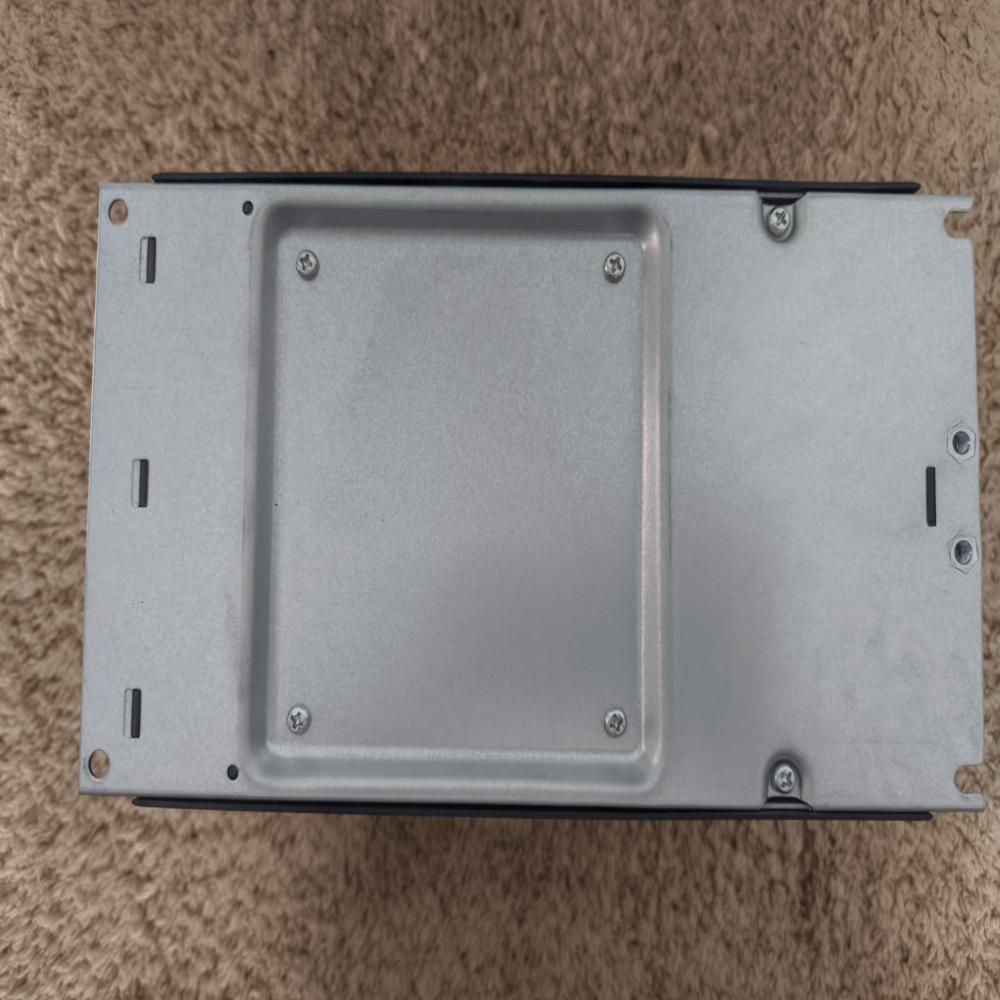

MD5204T37S-INT AC Drive, Three Phase, 380V to 480V,37kw - Inovance Ac Drive

Name: MD5204T37S-INT AC Drive, Three Phase, 380V to 480V,37kw - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 65200.0 INR
Availability: InStock

Price 65200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T37S-INT AC Drive, Three Phase, 380V to 480V,37kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
17.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T37S-INT AC Drive, Three Phase, 380V to 480V,37kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T37S-INT AC Drive, Three Phase, 380V to 480V,37kw - Inovance Ac Drive

The Inovance MD520-4T37S-INT uses the identical T6 physical frame size as the 30 kW layout. This structural commonality allows you to swap or scale up the drive unit without modifying the internal layout of your control cabinet backplate. [1, 2]

Physical Dimensions & Weight (Inches & Pounds)

Height: 15.75 inches (400 mm)
Width: 9.84 inches (250 mm)
Depth (Length): 8.66 inches (220 mm)
Weight: 38.58 lbs (17.5 kg)

Electrical Performance Capacity

The Inovance MD520 industrial brochure indicates the following dual-load ratings tailored for a 37 kW frame:

Parameter [1, 2, 3, 4, 5]	Heavy Duty (HD) Rating	Normal Duty (ND) Rating
Applicable Motor Power	37.0 kW (50.0 HP)	45.0 kW (60.0 HP)
Rated Output Current	75.0 Amps	91.0 Amps
Rated Input Current	69.0 Amps	89.0 Amps
Overload Capacity	150% for 60 seconds	110% for 60 seconds

Input Power System: Three-phase, 380 V to 480 V AC, 50/60 Hz line supply tolerance.
Output Speed Frequency: 0 Hz up to 599 Hz max tracking. [1, 2]

Integrated System Hardware

Dynamic Braking Unit: Features internal control logic. It requires an external braking resistor with a minimum resistance of 14.8 \(\Omega \).
DC Reactor Loop: Standard built-in internal DC link reactor for advanced power factor optimization and harmonic smoothing.
Functional Safety Circuit (S): Integrated dual-channel Safe Torque Off (STO) matching safety standards up to SIL 3 PL e.
EMC Attenuation (-INT): Pre-installed Category C3 internal noise filter to handle local radio-frequency interference (RFI). [1, 2, 3, 4, 5]
