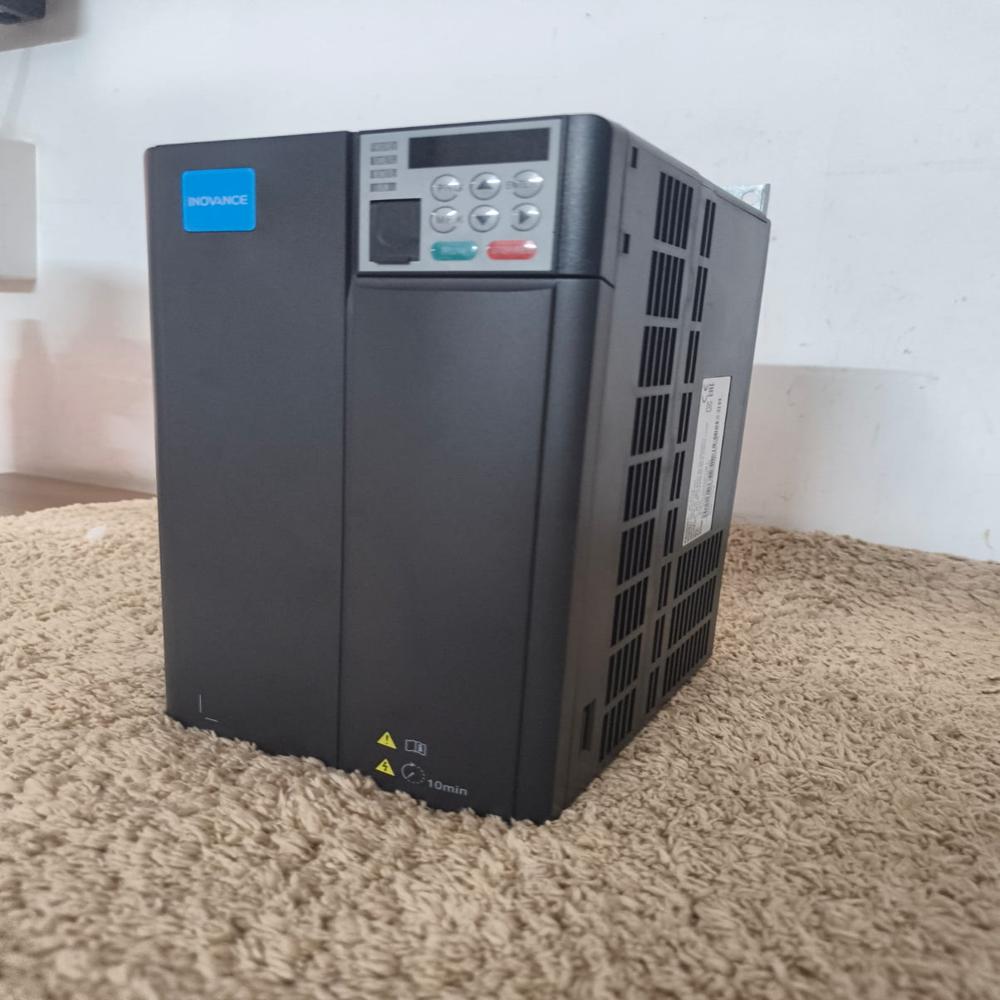

MD5204T200S-INT AC Drive, Three Phase, 380V to 480V,200kw - Inovance Ac Drive

Name: MD5204T200S-INT AC Drive, Three Phase, 380V to 480V,200kw - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 378400.0 INR
Availability: InStock

Price 378400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T200S-INT AC Drive, Three Phase, 380V to 480V,200kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Grey And Black

Weight
110 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T200S-INT AC Drive, Three Phase, 380V to 480V,200kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T200S-INT AC Drive, Three Phase, 380V to 480V,200kw - Inovance Ac Drive

The Inovance MD520 200 kW AC Drive (Model: MD5204T200S-INT) is a high-power industrial variable frequency drive (VFD). This model transitions into the T10 frame size classification to accommodate the higher electrical currents and thermal cooling requirements.

Device Measurements (T10 Frame Size)

The physical footprint dimensions and weight converted from the manufacturer's technical specifications are:

Height (Total Length): 42.20 inches (\(1072\text{ mm}\))
Width: 11.81 inches (\(300\text{ mm}\))
Depth (Thickness): 19.69 inches (\(500\text{ mm}\))
Net Weight: 242.51 lbs (\(110.0\text{ kg}\))

Cabinet Backplate Hole Layout

For floor or internal enclosure panel mounting, use these drilling dimensions:

Horizontal Pitch Spacing: 7.87 inches (\(200\text{ mm}\))
Vertical Pitch Spacing: 41.14 inches (\(1045\text{ mm}\))
Fixing Bolt Diameter: 0.47 inches (Accepts standard M12 fixing screws)

Electrical & Capacity Specifications

Specification Metric [1, 2, 3, 4, 5]	Engineering Data Value
Manufacturer	Inovance Technology
Input Phase / Line Voltage	Three Phase, 380 V AC to 480 V AC (-15% to +10%)
Heavy Duty Power (HD)	200 kW (270 HP)
Normal Duty Power (ND)	250 kW (335 HP)
Rated Output Current (HD)	377 A
Rated Output Current (ND)	477 A
Overload Capacity Profile	Heavy Duty: 150% for 60s / Normal Duty: 110% for 60s
Output Frequency Spectrum	0 Hz to 599 Hz
Enclosure Rating	IP20

Built-in System Protections & Hardware [1]

Dynamic Braking: Requires an external braking unit configuration (such as the MDBUN series) for absorbing motor regeneration energy.
Harmonic Distortions Protection: Outfitted with an integrated built-in internal DC reactor to guarantee line stability and compliance.
Chemical/Dust Defense: Coated with 3C3 and 3S2 level conformal coating on all internal PCB layers to resist harsh factory air.
Safety Integration: Standard dual-channel Safe Torque Off (STO) certified to SIL3 PL e functional engineering safety standards. [1, 2, 3, 4, 5]
