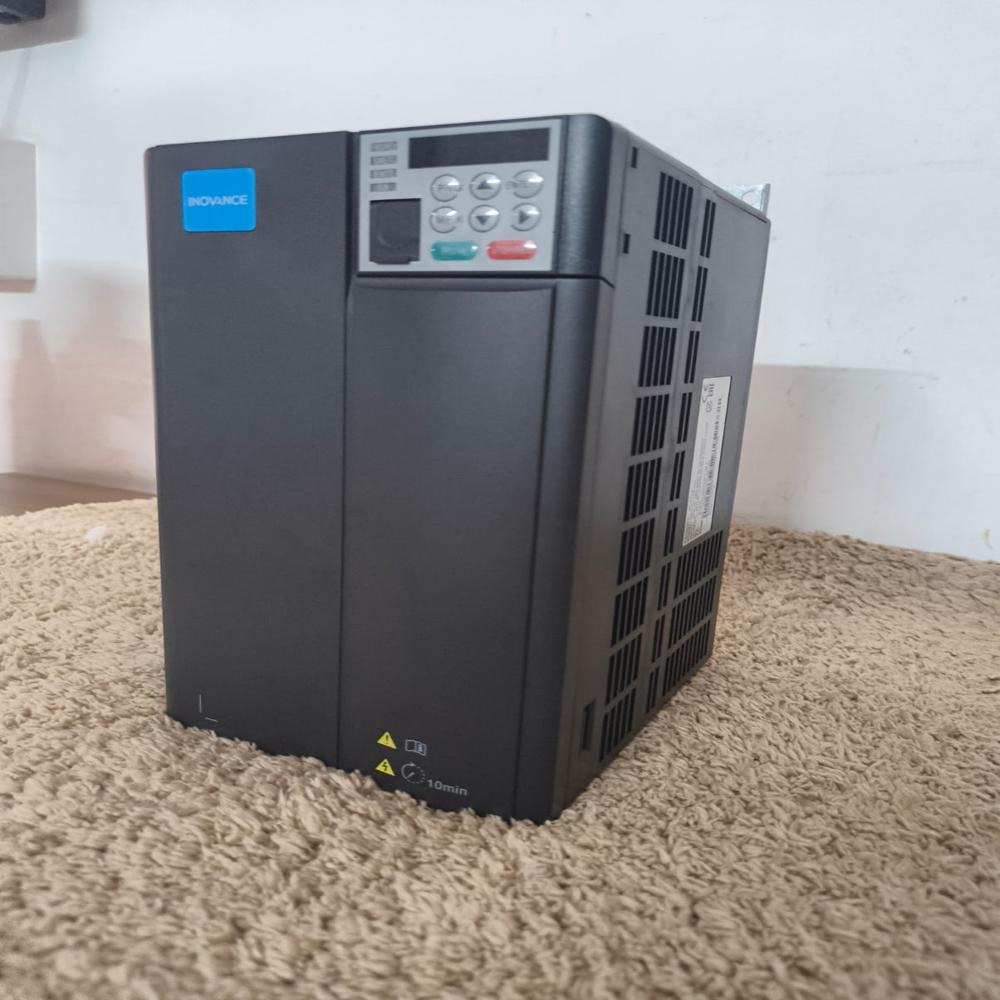

MD5204T15BS-INT AC Drive, Three Phase, 380V to 480V,15kw

Name: MD5204T15BS-INT AC Drive, Three Phase, 380V to 480V,15kw
Brand: Corbital Enterprise
Price: 36700.0 INR
Availability: InStock

Price 36700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T15BS-INT AC Drive, Three Phase, 380V to 480V,15kw Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
4.3 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T15BS-INT AC Drive, Three Phase, 380V to 480V,15kw Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T15BS-INT AC Drive, Three Phase, 380V to 480V,15kw

The Inovance MD520-4T15BS-INT is built using the T4 physical frame size configuration. It maintains the exact same dimensions and weight footprint as the 11 kW model while delivering significantly higher output current capabilities. [1, 2]

Physical Dimensions & Weight (Inches & Pounds)

Height: 11.02 inches (280 mm)
Width: 7.09 inches (180 mm)
Depth (Length): 6.69 inches (170 mm)
Weight: 9.48 lbs (4.3 kg) [1]

Electrical Performance Capacity

The Inovance MD520 Series Manual specifies the technical capacities for this 15 kW architecture: [1]

Parameter [1]	Heavy Duty (HD) Rating	Normal Duty (ND) Rating
Applicable Motor Power	15.0 kW (20.0 HP)	18.5 kW (25.0 HP)
Rated Output Current	32.0 Amps	37.0 Amps
Rated Input Current	39.7 Amps	44.0 Amps
Overload Capacity	150% for 60 seconds	110% for 60 seconds

Input Operating Line Voltage: 3-phase, 380 V to 480 V AC, 50/60 Hz line frequency.
Output Tracking Frequency: 0 Hz to 599 Hz. [1, 2]

Integrated System Hardware

Dynamic Braking Unit (B): Standard internal braking chopper. Requires a minimum external braking resistor value of 24 \(\Omega \).
Functional Safety Circuit (S): Built-in dual-channel Safe Torque Off (STO) isolation circuit certified to SIL 3 PL e.
EMC Attenuation (-INT): Pre-installed internal Category C3 noise filter.
Standard Control Interfaces: Built-in Modbus-RTU and CANlink communication. Expandable via independent modular slots to PROFINET, EtherCAT, and CANopen. [1, 2, 3, 4, 5, 6]
