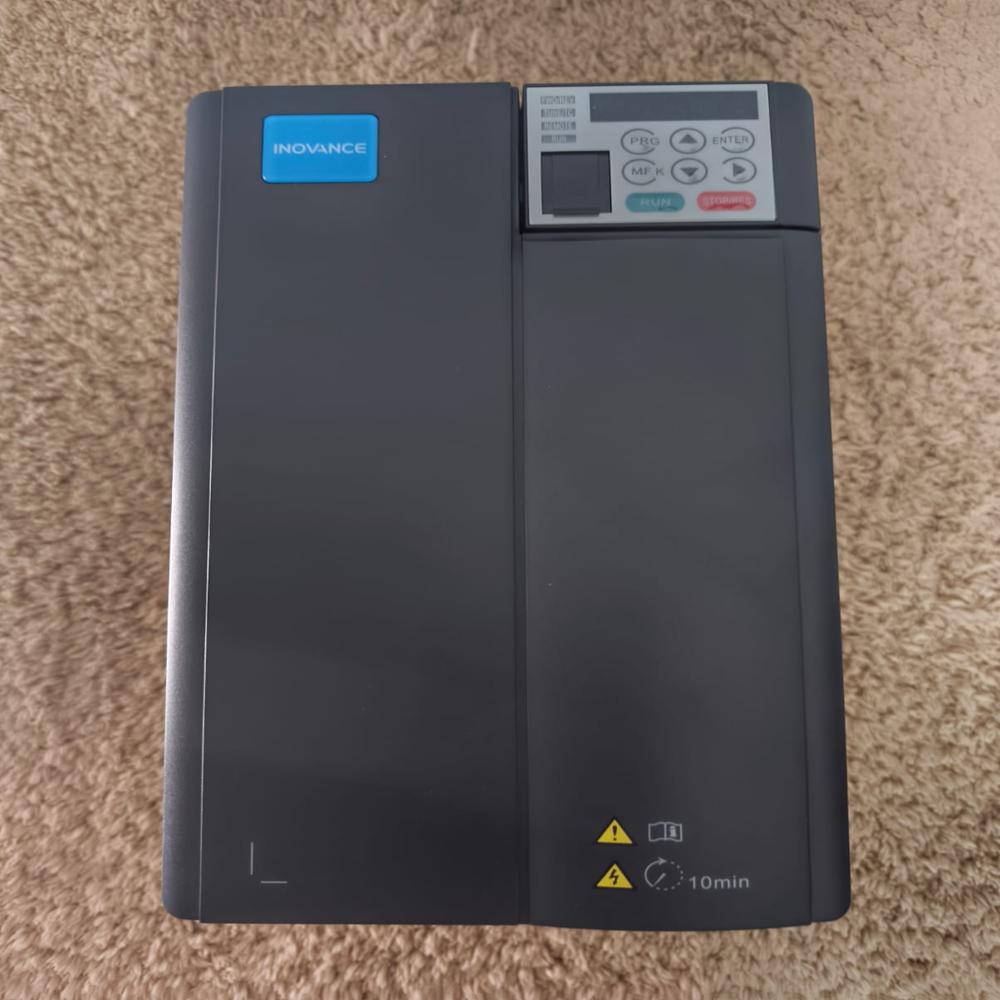

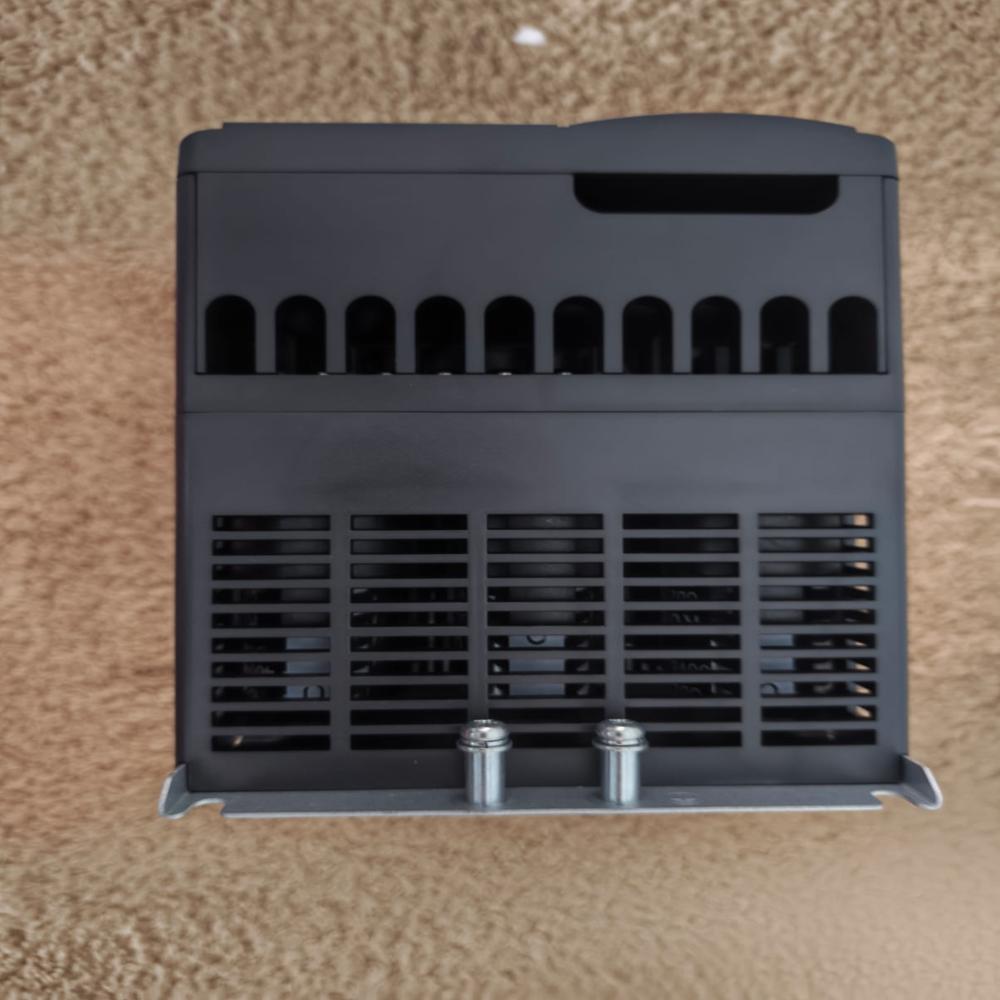

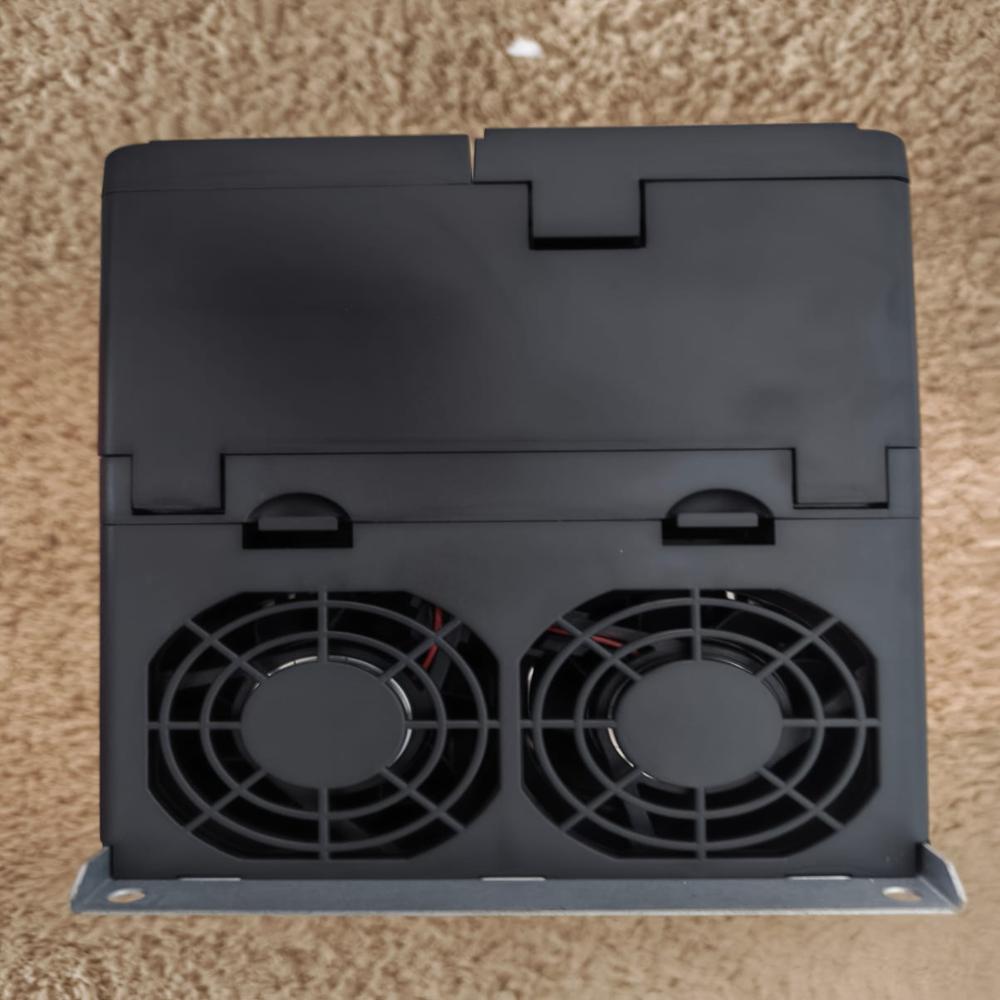

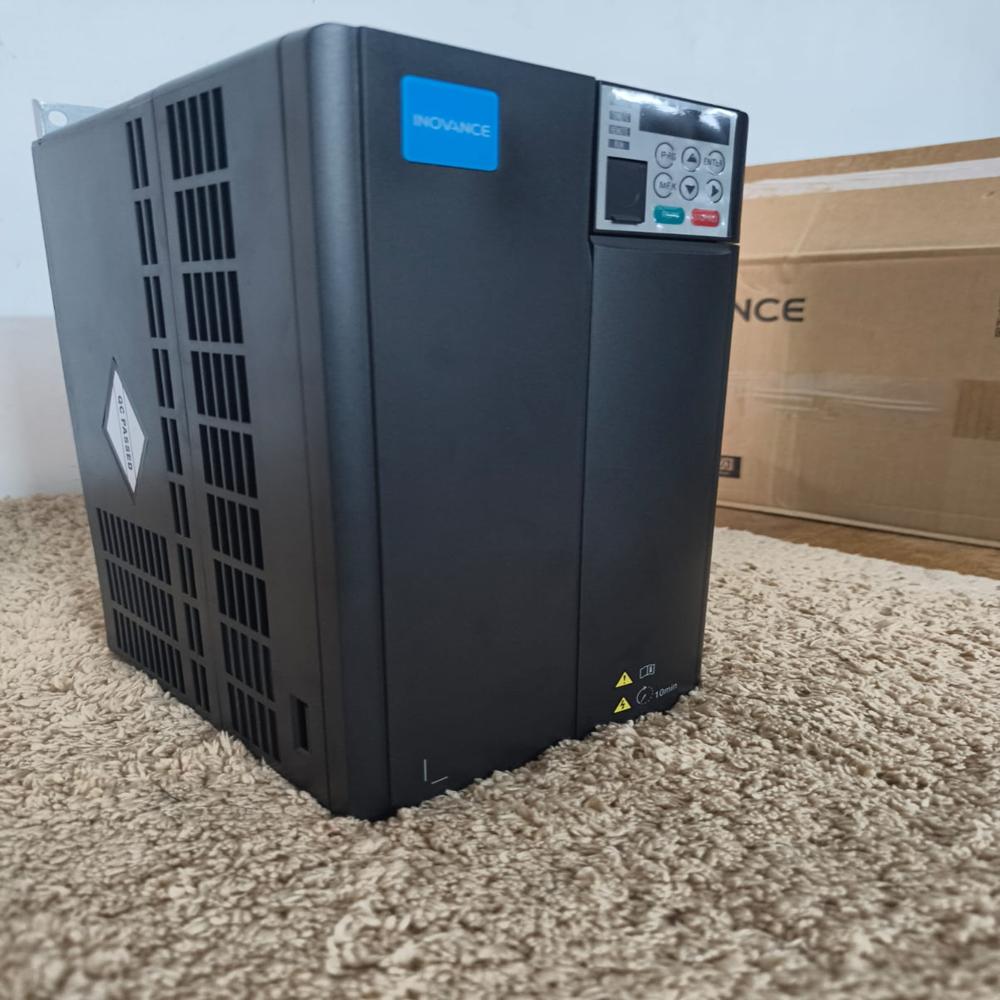

MD5204T220S-INT AC Drive, Three Phase, 380V to 480V,220kw - Inovance Ac Drive

Price 431200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T220S-INT AC Drive, Three Phase, 380V to 480V,220kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Grey And Black

Usage & Applications
Industrial Machinerry

Weight
110 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T220S-INT AC Drive, Three Phase, 380V to 480V,220kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T220S-INT AC Drive, Three Phase, 380V to 480V,220kw - Inovance Ac Drive

The Inovance MD520 220 kW AC Drive (Model: MD5204T220S-INT) is a high-power industrial variable frequency drive (VFD) optimized for heavy machinery automation. [1]

According to the Inovance MD520 Series Manual, this 220 kW capacity model utilizes the high-capacity T10 frame size footprint. [1]

Device Measurements (T10 Frame Size)

The physical footprint dimensions and weight converted from metric engineering metrics are:

Height (Total Length): 42.20 inches (\(1072\text{ mm}\))
Width: 11.81 inches (\(300\text{ mm}\))
Depth (Thickness): 19.69 inches (\(500\text{ mm}\))
Net Weight: 242.51 lbs (\(110.0\text{ kg}\))

Cabinet Backplate Mounting Layout

For floor or internal enclosure panel mounting installation, use these drilling centerlines:

Horizontal Pitch Spacing: 7.87 inches (\(200\text{ mm}\))
Vertical Pitch Spacing: 41.14 inches (\(1045\text{ mm}\))
Fixing Bolt Diameter: 0.47 inches (Designed for standard M12 heavy fixing screws)

Electrical & Capacity Specifications

Specification Metric [1, 2, 3, 4]	Engineering Data Value
Manufacturer	Inovance Technology
Input Phase / Line Voltage	Three Phase, 380 V AC to 480 V AC (-15% to +10%)
Heavy Duty Power (HD)	220 kW (295 HP)
Normal Duty Power (ND)	250 kW (335 HP)
Rated Output Current (HD)	430 A
Rated Output Current (ND)	477 A
Overload Capacity Profile	Heavy Duty: 150% for 60s / Normal Duty: 110% for 60s
Output Frequency Spectrum	0 Hz to 599 Hz
Enclosure Rating	IP20

System Architecture & Protections

Dynamic Braking: Requires an external braking unit configuration (such as the MDBUN-200-5T series) to safely bleed off regenerative energy during fast deceleration. [1, 2, 3]
Harmonic Distortion Mitigation: Features a built-in internal DC reactor to stabilize power quality and meet industrial grid rules. [1, 2]
Environmental Coating: All internal circuit layers are treated with 3C3 and 3S2 conformal coatings to prevent failure from moisture or conductive dust. [1]
Safety Integration: Includes an independent Safe Torque Off (STO) hardware input certified to SIL3 PL e standards. [1]

Please let me know if you would like the recommended input fuse and circuit breaker ratings for this 220 kW line system, or if you need minimum air ventilation space requirements for your cabinet design.
