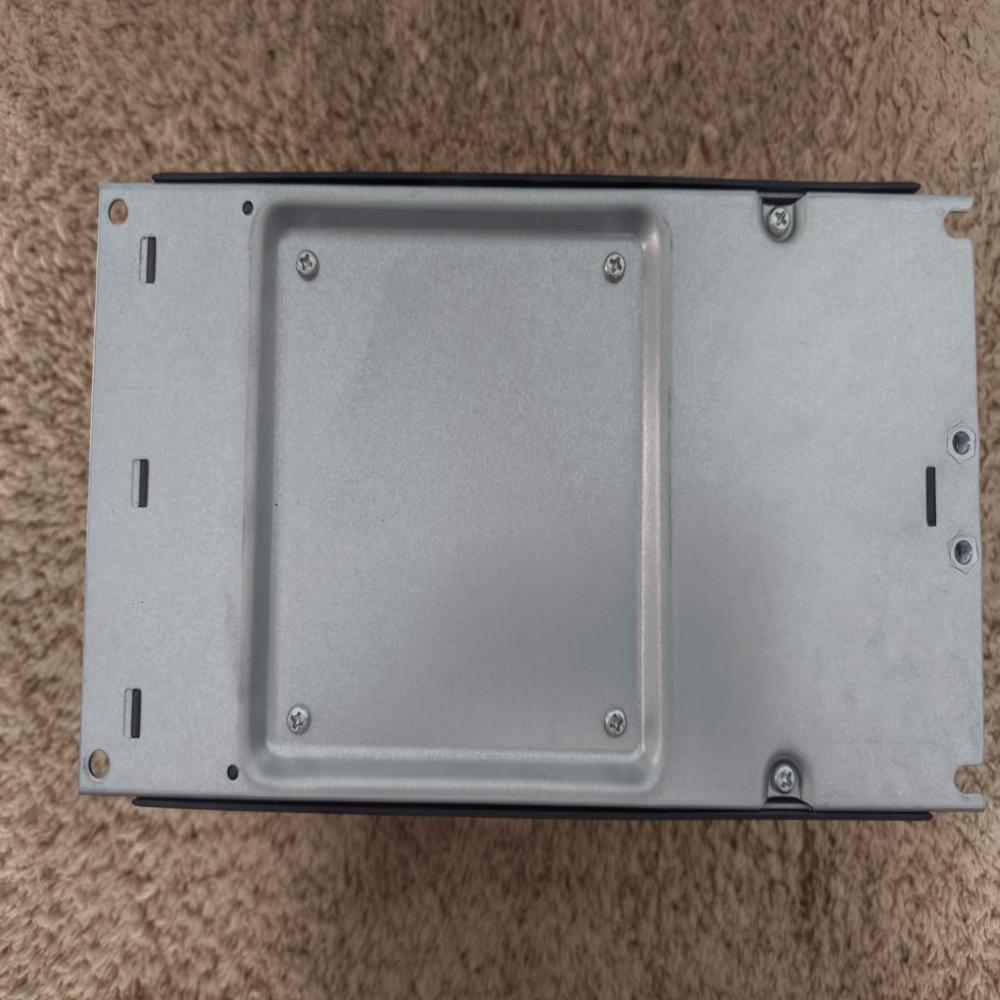

MD5204T45S-INT AC Drive, Three Phase, 380V to 480V,45kw - Inovance Ac Drive

Name: MD5204T45S-INT AC Drive, Three Phase, 380V to 480V,45kw - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 79600.0 INR
Availability: InStock

Price 79600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T45S-INT AC Drive, Three Phase, 380V to 480V,45kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
35 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T45S-INT AC Drive, Three Phase, 380V to 480V,45kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T45S-INT AC Drive, Three Phase, 380V to 480V,45kw - Inovance Ac Drive

The Inovance MD520-4T45S-INT transitions to a larger, robust T7 physical frame size housing to safely dissipate thermal energy generated by high-power industrial motors. [1, 2]

Physical Dimensions & Weight (Inches & Pounds)

Height: 21.26 inches (540 mm)
Width: 11.81 inches (300 mm)
Depth (Length): 10.83 inches (275 mm)
Weight: 77.16 lbs (35.0 kg) [1, 2, 3, 4, 5]

Electrical Performance Capacity

The Inovance MD520 global engineering documentation specifies the distinct normal and heavy-duty thresholds for this 45 kW controller configuration: [1]

Parameter [1]	Heavy Duty (HD) Rating	Normal Duty (ND) Rating
Applicable Motor Power	45.0 kW (60.0 HP)	55.0 kW (75.0 HP)
Rated Output Current	91.0 Amps	112.0 Amps
Rated Input Current	89.0 Amps	106.0 Amps
Overload Capacity	150% for 60 seconds	110% for 60 seconds

Input Operating Line Voltage: Three-phase, 380 V to 480 V AC, fluctuation limit of -15% to +10%.
Output Speed Frequency: 0 Hz scaling up to 599 Hz. [1, 2]

Integrated System Hardware

Dynamic Braking Unit: Integrated internal software logic. It requires an external braking resistor with a minimum resistance of 12.8 \(\Omega \).
DC Reactor Loop: Standard built-in internal DC link reactor to smooth line harmonics and maximize power factor efficiency.
Functional Safety Circuit (S): Integrated dual-channel Safe Torque Off (STO) loop certified up to SIL 3 PL e security thresholds.
EMC Attenuation (-INT): Pre-installed Category C3 internal noise filter to curb radio frequency feedback. [1, 2, 3, 4]
