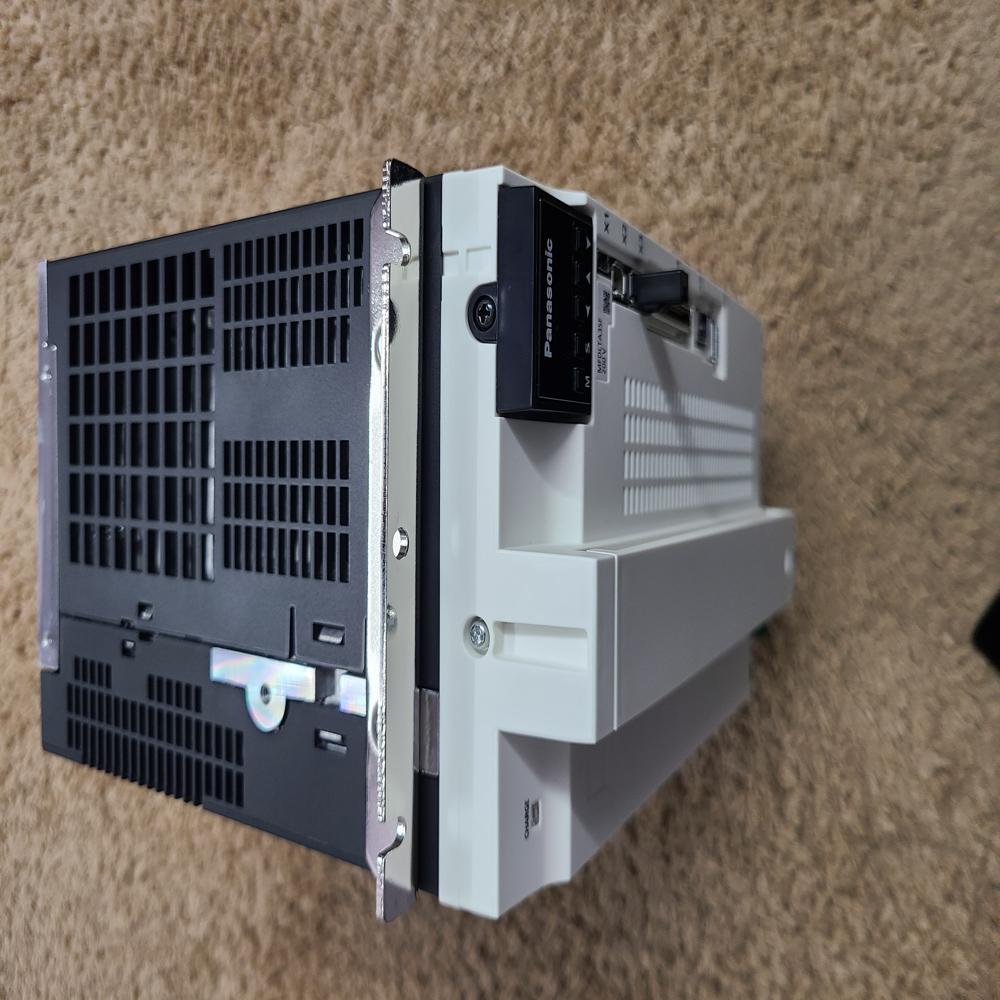

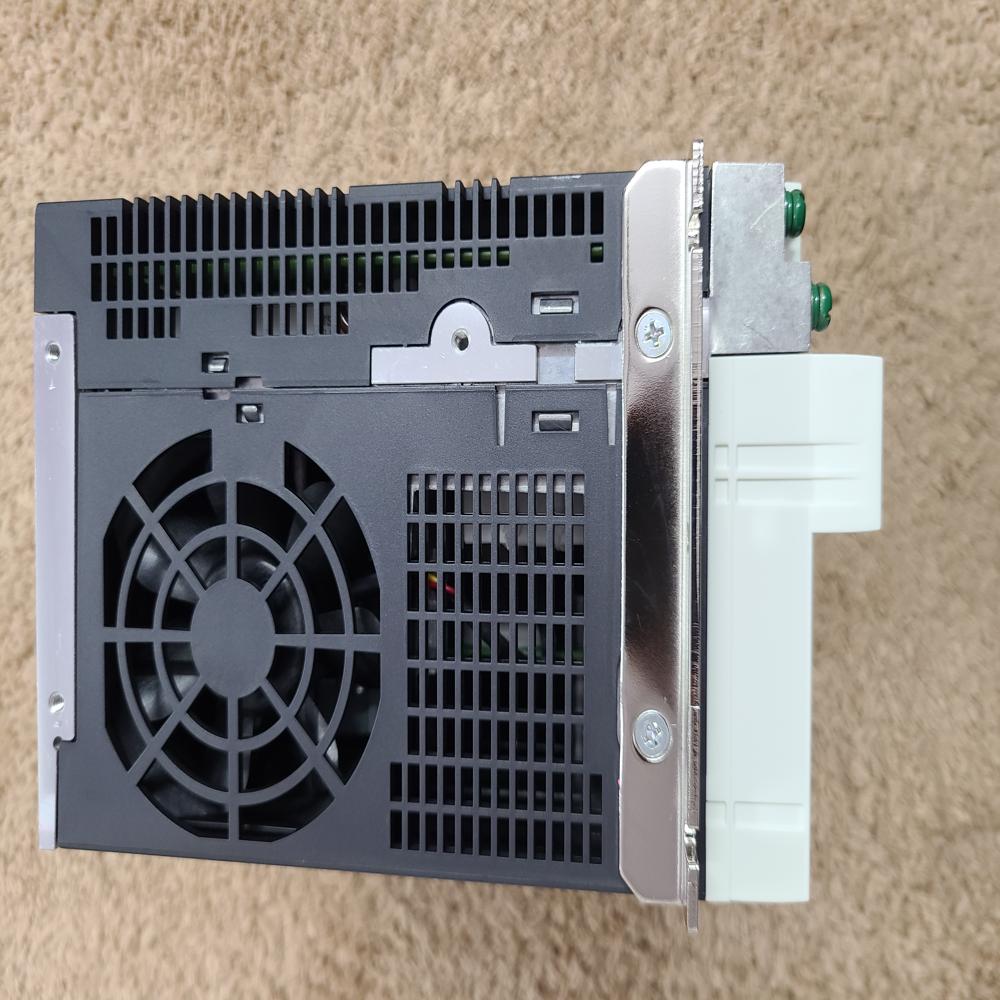

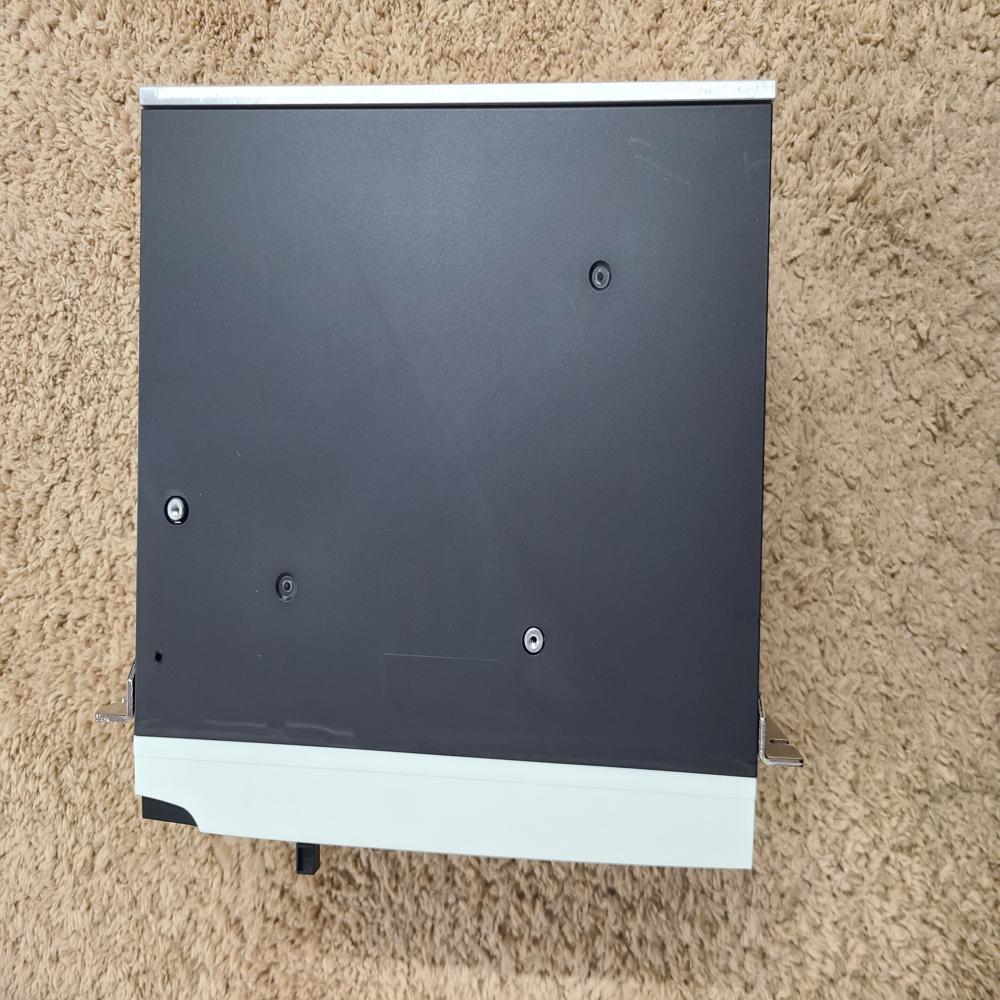

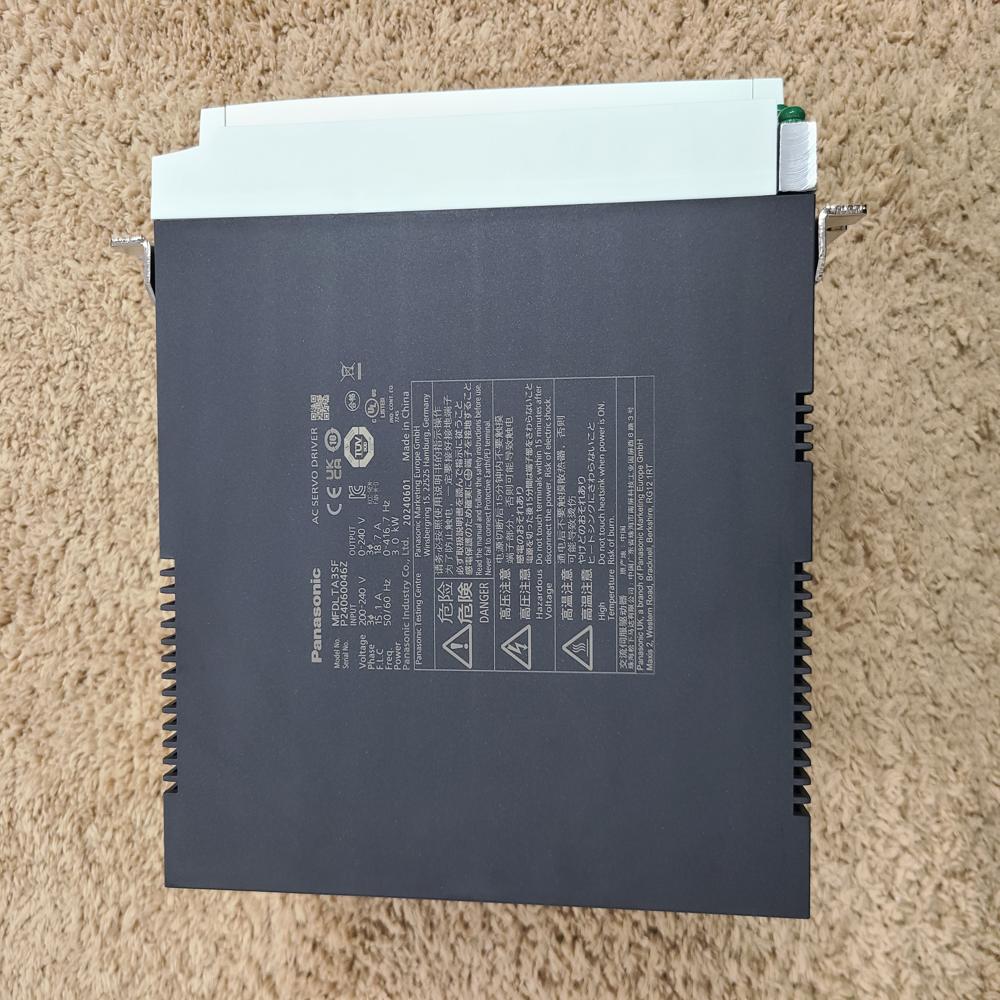

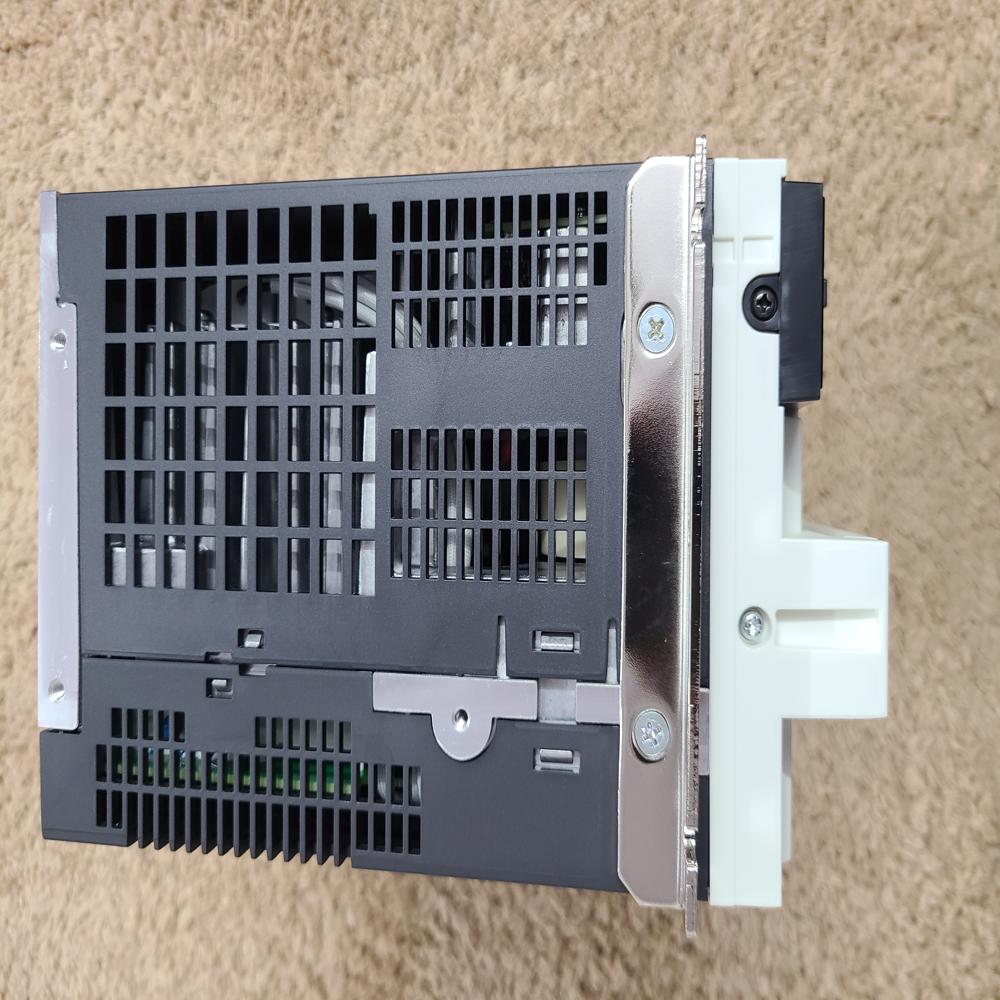

MFDLNA3NE - A6N Panasonic A6 3000W Driver

Price 134200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MFDLNA3NE - A6N Panasonic A6 3000W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
5.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MFDLNA3NE - A6N Panasonic A6 3000W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MFDLNA3NE - A6N Panasonic A6 3000W Driver

The Panasonic MFDLNA3NE (A6N series) is a 3.0 kW "F-Frame" AC servo driver specifically designed for high-speed, multi-axis synchronization using the RTEX (Realtime Express) network protocol.

Function

Real-Time Network Hub: Its primary function is to act as a node in an RTEX network. This high-speed (100 Mbps) protocol allows for cycle times as fast as 0.0625 ms, making it the "gold standard" for complex machines where many axes must move in perfect harmony.
Comprehensive Motion Control: Unlike basic models, this driver supports Position, Velocity, and Torque control modes via the network.
Safety Integration: Includes a built-in Safety Torque Off (STO) function (SIL3 compatible). This ensures that motor power can be cut instantly during an emergency while the driver remains powered for diagnostics.
Active Vibration Management: Uses a 3.2 kHz response frequency and adaptive notch filters to "cancel out" machine shaking and humming, which is critical when moving the massive loads typical of 3kW motors.

Technical Specifications

Data based on Panasonic Industry official specs:

Feature	Specification
Rated Output	3000 W (3.0 kW)
Interface	RTEX (Proprietary High-Speed Network)
Input Voltage	3-Phase 200 V to 240 V AC
Control Mode	Cyclic Synchronous Position, Velocity, and Torque
Safety Function	STO (Safe Torque Off) Standard
Max Current	100 A (Instantaneous)

Physical Dimensions & Weight

Converted to imperial units for the heavy-duty F-Frame chassis:

Weight: Approximately 11.46 lbs (5.2 kg).
Width: 5.12 inches (130 mm).
Height: 8.66 inches (220 mm).
Depth: 8.50 inches (216 mm).

Key Difference

The A6N (NE) is chosen specifically for machines using a Panasonic FP7 PLC or other RTEX-capable motion controllers. It offers significantly higher synchronization speeds and safety features compared to the basic "SE" or "SG" models.

The primary function of the Panasonic MFDLNA3NE is to act as a high-speed network command center for 3.0 kW motors, specifically using Panasonics RTEX (Realtime Express) communication. It is designed for complex, high-end machinery where multiple axes must move in perfect, millisecond-level synchronization.

1. Ultra-High-Speed Synchronized Motion (RTEX)

The "NE" series is built for RTEX networking.

The Conductor: It allows a master controller to talk to multiple drivers over a 100 Mbps high-speed cable system.
Real-Time Speed: It supports cycle times as fast as 0.0625 ms. This means it receives new instructions and sends position feedback thousands of times per secondessential for high-speed robotics, precision synchronized cutting, and complex 5-axis machining.

2. Full-Feature Control (Position, Speed, & Torque)

Unlike basic pulse-only drivers, this network model handles all three primary control modes:

Positioning: Moving a massive machine part to a specific micron-level target.
Velocity: Maintaining a perfectly steady rotation speed, even if the load resistance changes.
Torque: Controlling exactly how much "pushing force" the motor applies, which is vital for tensioning, winding, or pressing applications.

3. Integrated Safety (STO Function)

This driver functions as a critical safety component via the Safe Torque Off (STO) function.

Emergency Protection: It provides a dedicated hardware-level safety input. If a safety gate is opened or an E-Stop is pressed, the STO instantly cuts power to the motor at the hardware level, ensuring it cannot move while a human is in the danger zone, even if the software glitches.

4. High-Power "F-Frame" Delivery

It functions as the heavy-duty power stage for 3.0 kW motors.

Massive Power Conversion: It converts standard 3-phase industrial power into the high-current electrical waves (up to 100A peak) required to move several hundred kilograms of machinery with high acceleration.

5. Advanced Stabilisation (3.2 kHz Response)

The driver monitors and corrects the motor's motion thousands of times per second to prevent mechanical vibration.

Resonance Suppression: It identifies the specific "hum" or vibration frequency of your machine frame and electronically cancels it out. This allows the machine to run at much higher speeds without noise or mechanical wear.
23-bit Feedback: It processes the 8.38 million pulses per turn from the motors encoder and feeds this data back to the RTEX master for perfect machine transparency.
