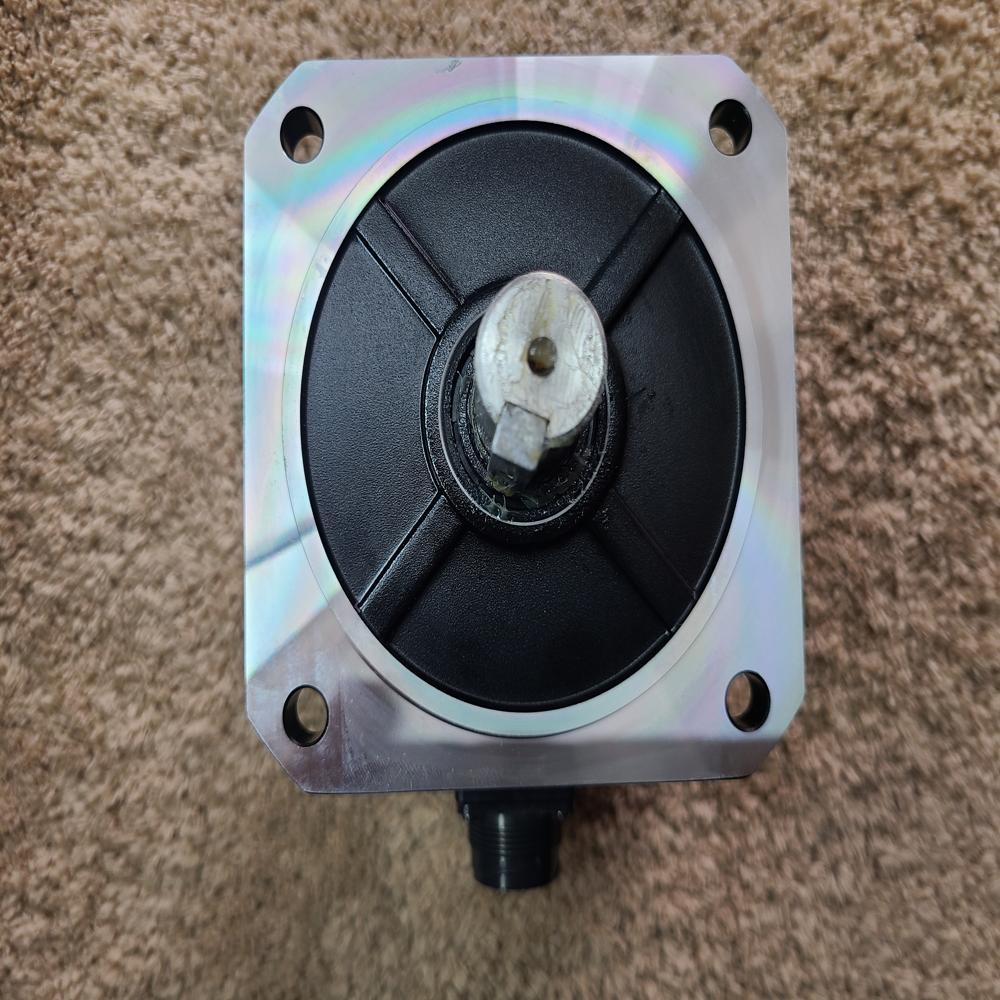

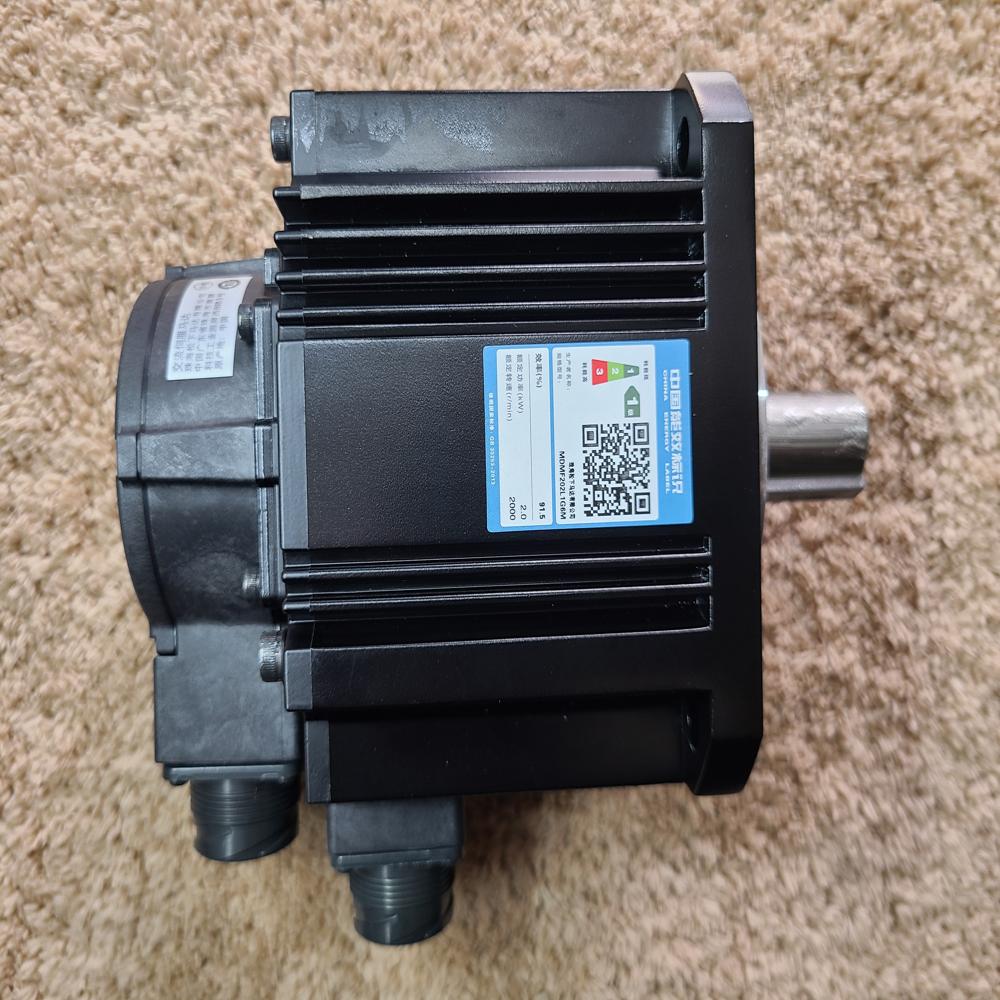

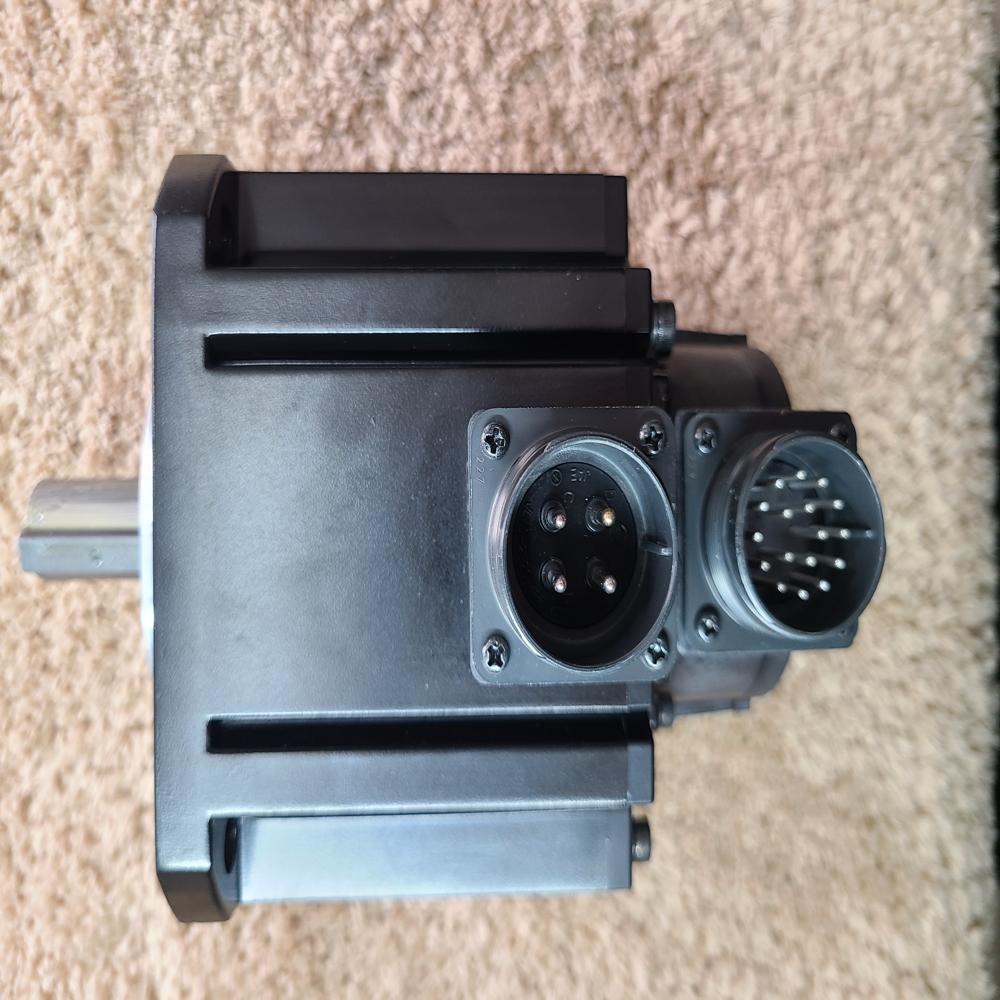

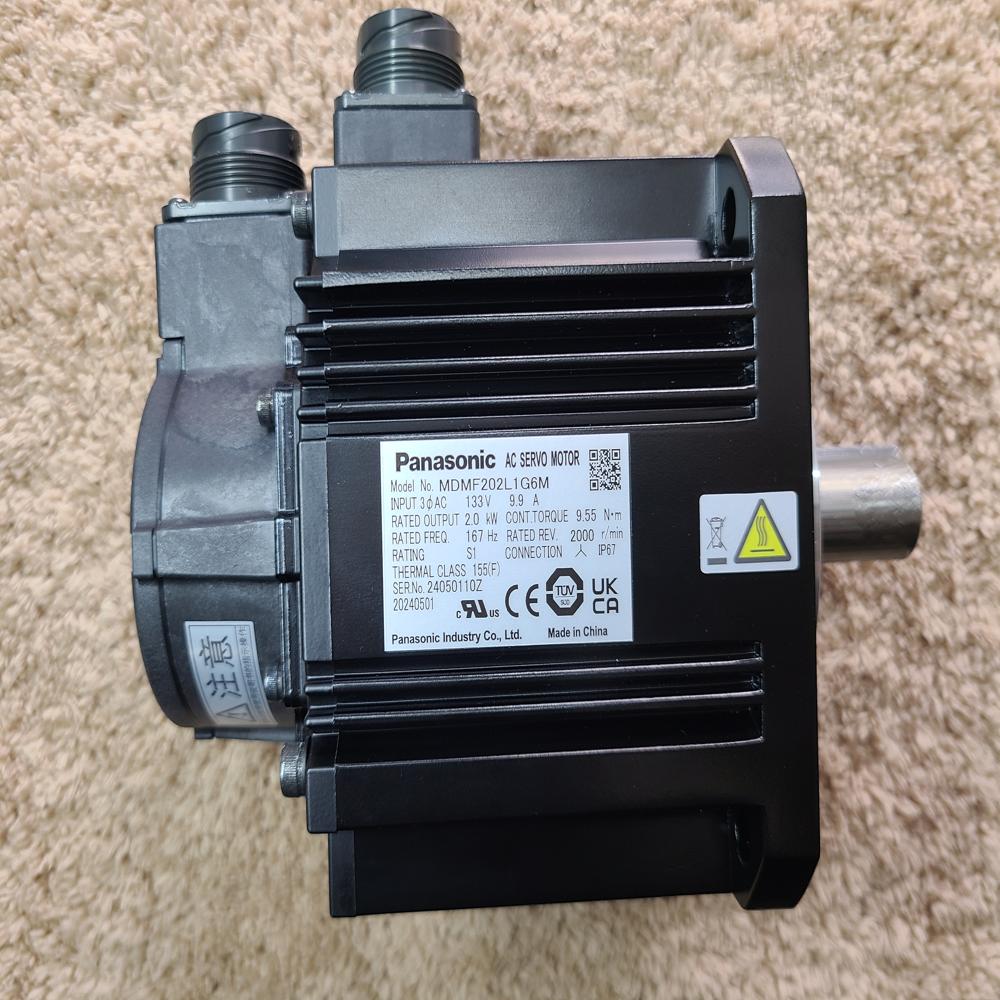

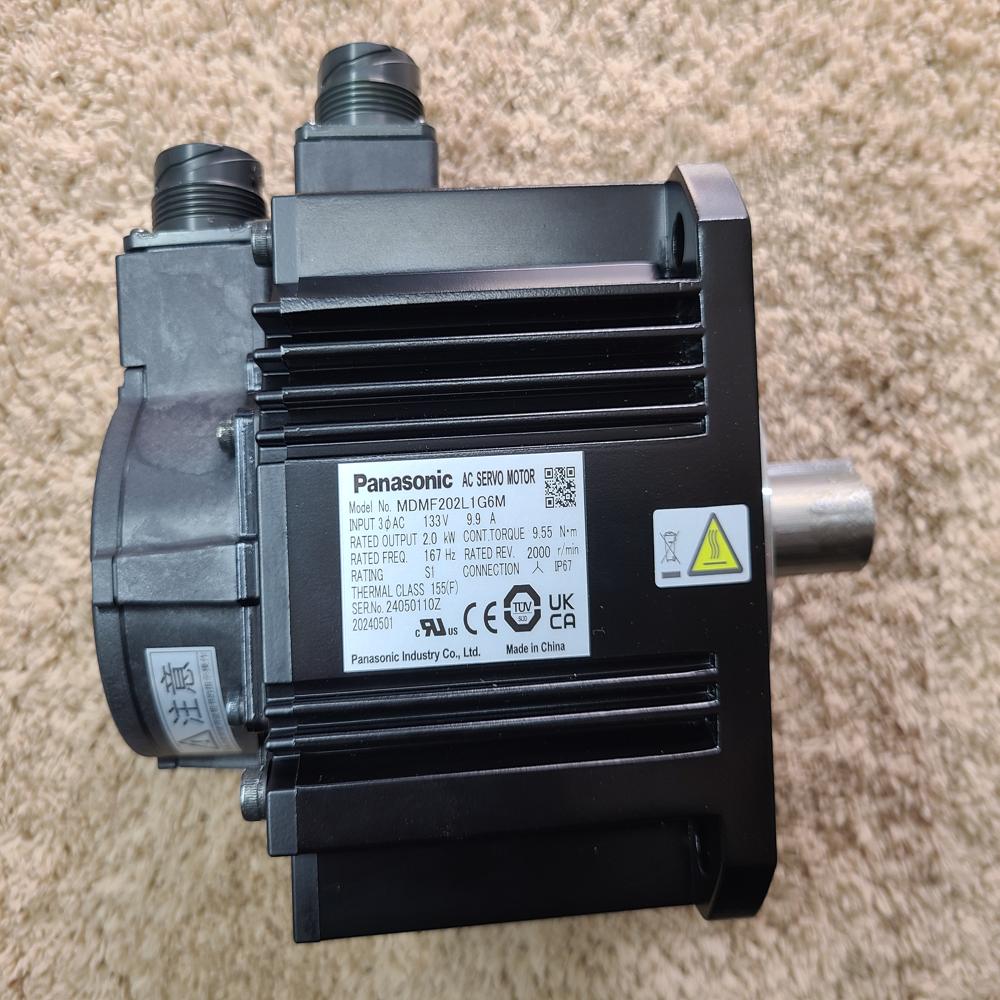

MDMF202L1G6M Panasonic A6 2000W Motor , Torque Nm - 9.55, RPM - 2000

Price 53200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MDMF202L1G6M Panasonic A6 2000W Motor , Torque Nm - 9.55, RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
6.9 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MDMF202L1G6M Panasonic A6 2000W Motor , Torque Nm - 9.55, RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MDMF202L1G6M Panasonic A6 2000W Motor , Torque Nm - 9.55, RPM - 2000

The Panasonic MDMF202L1G6M is a 2000W (2.0 kW) Middle-Inertia AC servo motor from the MINAS A6 series. Unlike the high-speed MSMF models, this motor is designed for high-torque stability. [1]

Function

High-Torque Performance: Delivers a robust 9.55 Nm of rated torque, making it suitable for driving heavy mechanical loads in applications like large CNC machining or metal processing.
Middle Inertia Stability: The middle-inertia rotor design provides superior stability and smoother motion control for applications with moderate to high mechanical inertia, significantly reducing vibration.
Precision Positioning: Equipped with a 23-bit absolute/incremental encoder (8,388,608 pulses/rev) to ensure extreme accuracy.
Industrial Durability: Rated IP67, making it dust-tight and resistant to water immersion. [1, 2, 3, 4, 5]

Technical Specifications

Based on official technical data from Panasonic Industry:

Feature [1, 2, 3, 4, 5]	Specification
Rated Output	2000 W (2.0 kW)
Rated Torque	9.55 Nm
Peak Torque	28.7 Nm
Rated Speed	2000 RPM
Max Speed	3000 RPM
Voltage	200 V AC
Holding Brake	Without Brake

Physical Dimensions & Weight

Converted to imperial units for standard reference:

Weight: Approximately 15.21 lbs (6.9 kg).
Flange Width & Height: 5.12 inches (130 mm square).
Length (Motor Body): Approximately 6.81 inches (173 mm).
Shaft Diameter: 0.866 inches (22 mm). [1, 2, 3, 4]

The primary function of the Panasonic MDMF202L1G6M is to provide high-torque, stable motion for heavy-duty industrial machinery. Unlike the "Low Inertia" models (MSMF) that focus on raw speed, this "Middle Inertia" (MDMF) motor is the "power lifter" of the 2kW class.

1. High-Torque Heavy Lifting

With a rated torque of 9.55 Nm (and a peak of 28.7 Nm), its main role is to move heavy mechanical loads that require significant force to get started. It is commonly used in:

Large CNC Milling & Lathes: Moving heavy cutting heads or worktables.
Metal Processing: Powering presses or bending machines.
Material Handling: Driving large conveyors or heavy-duty gantry systems.

2. "Middle-Inertia" Load Matching

The "Middle-Inertia" designation is a critical functional feature:

The Stabilizer: If you put a heavy load on a lightweight motor, the system becomes unstable and vibrates. This motor has a heavier internal rotor which acts as a "balance," providing a better inertia match for larger mechanical parts.
Smooth Motion: It ensures the machine moves smoothly even when the load changes, making it much easier to tune the servo system for steady operation.

3. Precision at Power

Despite its high torque, it functions with extreme accuracy:

Micro-Positioning: The 23-bit encoder allows the motor to divide a single turn into over 8 million steps. This ensures that even when moving heavy parts, they land exactly where they are supposed towithin microns.
3.2 kHz Response: It communicates with the driver thousands of times per second to instantly correct any deviations in speed or position.

4. Continuous Heavy Operation

Thermal Efficiency: Designed to run at its rated 2000 RPM continuously under load without overheating.
Environmental Protection: Its IP67 rating means it is fully protected against dust and liquid splashes, allowing it to function reliably in "dirty" environments like machine shops where oil and coolant are present.
