MGMF242L1G6M Torque Nm - 15.3, Fram Size- 176mm , RPM - 3000

Price 79000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MGMF242L1G6M Torque Nm - 15.3, Fram Size- 176mm , RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
13.8 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MGMF242L1G6M Torque Nm - 15.3, Fram Size- 176mm , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MGMF242L1G6M Torque Nm - 15.3, Fram Size- 176mm , RPM - 3000

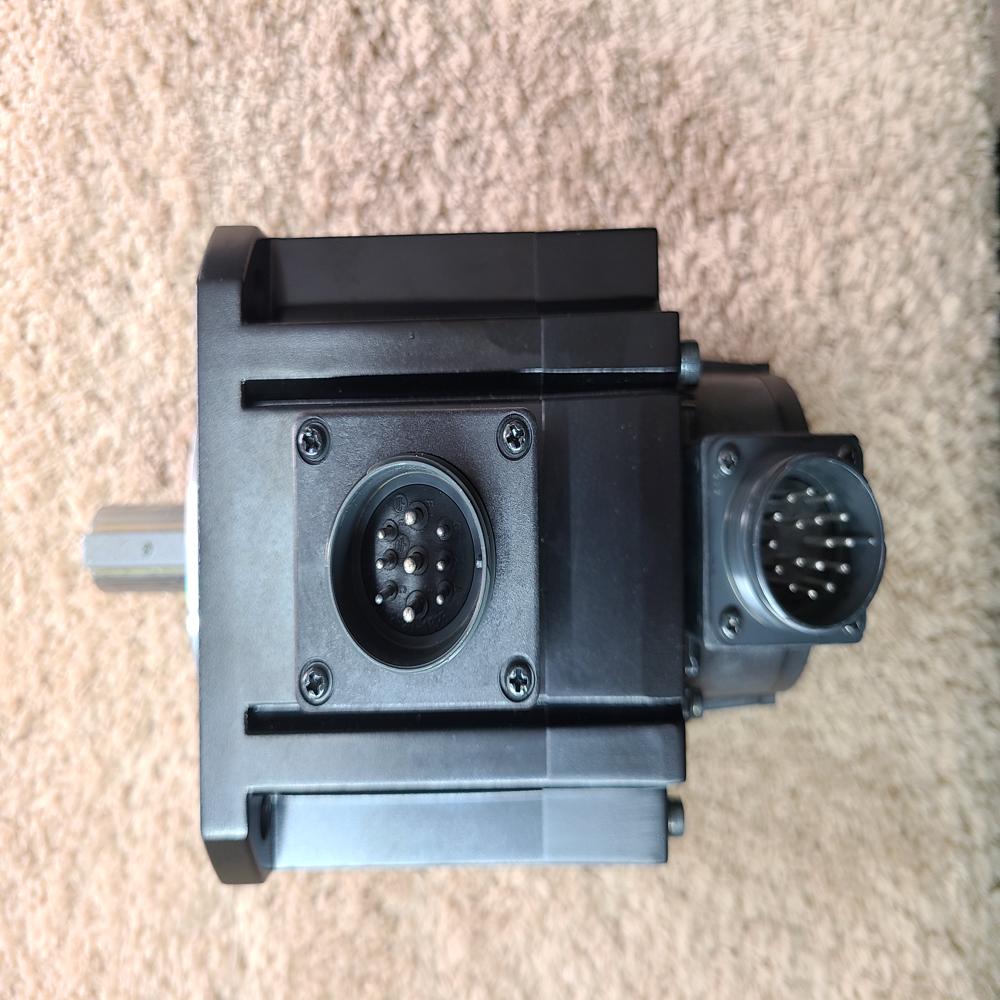

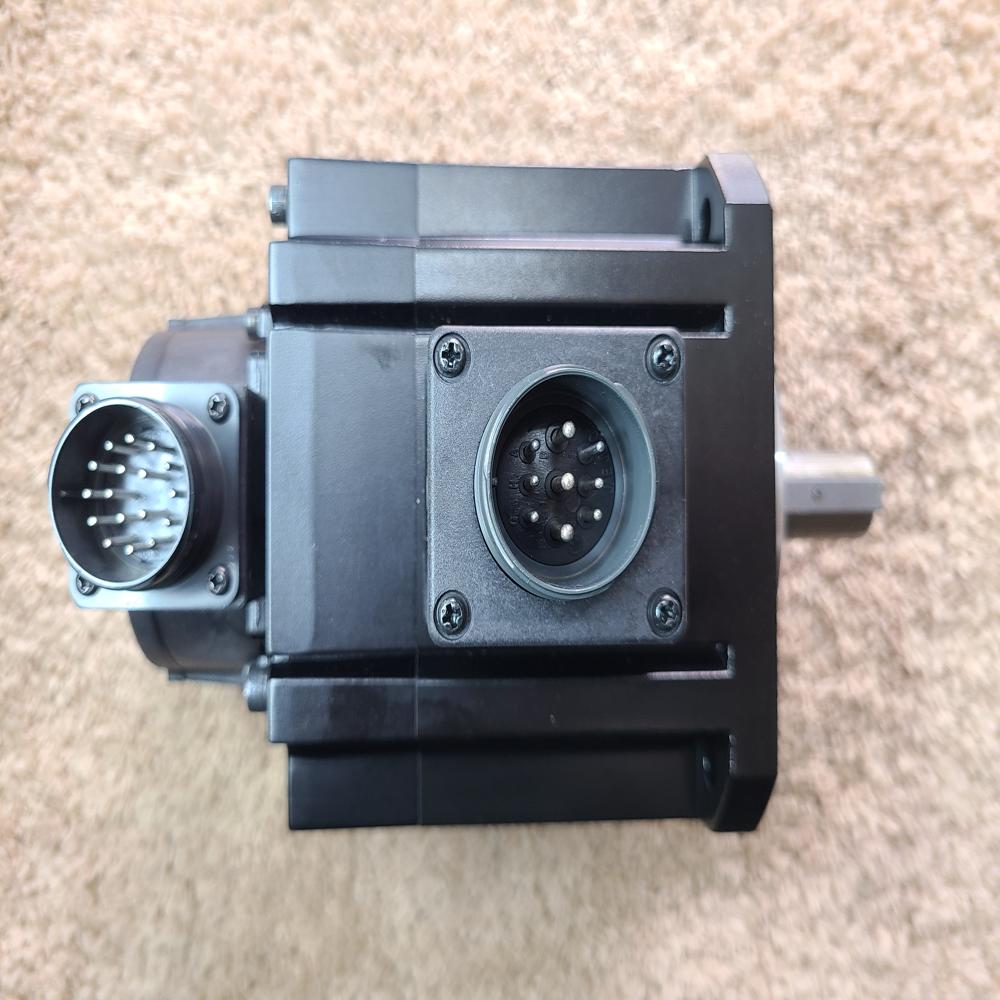

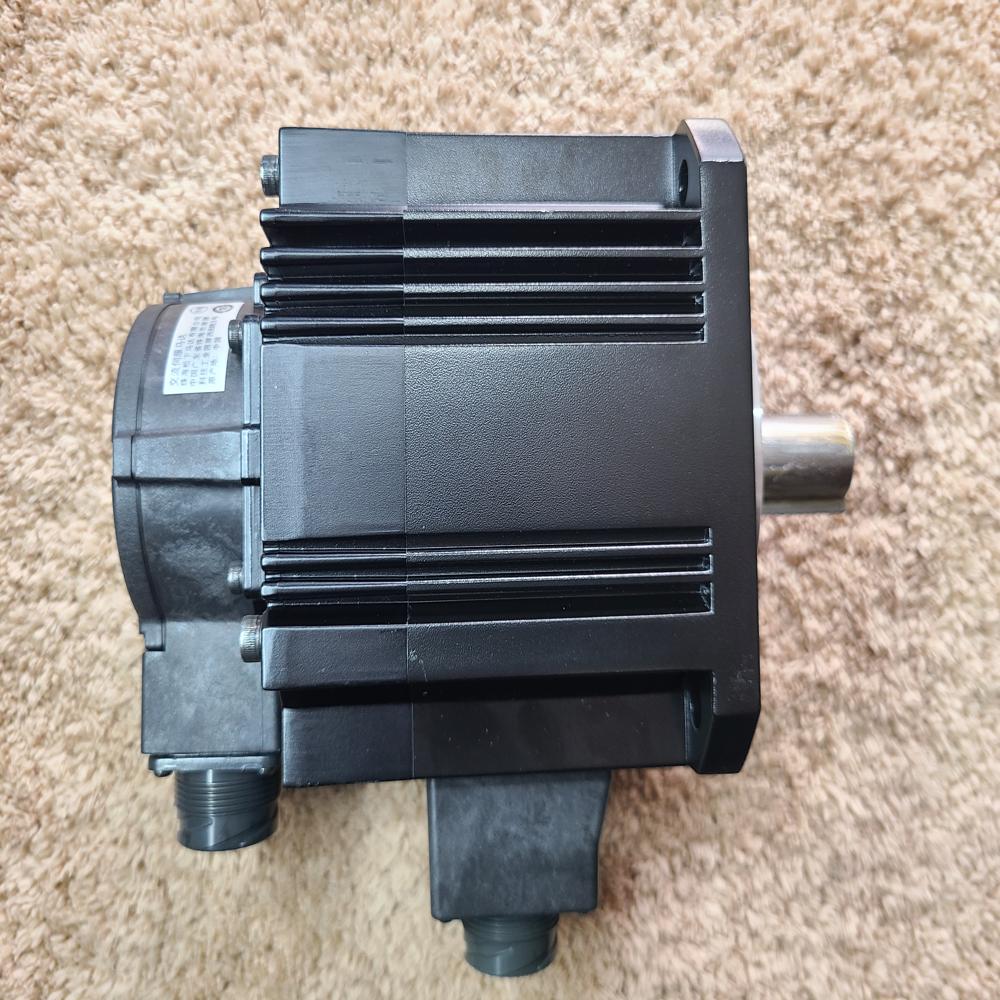

The Panasonic MINAS A6 MGMF242L1G6M is a high-power 2.4 kW (2400 W) middle inertia AC servo motor. Stepping up to the 176 mm frame size, it offers a massive jump in torque while maintaining a high rated speed of 3000 RPM.

Core Technical Specifications

Rated Output: 2400 W (2.4 kW).
Rated Torque: 15.3 Nm.
Peak Torque: 45.9 Nm.
Rated Speed: 3000 r/min (Max: 4500 r/min).
Rated Current: 14.1 A (rms).
Voltage: 200 V AC.

Physical Dimensions (Inches)

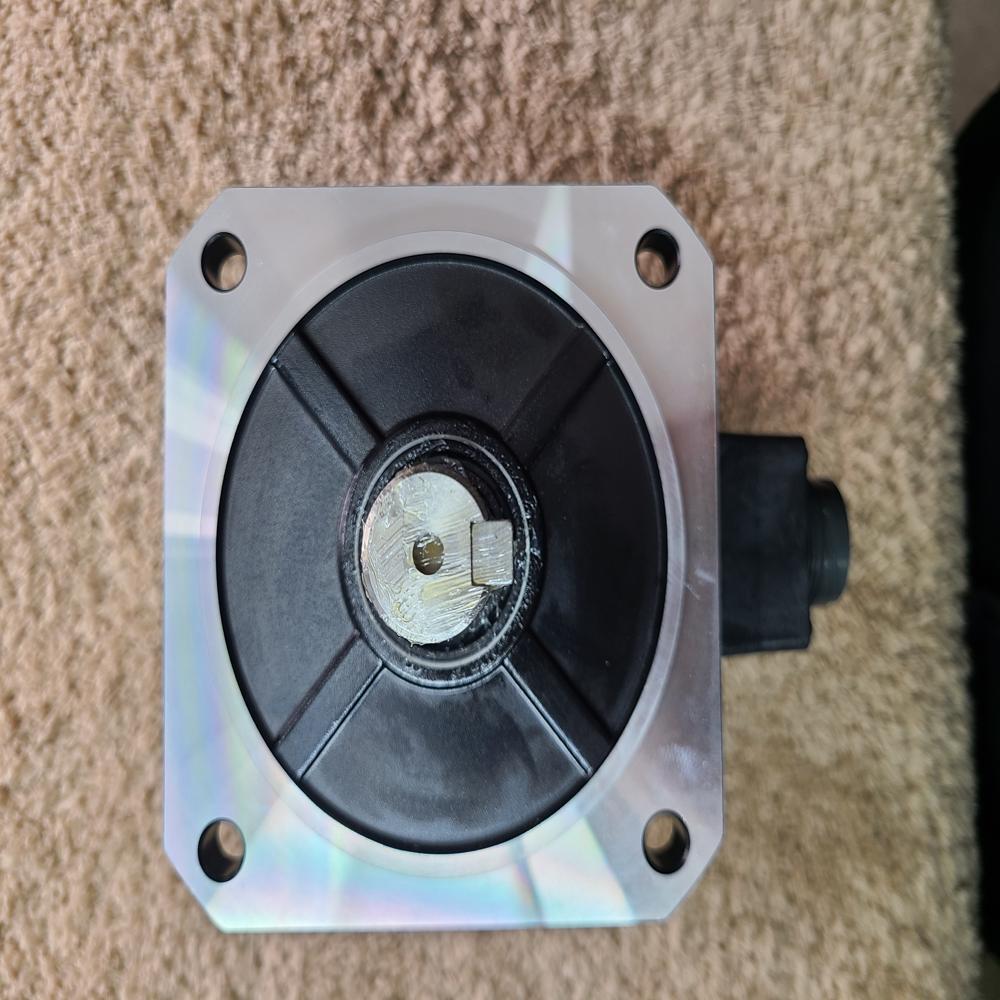

Width & Height (Flange): 6.93" (176 mm square).
Body Length: 6.81" (173 mm).
Total Length (Body + Shaft): 9.92" (252 mm).
Weight: Approximately 30.4 lbs (13.8 kg).
Shaft Diameter: 1.38" (35 mm).

Key Features

Large Frame Stability: The 176 mm frame and Middle Inertia design make this motor exceptionally stable for moving heavy gantries or large ball screws without vibration.
Ultra-High Resolution: Uses the 23-bit absolute encoder (8.38 million pulses/rev) for surgical precision.
Robust Shaft: Features a much thicker 35 mm shaft compared to the 130 mm frame motors to handle the 45.9 Nm peak torque.
Protection: IP67 rated for full protection against dust and water/oil spray.
G6M Design: This specific model is without a holding brake.

The Panasonic MGMF242L1G6M functions as a High-Performance Heavy-Duty Drive. Moving into the larger 176mm frame size, it is designed to provide massive "pushing power" (15.3 Nm) while maintaining the high speed (3000 RPM) needed for rapid industrial production.

1. High-Force Prime Motion

The primary function is delivering high torque at high velocity:

15.3 Nm Continuous Torque: It functions to move large mechanical assemblies, such as heavy CNC gantries or large lead screws, at full speed without losing synchronization.
45.9 Nm Peak Burst: It can provide a 3x "punch" of torque for milliseconds. This is critical for overcoming "stiction" (static friction) in heavy machines during rapid starts.

2. Extreme Stability (Middle Inertia)

Because this is a Middle Inertia motor in a large 176mm frame, its physical build serves a specific stabilization function:

Load Matching: The internal rotor has significant mass, which acts as a mechanical "damper." This functions to prevent the machine from "shaking" or vibrating when it is attached to heavy or high-friction loads.
Smooth Control: It is ideal for machines where the load weight might vary (like a robot arm picking up different parts), as the motor's own inertia keeps the motion consistent.

3. Surgical Precision on a Large Scale

Despite its 30.4 lb weight, its function remains microscopic:

23-bit Position Feedback: It monitors its position at 8,388,608 unique points per turn. This allows a massive machine axis to position parts with a precision thinner than a human hair.
Absolute Tracking: It functions to "remember" its location. You don't need to perform a "homing" sequence when the machine starts up; the motor knows exactly where it is immediately.

4. Heavy-Duty Mechanical Interface

35mm Shaft: The shaft is extra thick to function as a bridge for the massive 45.9 Nm peak torque without bending or snapping under stress.
IP67 Sealing: It is designed to function in the "wet" areas of a factory. It is fully protected against dust and can be sprayed with high-pressure cutting oils or coolants.

Typical Applications

Large CNC Milling/Boring: Driving the primary X or Y axis.
Injection Moulding: Powering auxiliary movements in high-tonnage machines.
Industrial Material Handling: Moving heavy pallets or automotive components at high speed.
