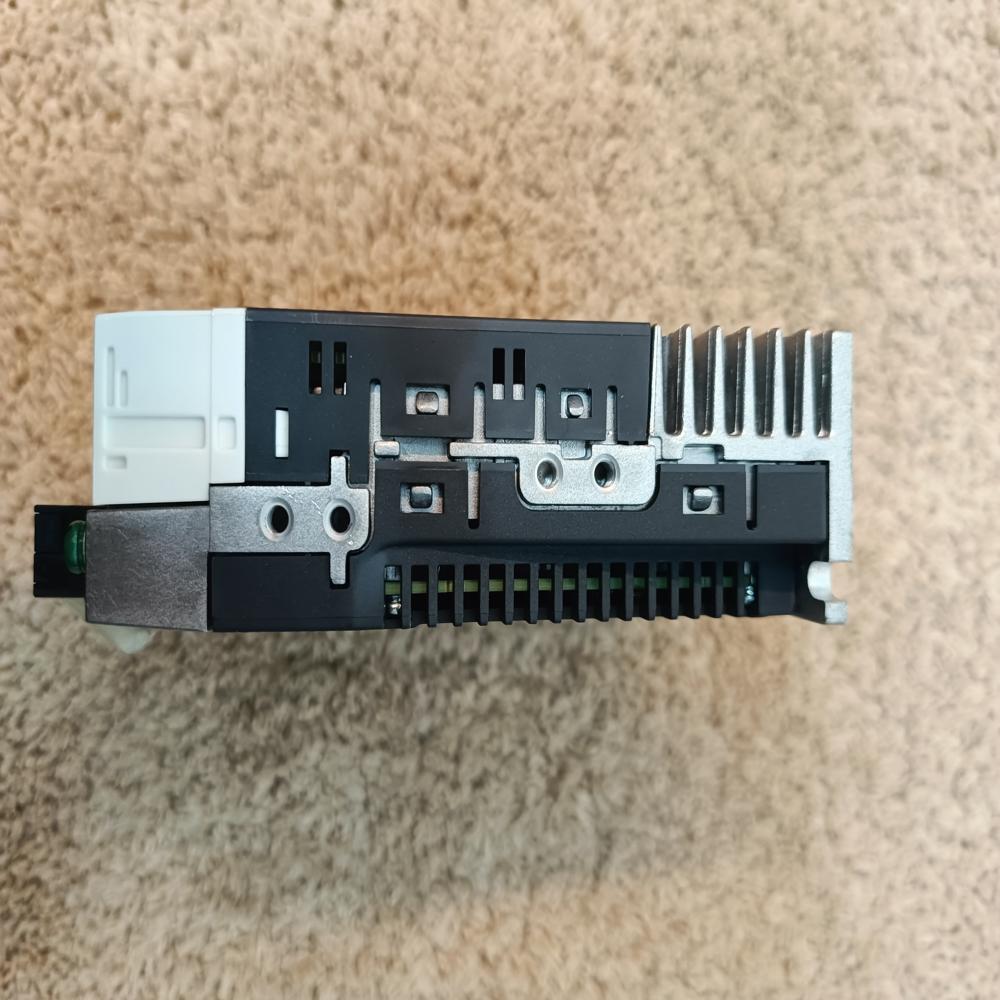

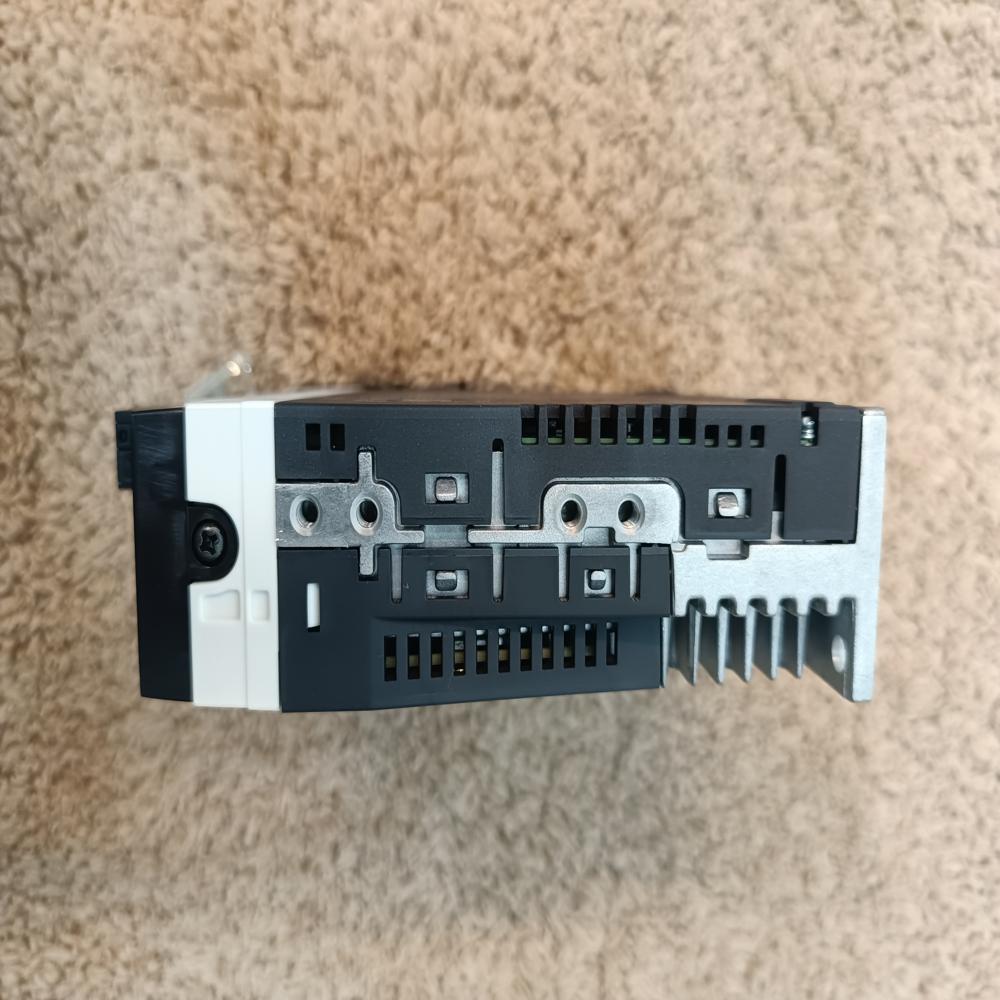

MADLN05BE - E-CAT Panasonic A6 100W Driver

About MADLN05BE - E-CAT Panasonic A6 100W Driver

Core Functions

1. EtherCAT Real-Time Control

• Uses EtherCAT (E-CAT) communication
• High-speed industrial network (real-time data exchange)
• No pulse wiring needed

Enables precise and synchronized control across multiple axes

2. Position Control

• Moves motor to exact coordinates
• Used in:
  • CNC machines
  • Robotics
  • Pick-and-place systems

3. Speed Control

• Maintains constant or variable motor speed
• Useful for conveyors, rollers, feeders

4. Torque Control

• Controls force/torque output
• Used in:
  • Winding machines
  • Pressing applications

5. Multi-Axis Synchronization

• Multiple servo drives work together via EtherCAT
• Perfect timing between axes

Critical for:

• Packaging lines
• Printing machines
• Automation systems

6. High-Speed Performance

• Fast response (~3.2 kHz typical A6 performance)
• Smooth motion even at high speeds

7. Closed-Loop Feedback Control

• Uses encoder feedback to:
  • Compare command vs actual motion
  • Correct errors instantly

Ensures high accuracy

Key Technical Points

• Power: 100W class
• Voltage: 200230V AC
• Current: ~6A output
• Interface: EtherCAT
• Frame: A-frame (compact)

What It Does NOT Do

• No pulse input control (not like SE/SG)
• Requires EtherCAT master (PLC/motion controller)
• Not suitable for simple standalone machines

Simple Understanding

• SE Basic (pulse only)
• SG Pulse + communication
• SF Multifunction standalone
• N RTEX network
• BE EtherCAT network (industry standard)

MADLN05BE = high-end industrial network servo driver

Typical Applications

• Advanced CNC machines
• Robotics & automation lines
• High-speed packaging machines
• Semiconductor equipment

Bottom Line

• Function = Full servo control via EtherCAT network
• Supports:
  • Position
  • Speed
  • Torque
• Best for:
  Modern industrial automation with EtherCAT systems
