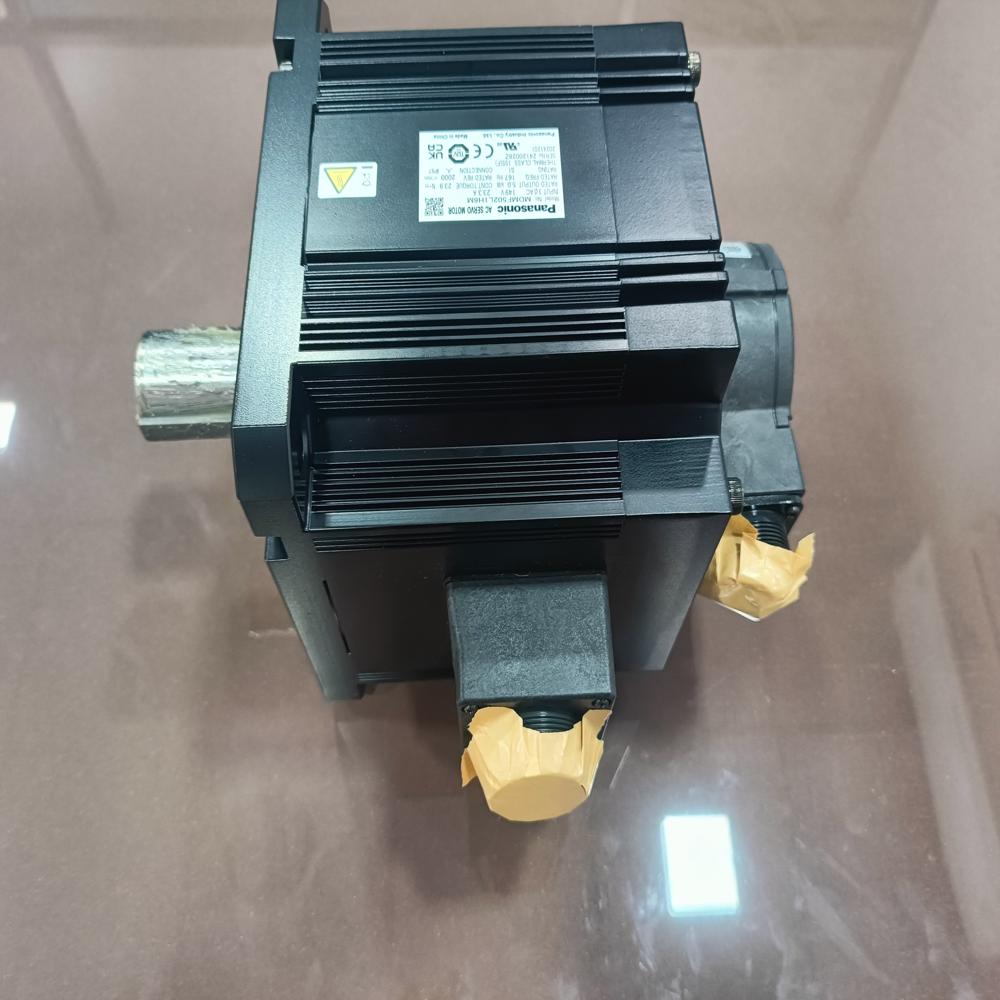

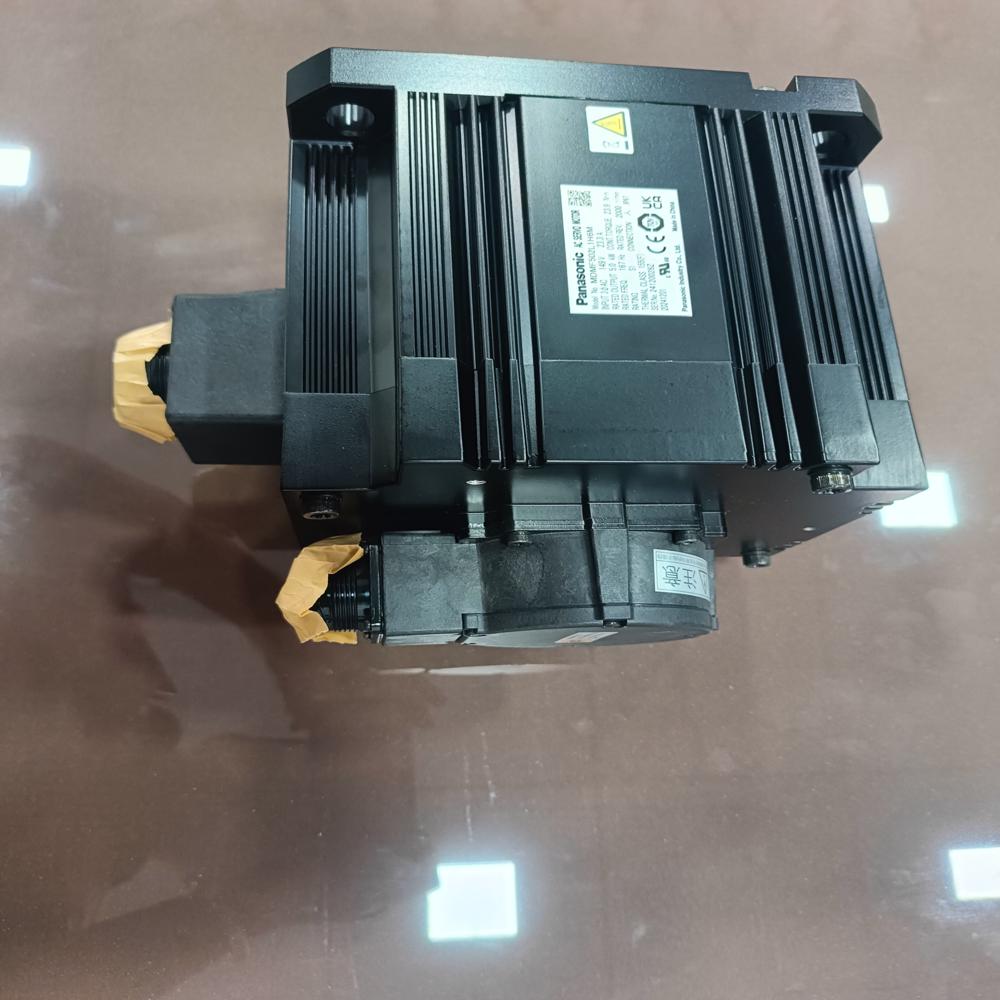

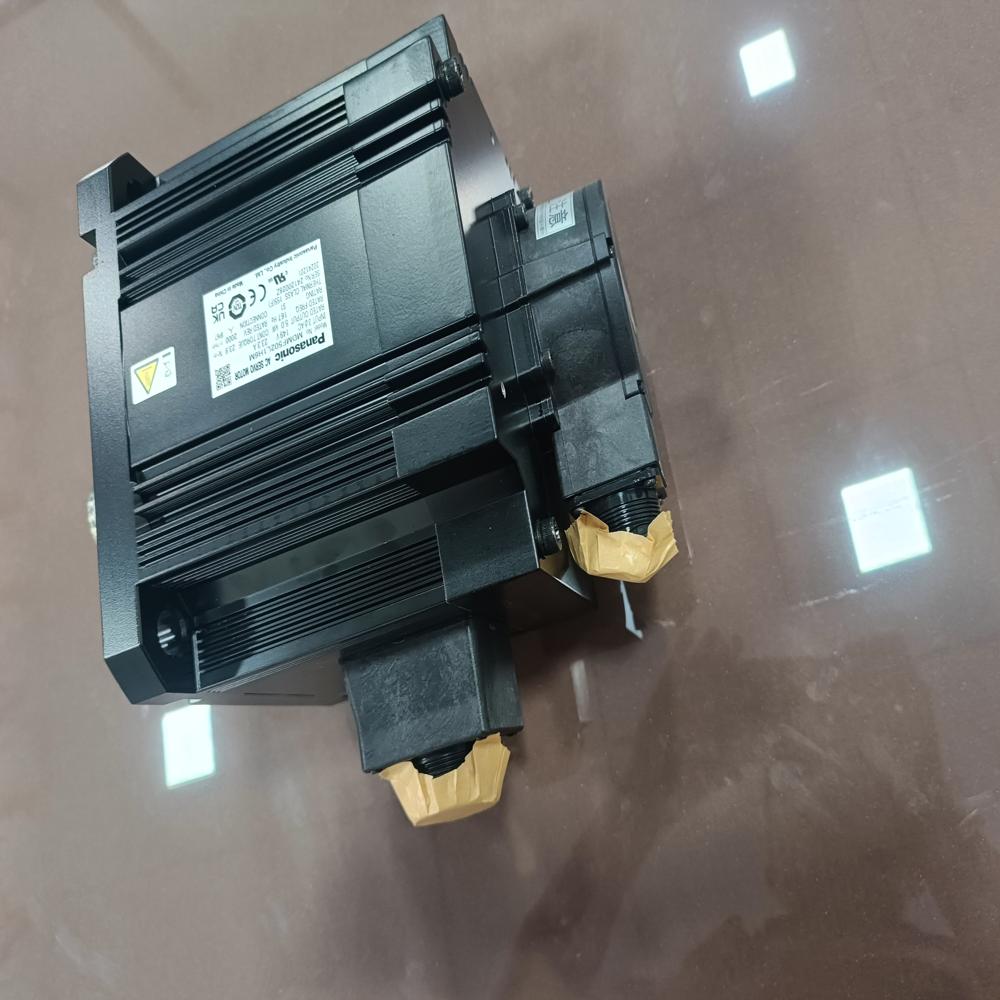

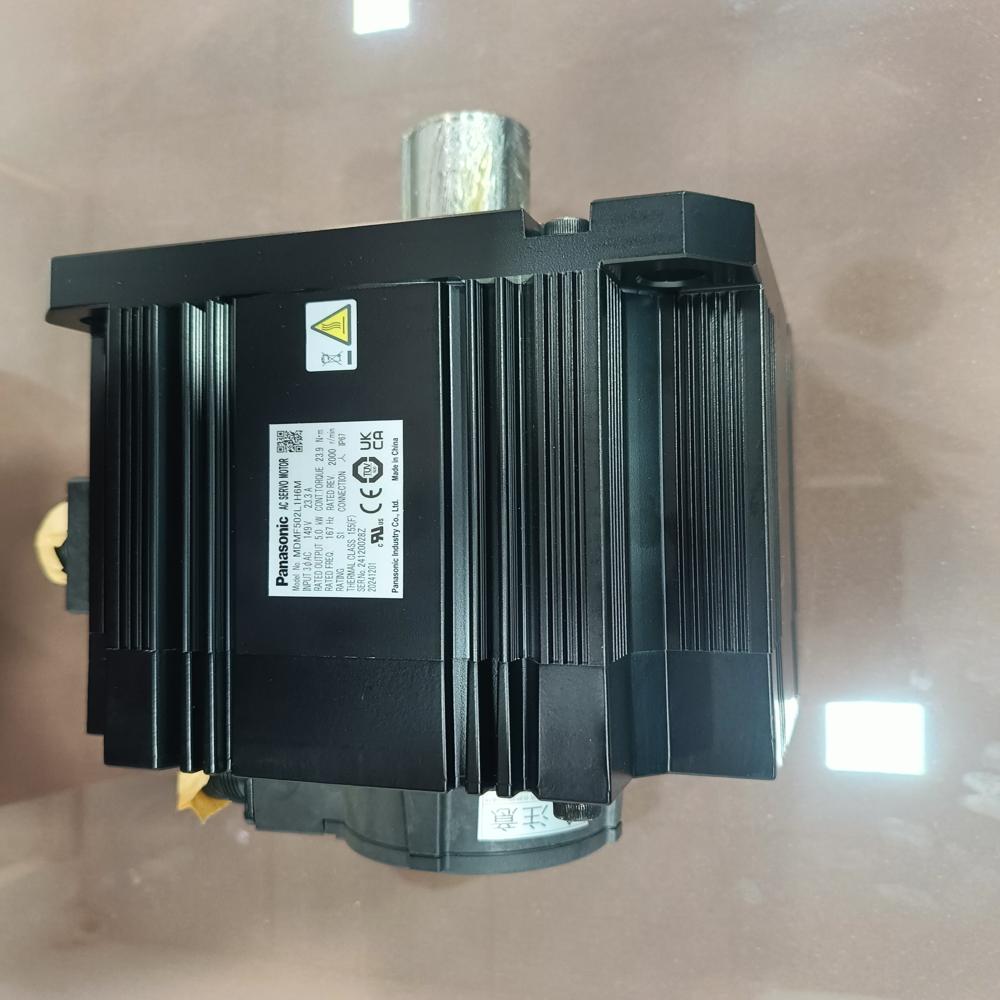

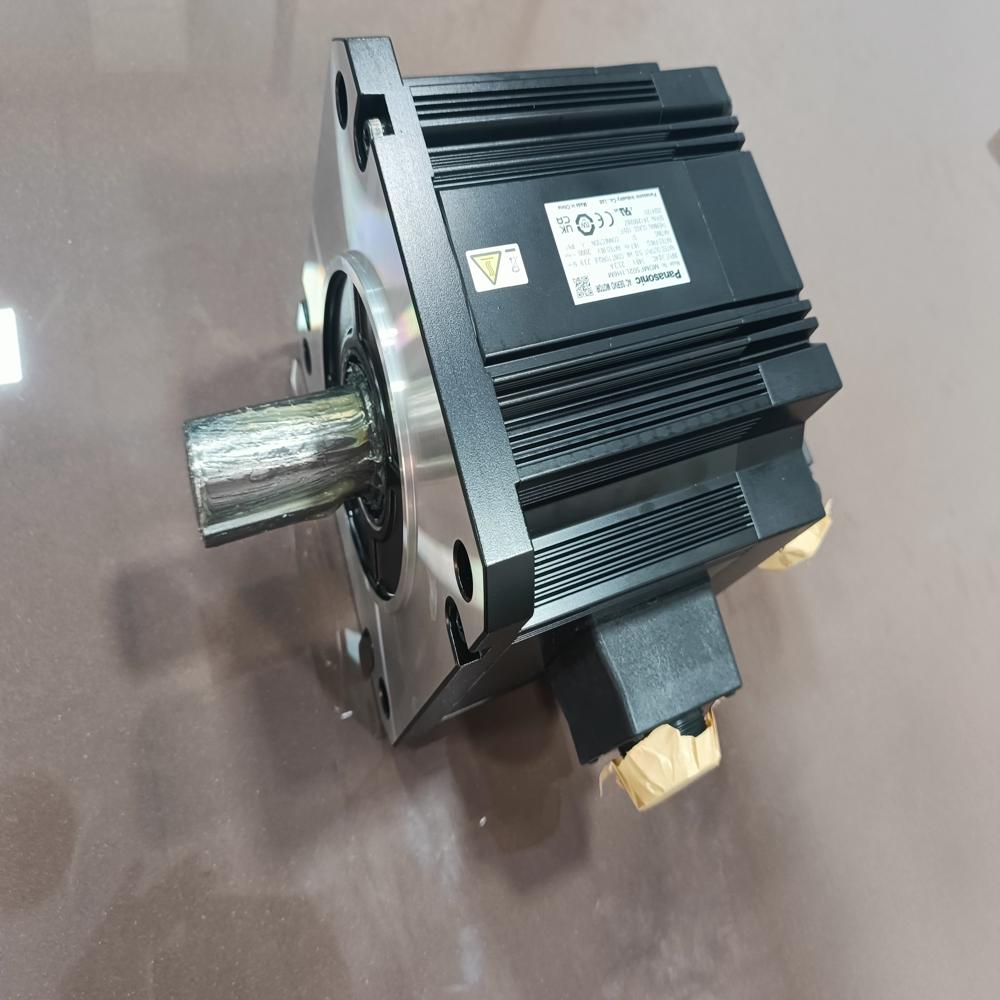

MDMFC52L1G6M Panasonic A6 15000W Motor , Torque Nm - 95.5, RPM - 1500

Price 387000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MDMFC52L1G6M Panasonic A6 15000W Motor , Torque Nm - 95.5, RPM - 1500 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
60.3 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MDMFC52L1G6M Panasonic A6 15000W Motor , Torque Nm - 95.5, RPM - 1500 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MDMFC52L1G6M Panasonic A6 15000W Motor , Torque Nm - 95.5, RPM - 1500

The Panasonic MINAS A6 MDMFC52L1G6M is an exceptionally powerful 15,000 W (15 kW) middle inertia AC servo motor. It is part of the high-output end of the MINAS A6 family, designed for massive industrial machinery that requires both heavy-duty force and precision. [1, 2, 3, 4]

Core Technical Specifications

Rated Output: 15,000 W (15 kW).
Rated Torque: 95.5 Nm.
Momentary Max Peak Torque: 224 Nm.
Rated Speed: 1500 r/min.
Maximum Speed: 2000 r/min.
Rated Current: 65.8 A (rms).
Voltage: 200 V AC. [1]

Physical Dimensions & Build

Weight: Approximately 132.9 lbs (60.3 kg).
Flange Size: 8.66 inches (220 mm square).
Protection: IP67 rated, making it dust-tight and resistant to water immersion.
Encoder: 23-bit Absolute/Incremental (8,388,608 pulses per revolution).
Brake: This specific model (G6M) is without a holding brake. [1, 2]

Primary Functions

Extreme Heavy-Duty Motion: With a continuous torque of 95.5 Nm and a peak burst capacity of 224 Nm, this motor functions as the primary driver for massive industrial equipment like large-scale presses, heavy-duty injection moulding machines, and large CNC machining centres.
Middle Inertia Stability: Its design provides high stability for loads with significant inertia, preventing mechanical resonance and ensuring smooth, controlled motion even when moving several tons of machinery.
High-Resolution Precision: Despite its massive power, it retains sub-micron positioning accuracy thanks to the 23-bit encoder, allowing for surgical precision in large-scale manufacturing.
Harsh Environment Operation: The IP67 enclosure ensures the motor functions reliably in environments with heavy coolant spray, oil, or metallic dust

The Panasonic MDMFC52L1G6M functions as an Extreme-Power Industrial Prime Mover. At 15 kW, it is one of the most powerful servo motors in the MINAS A6 lineup, designed to move massive mechanical loads with the precision of a much smaller motor.

1. Massive Torque Generation (Power Function)

The primary function is the delivery of 95.5 Nm of continuous torque.

High-Force Output: It is designed to maintain this 95.5 Nm force even at its rated speed of 1500 RPM.
Peak "Breakaway" Force: It can produce a momentary burst of 224 Nm of torque. This is critical for overcoming "stiction" in massive machines, such as starting a heavy conveyor belt or a large injection molding screw from a dead stop.

2. High-Inertia Load Stabilization

This motor is a Middle Inertia type, which serves a specific mechanical function:

Damping & Control: By having a larger internal rotor mass, it acts as a "stabilizer" when moving very heavy machine parts. It prevents the "whipping" or "vibration" effect that occurs when a high-power motor tries to move a load that is many times its own weight.

3. Precision at a Massive Scale

Despite its 133 lb (60 kg) size, its function is surgical:

Sub-Micron Resolution: The 23-bit encoder allows the controller to see 8,388,608 unique positions in a single circle. On a large machine with a 10-foot lead screw, this motor can position a heavy cutting head with a precision of a few micrometers.
Zero-Point Memory: It functions to retain its exact location without battery backup (Absolute mode), meaning a 15 kW machine can start working immediately upon power-up without a "homing" cycle.

4. Heavy-Duty Heat & Environment Management

Continuous Duty: It is engineered to dissipate the massive heat generated by 65.8 Amps of current. It functions at full capacity 24/7 in hot factory environments.
Fluid Protection (IP67): It is built to function while submerged or sprayed with industrial fluids. It is commonly used in machines where high-pressure coolant or hydraulic oil is present.

Typical Applications

Large Injection Molding: Powering the main clamping or injection stroke.
Stamping Presses: Providing the precision drive for heavy metal forming.
Material Handling: Driving high-speed, heavy-load transfer systems in automotive assembly.
Large-Scale CNC: Moving the heavy gantries of multi-axis milling machines.
