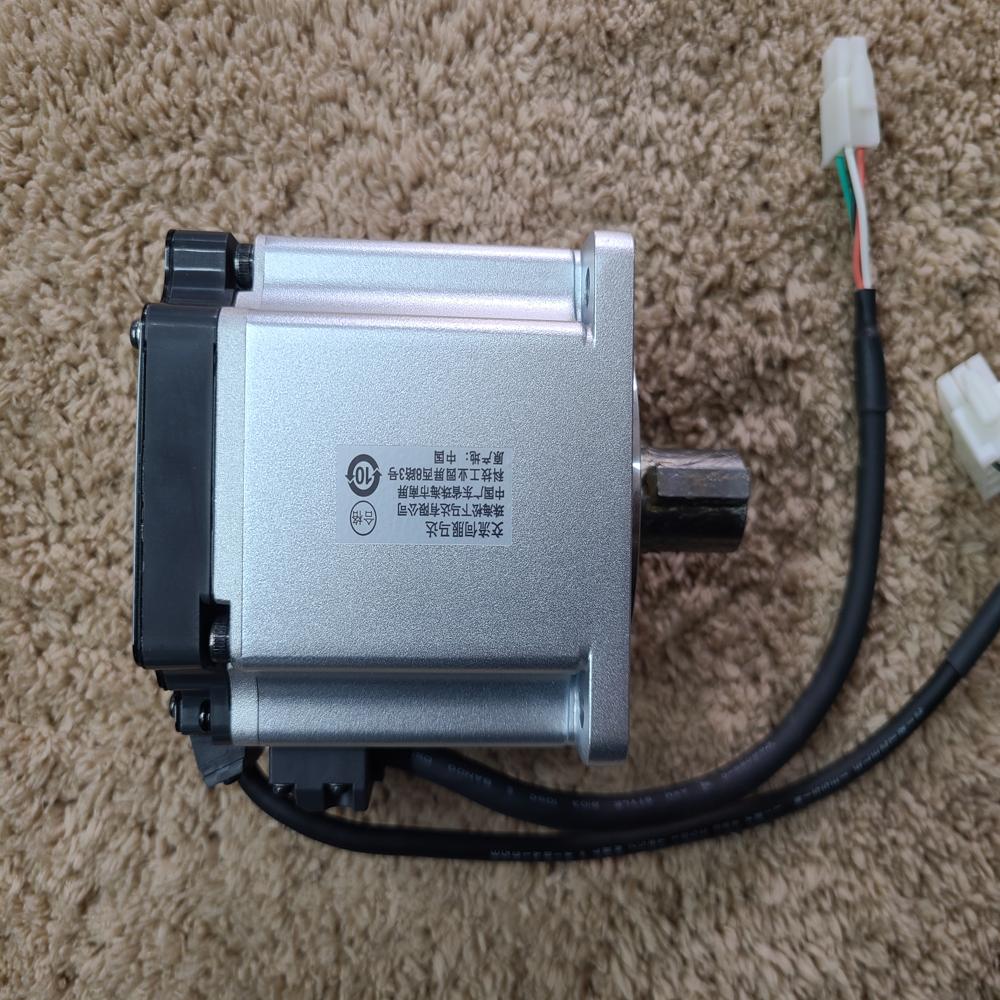

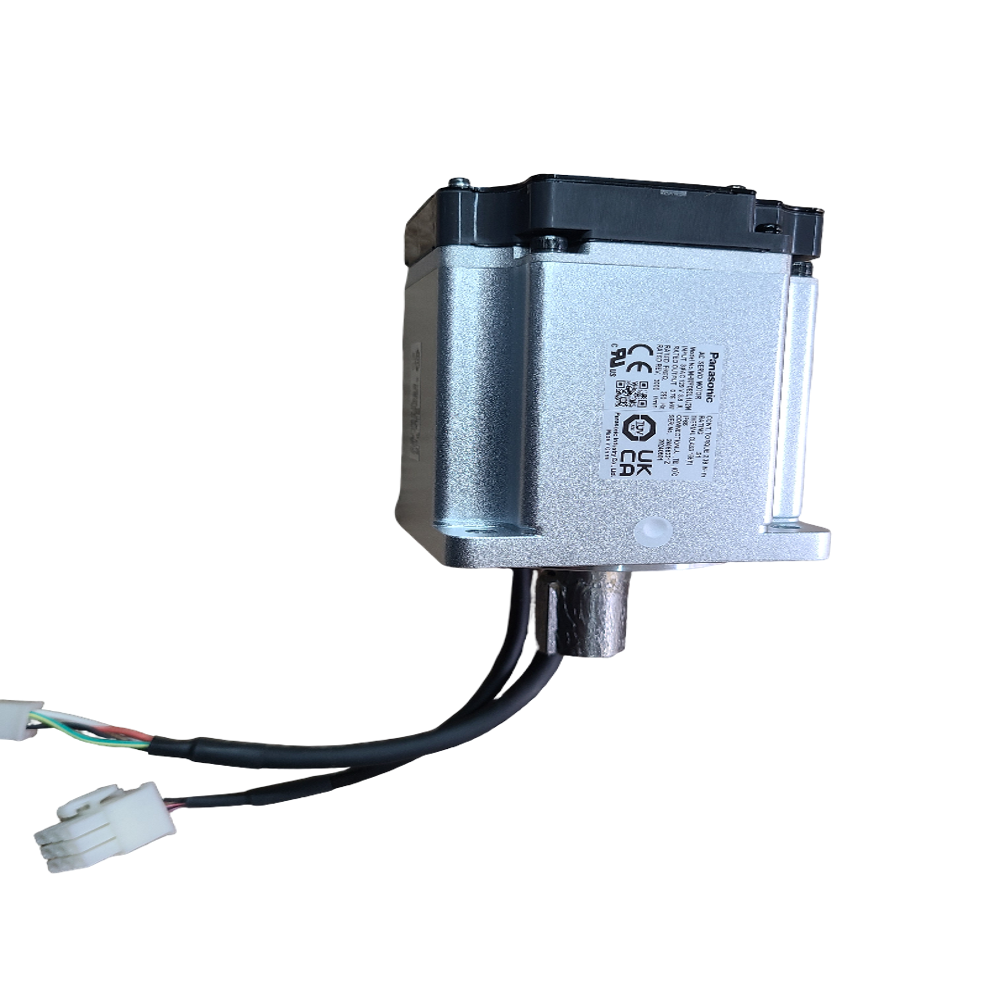

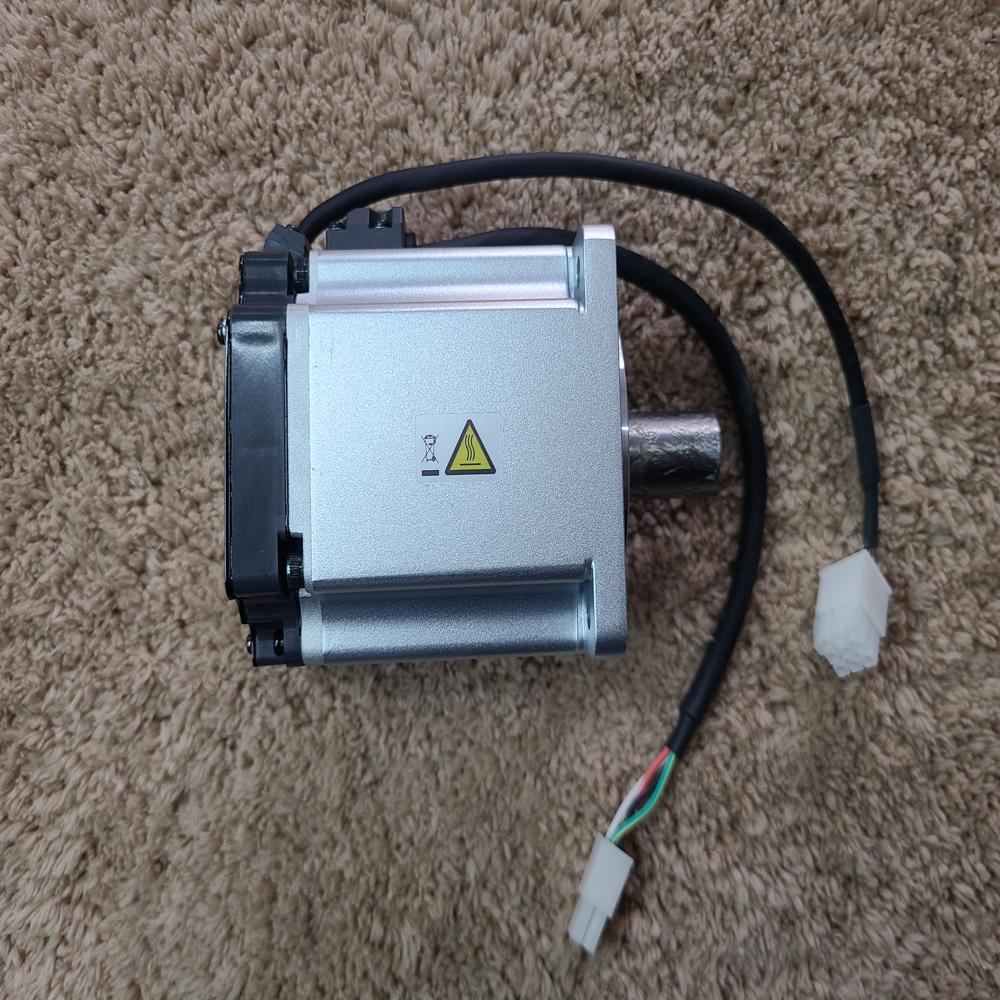

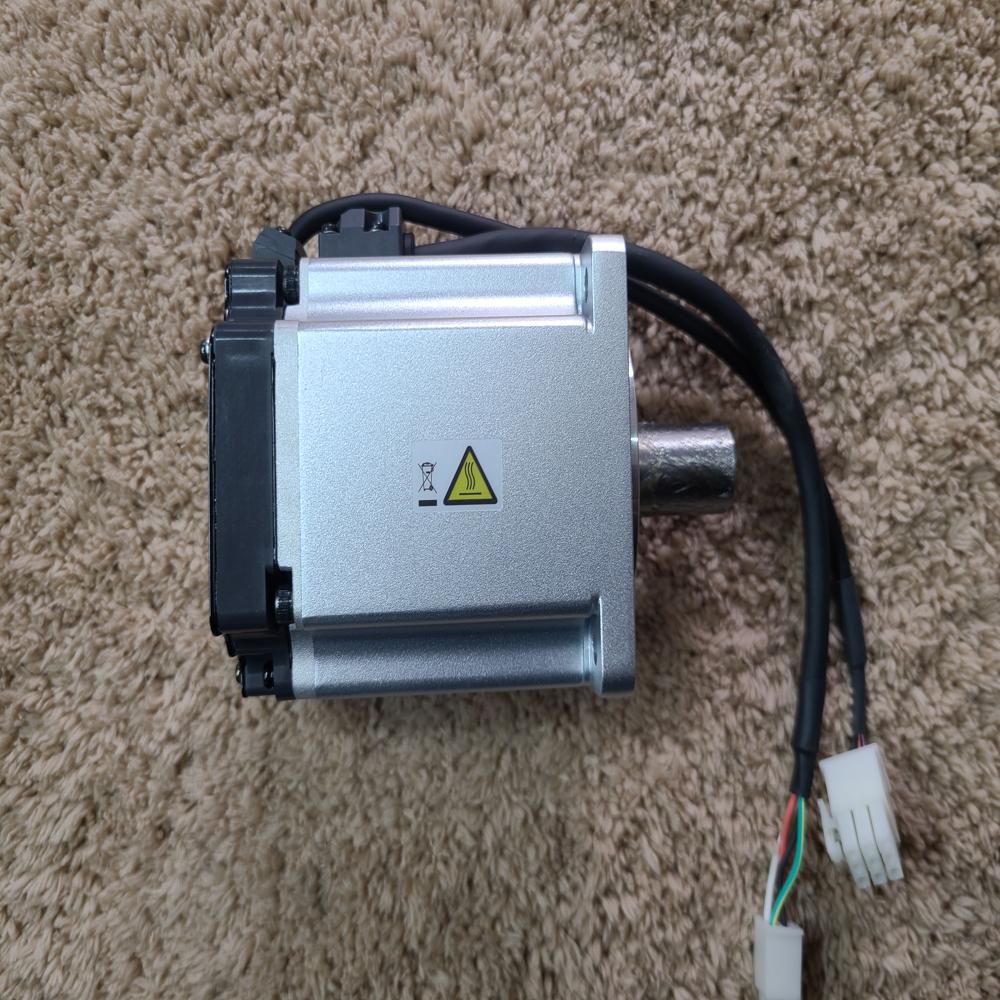

MQMF022L1U2M Panasonic A6 200W Motor, Torque Nm -0.64, RPM - 3000

About MQMF022L1U2M Panasonic A6 200W Motor, Torque Nm -0.64, RPM - 3000

Electrical Specifications

• Rated Power: 200 W
• Rated Torque: 0.64 Nm
• Rated Speed: 3000 RPM
• Max Speed: 6500 RPM
• Rated Current: ~1.4 A (rms)
• Supply Voltage: 200 V AC
• Inertia: 0.50 10 kgm

Mechanical Specifications

• Frame Size: 80 mm square flange
• Shaft Type: Keyway (center tap)
• Protection: IP65
• Oil Seal: Yes
• Holding Brake: Not included
• Weight: 1.2 kg

Encoder

• Type: 23-bit absolute / incremental
• Resolution: 8,388,608 counts

Performance

• Peak Torque: ~2.23 Nm
• Continuous Stall Torque: 0.76 Nm
• Response Frequency: 3.2 kHz (fast dynamic response)

Simple Meaning

• Medium-size industrial servo motor
• High speed (30006500 RPM)
• Precise positioning (robot/CNC grade)
• No brake needs external holding system if used vertically

Quick Summary

• 200W power
• 0.64 Nm torque
• 3000 RPM rated speed
• 1.2 kg weight
• 80 mm frame size

  Main Function

  This motors main function is:

  To convert electrical commands from a servo driver into precise rotary motion with accurate control of position, speed, and torque.

  ---

  Core Functions Explained

  1. Precise Position Control

  • Moves to exact angles based on pulse/command input from the servo driver
  • Used in CNC machines, robotics, and indexing systems
  • Works in closed-loop with encoder feedback

  ---

  2. Speed Control

  • Maintains smooth rotation up to 3000 RPM rated speed (higher in peak)
  • Ensures stable motion in conveyors and rotating systems

  ---

  3. Torque Control

  • Produces controlled mechanical force (0.64 Nm rated torque)
  • Handles acceleration, load changes, and dynamic motion

  ---

  4. Closed-Loop Feedback Control

  • Built-in high-resolution 23-bit encoder
  • Continuously reports position and speed
  • Corrects errors instantly for high precision

  ---

  5. High-Speed Response Motion

  • Designed for fast start/stop operation
  • Smooth acceleration and deceleration
  • Suitable for high-speed automation systems

  ---

  Important Characteristic

  • This model does NOT include a brake
    • Cannot hold vertical load when power is OFF
    • External brake or mechanical lock required if needed

  ---

  Simple Real-Life Understanding

  Think of it like:

  • Electricity = command from controller
  • Motor = rotation (movement)
  • Encoder = feedback (position checking)

  It continuously adjusts itself to stay accurate.

  ---

  Typical Applications

  • CNC machines
  • Pick-and-place robots
  • Packaging machines
  • Conveyor and rotary indexing systems
  • General industrial automation
