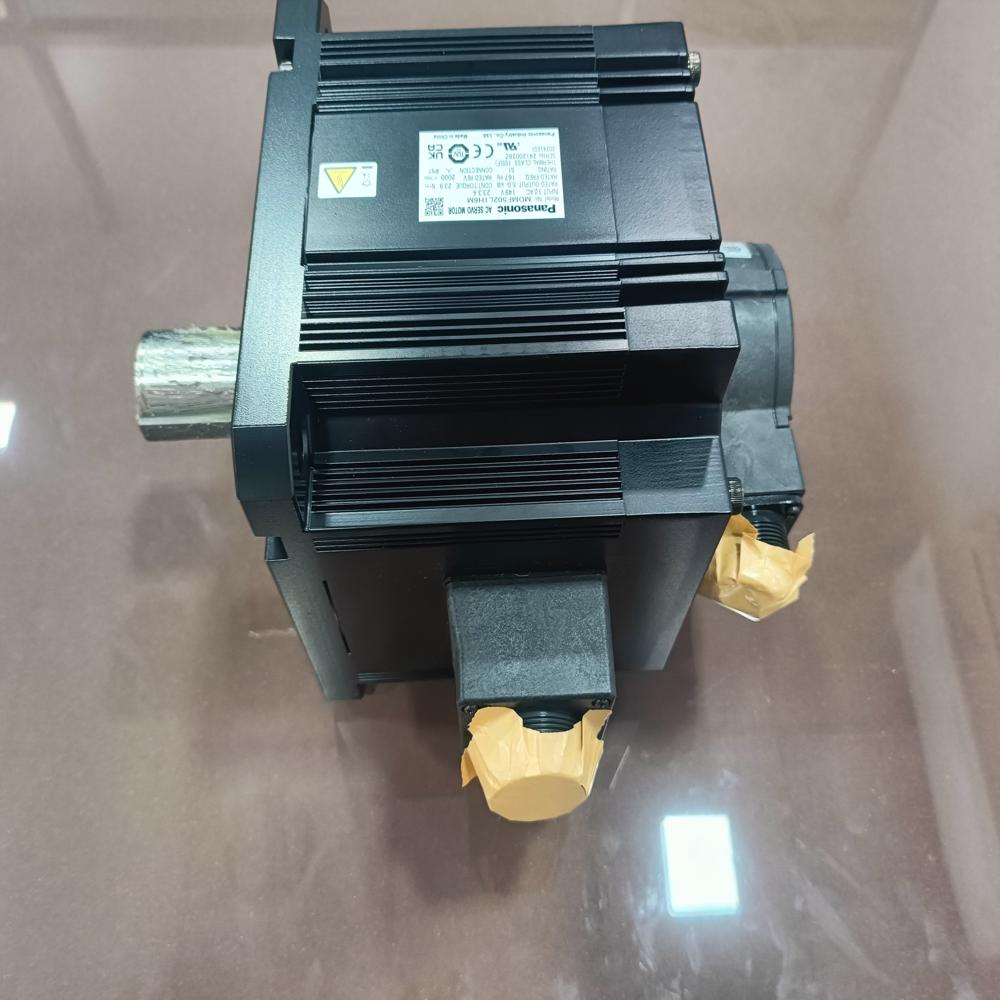

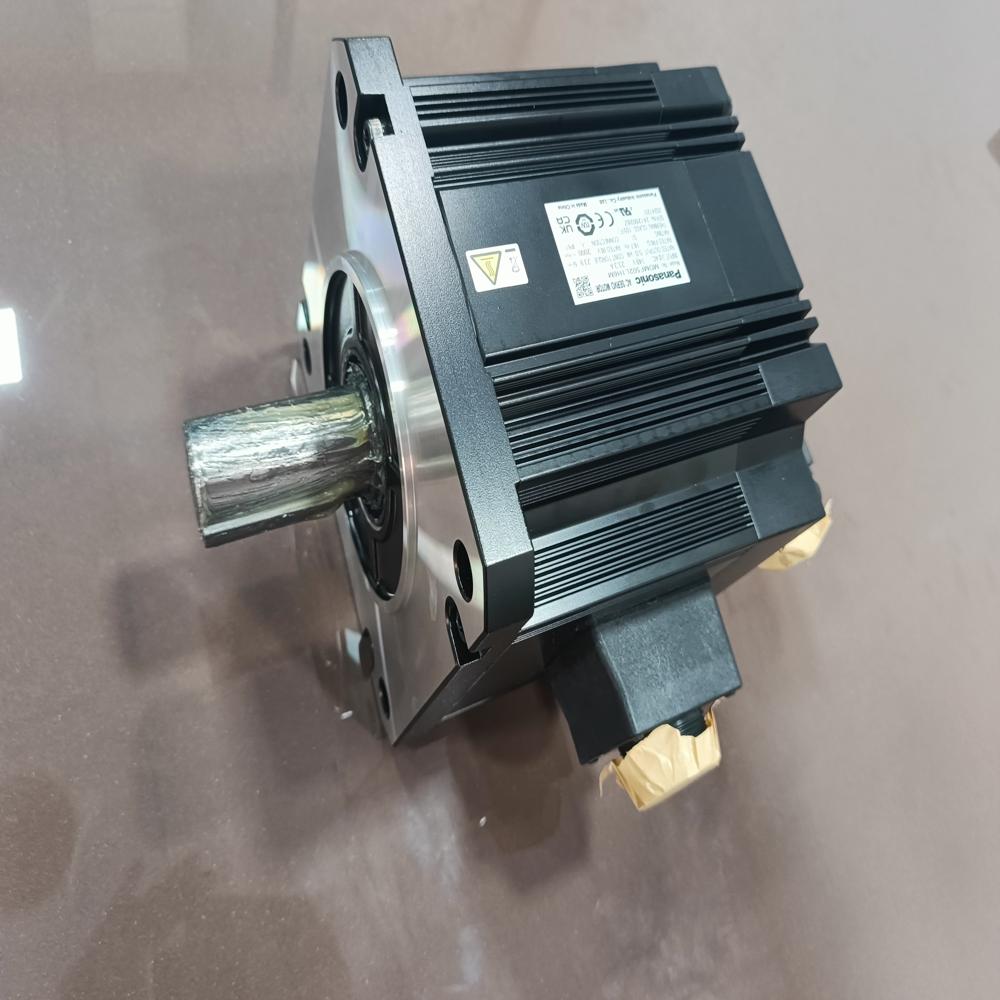

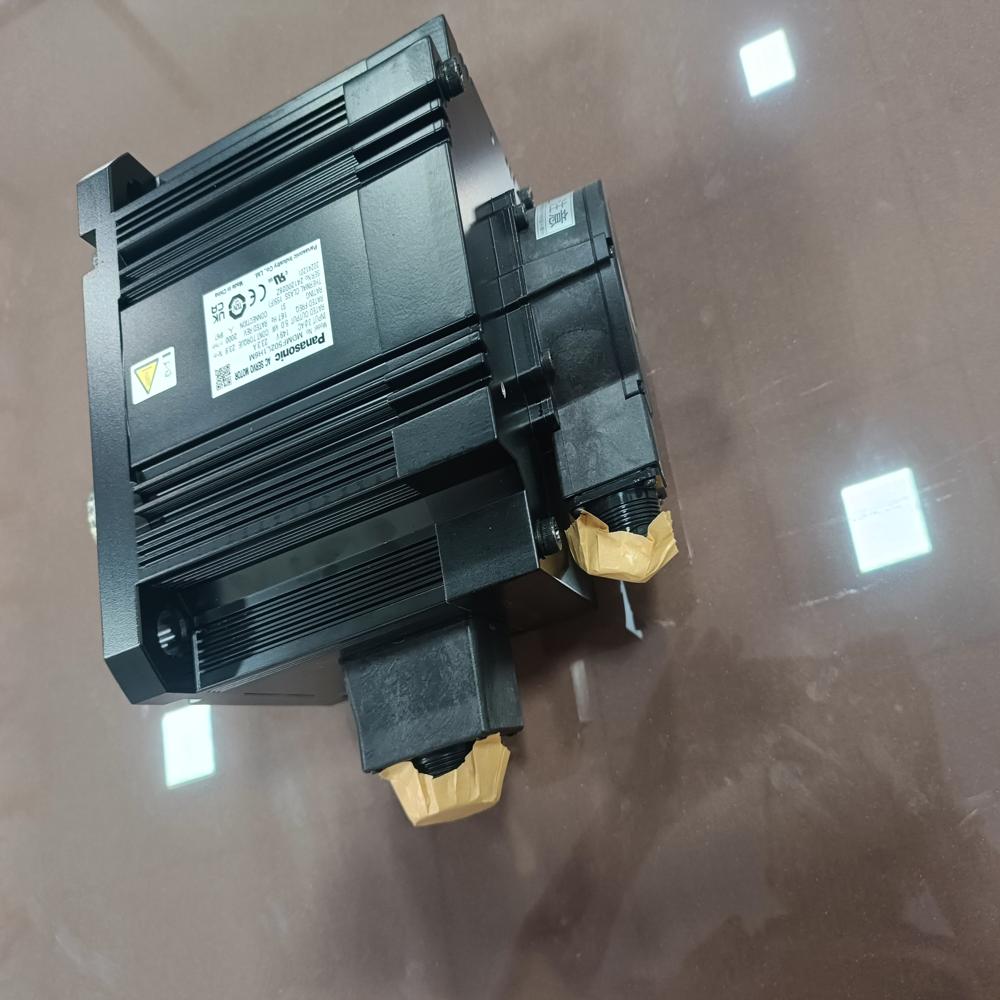

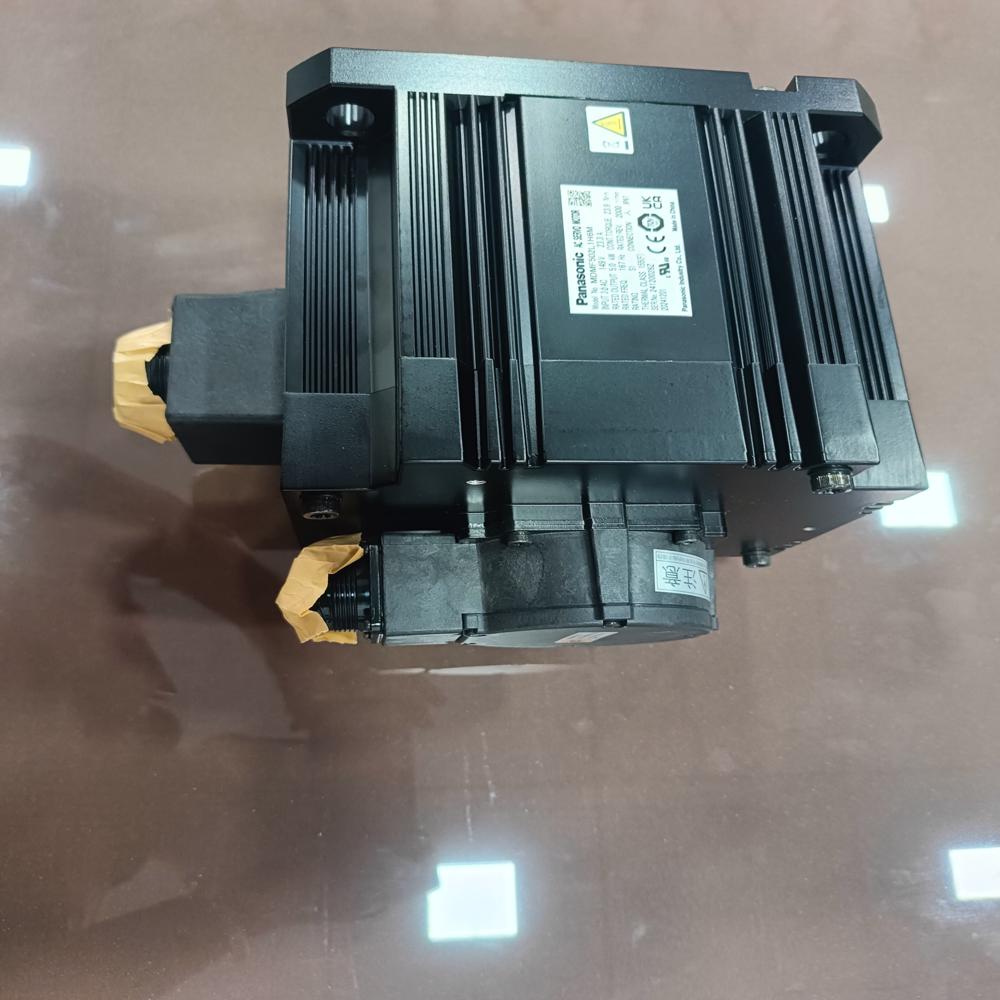

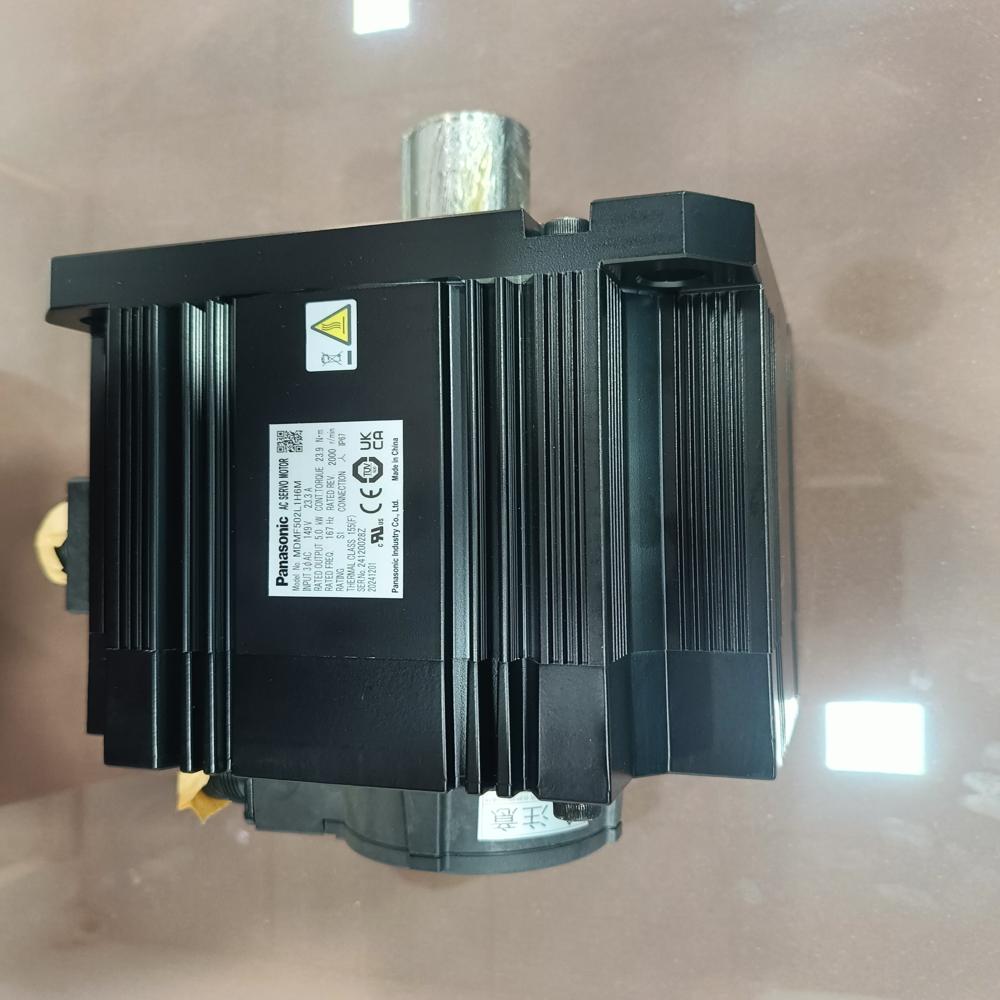

MDMFC52L1H6M Panasonic A6 15000W Motor + BRK , Torque Nm - 95.5, RPM - 1500

Price 425000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MDMFC52L1H6M Panasonic A6 15000W Motor + BRK , Torque Nm - 95.5, RPM - 1500 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
71.3 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MDMFC52L1H6M Panasonic A6 15000W Motor + BRK , Torque Nm - 95.5, RPM - 1500 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MDMFC52L1H6M Panasonic A6 15000W Motor + BRK , Torque Nm - 95.5, RPM - 1500

The Panasonic MINAS A6 MDMFC52L1H6M is the ultra-high-power 15 kW motor equipped with a built-in electromagnetic holding brake. This is the heaviest and most powerful standard motor in the A6 lineup, designed for massive vertical loads.

Physical Dimensions (Imperial Units)

Weight: Approximately 157.2 lbs (71.3 kg).
- The brake adds roughly 24 lbs compared to the G6M model.
Width & Height (Flange): 8.66 inches (220 mm).
Total Length:
- Body Length (with Brake): ~13.19 inches (335 mm).
- Total Length (Body + Shaft): ~17.76 inches (451 mm).
Shaft Dimensions:
- Diameter: 2.17 inches (55 mm).
- Length: 4.57 inches (116 mm).

Core Technical Specs

Rated Output: 15,000 W (15 kW).
Rated Torque: 95.5 Nm.
Peak Torque: 224 Nm.
Rated Speed: 1500 r/min.
Holding Brake: Included (24V DC).
Static Friction Torque of Brake: ~110 Nm or higher.
Protection: IP67 (dust-tight and water-resistant).

Comparison: Brake vs. No Brake (15 kW)

Feature	MDMFC52L1G6M (No Brake)	MDMFC52L1H6M (With Brake)
Weight	~132.9 lbs	~157.2 lbs
Body Length	~11.22"	~13.19"
Total Length	~15.79"	~17.76"

This motor is typically found on the Z-axis of very large CNC gantries or in heavy-duty vertical lifting systems where the 95.5 Nm of torque must be held firmly in place when the power is off.

The Panasonic MINAS A6 MDMFC52L1H6M functions as an Ultra-High Power Safety Actuator, delivering the same 15 kW performance as the non-brake version but with an essential mechanical safety system for heavy industrial loads.

1. Mechanical Holding Function (The Brake)

The primary functional difference is the integrated electromagnetic holding brake. [1, 2]

Static Safety Lock: This brake is specifically designed to hold the motor shaft in place when power is turned off or during an emergency stop. It provides a static friction torque of at least 110 Nm, ensuring that even the massive loads handled by a 15 kW motor do not slip.
Vertical Axis Protection: Its most critical function is on vertical (Z-axis) applications, where it prevents heavy machine heads or robotic arms from falling due to gravity when power is lost.
Operation Note: This is a holding brake, not a dynamic stopping brake. It should only be engaged after the motor has electronically come to a stop to avoid excessive wear and damage. [1, 2, 3, 4, 5, 6]

2. High-Performance Motion Drive [1]

Despite the added safety hardware, it retains the full "muscle" of the 15 kW motor: [1, 2]

Torque Mastery: It delivers a continuous rated torque of 95.5 Nm and can reach a momentary peak torque of 224 Nm to handle rapid accelerations of multi-ton loads.
Precision Control: It uses the same 23-bit absolute encoder (8.38 million pulses per revolution) as the rest of the A6 family, allowing for sub-micron positioning accuracy even at this massive scale. [1, 2, 3]

3. Intelligence & Stability

Middle Inertia Stabilization: The "Middle Inertia" design functions to provide mechanical stability, acting as a "buffer" that prevents heavy external loads from causing resonance or shaking during high-speed moves.
Real-time Adaptation: When paired with a compatible driver, it supports functions like Adaptive Load Control, which automatically adjusts the motor's power output as the weight of the workload changes. [1, 2, 3]

4. Environmental Durability

IP67 Sealing: The motor is completely protected against dust and can withstand temporary immersion in water, making it functional in harsh environments where it may be exposed to cutting fluids, oil, or metal shavings. [1, 2, 3]
