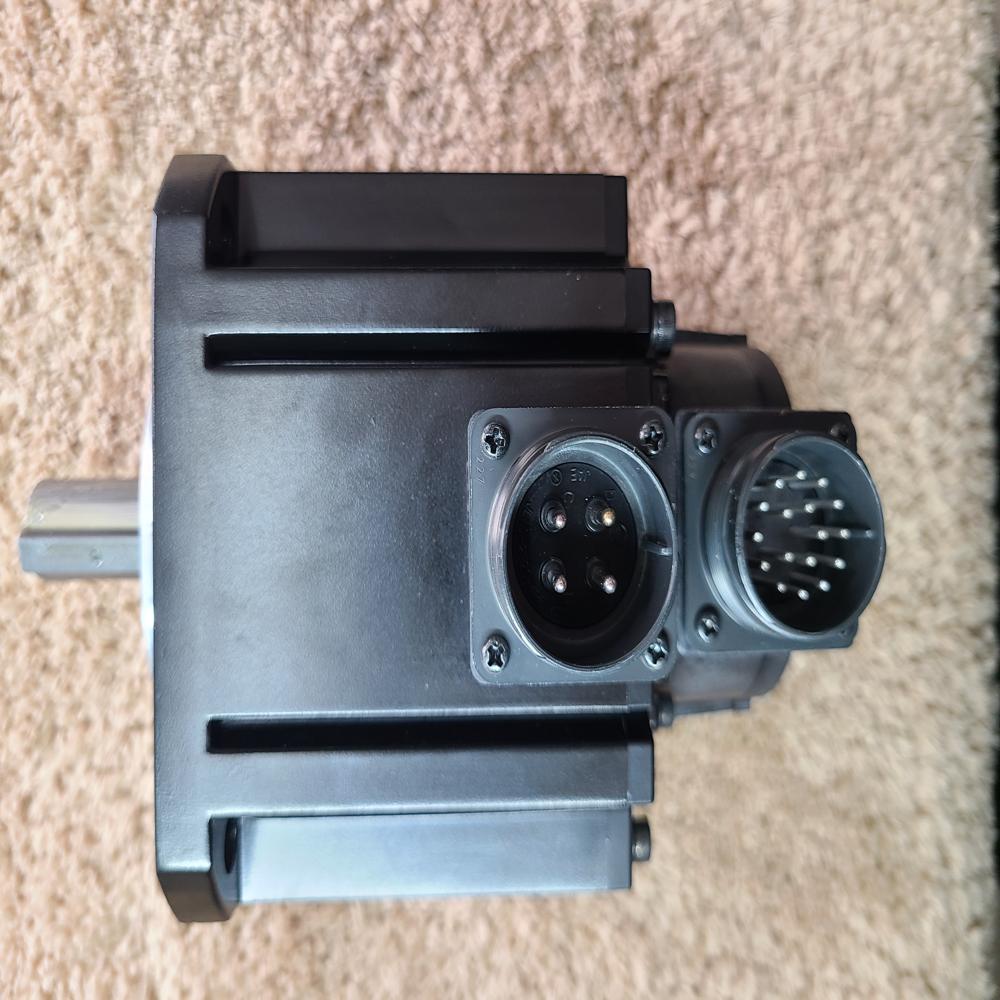

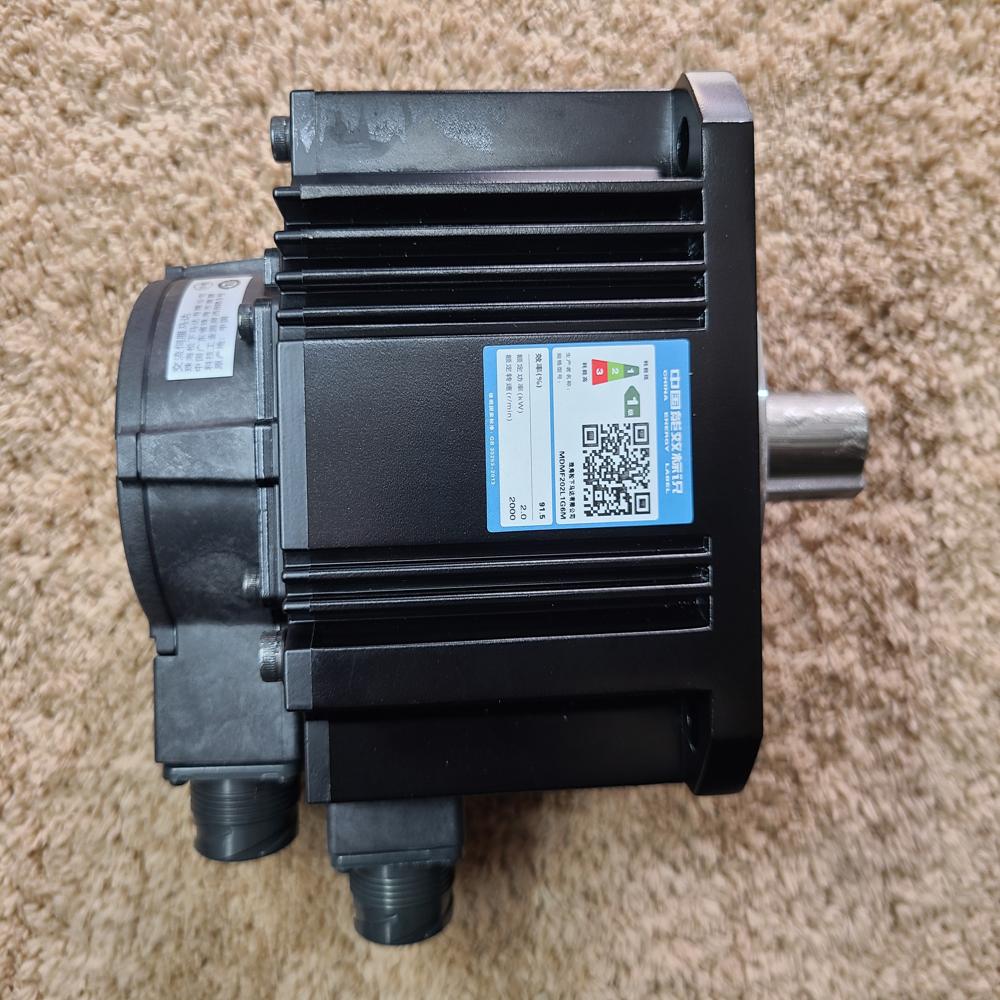

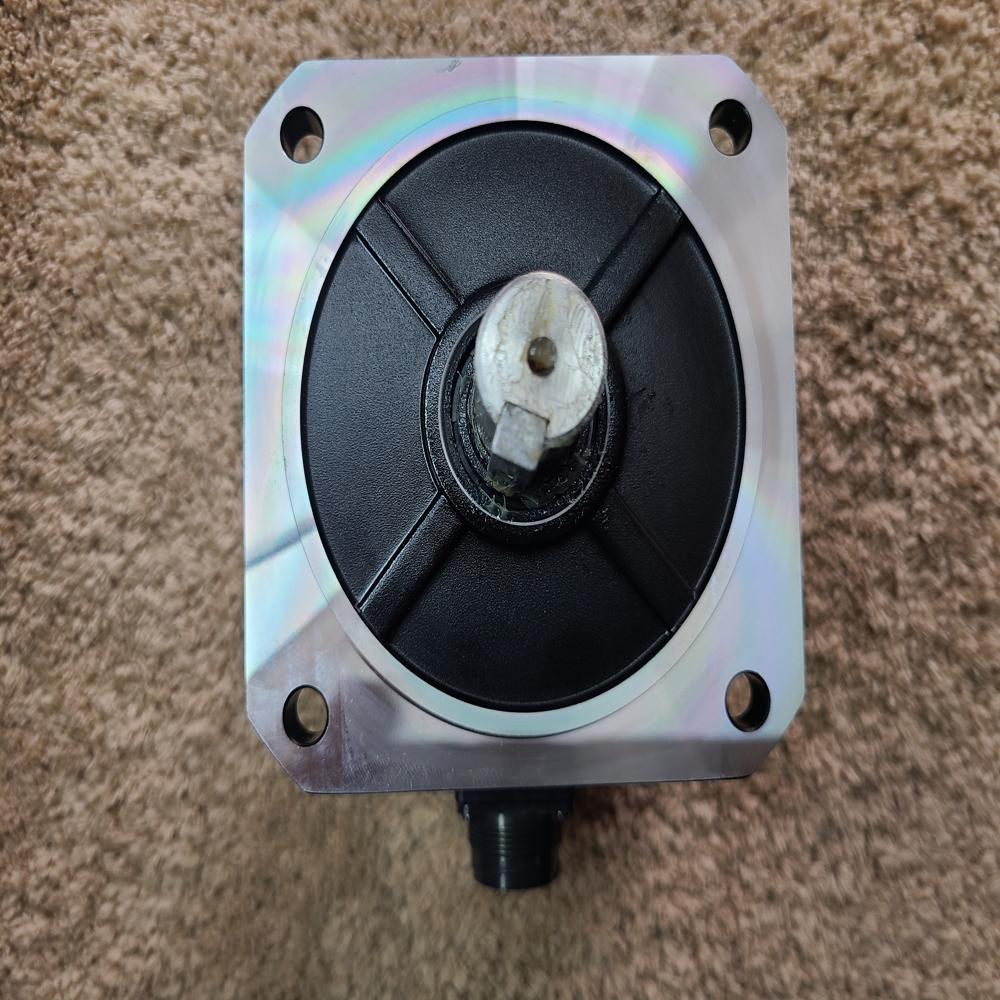

MSMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 6.37, RPM - 3000

Price 86500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MSMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 6.37, RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
6.6 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MSMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 6.37, RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MSMF202L1H6M Panasonic A6 2000W Motor + BRK , Torque Nm - 6.37, RPM - 3000

The Panasonic MSMF202L1H6M is a 2000W (2.0 kW) Low-Inertia AC servo motor from the MINAS A6 series, featuring an integrated electromagnetic holding brake. [1, 2, 3, 4]

Function

Safety Holding: The built-in electromagnetic brake's primary function is to lock the motor shaft in place when power is removed, preventing vertical loads from falling or axes from moving during an emergency stop.
High-Speed Dynamics: As a "Low-Inertia" motor, it is designed for rapid acceleration and high-cycle applications like robotics, packaging machinery, and CNC systems.
High Precision: It provides extreme positioning accuracy through a 23-bit absolute encoder. [1, 2, 3, 4, 5]

Physical Specifications

The addition of the brake increases both the weight and length of this 2 kW motor compared to the non-brake (G6M) model.

Feature [1, 2, 3, 4, 5]	Specification (Approx. Imperial)	Metric (Official)
Weight	14.55 lbs	6.6 kg
Flange Width/Height	3.94 inches	100 mm square
Total Body Length	~8.31 inches	211 mm
Shaft Diameter	0.75 inches	19 mm

Key Technical Specs

Rated Output: 2000 W (2.0 kW)
Rated Torque: 6.37 Nm
Rated Speed: 3000 RPM (Max 5000 RPM)
Voltage: 200 V AC
IP Rating: IP67 (Dust-tight and resistant to water immersion) [1, 3, 4, 5]

The primary function of the Panasonic MSMF202L1H6M is to provide powerful, high-speed rotary motion with an integrated fail-safe locking mechanism.

1. Fail-Safe Holding (Integrated Brake)

The "H" in the model name indicates a built-in electromagnetic holding brake.

Vertical Safety: Its most critical job is to prevent heavy machine parts (like a robot arm or a CNC Z-axis) from falling due to gravity when the power is turned off or during an emergency stop.
Power-Off Engagement: It is a friction-style brake that is automatically locked by internal springs. You must apply 24V DC to release it so the motor can spin.

2. High-Speed "Low-Inertia" Response

Because this is an MSMF (Low-Inertia) motor, it is designed for speed and agility.

Rapid Cycling: The lightweight internal rotor allows the motor to reach its 3000 RPM rated speed almost instantly.
Application: It is ideal for machines that perform hundreds of small, fast movements per minute, such as electronic component mounting, high-speed labeling, or sorting conveyors.

3. Extreme Positioning Accuracy

The motor functions as a high-precision actuator thanks to its 23-bit encoder.

Resolution: It communicates its exact position back to the driver with a resolution of over 8 million points per rotation.
Stability: This high resolution allows the system to remain perfectly still and stable at a specific coordinate without "hunting" or vibrating.

4. Rugged Industrial Performance

Torque Delivery: It provides a constant 6.37 Nm of torque, ensuring it can handle significant mechanical resistance while maintaining speed.
Protection: Its IP67 construction ensures it functions reliably in environments where it might be exposed to dust, oil mist, or water spray.
