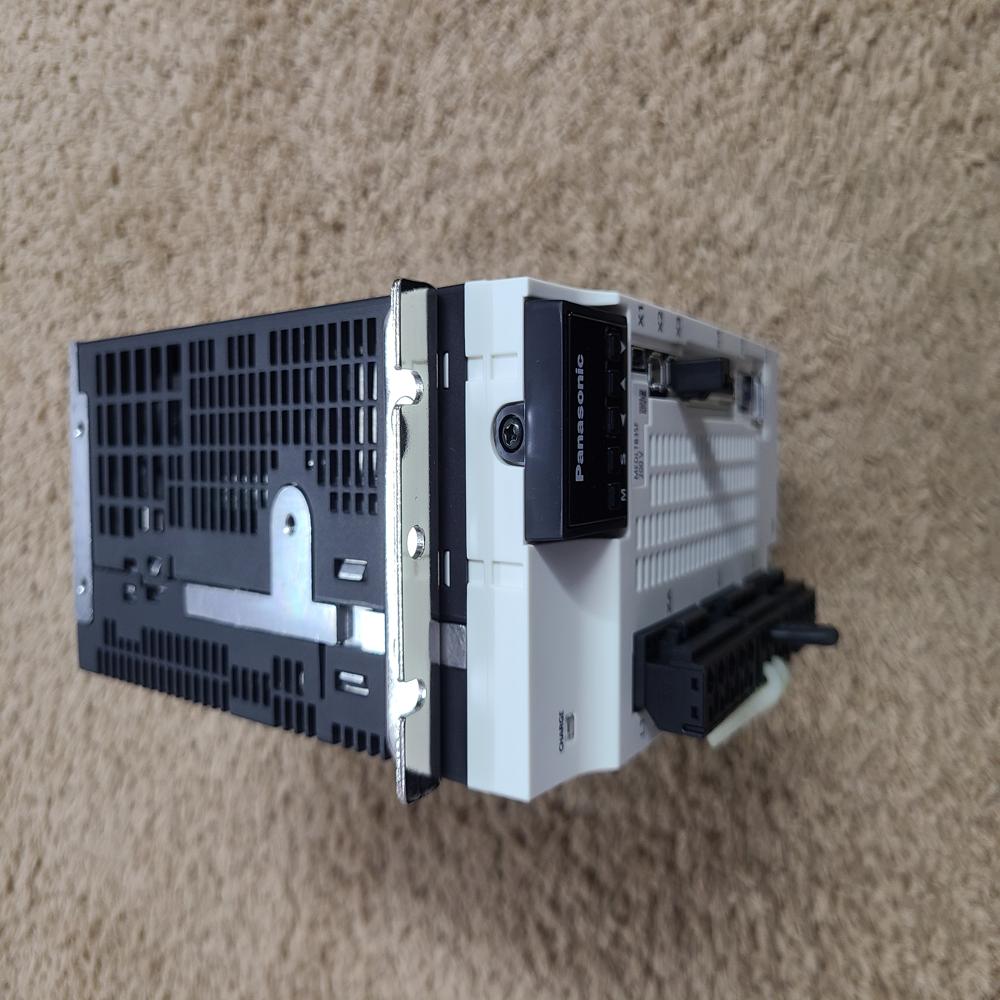

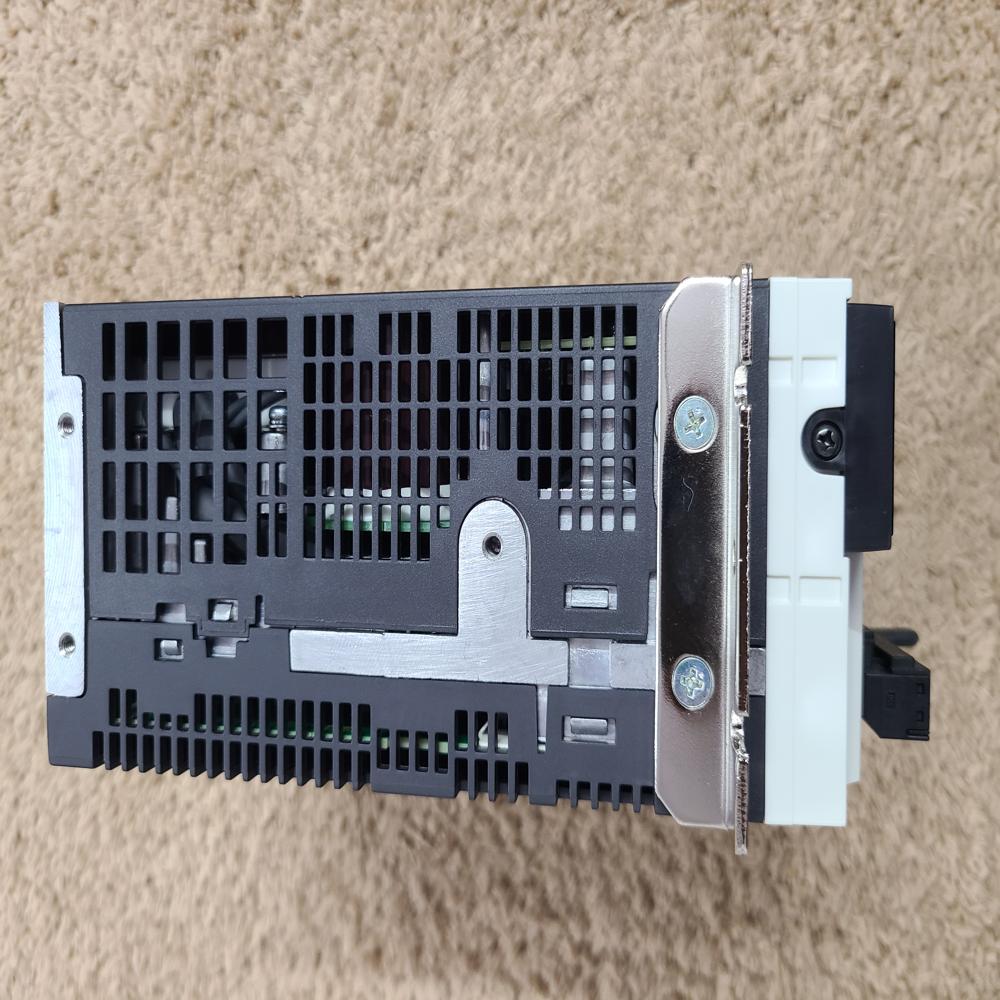

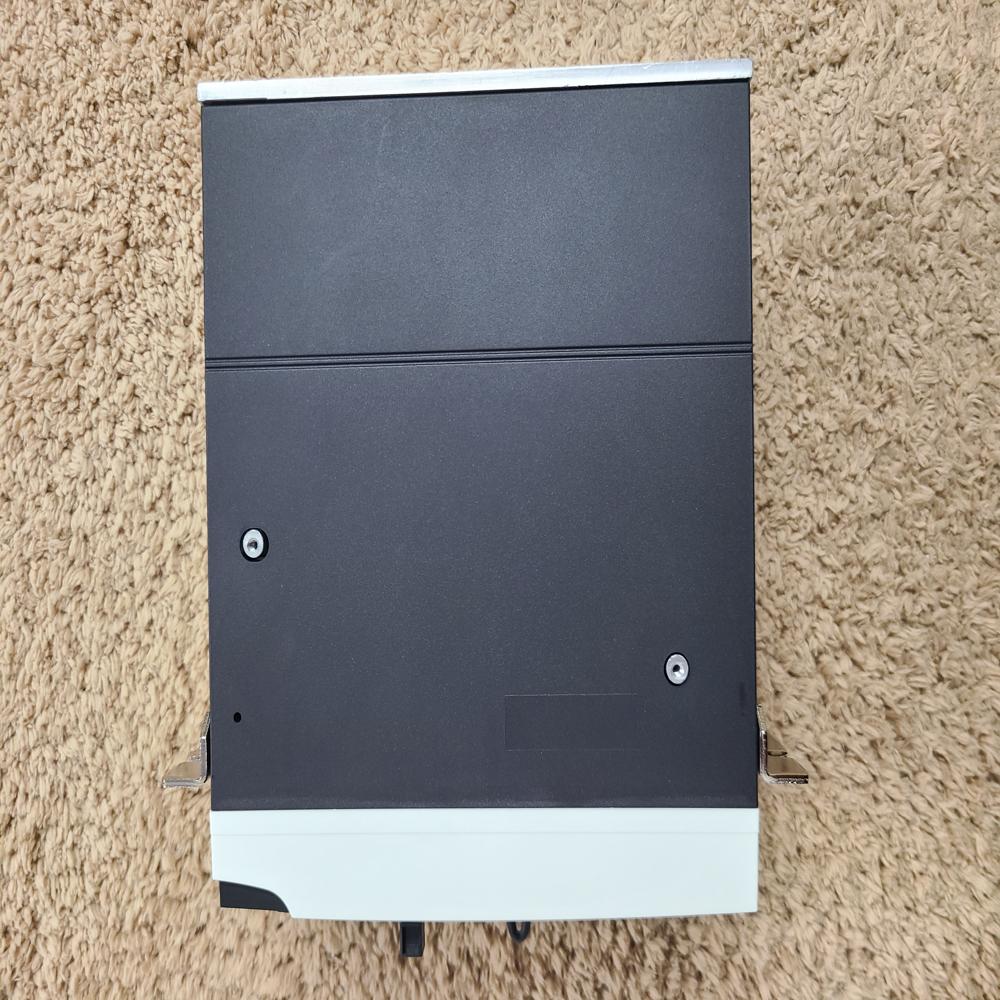

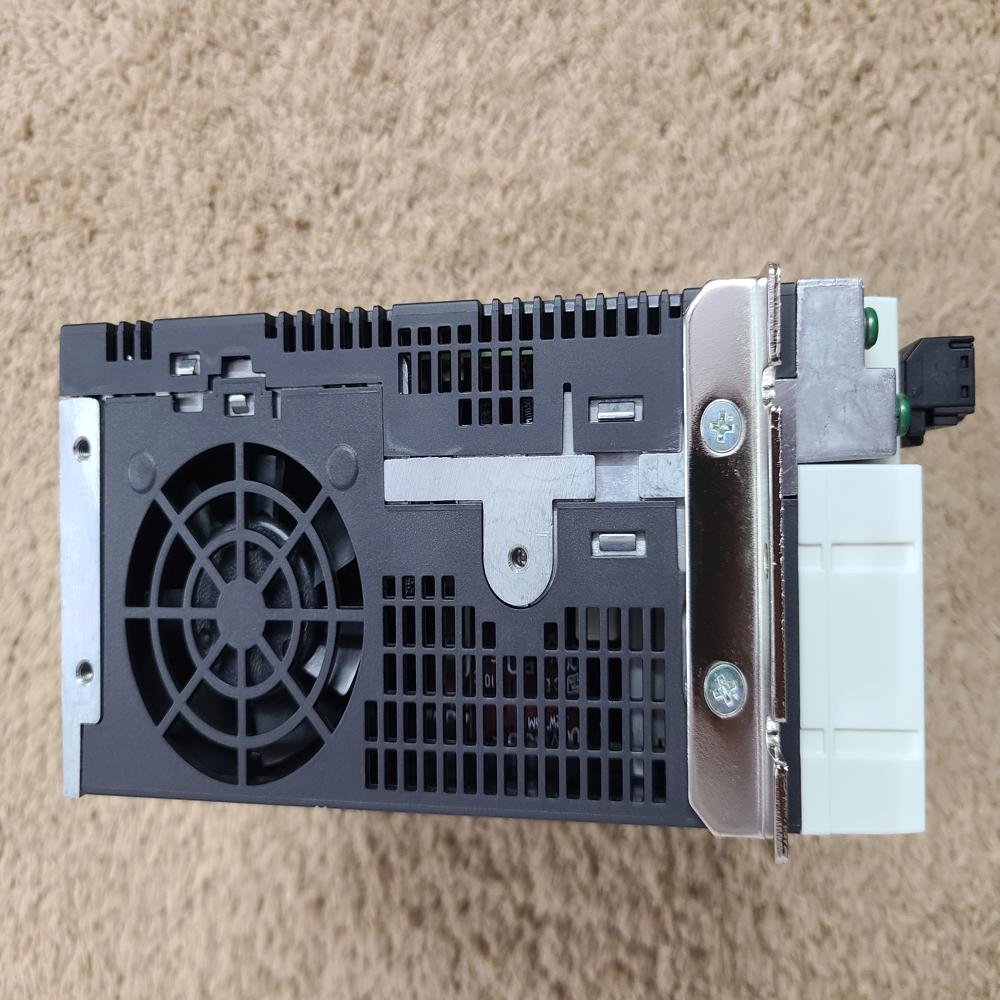

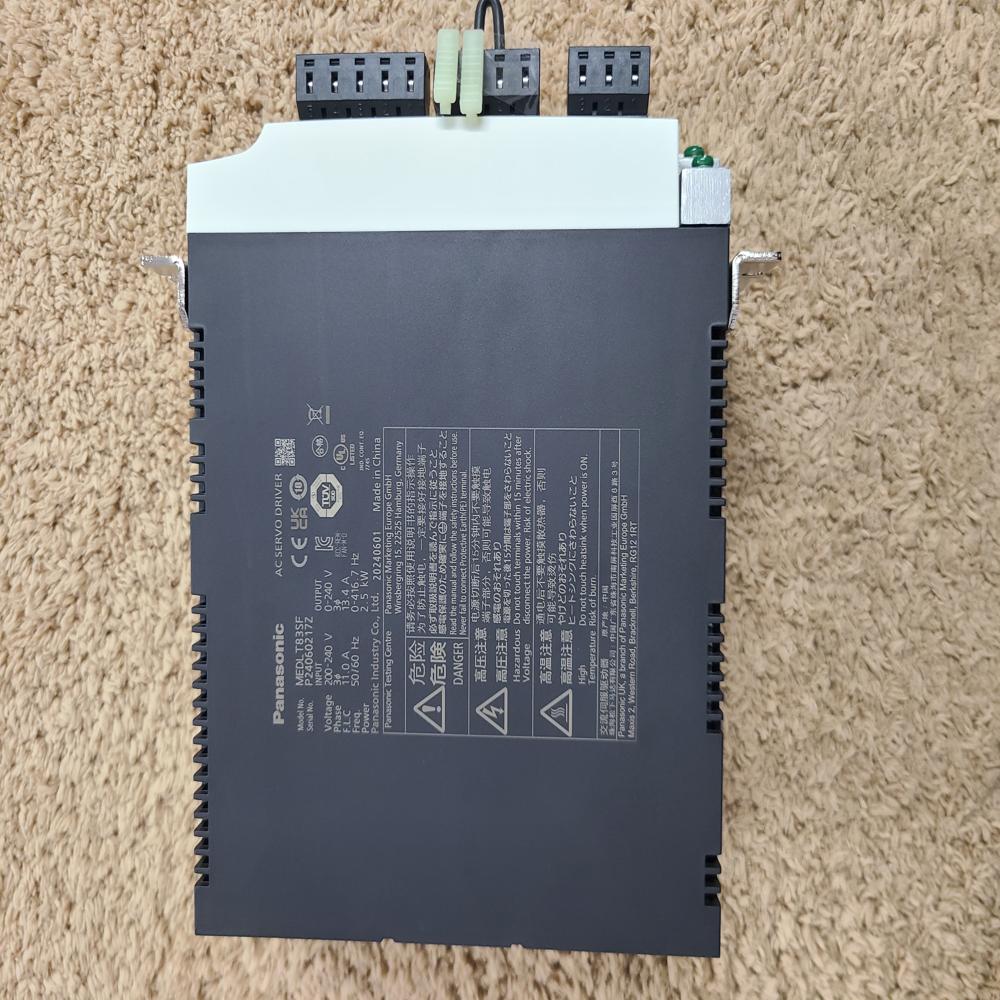

MEDLN83BE - E-CAT Panasonic A6 2500W Driver

Price 96100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MEDLN83BE - E-CAT Panasonic A6 2500W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
2.7 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MEDLN83BE - E-CAT Panasonic A6 2500W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MEDLN83BE - E-CAT Panasonic A6 2500W Driver

The Panasonic MEDLN83BE is a high-power 2.5 kW "E-Frame" AC servo driver from the MINAS A6BE series. It is a specialized EtherCAT (E-CAT) network driver designed for precise, real-time industrial automation. [1, 2, 3, 4, 5]

Function

EtherCAT Network Interface: Its primary function is to act as a slave in an EtherCAT network, allowing for high-speed (100 Mbps) real-time communication and multi-axis synchronisation.
Precision Motion Control: Supports up to 7 control modes and 32 origin-return methods, providing versatile handling for position, velocity, and torque applications.
Advanced Stabilisation: Features a 3.2 kHz frequency response for rapid motor control and includes real-time auto-tuning and anti-vibration filters to eliminate mechanical resonance.
Diagnostic Capabilities: Provides lifespan and deterioration diagnosis for both the motor and driver, helping to reduce maintenance downtime. [1, 2, 3]

Technical Specifications

Based on data from Panasonic Industry and retailers like Industrybuying:

Feature [1, 2, 3, 5]	Specification
Rated Output	2.5 kW (2500W)
Input Voltage	3-Phase 200 V to 230 V AC
Output Current	60 A
Control Interface	EtherCAT
Safety Function	None (The "BE" basic series typically excludes STO)
IP Rating	IP20

Physical Dimensions & Weight

This driver utilizes the standard E-Frame chassis: [1, 3]

Weight: Approximately 5.95 lbs (2.7 kg).
Width: 3.35 inches (85 mm).
Height: 6.61 inches (168 mm).
Depth: 7.60 inches (193 mm). [1, 2, 3, 4, 5]

The primary function of the Panasonic MEDLN83BE is to act as a high-power EtherCAT (E-CAT) node for 2.0kW to 2.5kW motors. It is the "network specialist" designed to operate as a high-speed slave in a synchronized multi-axis system.

1. High-Speed EtherCAT Networking

The "BE" series is built specifically for EtherCAT communication.

Real-Time Sync: It allows a master controller (like a Beckhoff, Omron, or specialized PC) to control dozens of motors simultaneously over a 100Mbps network.
Daisy-Chaining: Using standard RJ45 cables, it functions as part of a high-speed data chain, receiving motion commands and sending back position data in microseconds.

2. Multi-Mode Motion Control

Unlike basic pulse-driven drivers, the BE series handles complex motion profiles directly through the network:

Cyclic Synchronous Position (CSP): The master tells the driver exactly where to be every millisecond for complex curved paths.
Velocity & Torque Modes: It can also be commanded to maintain a specific speed or a specific "pushing force" (torque), which is essential for tensioning and pressing applications.

3. Dynamic Load Management (E-Frame Power)

It serves as the robust power stage for heavy-duty 2.5kW motors.

Heavy Lifting: It manages the high electrical current needed to move massive mechanical loads (like 100kg+ gantry axes).
Inertia Adaptation: It automatically senses the weight of the load and adjusts the motor's "stiffness" (gain) so the machine stays stable even when the load changes.

4. Advanced "Self-Correction" (3.2 kHz Response)

The driver functions as an active stabilizer to prevent mechanical damage.

Resonance Suppression: It identifies the specific "hum" or vibration frequency of your machine frame and electronically cancels it out. This allows the machine to run faster without shaking itself apart.
Quick Settling: Its ultra-fast 3.2 kHz internal processor ensures that once the motor reaches its target, it stops instantly without "bouncing" or vibrating.

5. Predictive Maintenance & Diagnostics

Because it is a smart network driver, it does more than just move the motor:

Health Monitoring: It tracks internal temperatures, capacitor wear, and fan life, sending warnings to the master controller before a failure happens.
23-bit Feedback: it processes 8.38 million pulses per turn from the motor and feeds this high-resolution data back to the controller for perfect machine transparency.
