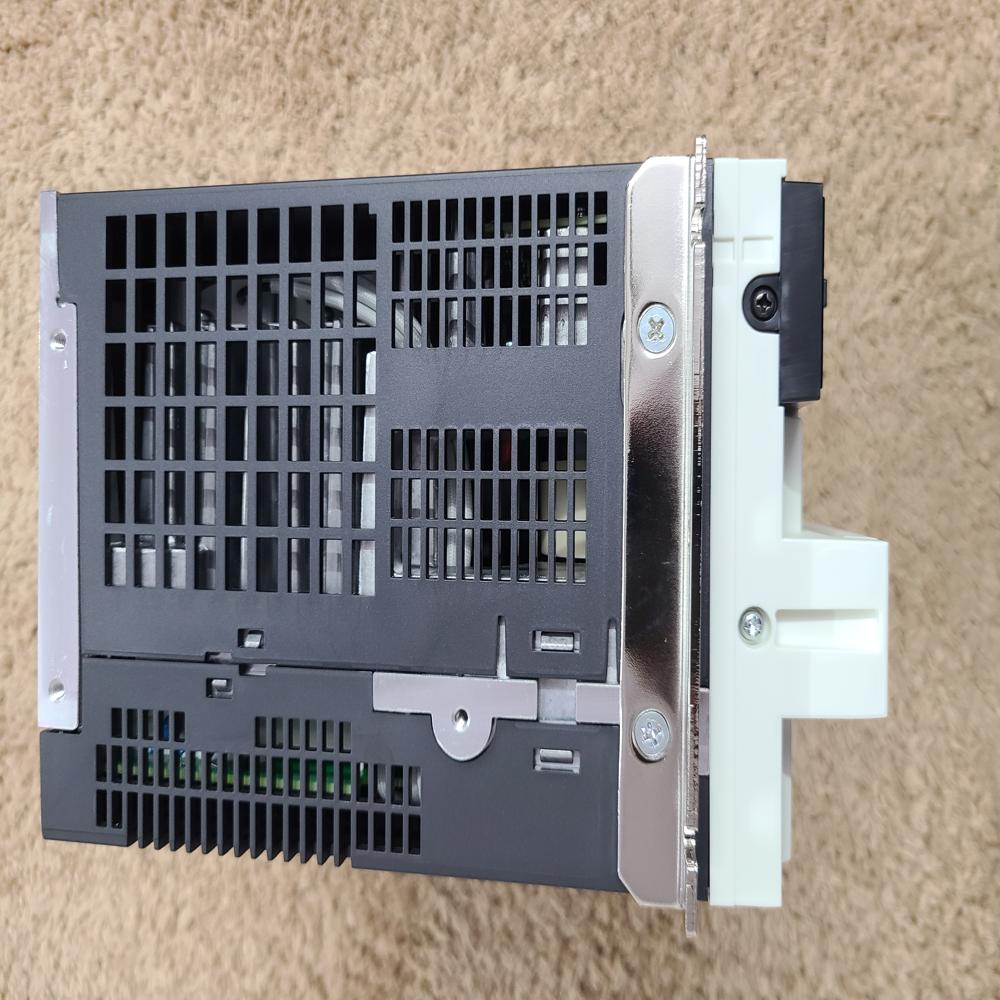

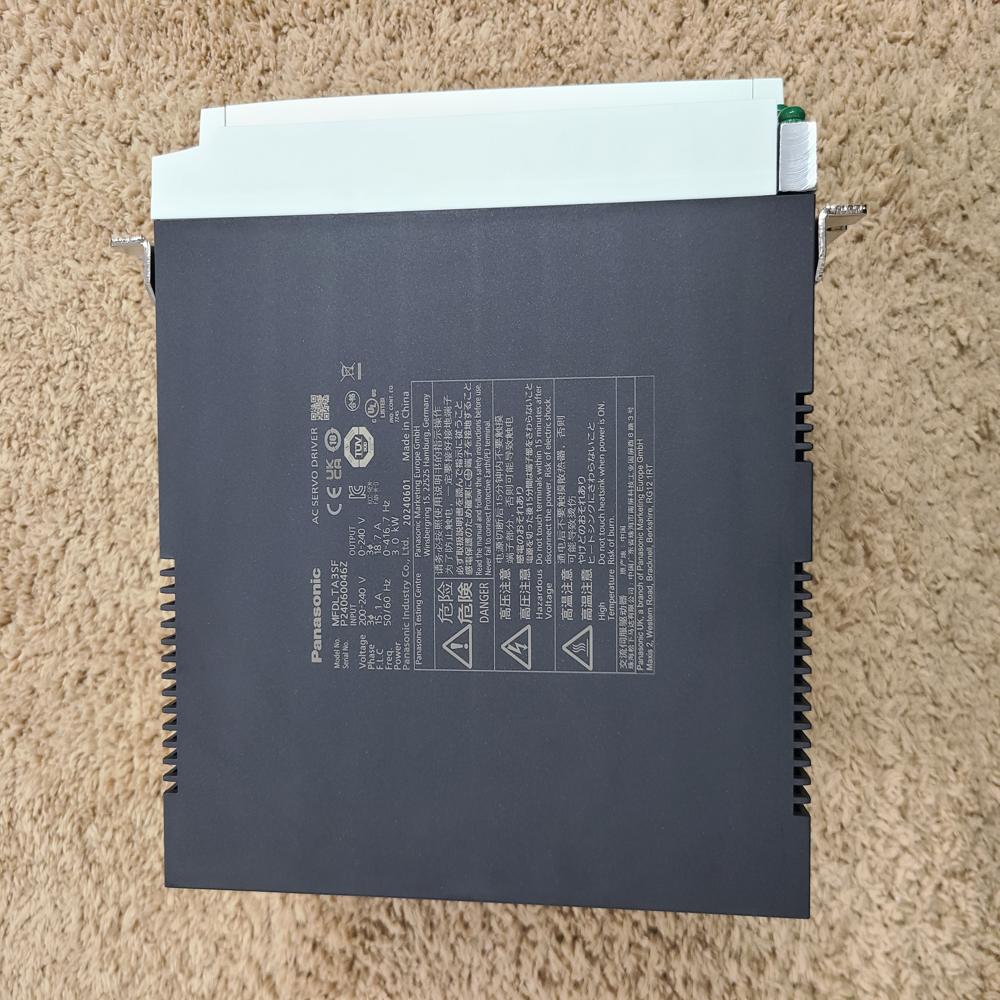

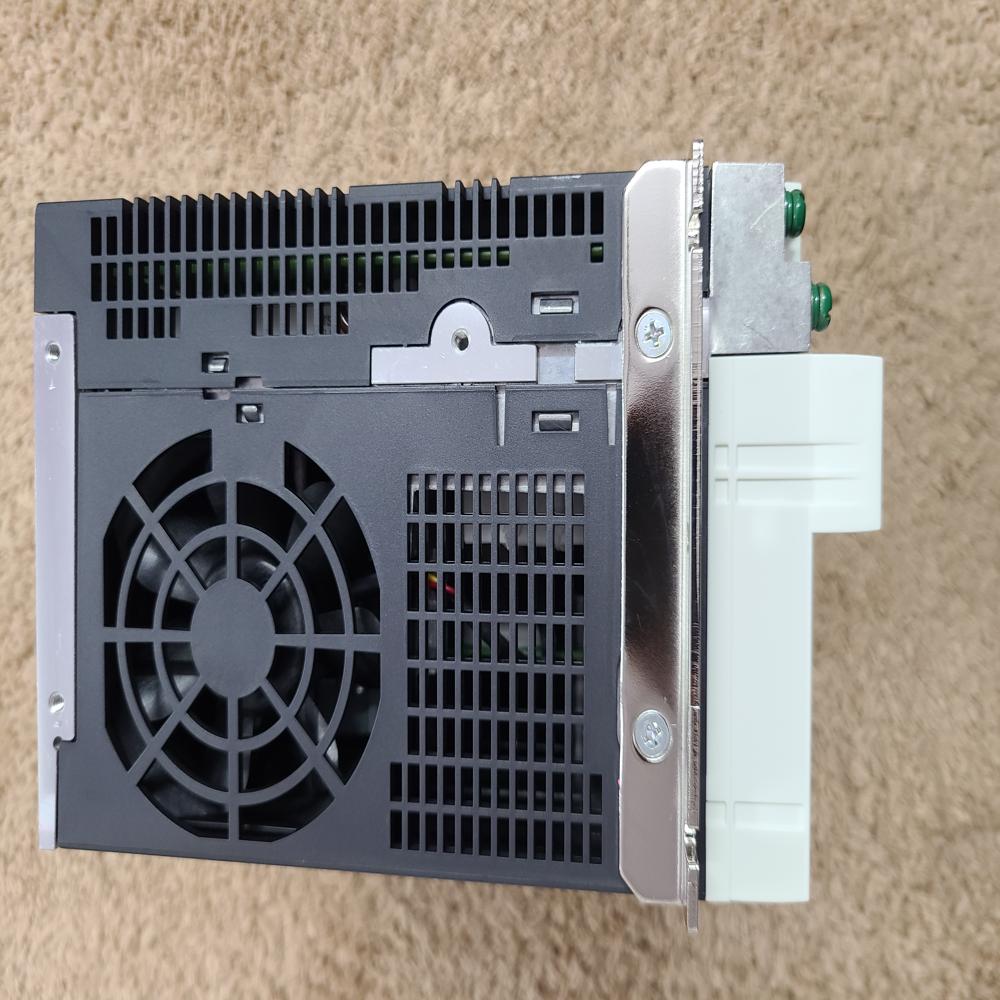

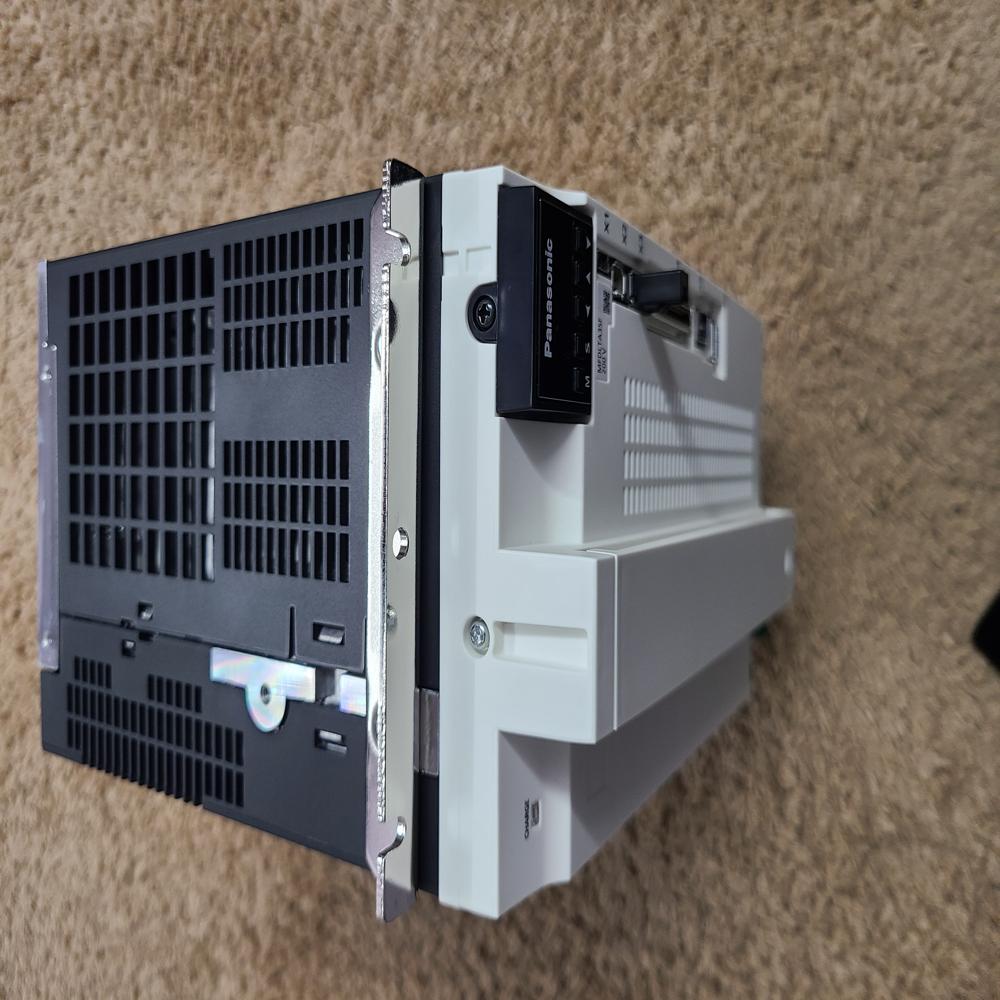

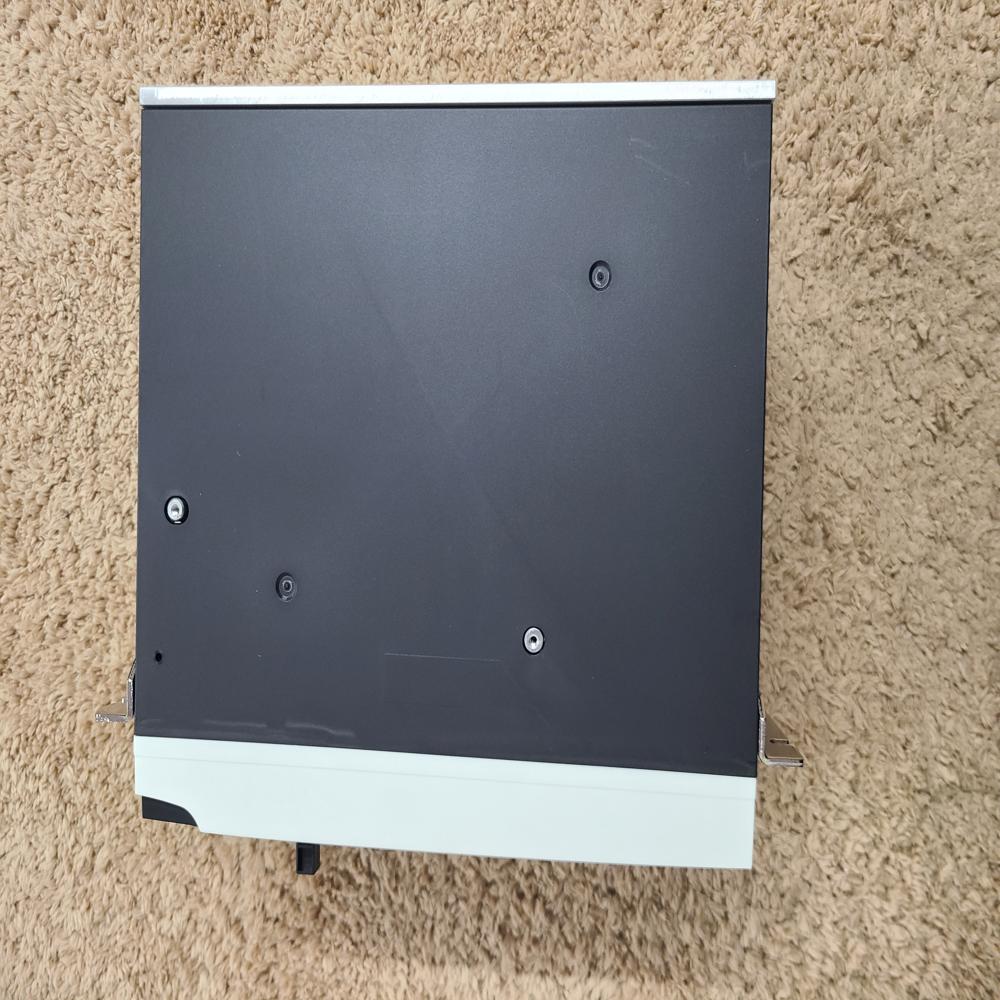

MFDLNA3BE - E-CAT Panasonic A6 3000W Driver

Price 138400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MFDLNA3BE - E-CAT Panasonic A6 3000W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
5.2 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MFDLNA3BE - E-CAT Panasonic A6 3000W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MFDLNA3BE - E-CAT Panasonic A6 3000W Driver

The Panasonic MFDLNA3BE (MINAS A6BE series) is a high-power 3.0 kW "F-Frame" AC servo driver designed specifically for EtherCAT (E-CAT) network communication. It is a specialized network driver that offers a more compact and cost-effective alternative to multi-function models by focusing on EtherCAT-based position control. [1, 2, 3, 4, 5]

Function

EtherCAT Network Slave: Functions as a high-speed node in an EtherCAT network, allowing for real-time, synchronized multi-axis motion control across complex automated lines.
Precision Position Control: Its primary role is to execute high-accuracy positioning commands sent from a master controller, utilizing 23-bit encoder feedback for micron-level precision.
Real-Time Stability: Features a velocity response frequency of 3.2 kHz, allowing it to react to command changes or load disturbances almost instantly to maintain stability.
Predictive Maintenance: Includes built-in lifespan and deterioration diagnosis for both the motor and driver, helping to prevent unexpected machine downtime. [1, 2, 3, 4, 5, 6]

Technical Specifications

Based on official data from Panasonic Industry and retailers like Industrybuying:

Feature [1, 2, 3, 4, 5, 6, 7]	Specification
Rated Output	3000 W (3.0 kW)
Interface	EtherCAT (E-CAT)
Input Voltage	3-Phase 200 V AC
Control Method	Position Control
Safety Function	None (Standard "BE" series lacks STO)
Frame Size	F-Frame

Physical Dimensions & Weight

This driver uses the standardized heavy-duty A6 F-Frame chassis. While official specs are in metric, the converted imperial measurements are: [1, 2]

Weight: Approximately 11.46 lbs (5.2 kg).
Width: 5.12 inches (130 mm).
Height: 8.66 inches (220 mm).
Depth: 8.50 inches (216 mm). [1, 2, 3]

Note: The MFDLNA3BE is functionally a "Standard/Basic" EtherCAT model and typically does not support the Safety Torque Off (STO) function found on the "BF" or "NE" series drivers.

The primary function of the Panasonic MFDLNA3BE is to act as a high-power EtherCAT (E-CAT) node for 3.0 kW motors. It is the "networked specialist" for heavy-duty machinery, designed to follow complex motion commands from an EtherCAT master (like Beckhoff, Omron, or TwinCAT) in real-time.

1. High-Speed EtherCAT Communication

The "BE" series is built specifically for EtherCAT networking.

The Synchroniser: It allows a master controller to coordinate dozens of motors simultaneously over a 100 Mbps network using standard RJ45 cables.
Real-Time Data: It communicates position, speed, and status data back to the master in microseconds, ensuring that every axis on a large machine stays in perfect sync.

2. Digital Motion Execution

Unlike pulse-driven drivers, the BE series receives its commands as digital data packets:

Cyclic Synchronous Position (CSP): The driver follows a "path" sent by the master controller, which calculates the trajectory for complex movements (like 3D cutting or curved robotic paths).
Profile Positioning: The master simply tells the driver "go to this coordinate at this speed," and the driver handles the acceleration and deceleration internally.

3. High-Power "F-Frame" Staging

It functions as the heavy-duty power stage for 3.0 kW motors.

Heavy Lifting: It manages the high electrical current (up to 100A peak) required to move massive mechanical loads, such as large CNC gantries or heavy-duty conveyors.
Inertia Matching: It automatically senses the weight of the machine and adjusts the motor's power output (gain) to ensure the load moves smoothly without shaking or "overshooting."

4. Active Stabilisation (3.2 kHz Response)

The driver monitors the motor's motion 3,200 times per second to act as a digital stabilizer.

Resonance Suppression: It identifies the specific "hum" or vibration frequency of your machine frame and electronically cancels it out. This allows the machine to run at much higher speeds without noise or mechanical wear.
Quick Settling: It ensures that when the motor reaches its target, it stops instantly without "bouncing" or vibrating, which is vital for high-speed production.

5. Health Monitoring & Diagnostics

Because it is a smart network driver, it provides transparency for the entire system:

Predictive Maintenance: It tracks internal temperatures, power usage, and the health of internal capacitors, warning the master controller of potential failures before they happen.
23-bit Feedback: It processes the 8.38 million pulses per turn from the motors encoder and provides perfect transparency of the machines location to the operator.
