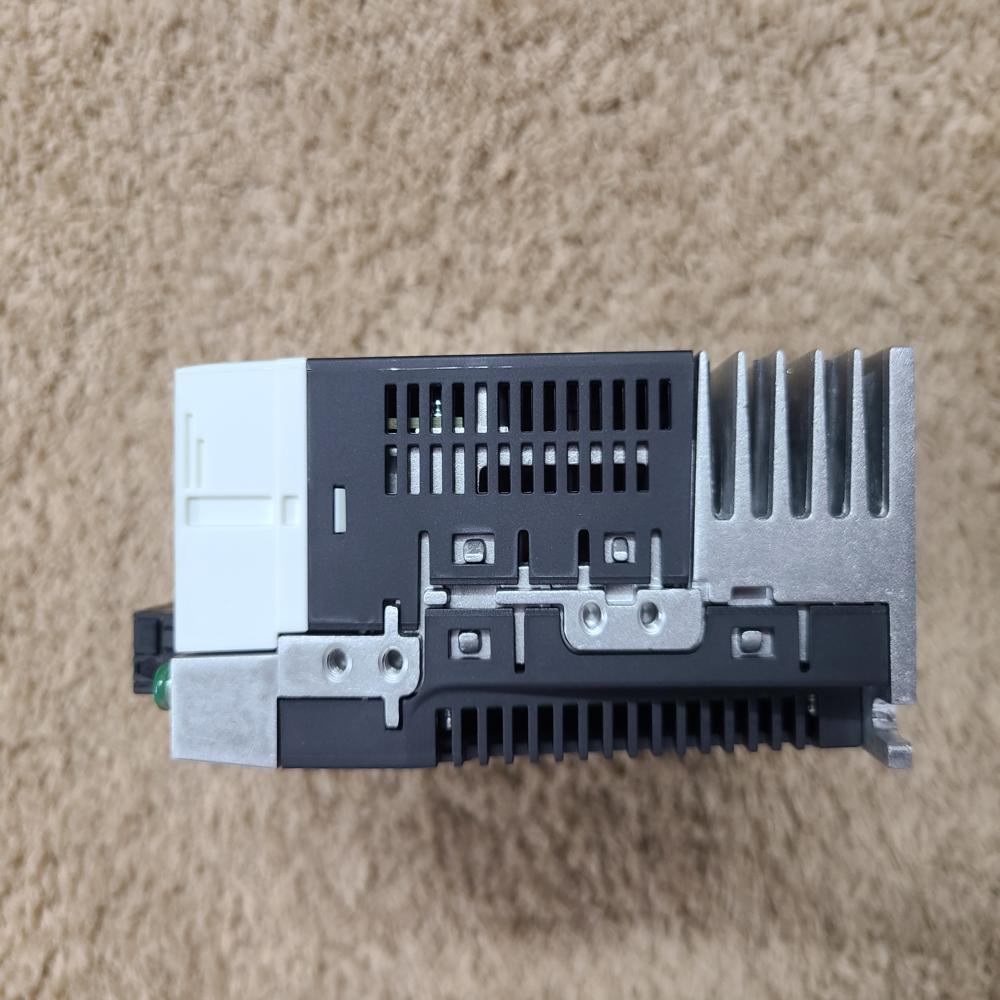

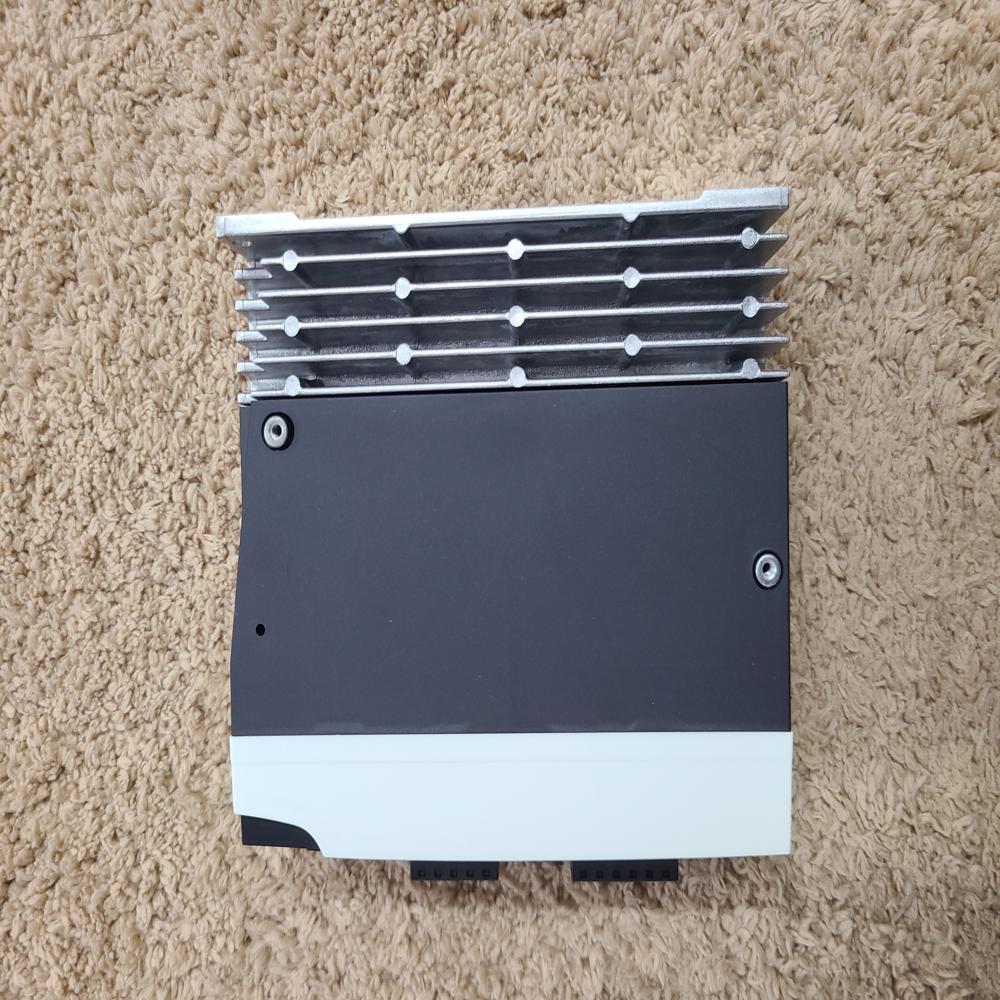

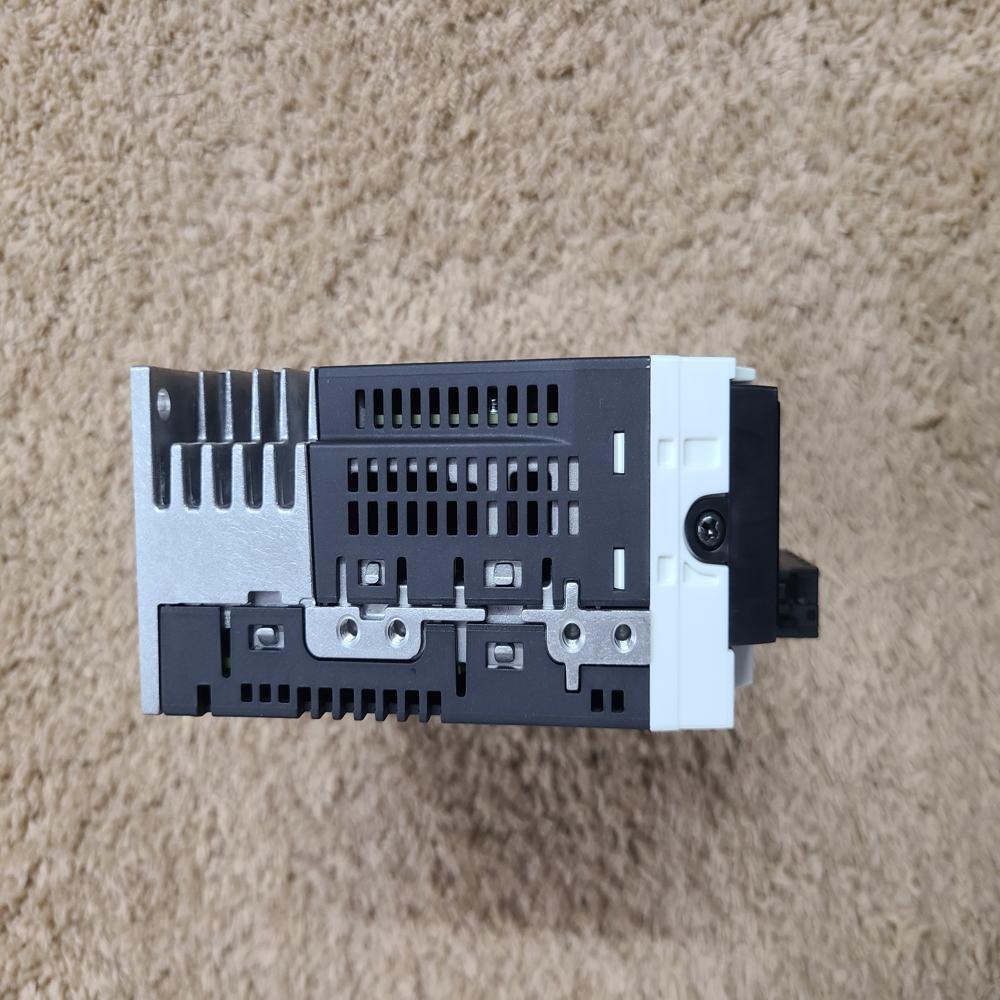

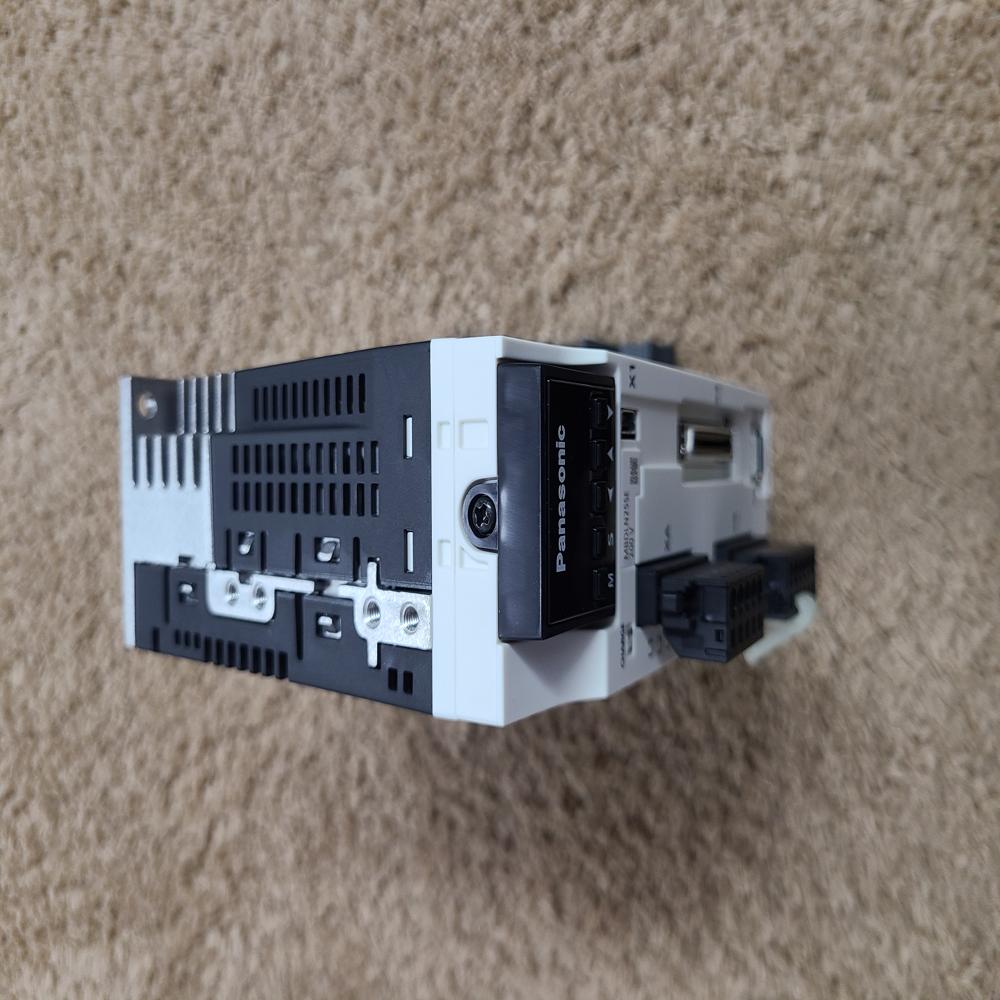

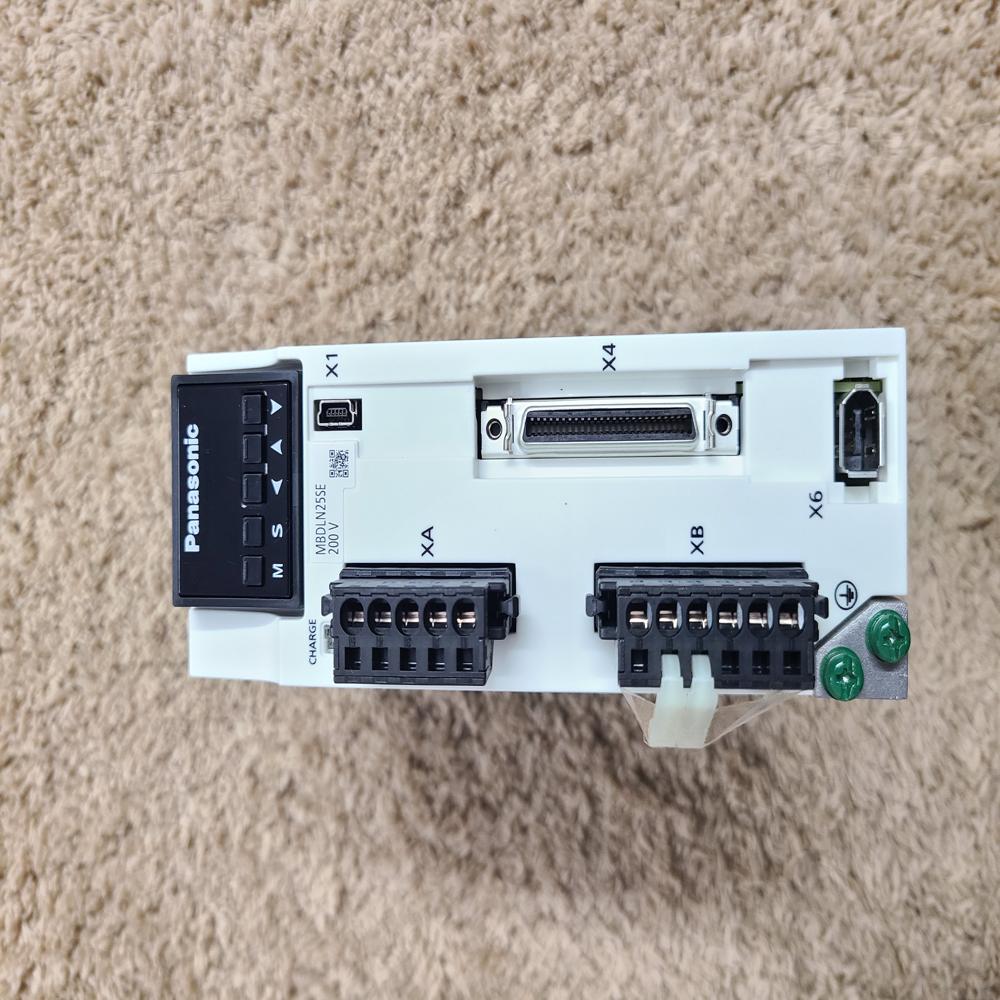

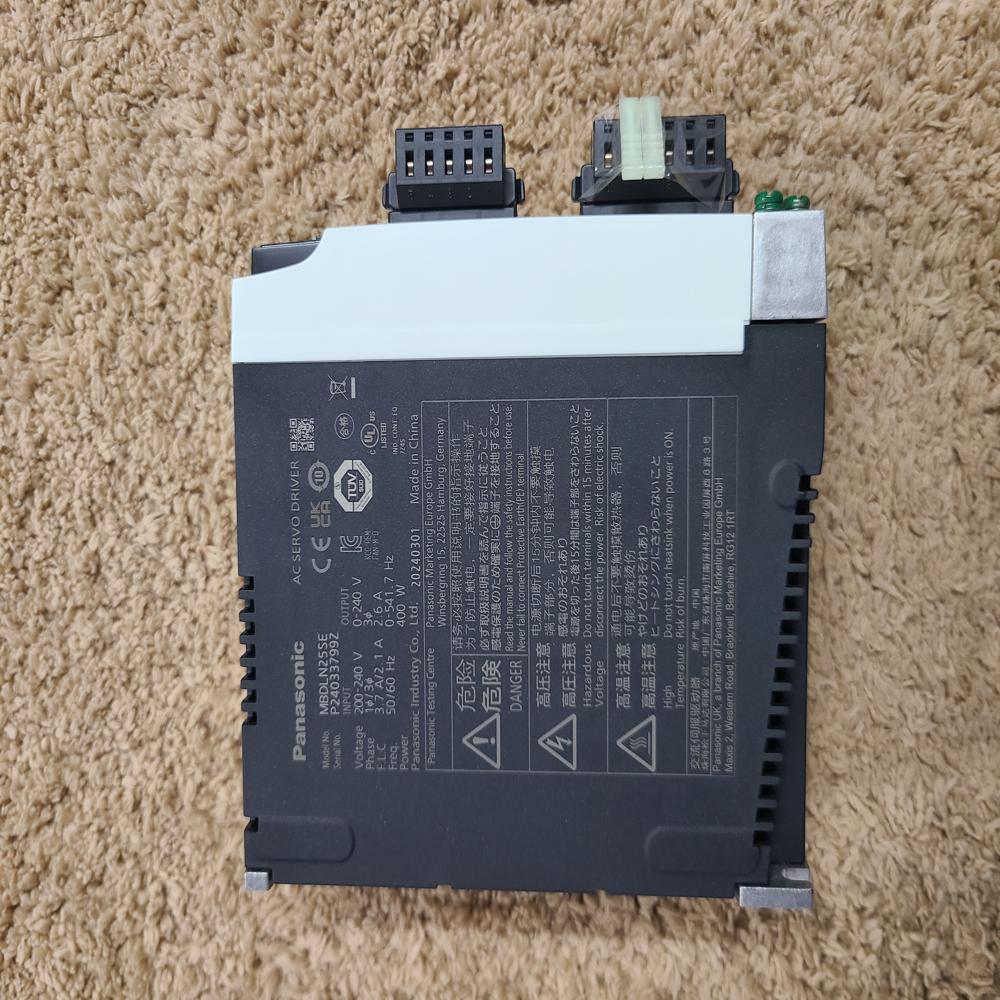

About MBDLN25SE - A6SE Panasonic A6 400W Driver

Panasonic MBDLN25SE A6SE Servo Driver (400W)

Electrical Specifications

• Series: MINAS A6SE
• Rated Motor Power: 50 W 400 W (your use case: 400W)
• Supply Voltage: 200 V AC (single/3-phase)
• Control Mode: Position control only
• Interface: Pulse train input (STEP/DIR)
• Safety Function: Not available (basic type)
• Frequency Response: 3.2 kHz

Control & Features

• Closed-loop servo control with encoder feedback
• Supports 23-bit absolute encoder (8.3 million counts/rev)
• Auto tuning + vibration suppression
• 256 internal positioning points (basic positioning control)
• USB parameter setup via PANATERM software

Functional Role

This driver:

• Converts CNC/PLC commands into motor motion
• Controls position, speed, and torque indirectly (via position control mode)
• Reads encoder feedback and corrects motion in real time
• Ensures smooth, accurate servo movement

In simple terms:
It is the brain + power amplifier for Panasonic A6 servo motors.

Physical Size (Drive)

• Height: 150 mm 5.91 in
• Width: 55 mm 2.17 in
• Depth: 130 mm 5.12 in
• Weight: ~1.0 kg 2.2 lb

Key Differences (SE vs SG vs SF)

• SE (MBDLN25SE): Basic type, pulse control only
• SG (MBDLN25SG): Adds RS232/RS485 + Modbus communication
• SF (MBDLT25SF): Full multifunction + more advanced control modes

Simple Summary

MBDLN25SE is a compact 400W Panasonic A6 servo driver that provides high-speed (3.2 kHz) precise position control for industrial automation systems, without advanced communication or safety features.
