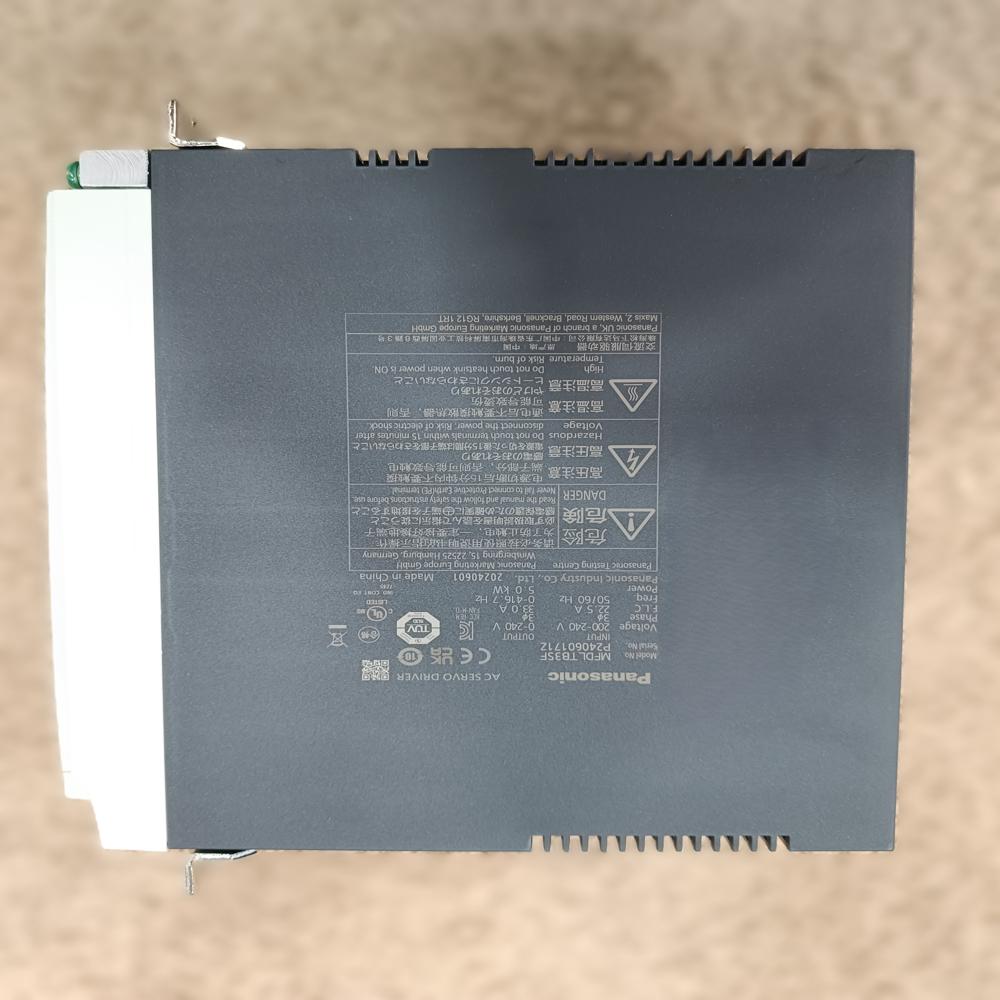

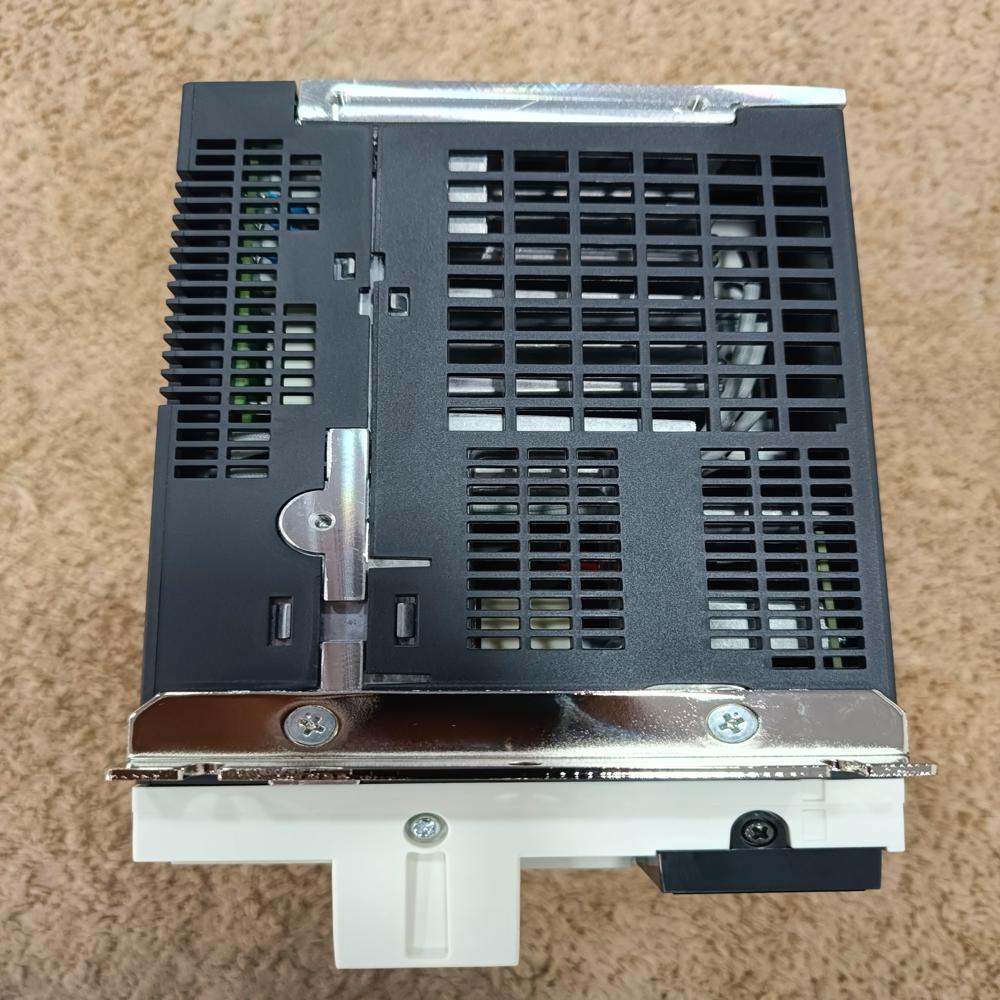

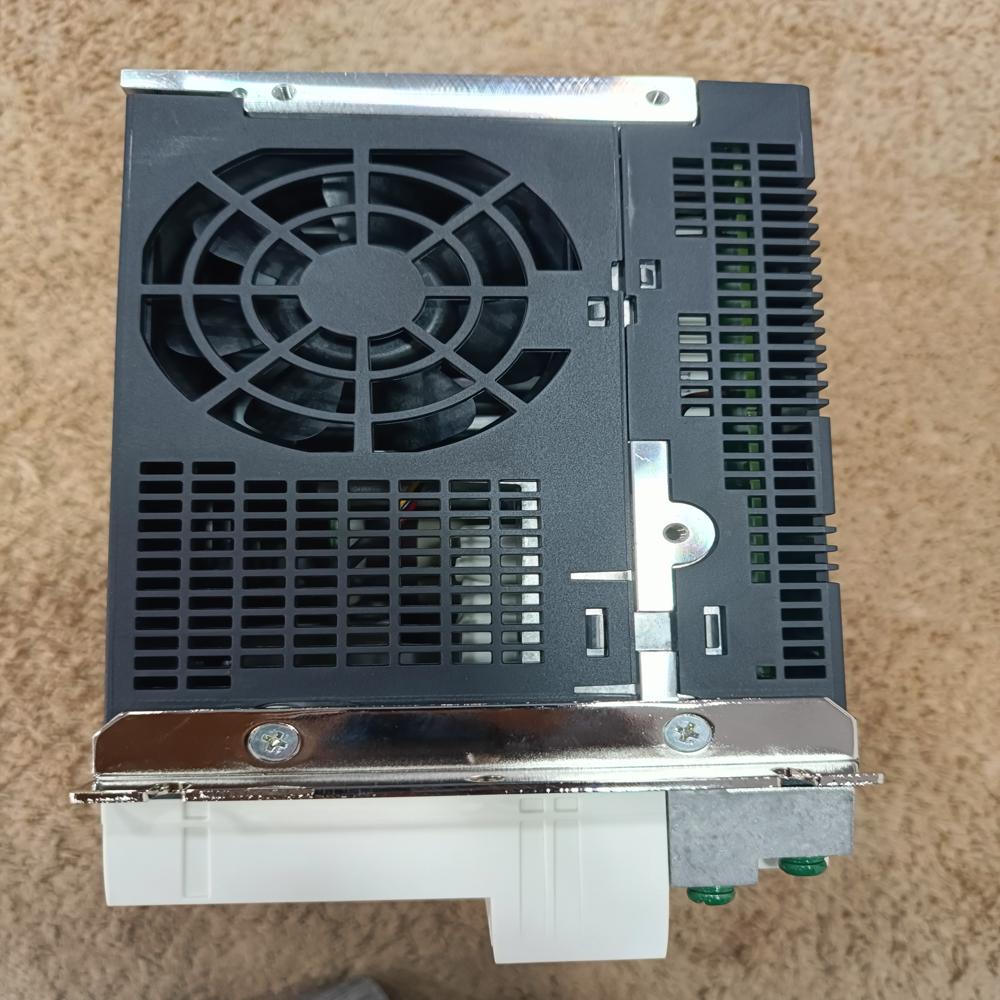

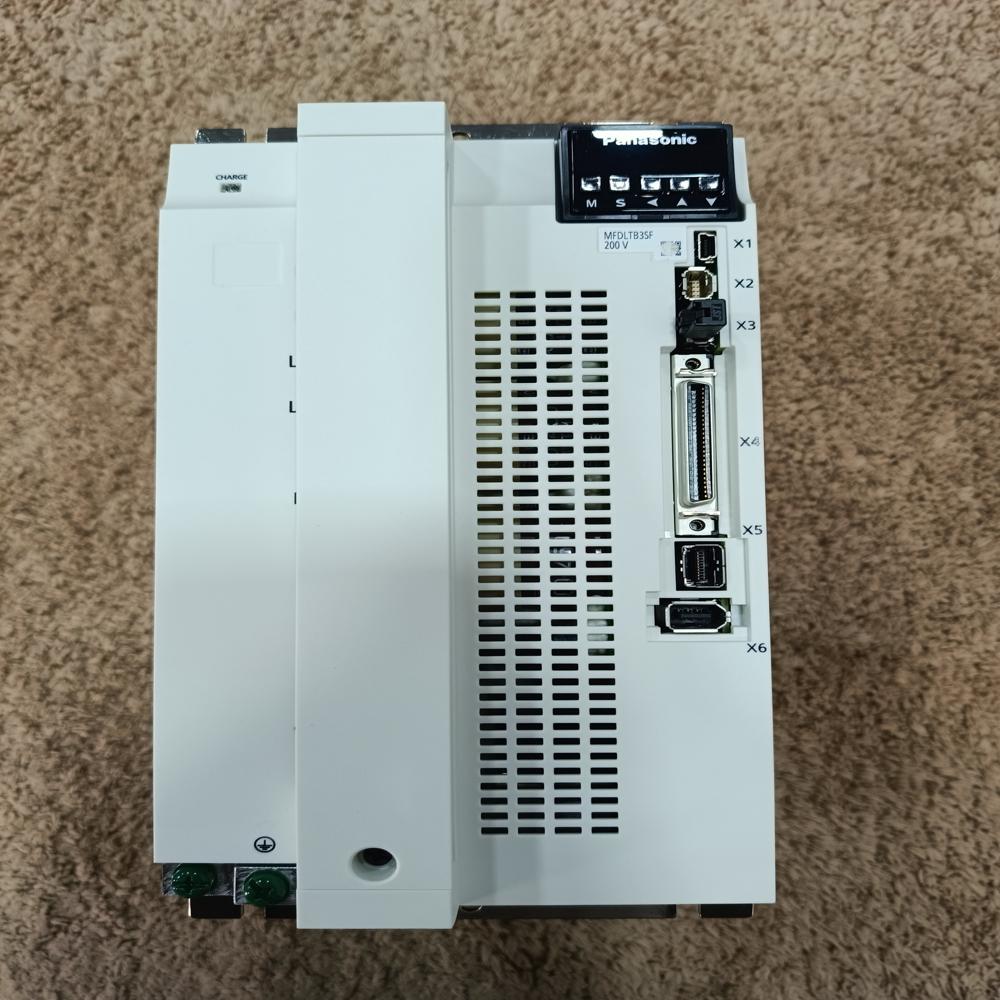

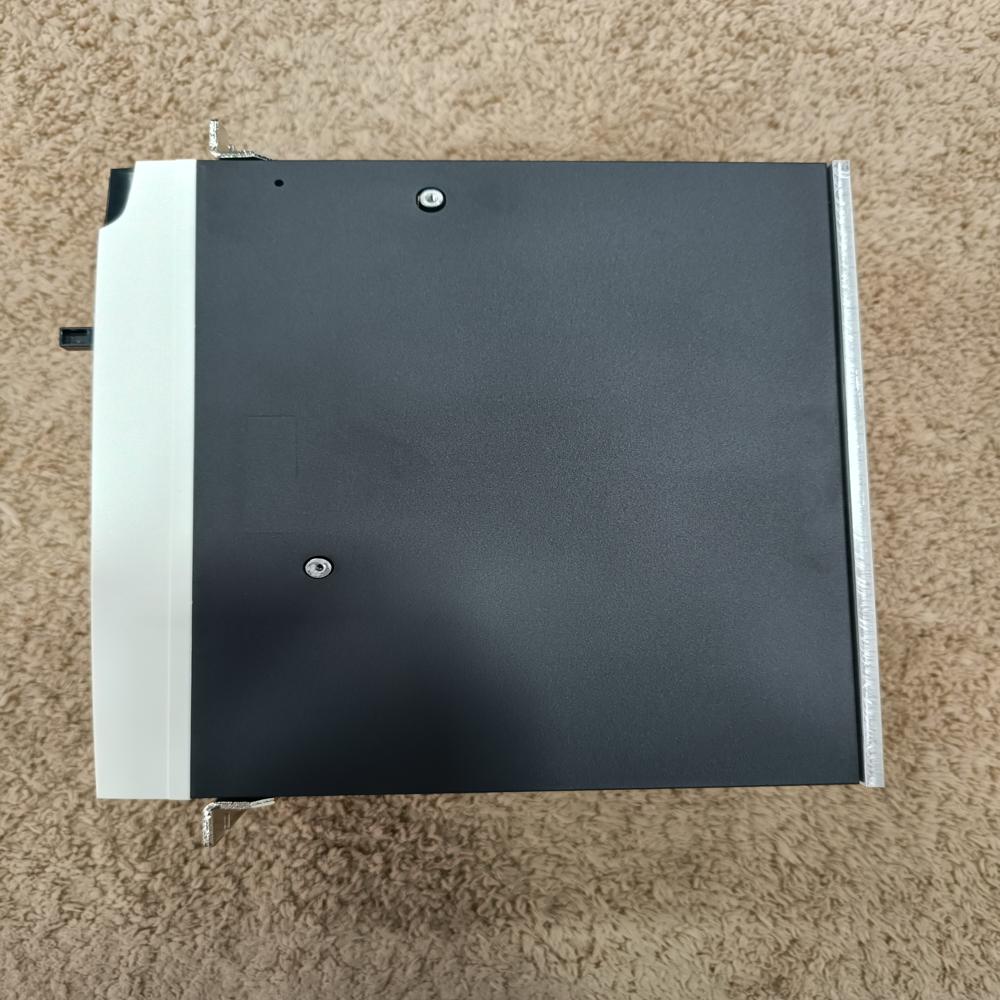

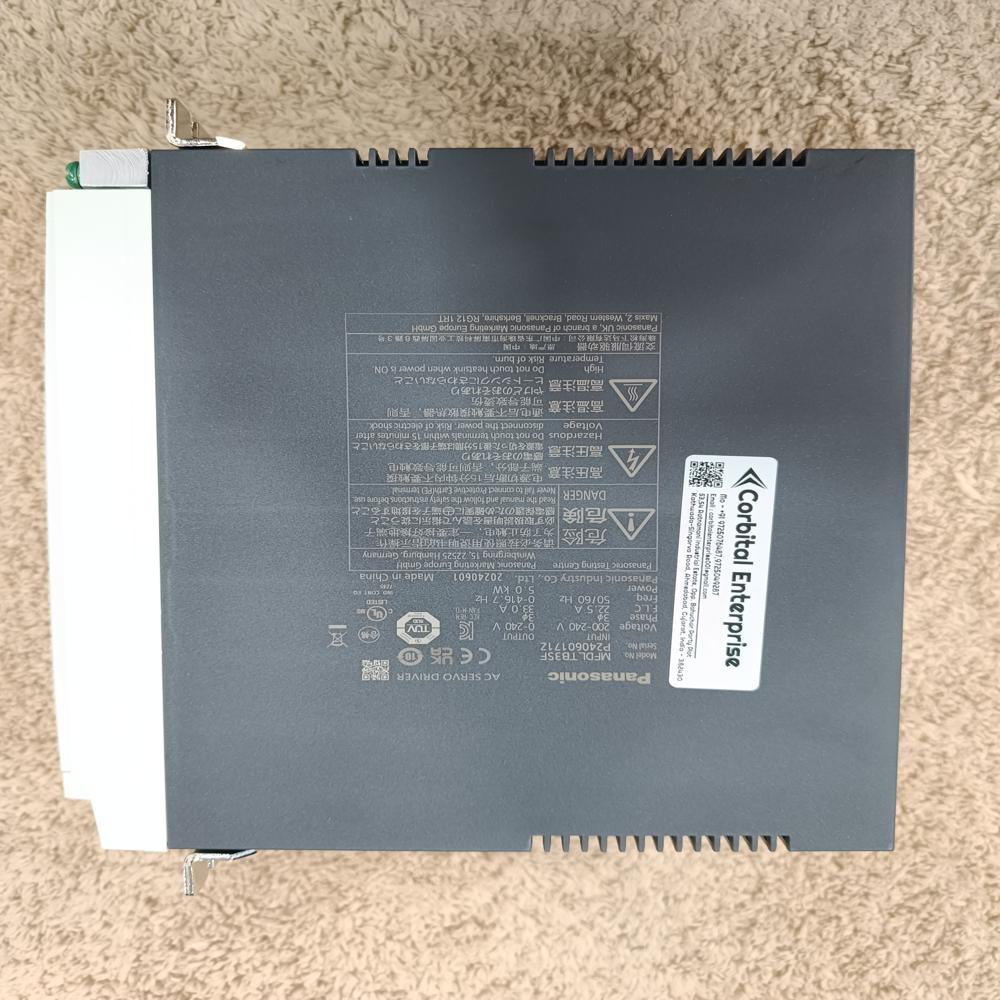

MFDLTB3SF - A6SF Panasonic A6 5000W Driver

Price 112700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MFDLTB3SF - A6SF Panasonic A6 5000W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
5.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MFDLTB3SF - A6SF Panasonic A6 5000W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MFDLTB3SF - A6SF Panasonic A6 5000W Driver

The Panasonic MFDLTB3SF (A6SF series) is a high-performance F-Frame AC servo driver designed for high-output applications up to 5000W (5.0 kW) within the MINAS A6 family. As a "Multifunction Type" driver, it offers advanced control capabilities and fast processing for demanding industrial environments. [1, 2, 3, 4]

Function

Multifunction Control Hub: Supports multiple control modes, including Position, Velocity, Torque, and Full-closed control, allowing for versatile application in advanced robotics and CNC machinery.
Ultra-Fast Response: Features a velocity response frequency of 3.2 kHz, drastically reducing settling time for increased production speed and accuracy.
Safety Integration: Comes standard with a built-in Safety Torque Off (STO) function, ensuring safe operation and compliance with international safety standards.
Adaptive Intelligence: Utilizes real-time auto-tuning and adaptive load control to suppress vibrations and jitter, maintaining stable operation even when workloads change. [1, 2, 3, 4]

Technical Specifications

According to Panasonic Industry and retailers like Industrybuying:

Feature [1, 2, 3]	Specification
Series	MINAS A6SF (Multifunction)
Rated Output	5000 W (5.0 kW)
Input Voltage	3-Phase 200 V to 240 V AC
Control Method	Pulse Train, Analog, Modbus (RS485/RS232)
Encoder Feedback	23-bit absolute system (8.38 million pulses/rev)
Frame Size	F-Frame
IP Rating	IP20 (Indoor use)

Physical Dimensions & Weight

Converted from standard metric specifications: [1, 2]

Weight: Approximately 11.46 lbs (5.2 kg).
Width: 5.12 inches (130 mm).
Height: 8.66 inches (220 mm).
Depth: 8.50 inches (216 mm).

The primary function of the Panasonic MFDLTB3SF is to act as the "multipurpose brain" and power station for 5.0 kW A6 servo motors. It translates complex commands from a controller into high-current electricity to move massive industrial loads with surgical precision.

1. Universal Control (Multifunction)

Unlike basic drivers, the A6SF series can handle any type of motion command:

Position Control: For precise "point-to-point" moves (Robotic arms, CNC tables).
Velocity Control: For maintaining a perfectly steady speed (Spindles, conveyors).
Torque Control: For maintaining a specific "pushing force" (Tensioning, winding, pressing).
Full-Closed Loop: It can read an external scale (like a linear ruler) to correct for mechanical errors in the machine itself.

2. High-Speed "Real-Time" Tuning

This driver functions as an active stabilizer for the heavy mass moved by 5kW motors:

3.2 kHz Response: It checks the motor's position and adjusts power 3,200 times every second. This eliminates "lag" and ensures the machine reacts instantly.
Real-Time Auto-Tuning: It automatically senses the weight of the load (e.g., if a crane picks up a part) and instantly adjusts its internal math to keep the movement smooth without manual setup.

3. Integrated Machine Safety (STO)

The driver serves as a critical safety component via the Safe Torque Off (STO) function:

It provides a hardware-level way to cut power to the motor instantly if a safety gate is opened or an E-Stop is pressed. This ensures the motor cannot move while a human is in the danger zone, even if the software fails.

4. Vibration & Resonance Suppression

At 5.0 kW, mechanical vibration can be loud and destructive. The MFDLTB3SF acts as a digital shock absorber:

Adaptive Notch Filters: It identifies the specific "hum" or vibration frequency of your machine frame and electronically cancels it out. This allows for faster cycle times without noise or mechanical wear.

5. Communication & Feedback Bridge

Interface: It connects to almost any system via Analog signals, Pulse trains, or digital data via Modbus (RS485/RS232).
Data Hub: It translates the 8.38 million pulses per turn from the motors encoder into digital information that the main PLC can use to track the machine's exact location.
