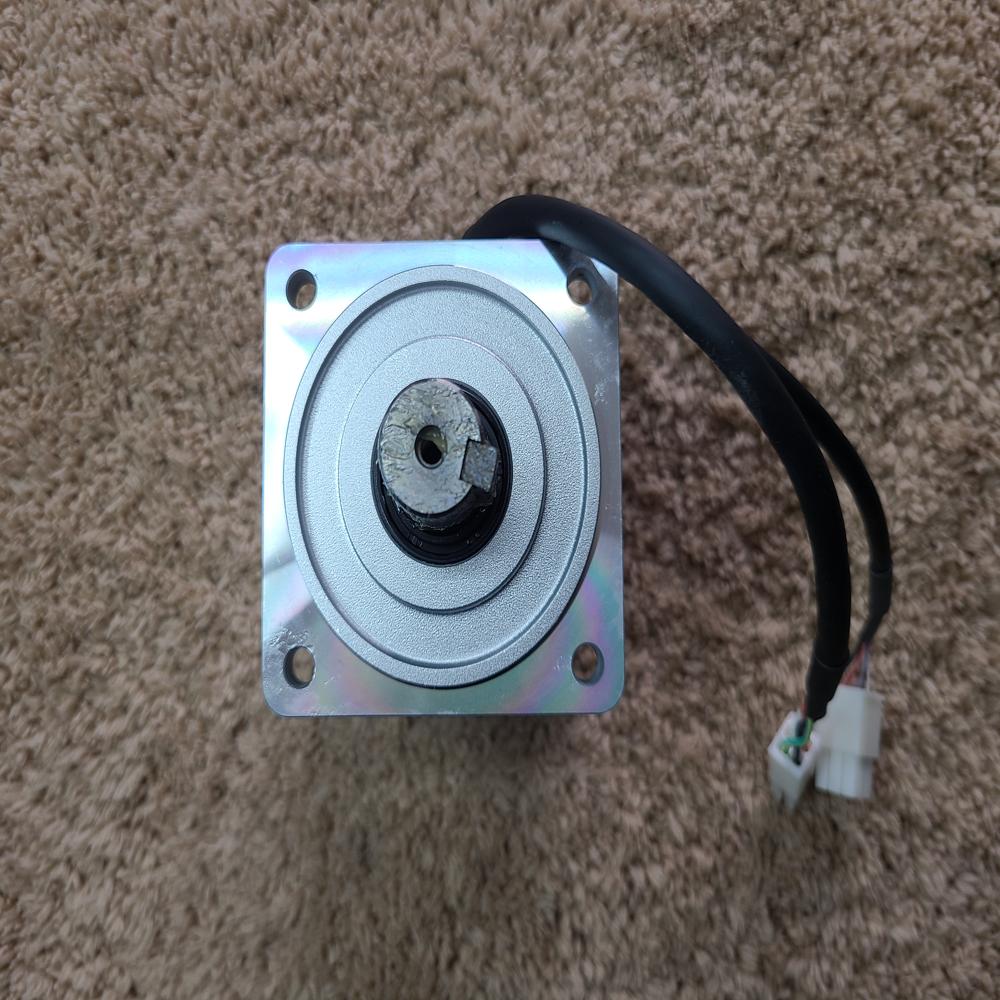

MHMD042G1V - Panasonic A5 Break Motor

Name: MHMD042G1V - Panasonic A5 Break Motor
Brand: Corbital Enterprise
Price: 20950.0 INR
Availability: InStock

Price 20950.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MHMD042G1V - Panasonic A5 Break Motor Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
1.8 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MHMD042G1V - Panasonic A5 Break Motor Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
24 Hours

About MHMD042G1V - Panasonic A5 Break Motor

The

MHMD042G1V

is a 400-watt, high-inertia AC Servo Motor from the Panasonic MINAS A5 family. The primary difference between this model and the "G1U" model you asked about previously is that the G1V version includes a built-in electromagnetic holding brake.

Core Function

The main function of this motor is to provide safe, high-precision motion control for vertical axes or loads that must not move when power is cut.

Fail-Safe Holding: The built-in brake automatically engages when the motor is de-energized, preventing heavy loads from falling due to gravity.
High Stability: As a "High Inertia" motor, it excels at handling large or unbalanced mechanical loads that require smooth, vibration-free operation.
Precision Control: Equipped with a 20-bit incremental encoder (1,048,576 pulses/rev), it offers extremely fine positioning accuracy.

Weight & Dimensions in Inches

Because of the added brake mechanism, this motor is heavier and longer than the non-brake (G1U) version.

Feature	Inches (approx.)	Millimeters
Height/Width (Frame)	2.362"	60 mm
Length (Body only)	4.72"	120 mm
Total Length (with Shaft)	5.90"	150 mm
Shaft Diameter	0.551"	14 mm
Net Weight	3.97 lbs	1.8 kg

Technical Specifications

Power Output: 400 Watts (0.4 kW).
Rated Speed: 3000 RPM (Max 5000 RPM).
Rated Torque: 1.3 Nm (Peak 3.8 Nm).
Brake Static Friction Torque: 1.27 Nm or more.
Protection Rating: IP65.

The primary function of the MHMD042G1V is to provide safety-critical position control, specifically designed to lock the motor shaft in place when power is lost or the system is disabled.

While it performs the same high-precision motion as the previous models, its "V" designation signifies its specialized role in fail-safe applications.

Key Functional Roles

Holding Brake (Vertical Safety): The most critical function is its built-in electromagnetic brake. This is essential for vertical (Z-axis) applications where gravity would otherwise cause a heavy tool or robotic arm to crash down if the power failed.
High-Inertia Load Management: Like the "G1U" model, this motor is designed to handle "heavy" loads (loads with high mechanical inertia). It prevents the system from overshooting or vibrating when trying to stop a heavy moving part.
Extreme Precision: Its 20-bit encoder allows the system to "know" its exact position within 1/1,048,576th of a turn, making it functional for microscopic adjustments in high-end manufacturing.

How the Brake Functions

It is important to note that this is a holding brake, not a dynamic braking system:

Power On: The brake is energized and released, allowing the motor to spin freely.
Power Off: The brake is de-energized and a internal spring clamps the shaft.
Note: You should not use this brake to stop a spinning motor (which would cause wear); it is meant only to hold the position once the motor has already come to a stop.

Common Use Cases

Vertical CNC Milling: Holding the spindle head in place so it doesn't drop onto the workpiece during a power outage.
Automated Gates/Hoists: Ensuring a heavy load stays suspended safely.
Medical Imaging Equipment: Holding heavy sensors or X-ray arms in a fixed position for stable imaging.

Durable Aluminum Construction

The MHMD042G1V A5 Break Motor is crafted from high-quality aluminum, offering superior resistance to wear and corrosion. This makes it highly suitable for demanding industrial environments where long-lasting materials are essential for uninterrupted operations.

Precision Engineering for Industrial Use

Engineered for integration into industrial machinery, this break motor ensures consistent performance under continuous operation. Its packing seal helps prevent contamination, extending its service life and reliability in rigorous industrial contexts.

Versatile Supply Options

Available through suppliers, traders, and wholesalers, the MHMD042G1V caters to a wide range of industry professionals. Its availability from multiple channels simplifies the procurement process and helps businesses maintain operational continuity.

FAQ's of MHMD042G1V - Panasonic A5 Break Motor:

Q: How is the MHMD042G1V Panasonic A5 Break Motor typically used?

A: This break motor is primarily used in industrial machinery, offering precise stopping and holding functions essential for safe and efficient equipment operation.

Q: What are the benefits of a packing seal in this break motor?

A: The packing seal helps protect internal components from dust and moisture, substantially increasing the motor's operational lifespan and minimizing maintenance requirements.

Q: When can I expect the warranty for the MHMD042G1V motor to be applicable?

A: The motor comes with a one-year warranty that covers manufacturing defects or malfunctions under normal industrial usage, providing assurance and support within this period.

Q: Where can I purchase the MHMD042G1V Panasonic A5 Break Motor?

A: It is available through authorized suppliers, traders, and wholesalers catering to industrial users, making it accessible for different procurement channels.

Q: What is the installation process for this break motor?

A: It is advisable to have a qualified technician handle the installation, ensuring correct integration with three-phase industrial systems and optimal sealing for longevity.

Q: How does the three-phase design enhance the motor's performance?

A: A three-phase configuration delivers smoother torque and heightened efficiency, making the motor well-suited for high-demand industrial applications where reliability and performance are paramount.

Q: What is the weight and color specification of the MHMD042G1V motor?

A: This break motor weighs 1.8 kilograms and features a black and silver color scheme, allowing for easy handling during installation and aesthetic compatibility with various industrial machines.
