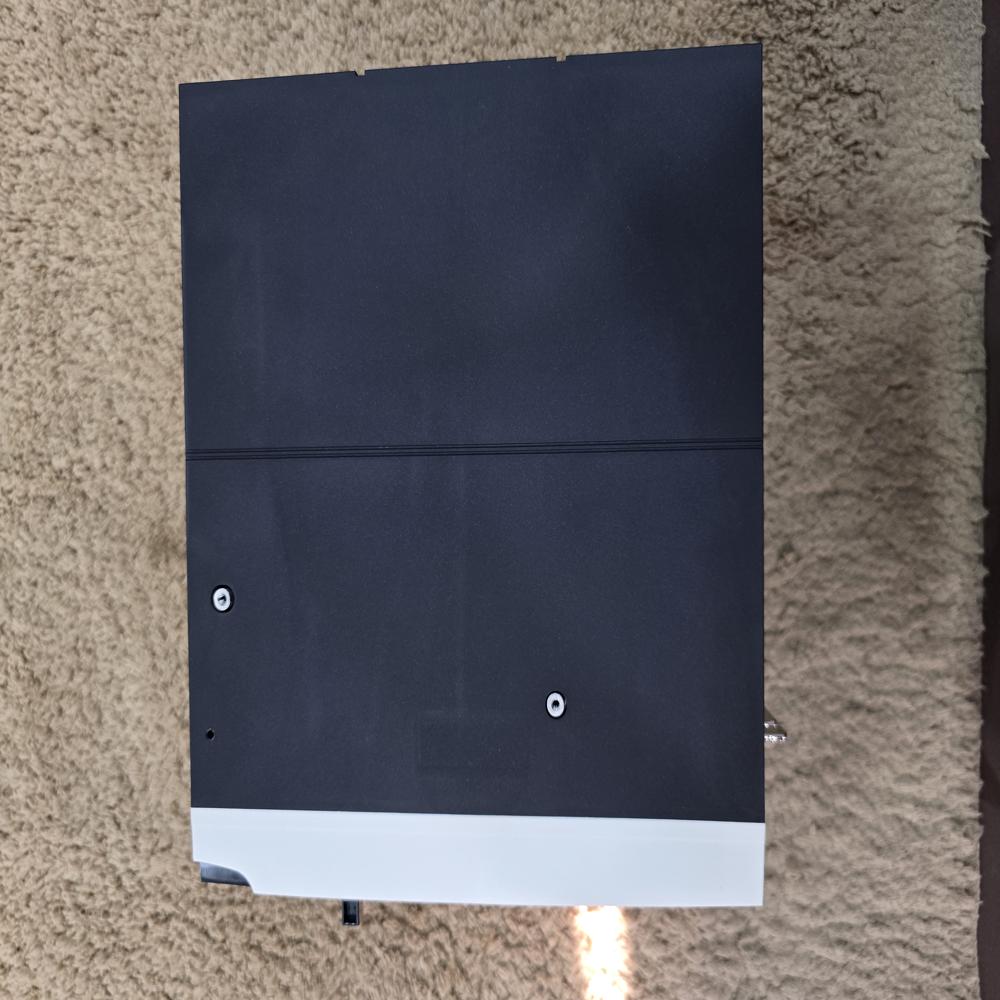

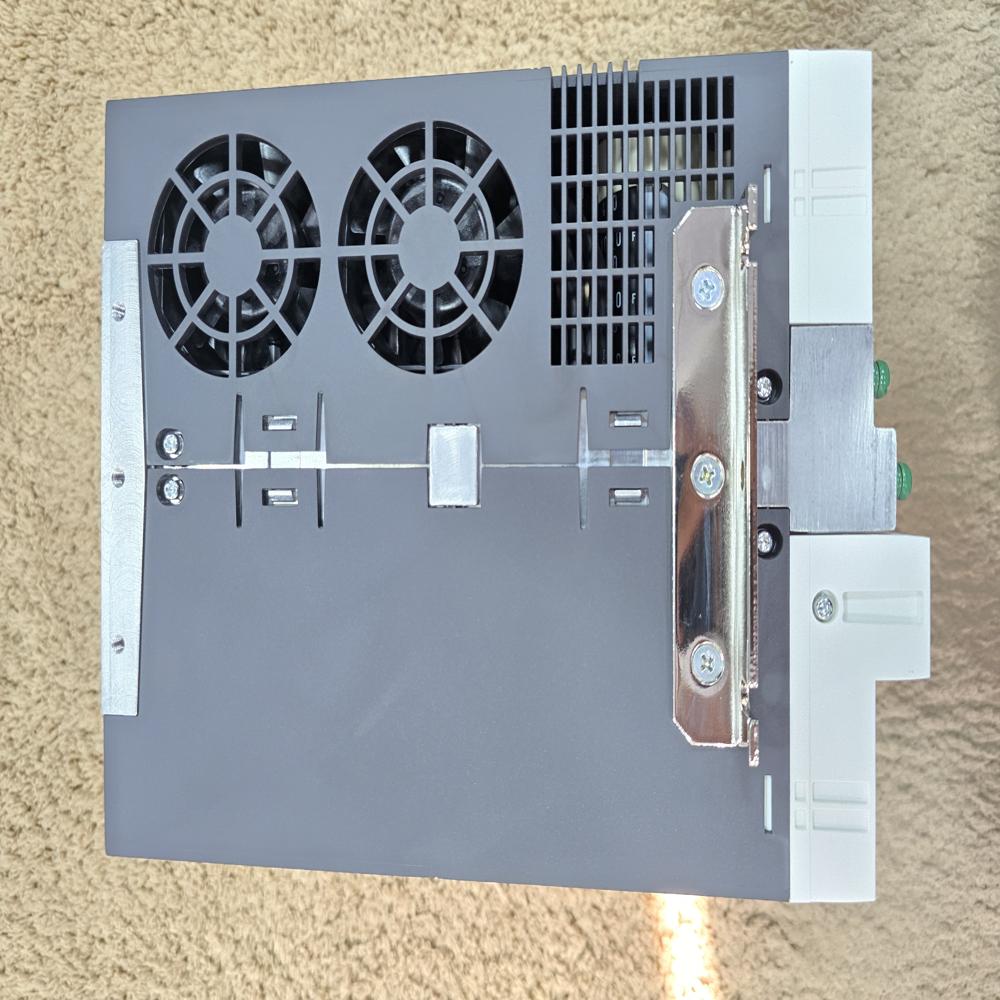

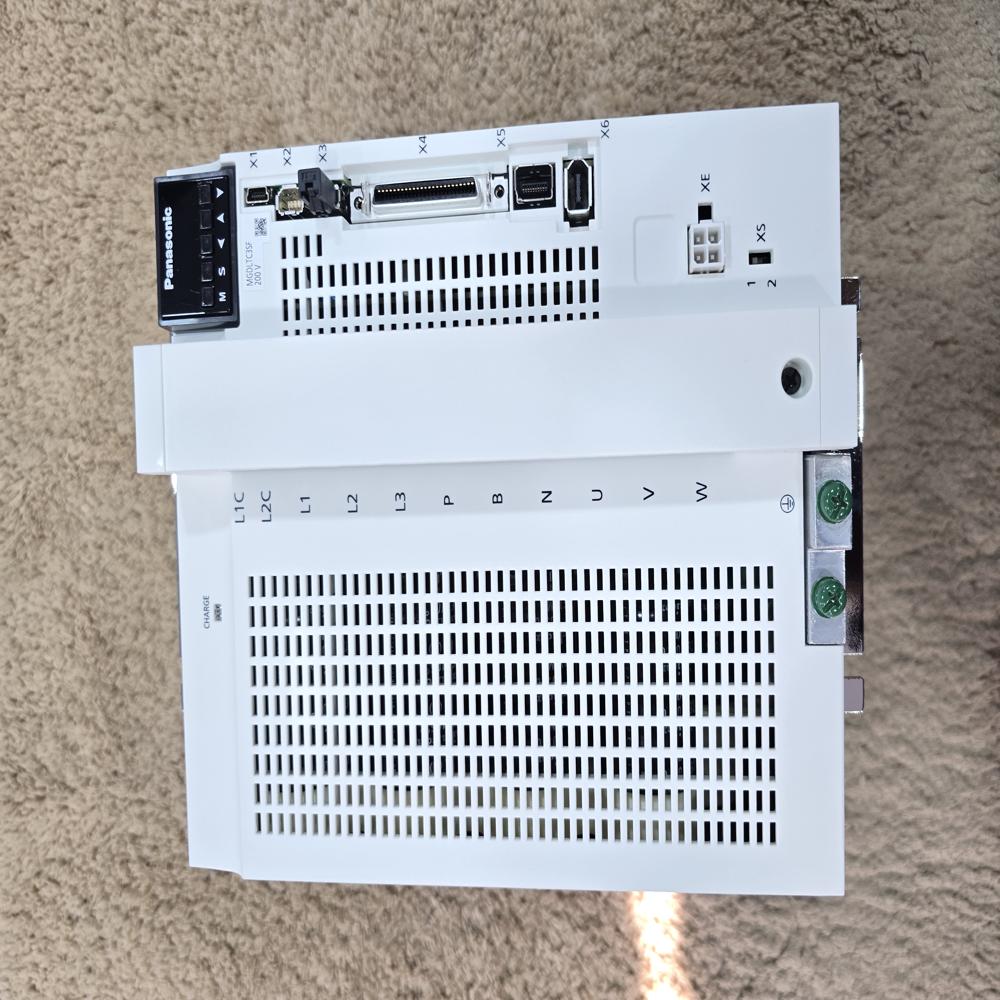

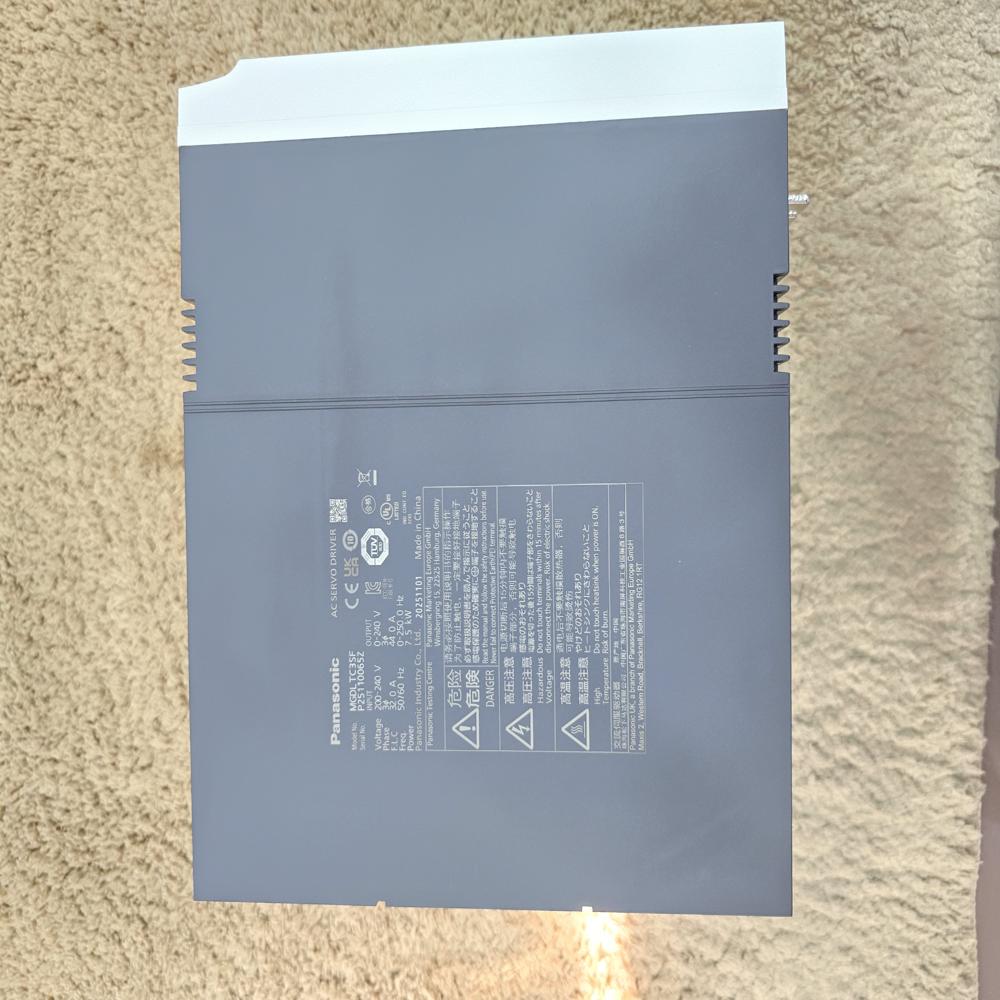

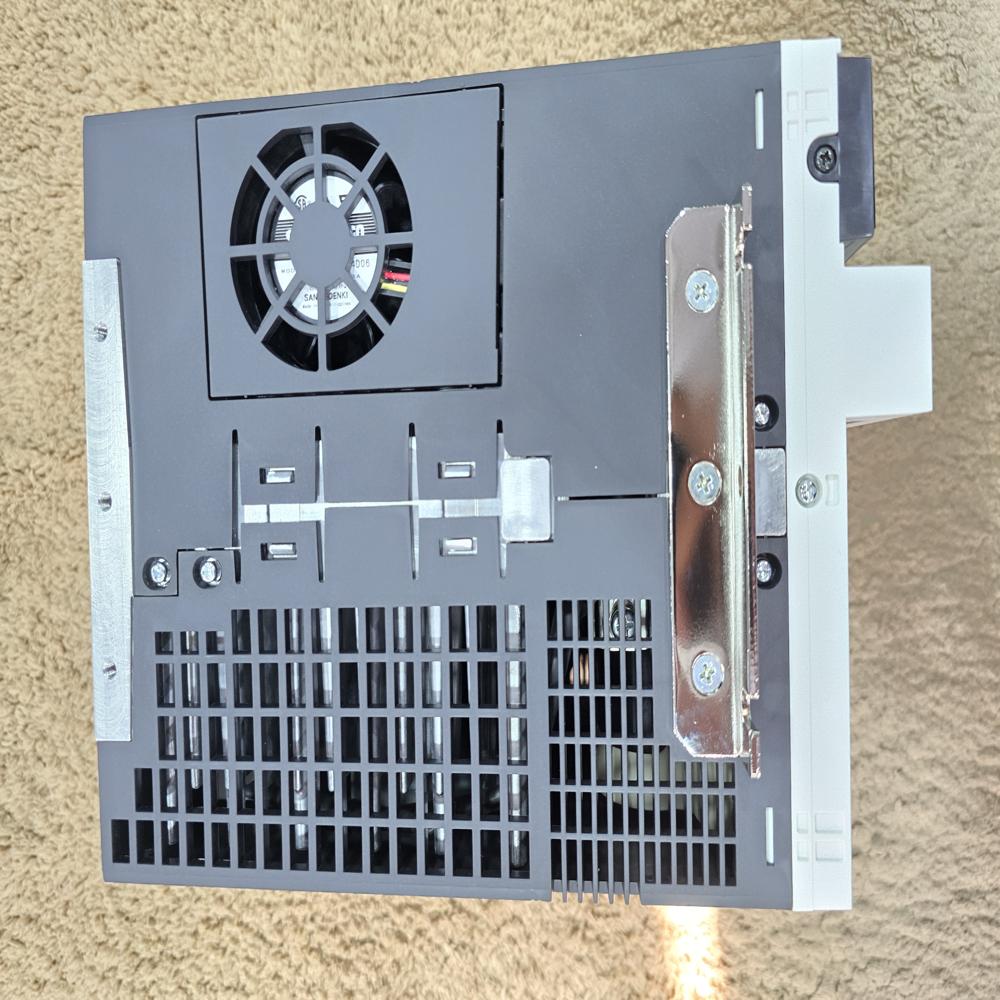

MGDLTC3SF - A6SF Panasonic A6 7500W Driver

Price 230000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MGDLTC3SF - A6SF Panasonic A6 7500W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
13.26 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MGDLTC3SF - A6SF Panasonic A6 7500W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MGDLTC3SF - A6SF Panasonic A6 7500W Driver

The Panasonic MGDLTC3SF is the official MINAS A6SF Series servo driver designed specifically to control 7.5 kW motors like the MDMF752L1H6M you previously inquired about. As a "Multifunction Type" driver, it supports diverse control methods and high-speed communication. [1, 2, 3]

Technical Specifications

Power Rating: 7500 W (7.5 kW).
Frame Size: G-Frame.
Input Voltage: 3-phase 200 V AC to 240 V AC.
Frequency Response: 3.2 kHz, enabling ultrafast velocity response for high productivity.
Safety Function: Equipped with a built-in safety function (Safe Torque Off - STO). [1, 2, 3, 4]

Functional Capabilities

Control Modes: Supports Position control, Velocity control, Torque control, and Full-closed control.
Communication: Includes USB, RS232, RS485, and Modbus-RTU for parameter setting and monitoring.
Interface: Features 10 general-purpose inputs and 6 general-purpose outputs, which are parameter-selectable.
Encoder Feedback: Designed to handle 23-bit absolute encoders, matching the high-resolution feedback of your A6 motor. [1, 2, 3, 4, 5]

Physical Dimensions

Dimension	Measurement (mm)	Measurement (inches)
Width	184 mm	~7.24"
Height	220 mm	~8.66"
Depth	253 mm	~9.96"
Mass	8.2 kg	~18.1 lbs

The Panasonic MGDLTC3SF (A6SF Series) acts as the "brain" of your 7.5 kW motor system. While the motor provides the physical muscle, this driver functions as the high-speed controller that manages power, precision, and communication.

1. High-Speed Processing & Motion Control

3.2 kHz Frequency Response: This is the driver's "reaction speed." It processes feedback from the motor 3,200 times per second, allowing for near-instant correction of position errors.
Position, Velocity, and Torque Control: It functions in multiple modes, meaning you can program it to stop at an exact point (Position), maintain a steady speed (Velocity), or push with a specific amount of force (Torque).

2. Vibration & Resonance Suppression

Adaptive Notch Filters: If your machine vibrates or "shrikes" at a certain speed, the driver automatically detects that frequency and filters it out electronically.
Load Variation Adaptation: It automatically adjusts the power output to compensate for changes in weight (for example, if a robot picks up a heavy part), ensuring the motion stays smooth.

3. Safety & Protection (Safe Torque Off)

STO Function: This is a hardware-level safety function. It can cut power to the motor instantly to prevent accidental restarts, meeting global safety standards (SIL3) without needing to cut the main power to the driver.

4. Smart Setup & Tuning

Real-Time Auto-Tuning: The driver "learns" the machine it is attached to. It automatically calculates the inertia of your equipment and sets the gain parameters for you, which used to take hours of manual work.
Full-Closed Loop Control: It can read feedback from an external linear scale on the machine itself (not just the motor's encoder), ensuring 100% accuracy even if there is "play" or backlash in your mechanical gears.

5. Communication & Diagnostic Link

Interface: It translates commands from your main PLC (Controller) into high-voltage electrical pulses for the motor.
PANATERM Software Support: It functions with Panasonic's setup software via USB, allowing you to se
