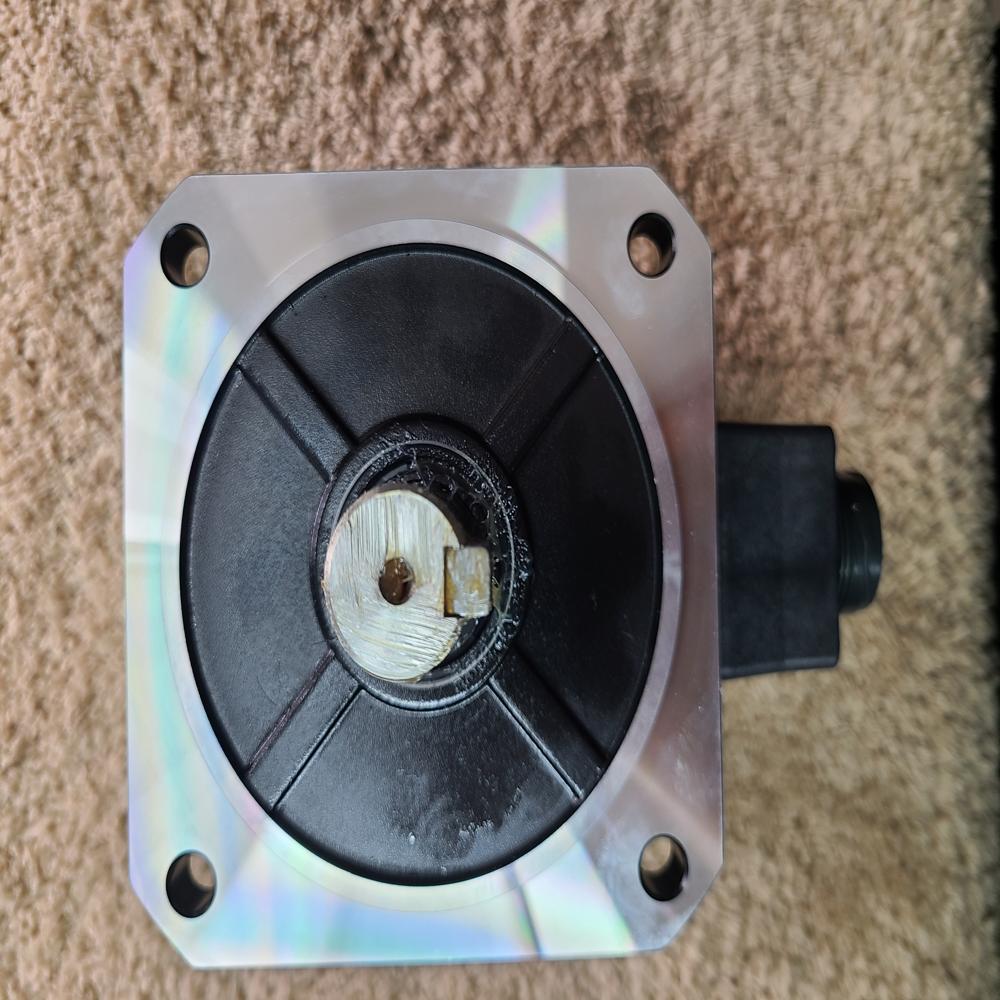

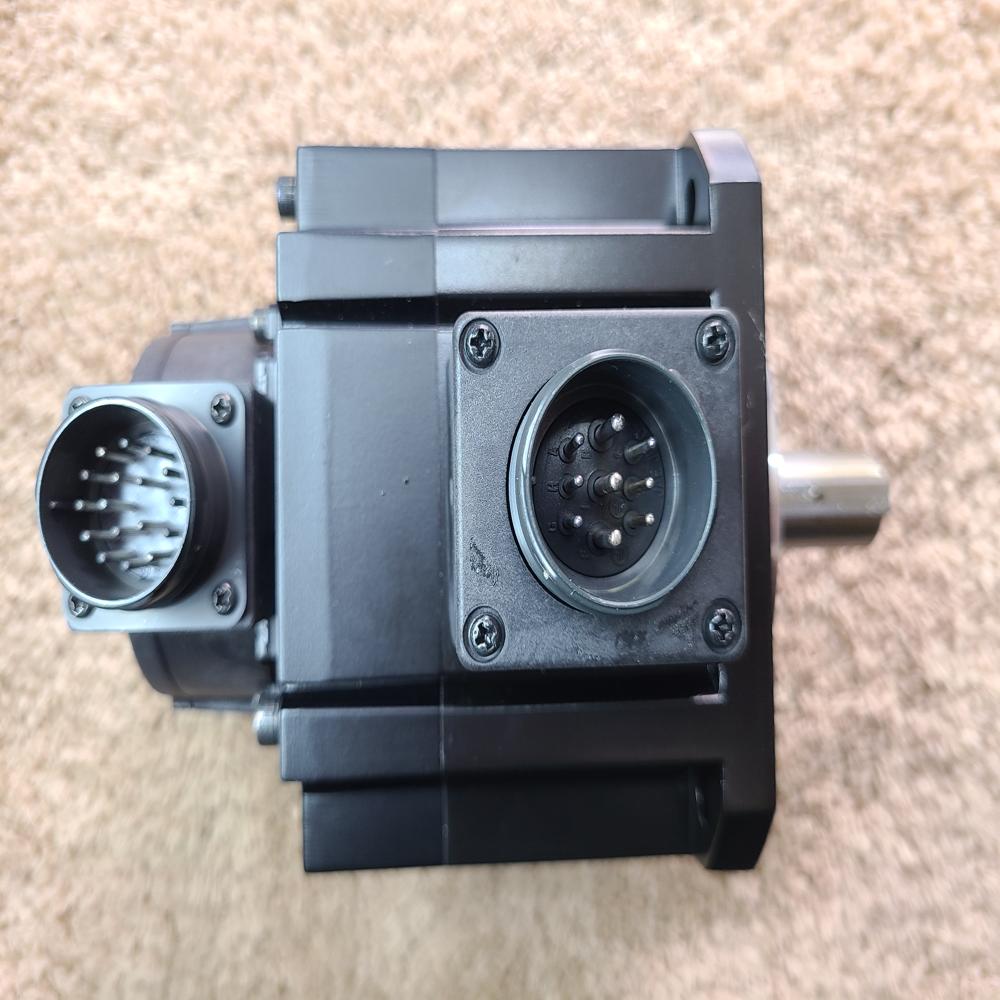

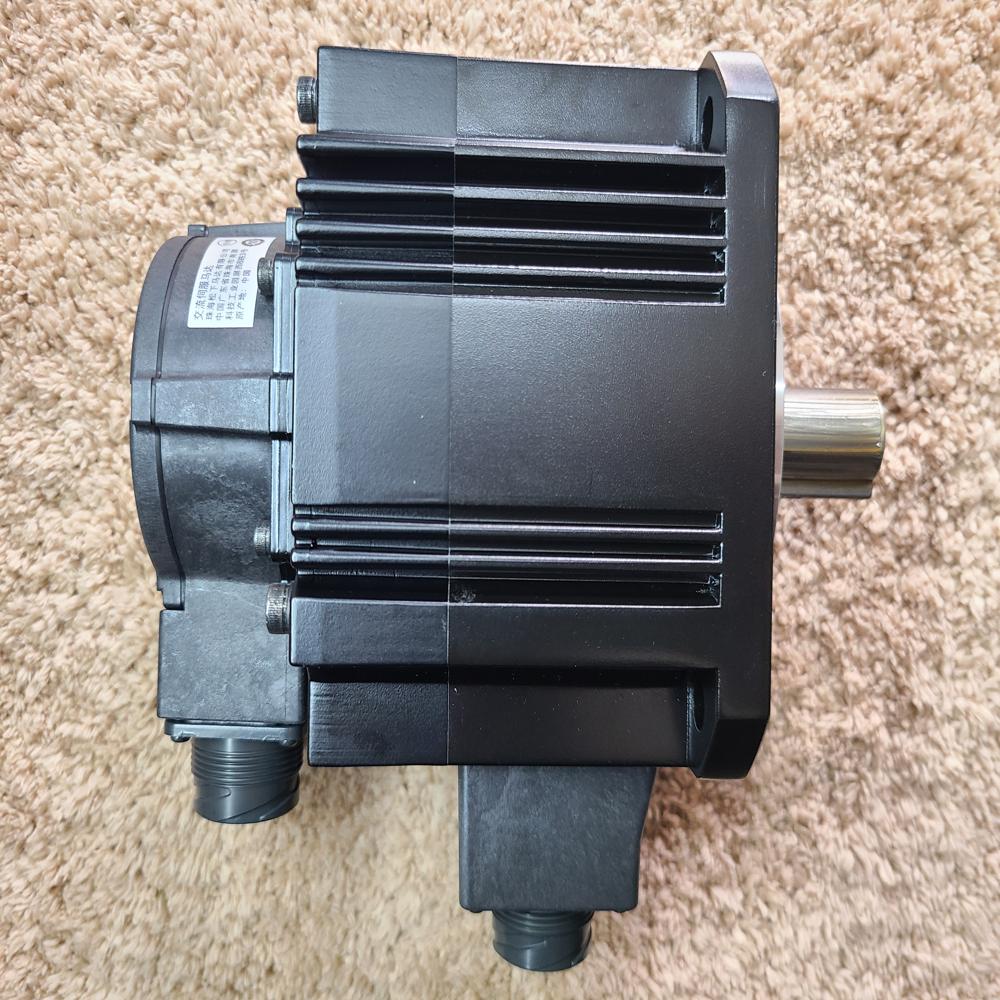

MGMF132L1G6M Torque Nm - 8.28, Fram Size- 130mm , RPM -3000

Name: MGMF132L1G6M Torque Nm - 8.28, Fram Size- 130mm , RPM -3000
Brand: Corbital Enterprise
Price: 52100.0 INR
Availability: InStock

Price 52100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MGMF132L1G6M Torque Nm - 8.28, Fram Size- 130mm , RPM -3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
6.7 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MGMF132L1G6M Torque Nm - 8.28, Fram Size- 130mm , RPM -3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MGMF132L1G6M Torque Nm - 8.28, Fram Size- 130mm , RPM -3000

The Panasonic MINAS A6 MGMF132L1G6M is a 1300 W (1.3 kW) middle inertia AC servo motor. It offers a significant power boost over the 850 W model while maintaining the same 130 mm frame size.

Core Technical Specifications

Rated Output: 1300 W (1.3 kW).
Rated Torque: 8.28 Nm.
Peak Torque: 24.8 Nm.
Rated Speed: 3000 r/min (Max: 4500 r/min).
Rated Current: 7.5 A (rms).
Voltage: 200 V AC. [1, 2, 3, 4, 5]

Physical Dimensions (Inches)

Width & Height (Flange): 5.12" (130 mm).
Body Length: 6.22" (158 mm).
Total Length (Body + Shaft): 8.39" (213 mm).
Weight: Approximately 14.8 lbs (6.7 kg).
Shaft Diameter: 0.87" (22 mm). [1, 2, 3]

Key Features

Middle Inertia: Provides stable control for machines with fluctuating loads, making it a "workhorse" for medium-sized robotics and CNC axes.
23-bit Absolute Encoder: Delivers 8.38 million pulses per revolution for ultra-precise positioning.
IP67 Protection: Fully sealed against dust and water immersion, suitable for environments with heavy oil or coolant.
G6M Design: This specific model is without a holding brake. [1, 2]

The Panasonic MGMF132L1G6M functions as a Medium-Duty Prime Mover. At 1.3 kW, it is the "bridge" motor between small automation and heavy-duty machinery, providing high speed (3000 RPM) combined with a robust 8.28 Nm of torque.

1. High-Performance Motion Control

The primary function is delivering high torque without sacrificing speed.

8.28 Nm Continuous Torque: It functions to move medium-sized mechanical loads (like a gantry or a heavy lead screw) steadily at 3000 RPM.
24.8 Nm Peak Power: It can provide a 3x "burst" of torque for rapid accelerations, helping to reduce machine cycle times in high-speed manufacturing.

2. Stabilization for Shifting Loads (Middle Inertia)

This motor is a Middle Inertia type, which serves a specific mechanical purpose:

Damping Function: The internal rotor has enough mass to act as a stabilizer. It functions to prevent the "jitter" or vibration that often happens when a small motor tries to move a relatively heavy or high-friction load.

3. Surgical Positioning Accuracy

23-bit Feedback: It functions as a high-resolution instrument, monitoring its position at 8,388,608 points per turn. This allows for microscopic precision in applications like 3D printing, laser cutting, or precision milling.
Absolute Tracking: It functions to "remember" its location. You don't need to perform a "homing" sequence when the machine starts up; the motor knows exactly where it is.

4. Harsh Environment Survival

IP67 Sealing: It is designed to function in "wet" areas. It is fully protected against dust and can be sprayed with cutting oils or coolants without the internal electronics being damaged.

Typical Applications

CNC Router/Milling Axes: Specifically for the X and Y axes where speed and torque are both required.
Industrial Pick-and-Place: Moving larger parts (up to several kilograms) at high speeds.
Conveyor Systems: Managing precise indexing of products on a production line.

Note: This is a G6M model, meaning it has no brake. Its function is purely for motion; it will not hold its position mechanically if the power is cut.
