MSMF202L1G6M Panasonic A6 2000W Motor , Torque Nm - 6.37, RPM - 3000

Price 62900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MSMF202L1G6M Panasonic A6 2000W Motor , Torque Nm - 6.37, RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
5.1 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MSMF202L1G6M Panasonic A6 2000W Motor , Torque Nm - 6.37, RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MSMF202L1G6M Panasonic A6 2000W Motor , Torque Nm - 6.37, RPM - 3000

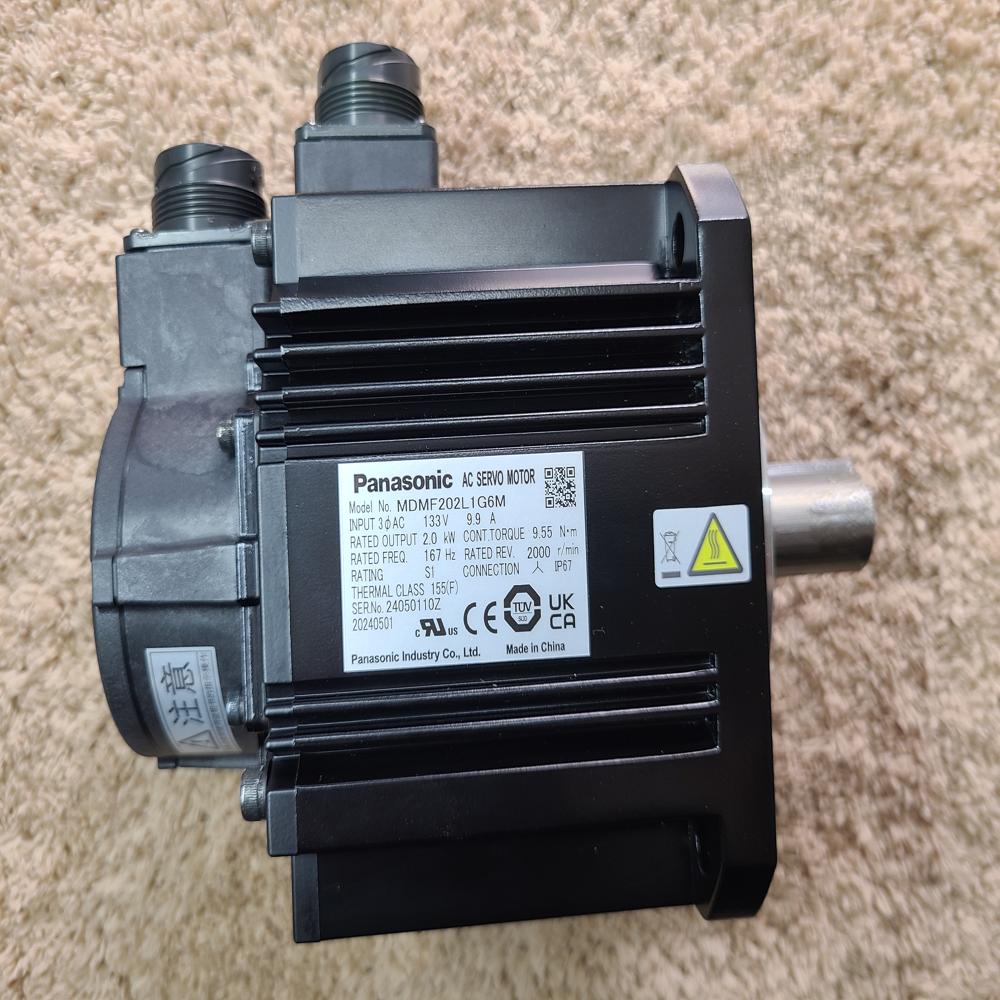

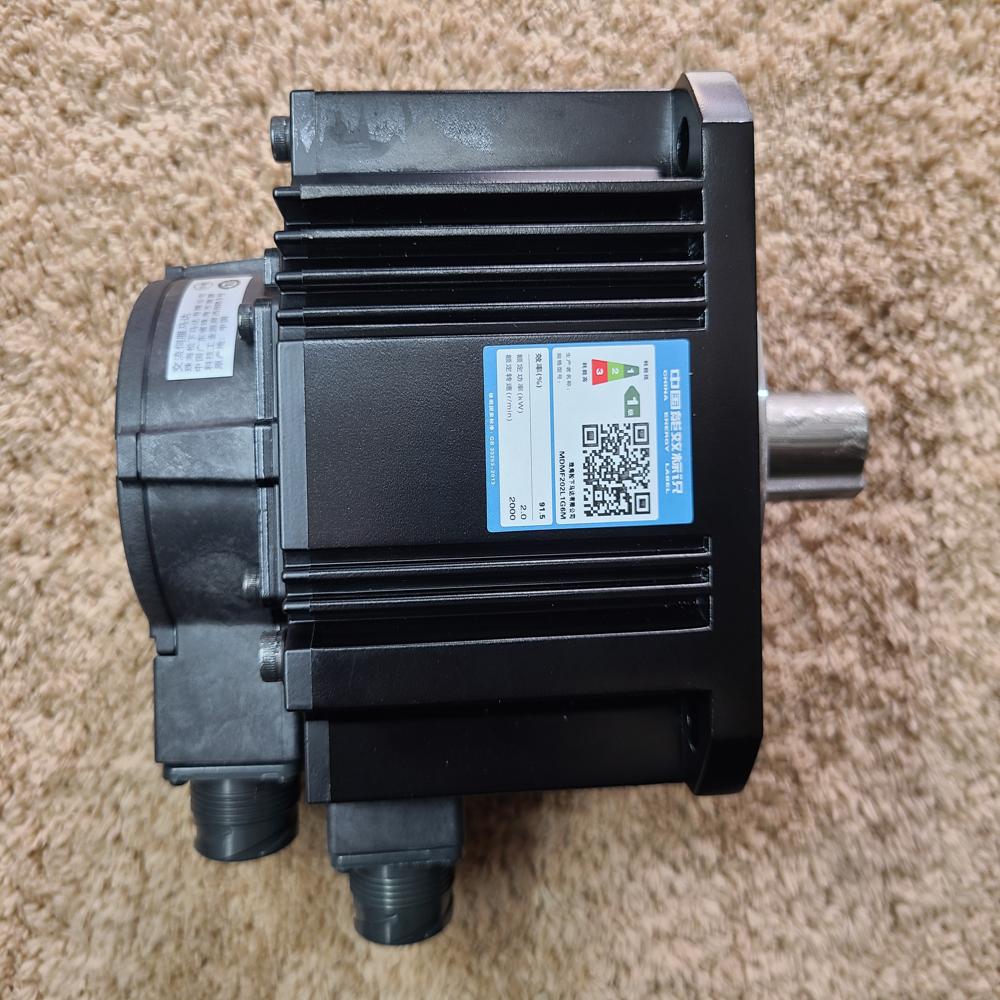

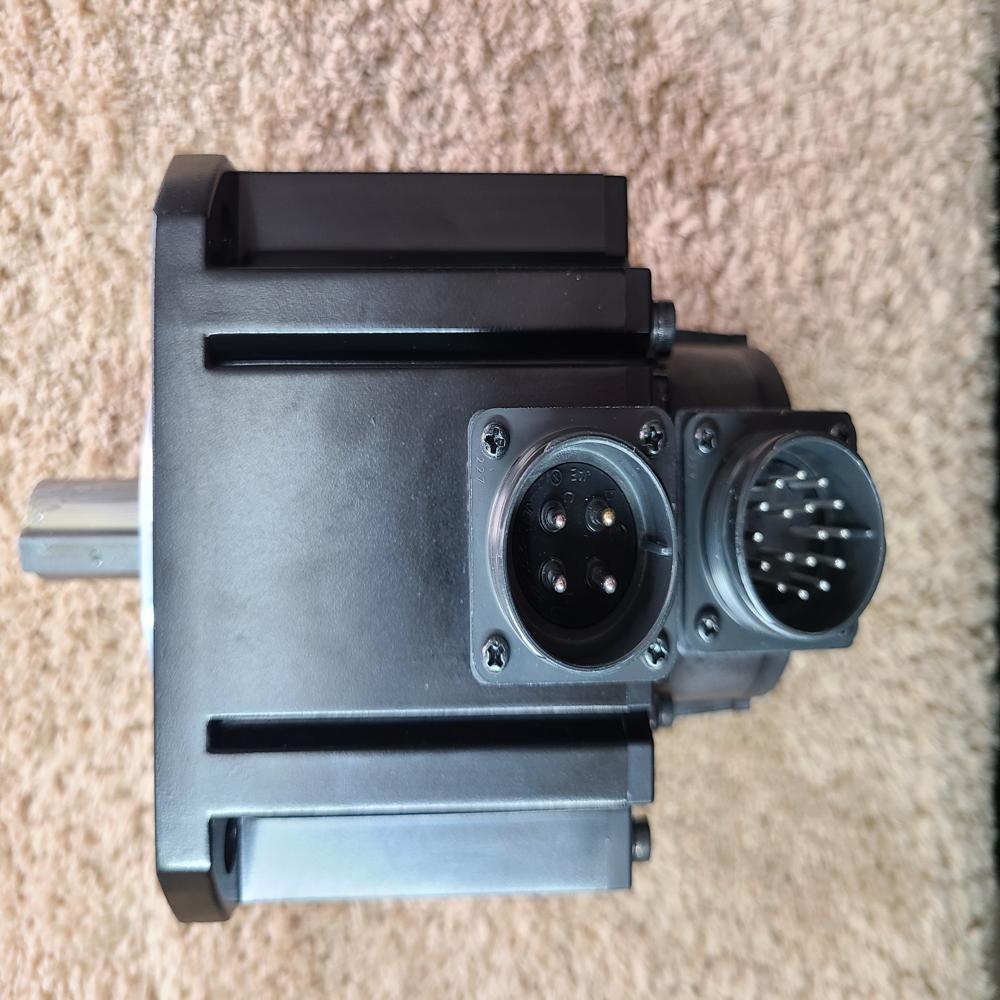

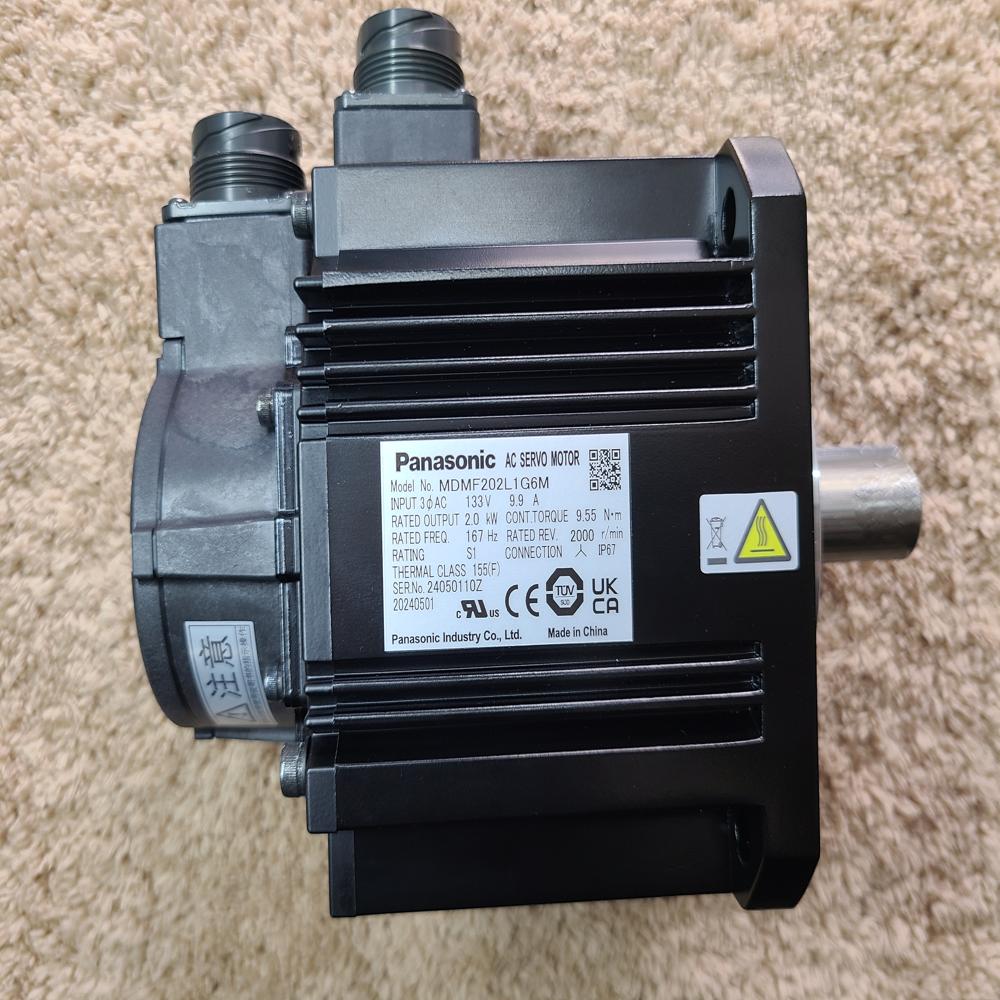

The Panasonic MSMF202L1G6M is a 2000W (2.0 kW) low-inertia AC servo motor designed for high-speed, high-precision motion control in industrial automation. It is part of the high-performance MINAS A6 series from Panasonic Industry. [1, 2, 3, 4]

Function

Precision Actuation: Converts electrical signals into mechanical motion with high resolution using a 23-bit encoder (8.38 million pulses per revolution).
Low Inertia Dynamics: Optimized for applications requiring rapid acceleration and high-cycle operation, such as high-speed pick-and-place or packaging machinery.
Harsh Environment Use: Rated IP67, making it dust-tight and resistant to water immersion (excluding the shaft and connectors). [1, 2, 3, 4, 5]

Technical Specifications

According to retailers like Industrybuying and E-motion Supply:

Feature [1, 2, 3, 4, 5]	Specification
Rated Output	2000 W (2.0 kW)
Rated Torque	6.37 Nm
Rated / Max Speed	3000 RPM / 5000 RPM
Rated Current	11.3 A (rms)
Voltage	200 V AC
Inertia Type	Low Inertia
Holding Brake	Without (Standard G6M model)

Physical Dimensions & Weight

Converted to imperial units for standard reference:

Weight: Approximately 11.24 lbs (5.1 kg).

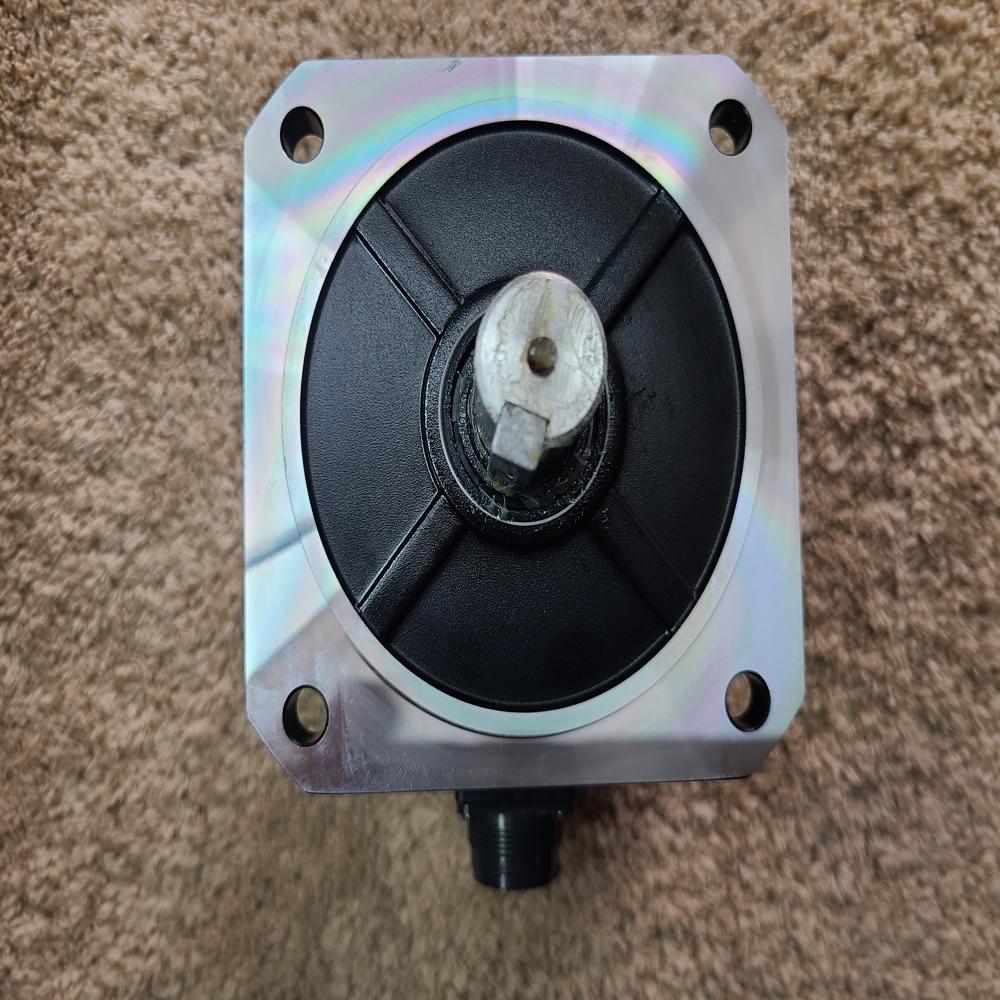

Width & Height (Flange): 3.94 inches (100 mm square).
Length: Approximately 7.18 inches (182.5 mm).
Shaft Diameter: 0.75 inches (19 mm)

The primary function of the Panasonic MSMF202L1G6M is to provide high-speed, high-precision rotary motion for heavy-duty automated machinery. It is the "muscle" for systems that need to move fast without losing accuracy.

Key Functional Roles

High-Speed Response (Low Inertia): Because it is a "Low Inertia" motor, its internal rotor is lightweight. This allows the motor to start, stop, and reverse direction almost instantly, which is critical for packaging machines, pick-and-place robots, and electronic assembly.
Extreme Positioning Accuracy: It uses a 23-bit encoder, meaning it can divide one single rotation into over 8 million steps. This allows for "micro-degree" precision in applications like high-end CNC machining or semiconductor fabrication.
Constant Speed and Torque: It is designed to maintain a steady 6.37 Nm of torque even at its rated speed of 3000 RPM, ensuring smooth movement under load.
Industrial Protection: Its IP67 rating allows it to function in environments with heavy dust or splashing liquids, common in food processing or metal cutting.
