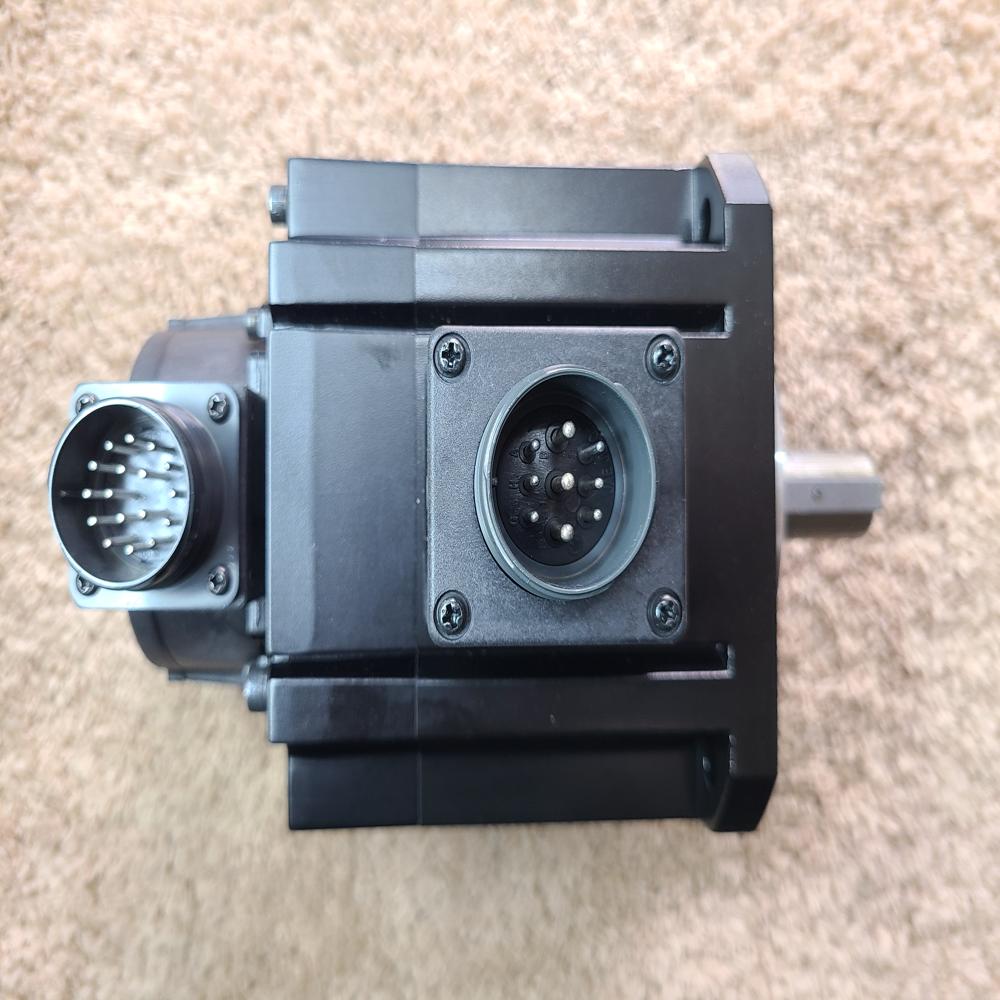

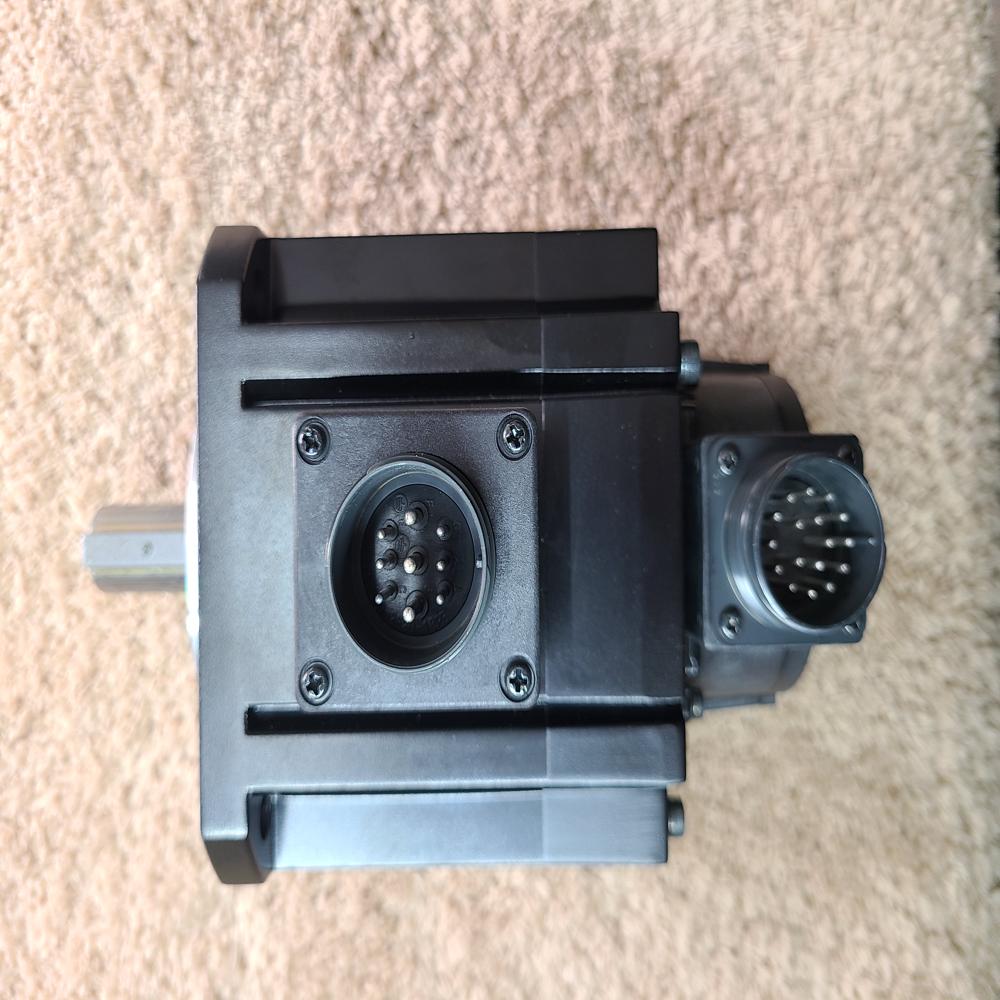

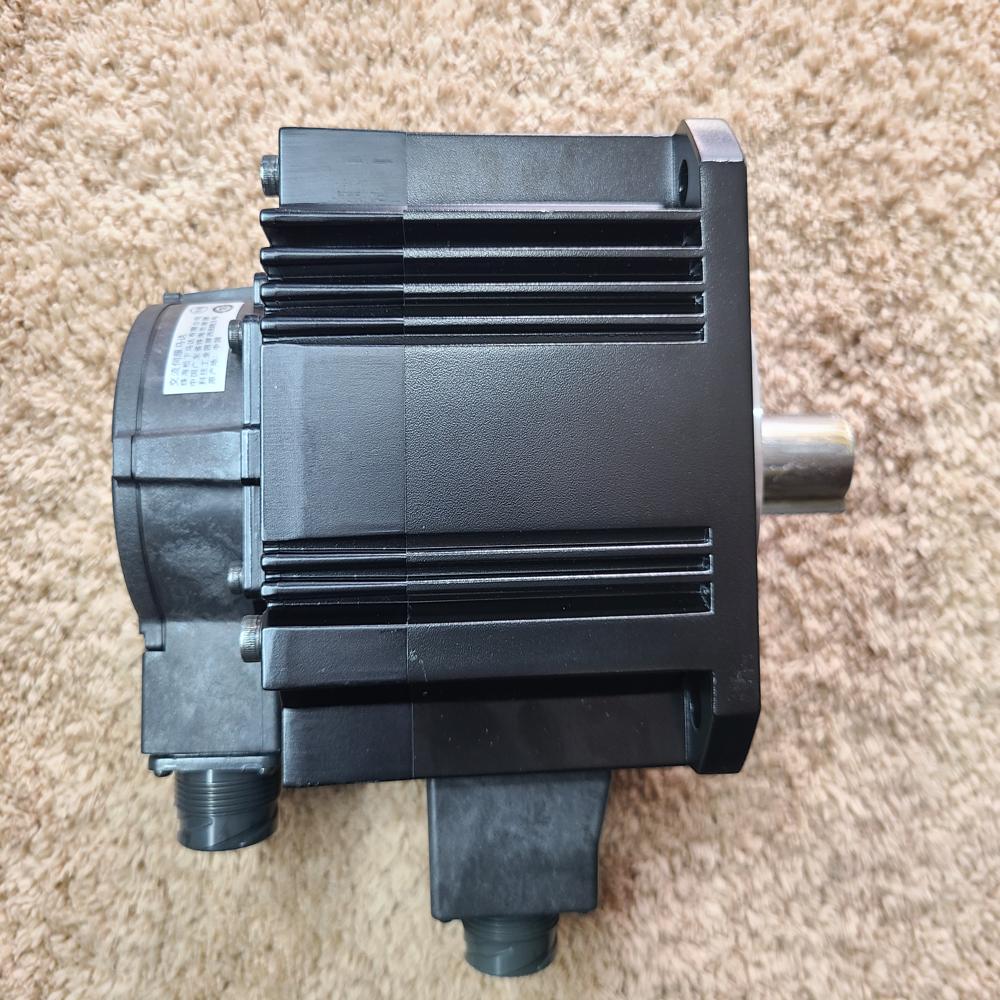

MGMF182L1G6M Torque Nm - 11.5, Fram Size- 130mm , RPM -3000

Name: MGMF182L1G6M Torque Nm - 11.5, Fram Size- 130mm , RPM -3000
Brand: Corbital Enterprise
Price: 74000.0 INR
Availability: InStock

Price 74000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MGMF182L1G6M Torque Nm - 11.5, Fram Size- 130mm , RPM -3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
8.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MGMF182L1G6M Torque Nm - 11.5, Fram Size- 130mm , RPM -3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MGMF182L1G6M Torque Nm - 11.5, Fram Size- 130mm , RPM -3000

The Panasonic MINAS A6 MGMF182L1G6M is a 1.8 kW (1800 W) middle inertia AC servo motor. It is the highest-power model in the 130 mm frame size family, packing a lot of torque into a relatively compact footprint.

Core Technical Specifications

Rated Output: 1800 W (1.8 kW).
Rated Torque: 11.5 Nm.
Peak Torque: 34.5 Nm.
Rated Speed: 3000 r/min.
Maximum Speed: 4500 r/min.
Rated Current: 10.1 A (rms).
Voltage: 200 V AC.

Physical Dimensions (Inches)

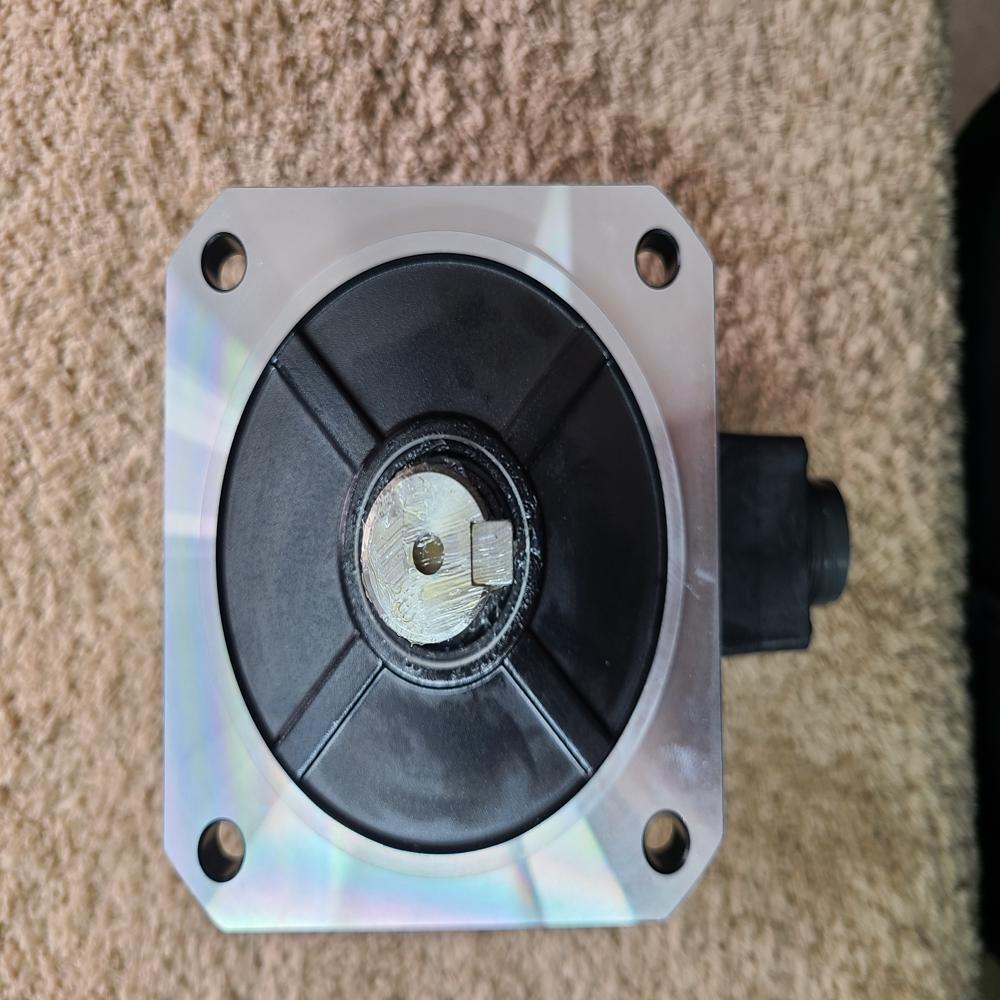

Width & Height (Flange): 5.12" (130 mm square).
Body Length: 6.97" (177 mm).
Total Length (Body + Shaft): 9.13" (232 mm).
Weight: Approximately 18.7 lbs (8.5 kg).
Shaft Diameter: 0.87" (22 mm).

Key Features

Maximum 130mm Power: This motor provides the most torque (11.5 Nm) available in the 130 mm frame size before stepping up to the 176 mm frame.
Middle Inertia: Specifically designed for machines with heavy loads or high friction to ensure smooth, vibration-free motion.
23-bit Absolute Encoder: Offers 8.38 million pulses per revolution for ultra-precise positioning without requiring home sensors.
Sealing: IP67 rated, making it suitable for wet or dusty environments.
G6M Design: This model does not include a holding brake.

The Panasonic MGMF182L1G6M functions as a High-Torque, Middle Inertia Actuator, providing the maximum power available in the 130 mm frame size. At 1.8 kW, it is engineered to move substantial mechanical loads while maintaining the fast, responsive characteristics of the MINAS A6 series. [1, 2, 3]

1. High-Torque Motion Conversion

The primary function of this motor is to deliver high mechanical force:

11.5 Nm Continuous Torque: It functions to maintain a steady 11.5 Nm of force at 1500 RPM, making it ideal for driving heavy lead screws or belt systems.
28.7 Nm Peak Burst: It can provide a momentary "punch" of torque to overcome static friction or achieve rapid acceleration of heavy parts. [1]
