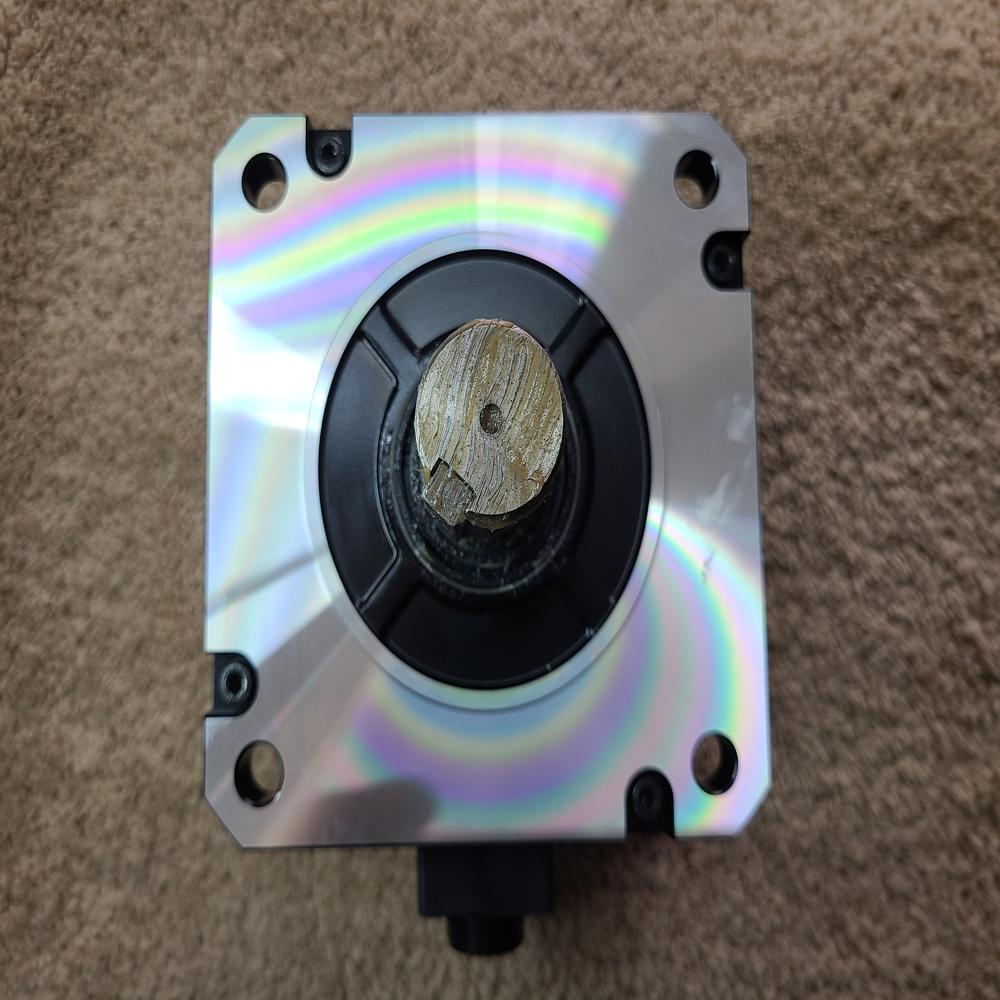

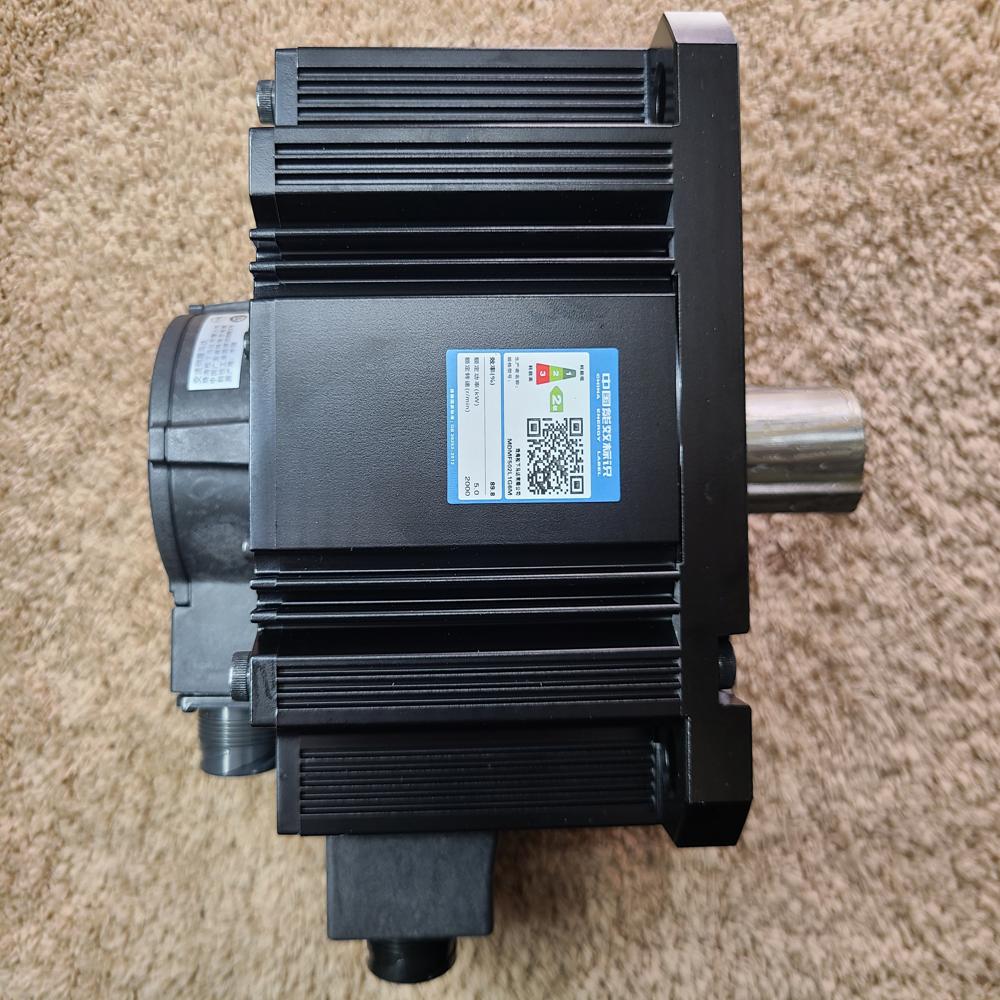

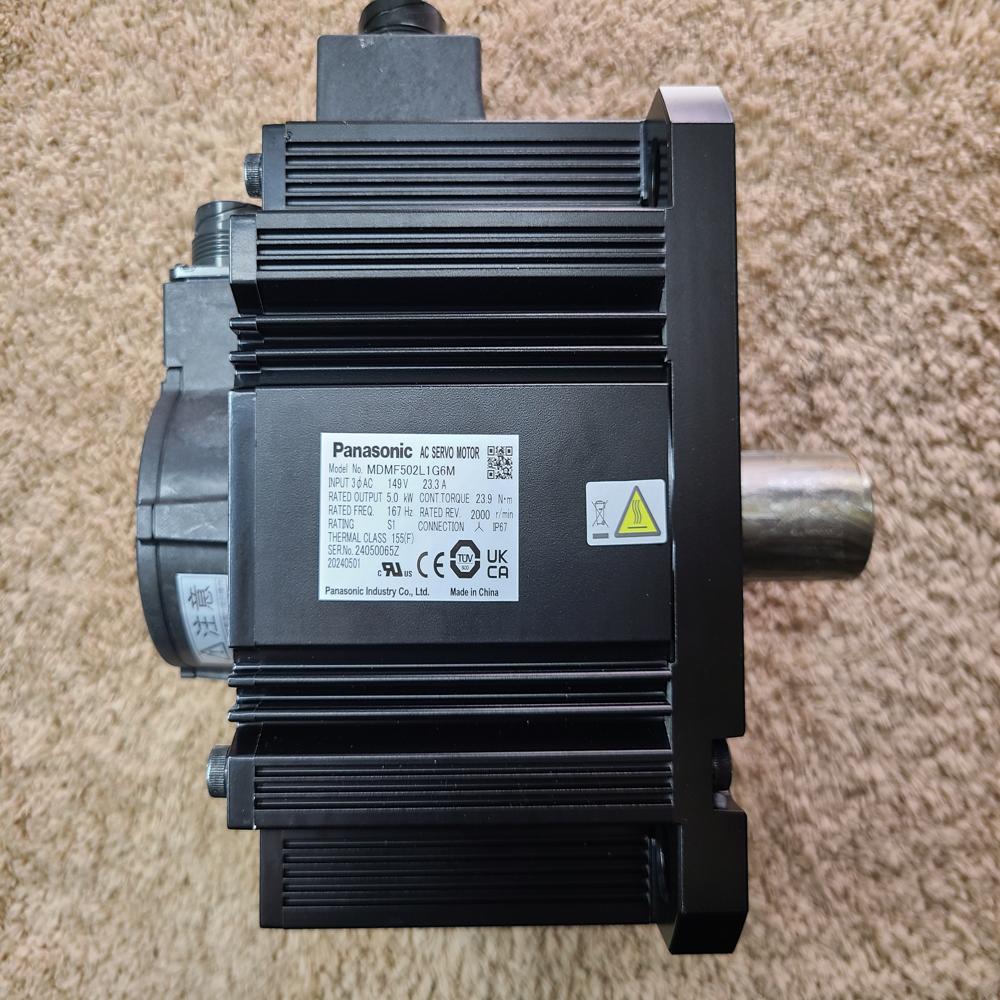

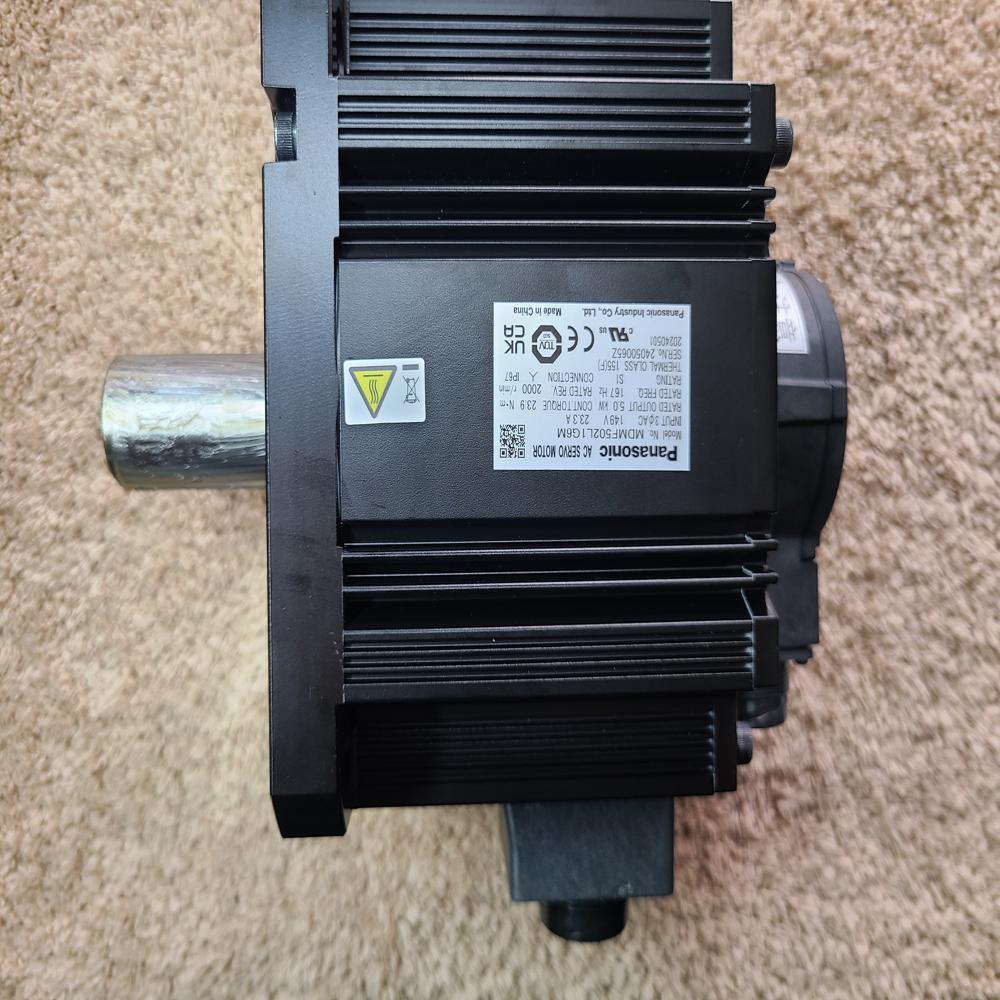

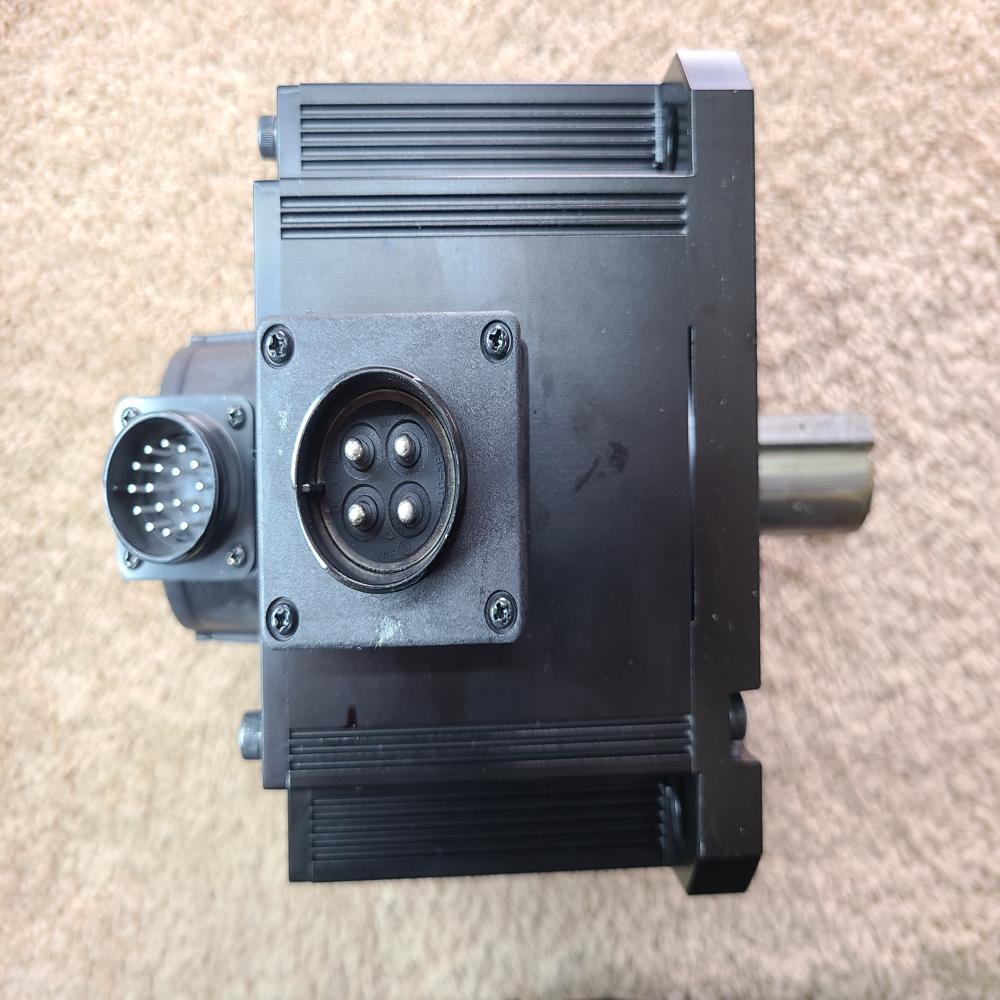

MSMF502L1G6M Panasonic A6 5000W Motor , Torque Nm - 15.9, RPM - 3000

Price 93200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MSMF502L1G6M Panasonic A6 5000W Motor , Torque Nm - 15.9, RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
14.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MSMF502L1G6M Panasonic A6 5000W Motor , Torque Nm - 15.9, RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MSMF502L1G6M Panasonic A6 5000W Motor , Torque Nm - 15.9, RPM - 3000

The Panasonic MSMF502L1G6M is a 5000W (5.0 kW) Low-Inertia AC servo motor from the MINAS A6 series. It is the highest-power model in the 3000 RPM "MSMF" family, built for extreme speed and high-output industrial automation. [1]

Function

High-Speed Agility: As a "Low-Inertia" motor, it is designed for rapid acceleration. Its lightweight internal rotor allows it to reach 3000 RPM almost instantly, making it ideal for high-cycle tasks like large-scale packaging, high-speed material handling, and textile machinery.
Extreme Precision: Equipped with a 23-bit encoder, it tracks position with a resolution of 8.38 million pulses per turn. This ensures surgical accuracy even when moving heavy parts at maximum speed.
Rugged Durability: With an IP67 rating, it is fully protected against dust and water immersion, allowing it to function reliably on harsh factory floors. [1, 2, 3, 4, 5]

Technical Specifications

Feature [1, 2, 3, 4, 5]	Specification
Rated Output	5000 W (5.0 kW)
Rated Torque	15.9 Nm
Peak Torque	47.7 Nm
Rated / Max Speed	3000 RPM / 4500 RPM
Voltage	200 V AC
Rated Current	23.4 A (rms)
Holding Brake	Without Brake ("G" model)

Physical Dimensions & Weight (Inches & Lbs)

Converted from standard Panasonic metric data:

Weight: Approximately 31.30 lbs (14.2 kg).
Width & Height (Flange): 6.93 inches (176 mm square).
Total Body Length: Approximately 9.25 inches (235 mm).
Shaft Diameter: 0.94 inches (24 mm).

Compatible Drivers

This 5.0 kW motor requires the heavy-duty H-Frame A6 drivers:

Multifunction (A6SF): MHDLTB3SF
Basic (A6SE): MHDLNB3SE
EtherCAT (A6NE/BE): MHDLNB3NE

The primary function of the Panasonic MSMF502L1G6M is to act as an ultra-high-speed, high-power actuator for heavy industrial machines that require rapid-fire movements. It is the most powerful "low-inertia" motor in the 3000 RPM class.

1. High-Speed Agility (Low-Inertia Advantage)

The "MSMF" series is specifically engineered for acceleration.

Rapid Cycling: Despite its massive 5.0 kW power, it has a lightweight internal rotor. This allows it to reach 3000 RPM almost instantly.
Applications: It is the "gold standard" for high-output machines that perform hundreds of moves per minute, such as high-speed bottling lines, large-scale plastic injection molding, and fast-cycle textile machinery.

2. Surgical Positioning Accuracy

Even when outputting massive force, it maintains micro-precision:

23-bit Encoder: It divides a single rotation into 8,388,608 increments. This allows the machine to move a heavy load at very high speeds and stop it exactly within microns of the target.
Quick Settling: It works with the driver to stop instantly without "bouncing" or vibrating, which is vital for maintaining production quality at high speeds.

3. Massive Rotary Output

While it is an agile motor, it provides immense "pushing" force:

Continuous Power: It delivers a steady 15.9 Nm of torque. This ensures the motor can overcome high mechanical friction and air resistance in large-scale automated systems.
Breakaway Torque: It can surge to a peak torque of 47.7 Nm to overcome the "sticking" force of a stationary heavy machine part.

4. Continuous Heavy-Duty Operation

IP67 Environmental Shield: The motor is functionally sealed against dust and liquid splashes (oil/water), making it reliable in harsh environments like high-speed food processing or metal machine shops.
Heat Management: It is designed to dissipate the heat generated by 5.0 kW of power while running 24/7 on industrial production lines.

5. Real-Time Feedback Hub

3.2 kHz Response: It communicates its status to the driver 3,200 times per second. This allows the system to make instantaneous power adjustments if the load changes, ensuring perfectly smooth motion.
