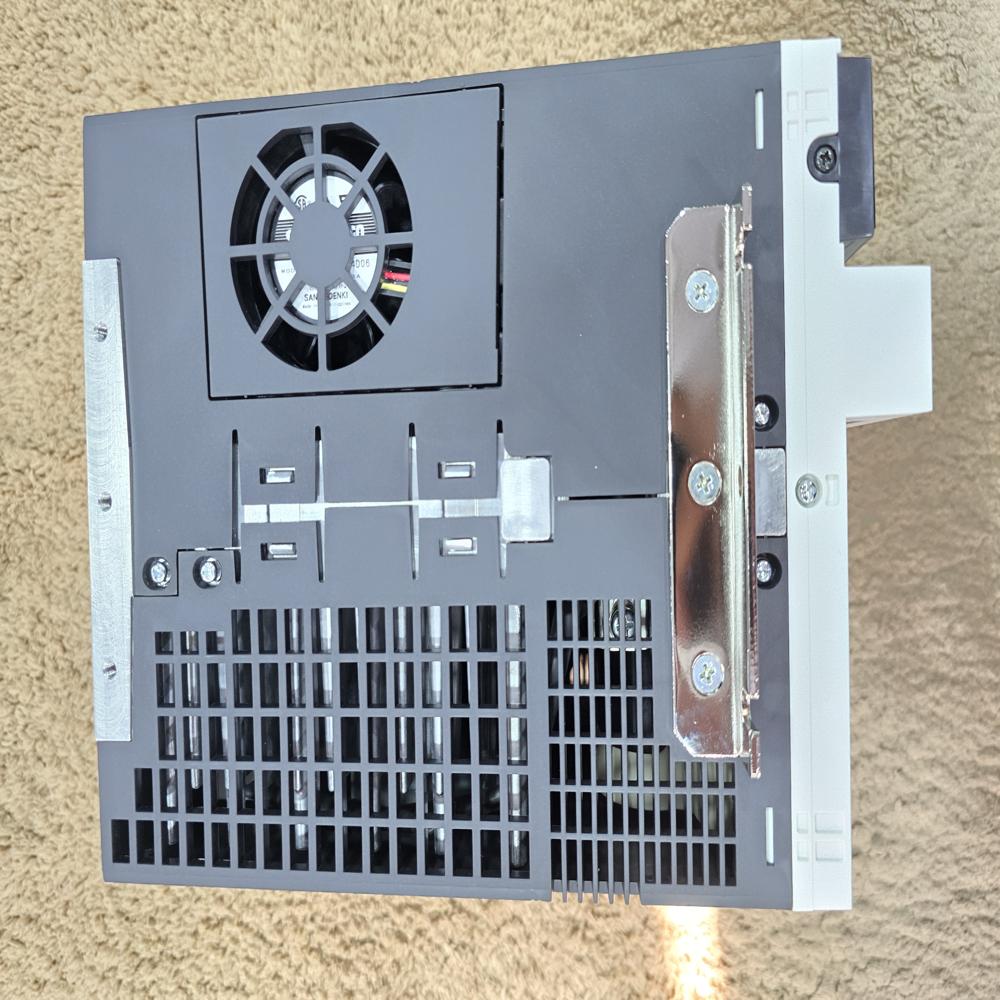

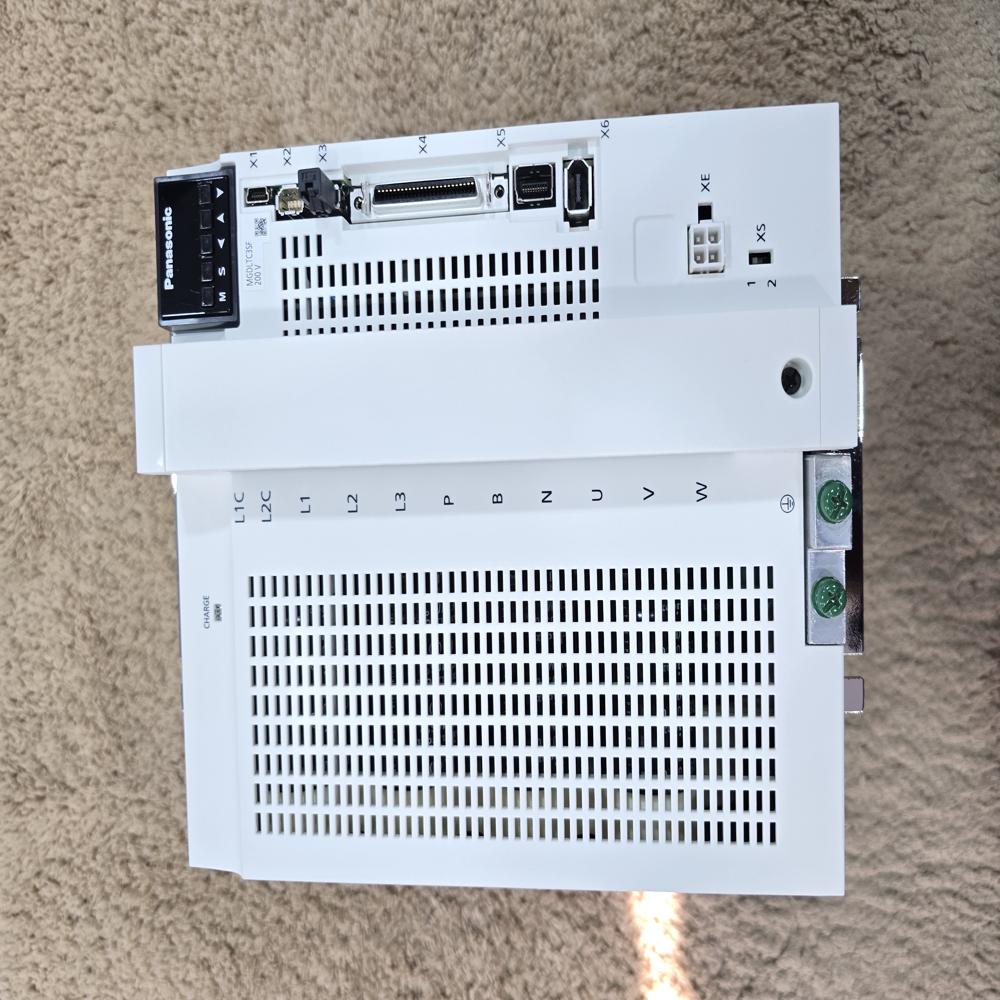

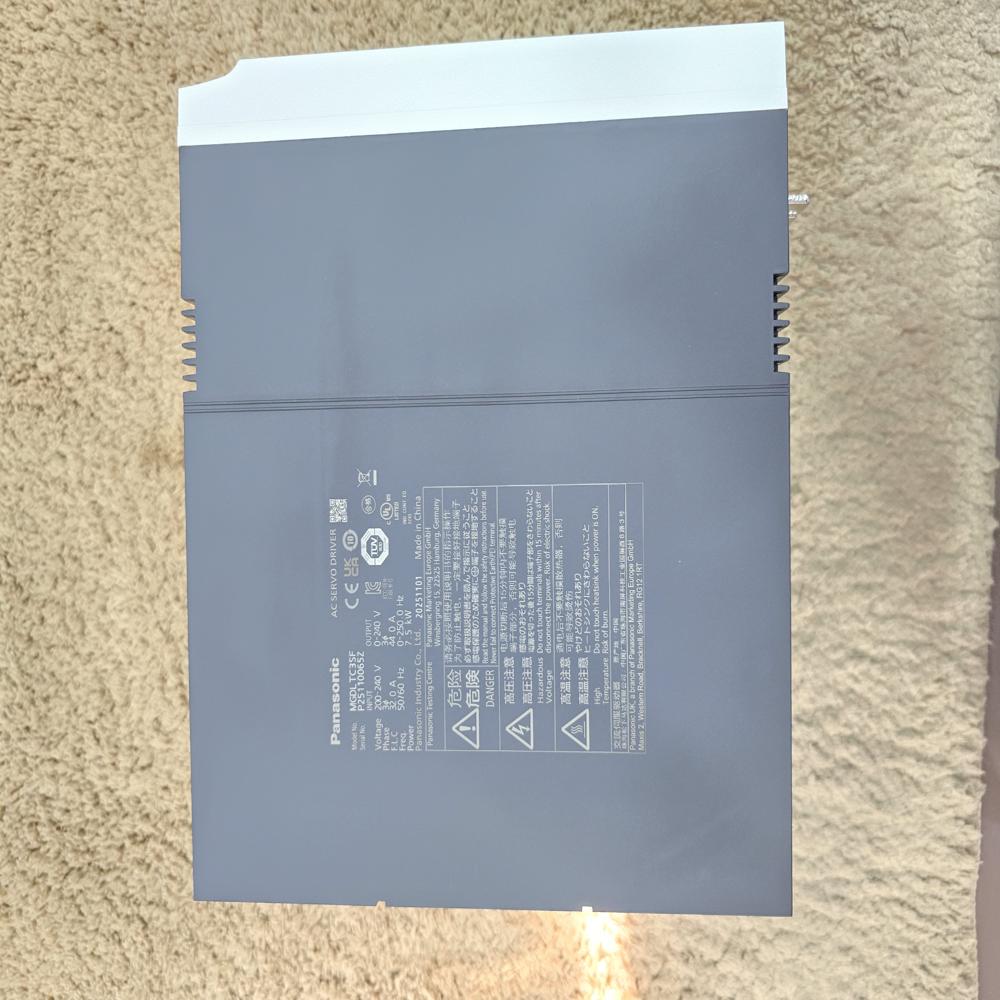

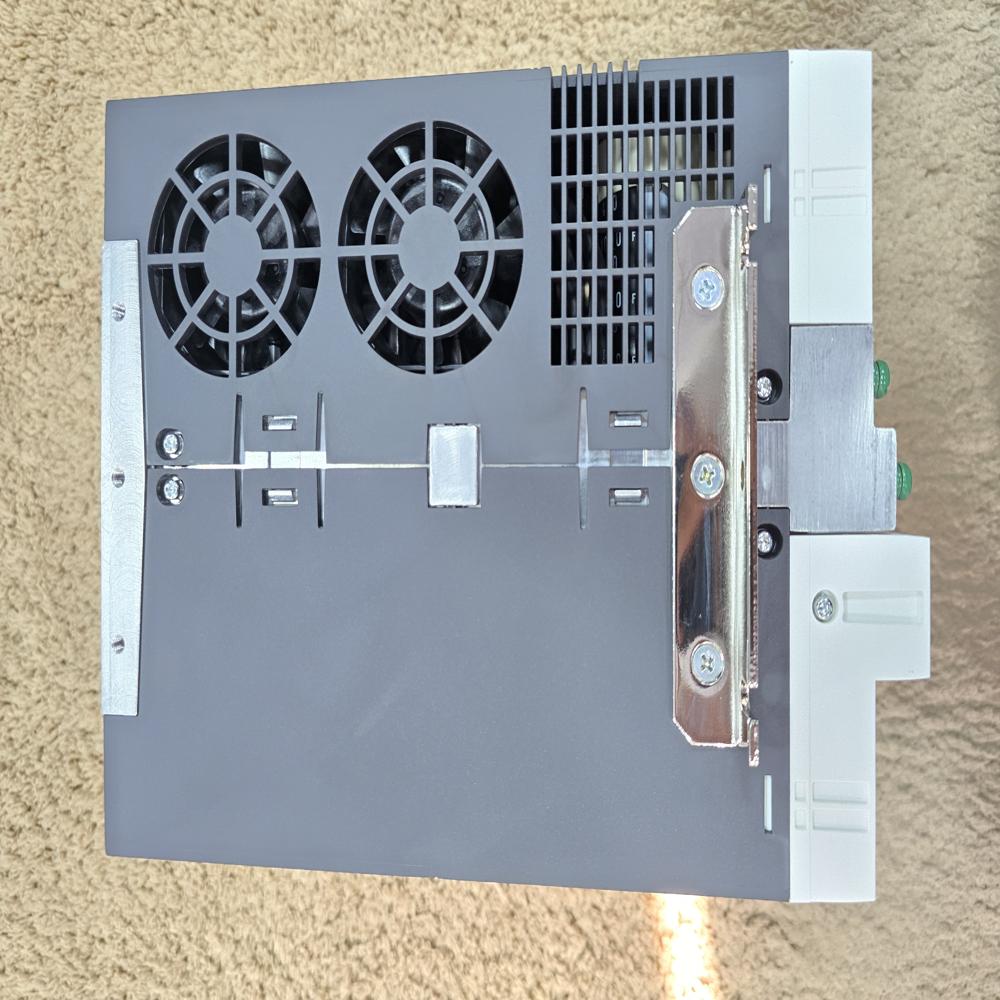

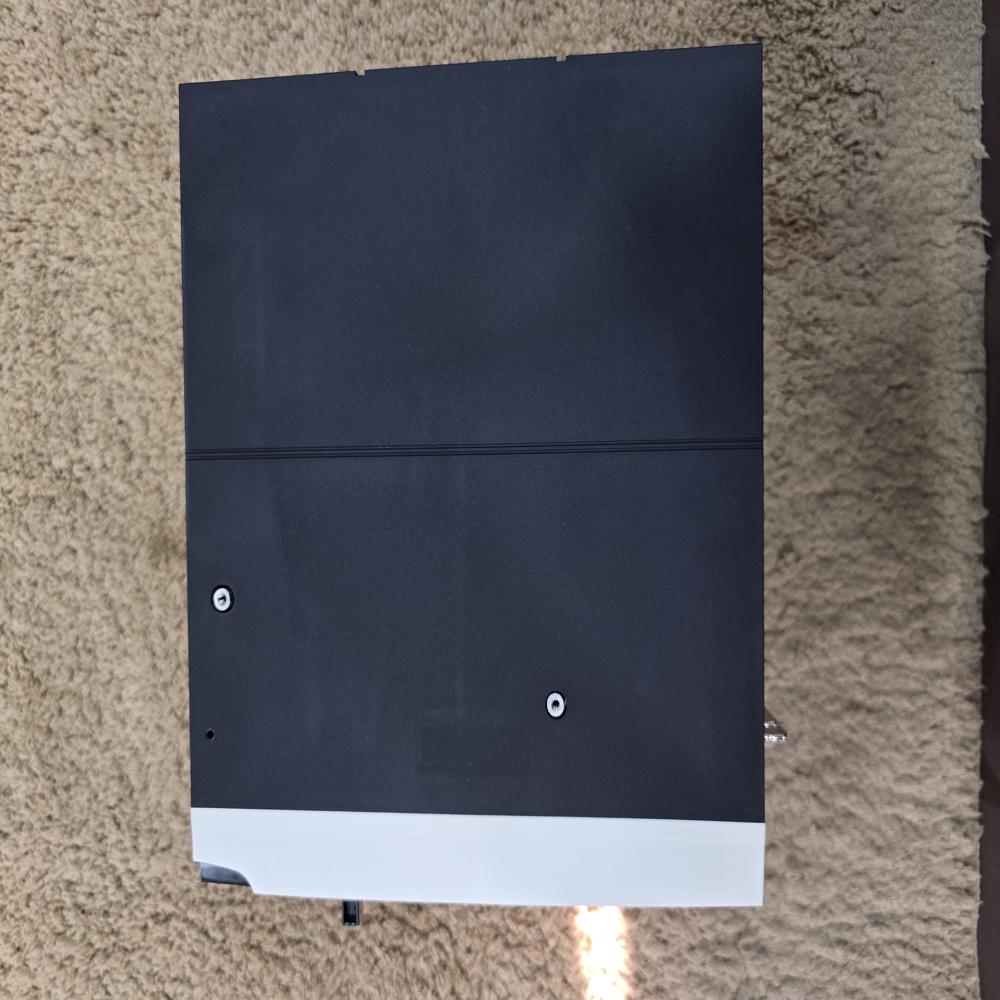

MHDLTE3NF - A6N Panasonic A6 11000W Driver

Name: MHDLTE3NF - A6N Panasonic A6 11000W Driver
Brand: Corbital Enterprise
Price: 401000.0 INR
Availability: InStock

Price 401000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MHDLTE3NF - A6N Panasonic A6 11000W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
14.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MHDLTE3NF - A6N Panasonic A6 11000W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MHDLTE3NF - A6N Panasonic A6 11000W Driver

The Panasonic MHDLTE3NF is the A6N Series (Network Type) servo driver designed for high-power 11 kW (11,000 W) motors. It uses the heavy-duty H-Frame chassis and is specifically built for communication via the RTEX (Realtime Express) protocol.

Core Technical Specifications

Rated Power: 11 kW (up to 15 kW).
Communication: RTEX (Panasonic's proprietary high-speed Ethernet-based network).
Input Voltage: 3-phase 200 V to 240 V AC.
Frame Size: H-Frame (The largest in the A6 family).
Frequency Response: 3.2 kHz.

Physical Specifications (H-Frame)

Dimension	Measurement (Metric)	Measurement (Imperial)
Weight	14.2 kg	31.3 lbs
Width	210 mm	8.27"
Height	300 mm	11.81"
Depth	260 mm	10.24"

Key Differences from A6SF (MHDLTE3SF)

The "NF" (A6N) version removes the traditional pulse/analog wiring terminals in favour of RJ45 Network ports. It is designed to be controlled exclusively by a master controller (like a Panasonic FP7 PLC or a dedicated motion card) via a single network cable.

Core Technical Specifications

Rated Power: 11 kW (up to 15 kW).
Communication: RTEX (Panasonic's proprietary high-speed Ethernet-based network).
Input Voltage: 3-phase 200 V to 240 V AC.
Frame Size: H-Frame (The largest in the A6 family).
Frequency Response: 3.2 kHz.
