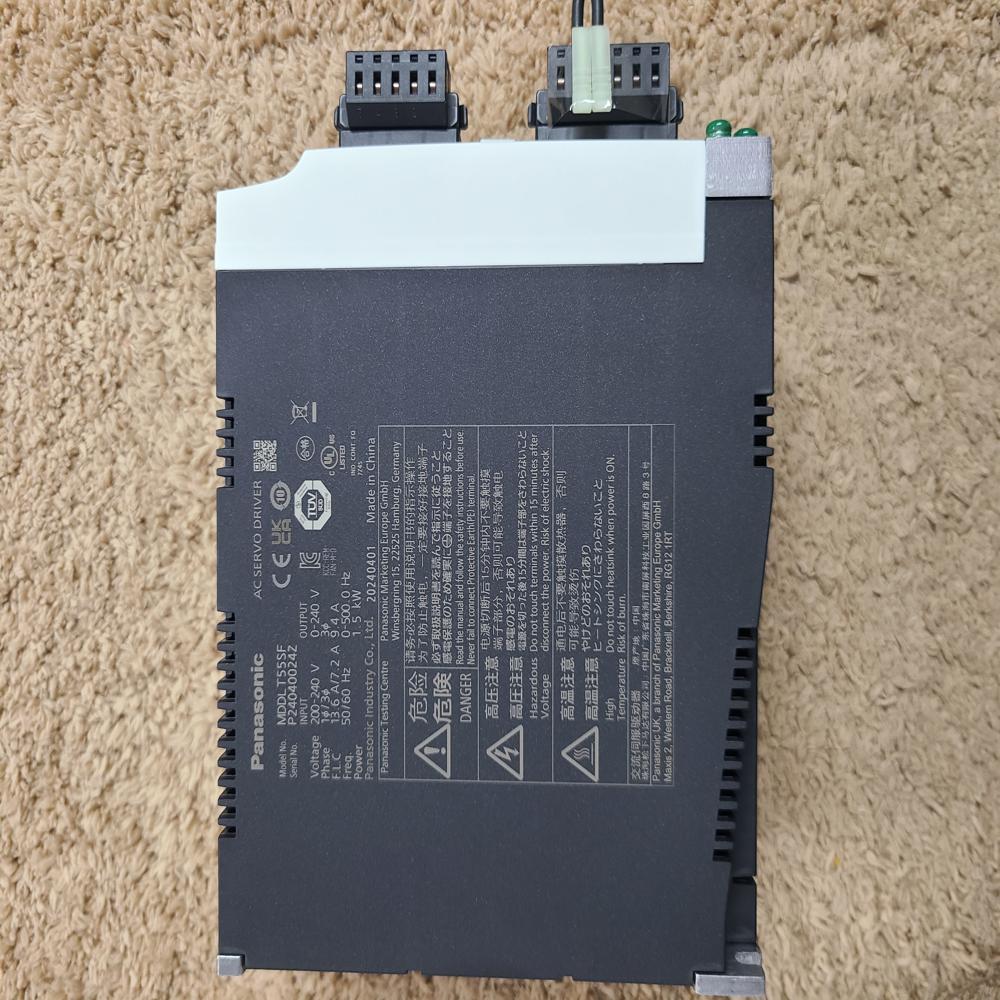

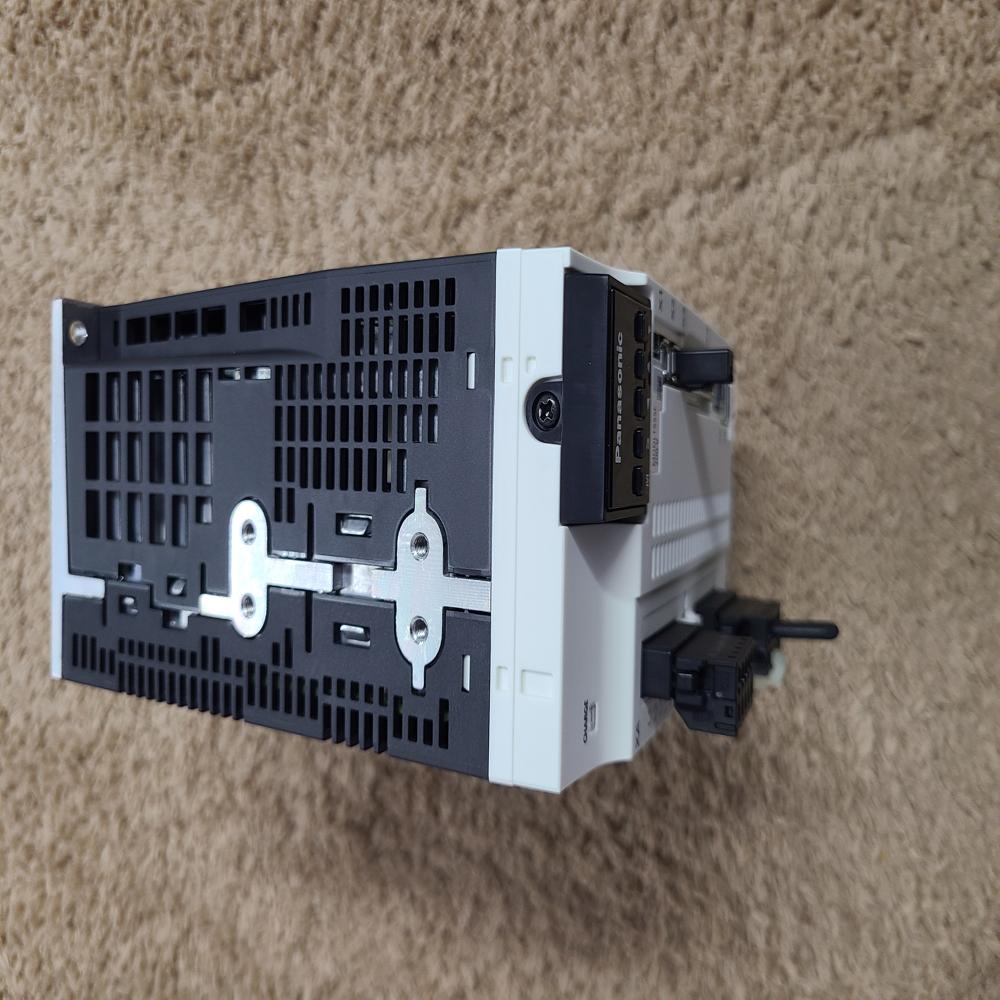

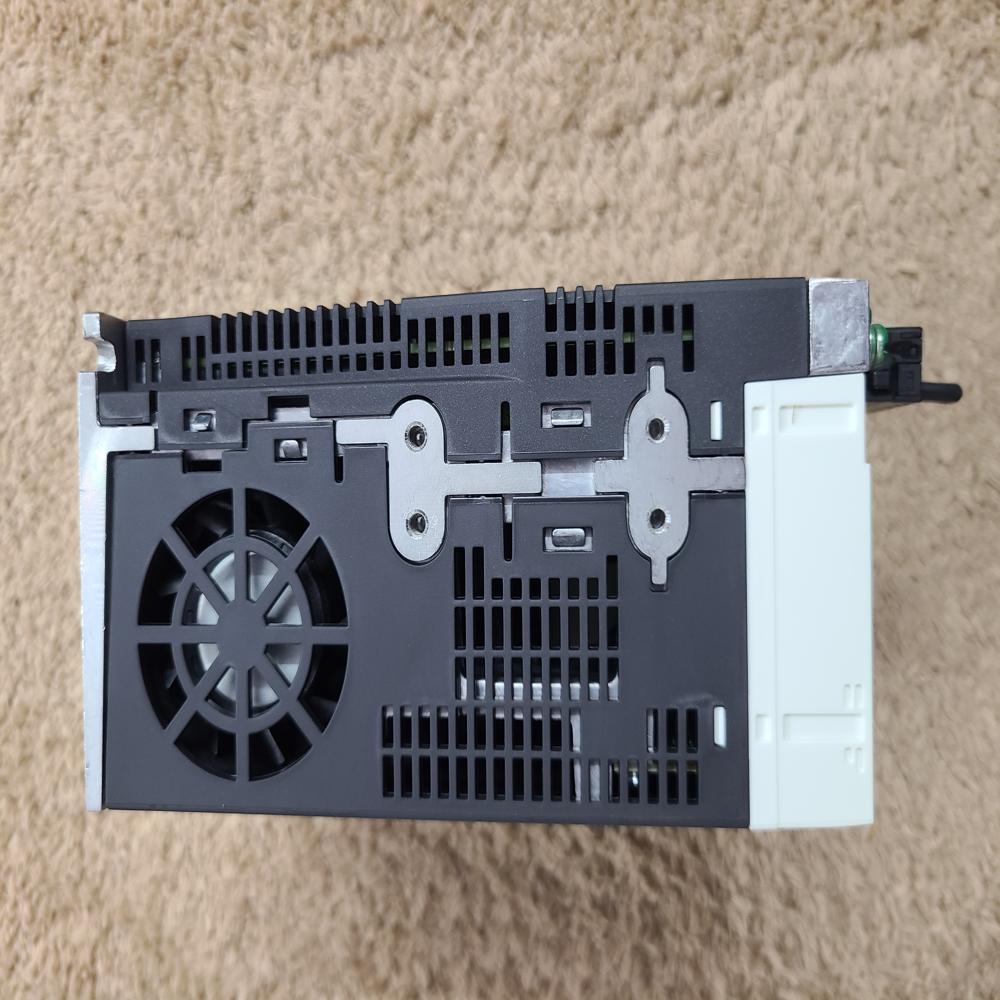

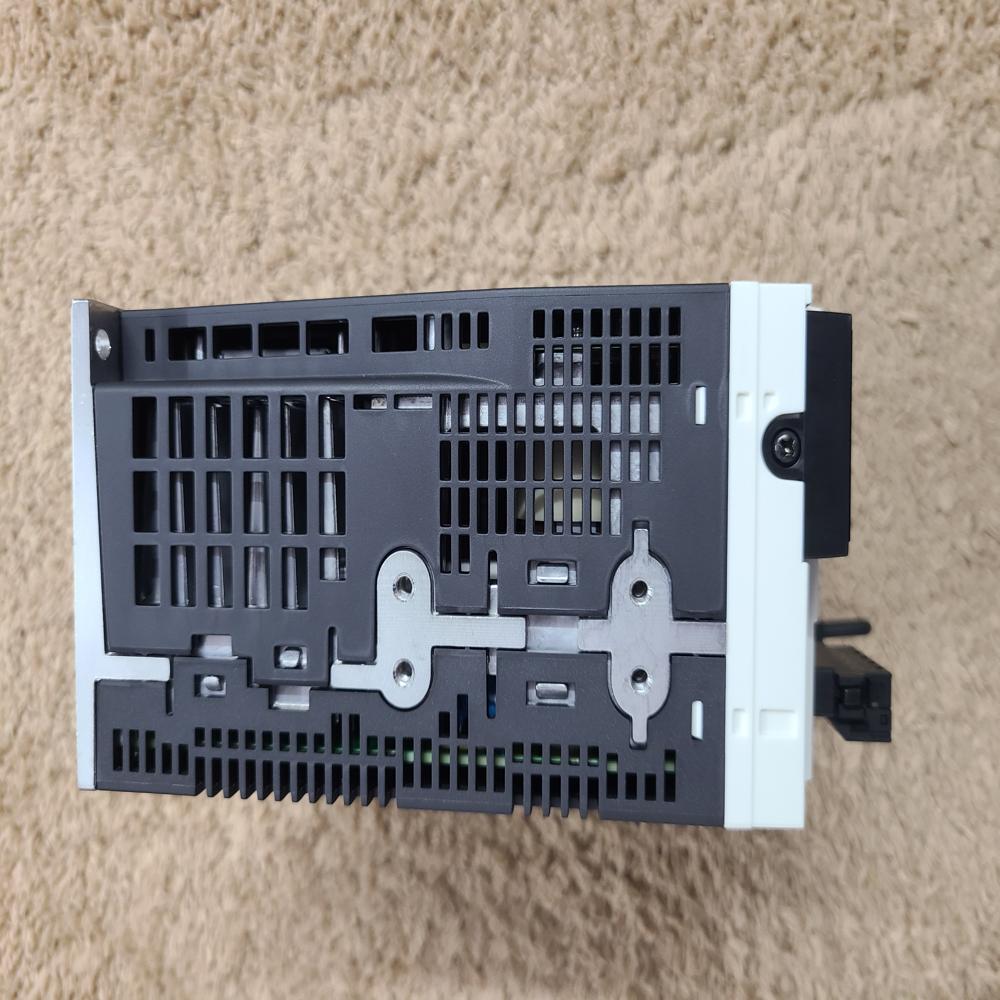

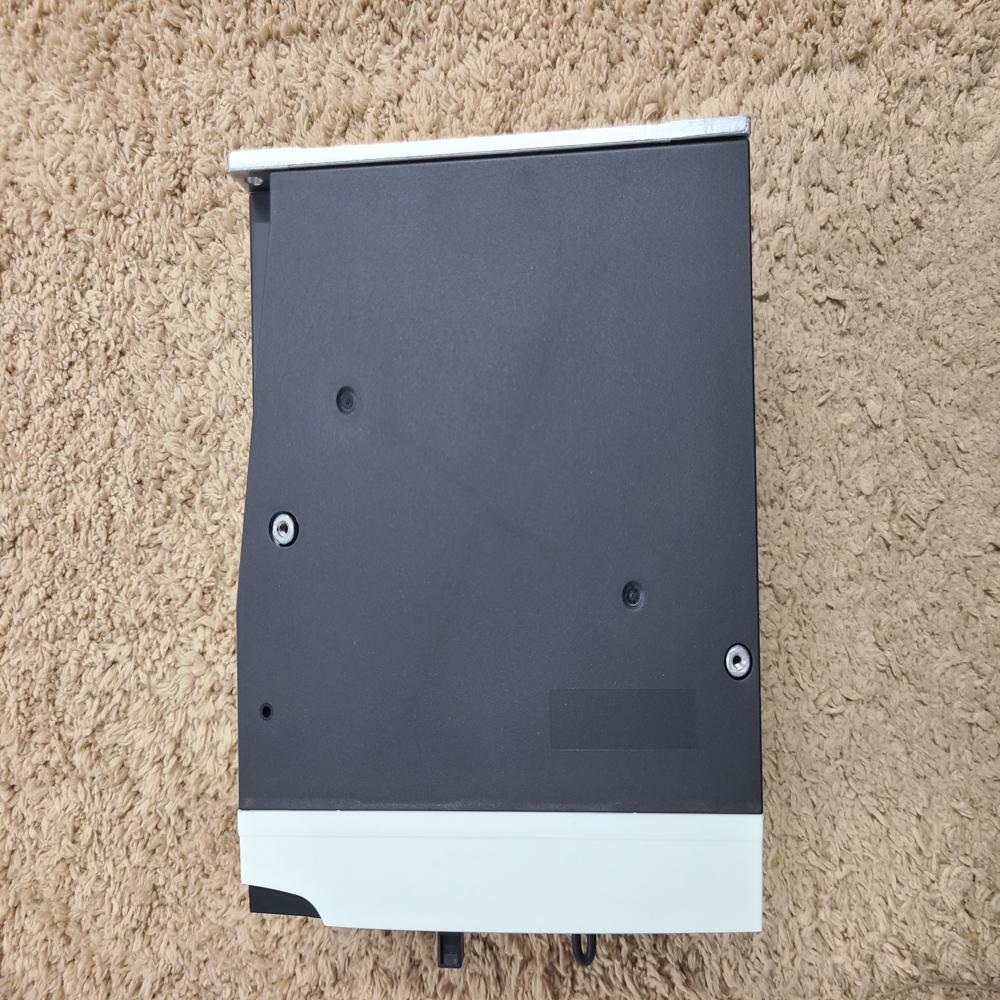

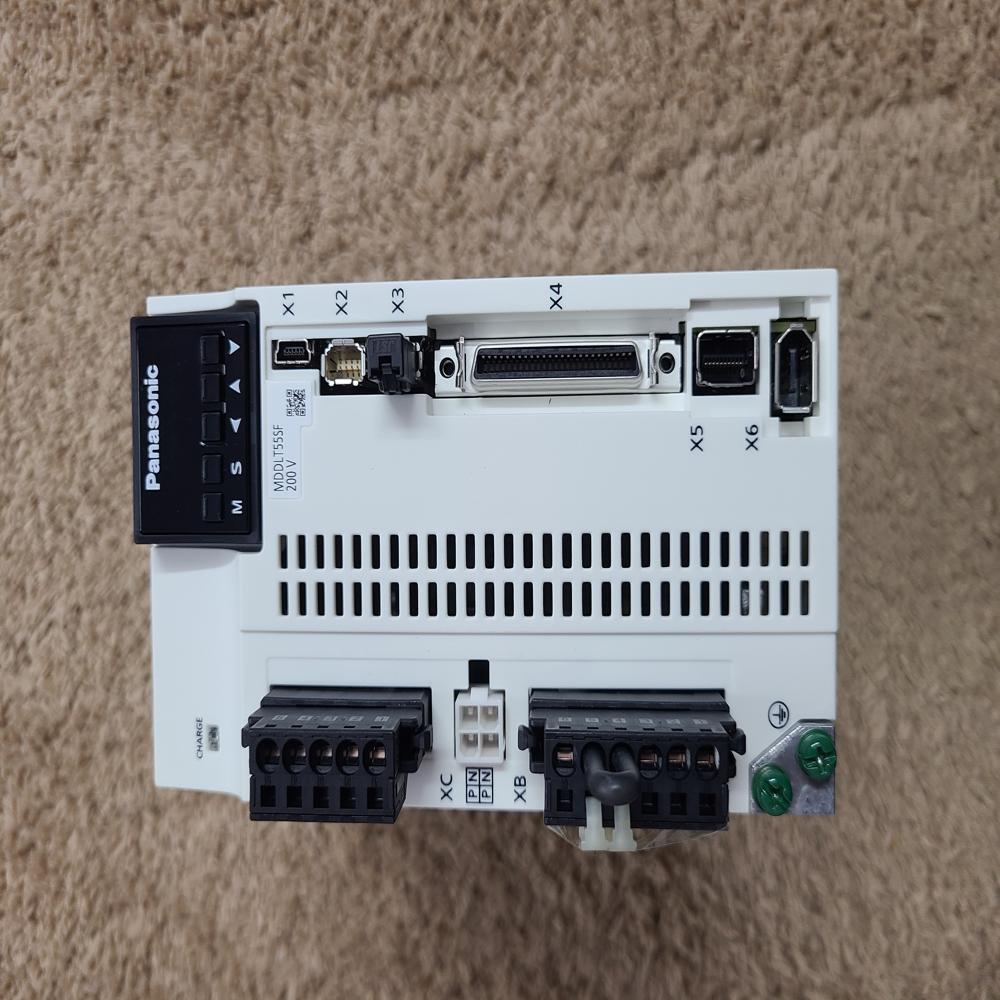

MDDLN55SE - A6SE Panasonic A6 1.5KW Driver

Name: MDDLN55SE - A6SE Panasonic A6 1.5KW Driver
Brand: Corbital Enterprise
Price: 49000.0 INR
Availability: InStock

Price 49000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MDDLN55SE - A6SE Panasonic A6 1.5KW Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
2.1 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MDDLN55SE - A6SE Panasonic A6 1.5KW Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MDDLN55SE - A6SE Panasonic A6 1.5KW Driver

The Panasonic MDDLN55SE (A6SE series) is a 1.5 kW "D-frame" AC servo driver designed for Position Control applications. As part of the MINAS A6SE "Basic" line, it focuses on providing high-speed performance with a streamlined feature set compared to the multifunction models. [1, 2, 3]

Function

Position Control Specialist: Primarily functions as a pulse-train input driver. It is optimized for applications where a host controller (like a PLC) sends pulse commands to dictate the exact position and path of the motor.
Incremental System Focus: While it supports high-resolution 23-bit encoders, the A6SE series is designed to operate primarily as an incremental system. It does not support multi-turn absolute data via serial communication with the host, meaning it does not typically require a backup battery.
Rapid Settling Time: Features a velocity response frequency of 3.2 kHz, allowing it to react to commands instantly and settle into position with minimal vibration.
Advanced Suppression: Uses adaptive notch filters to automatically detect and eliminate machine resonance, ensuring smooth motion even in systems with mechanical flex. [1, 2, 3, 4, 5]

Technical Specifications

Based on official documentation from Panasonic Industry and retailers like Industrybuying:

Feature [1, 2, 3, 4, 5, 6, 7]	Specification
Rated Output	1500 W (1.5 kW)
Input Voltage	Single or 3-Phase 200 V AC to 240 V AC
Max Current	40 A (Instantaneous)
Control Mode	Position Control (Pulse Train only)
Interface	USB (for PANATERM setup)
Safety Function	None (The "SE" series does not include STO safety inputs)
IP Rating	IP20
