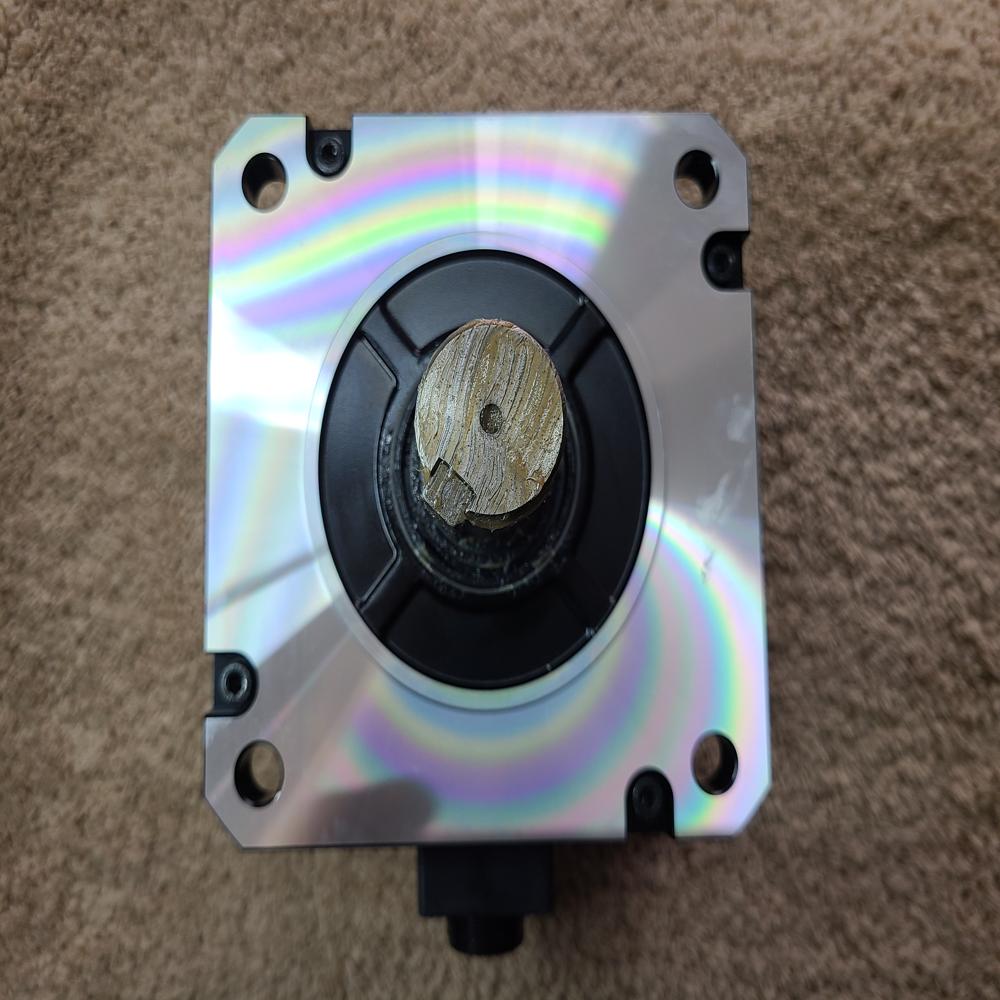

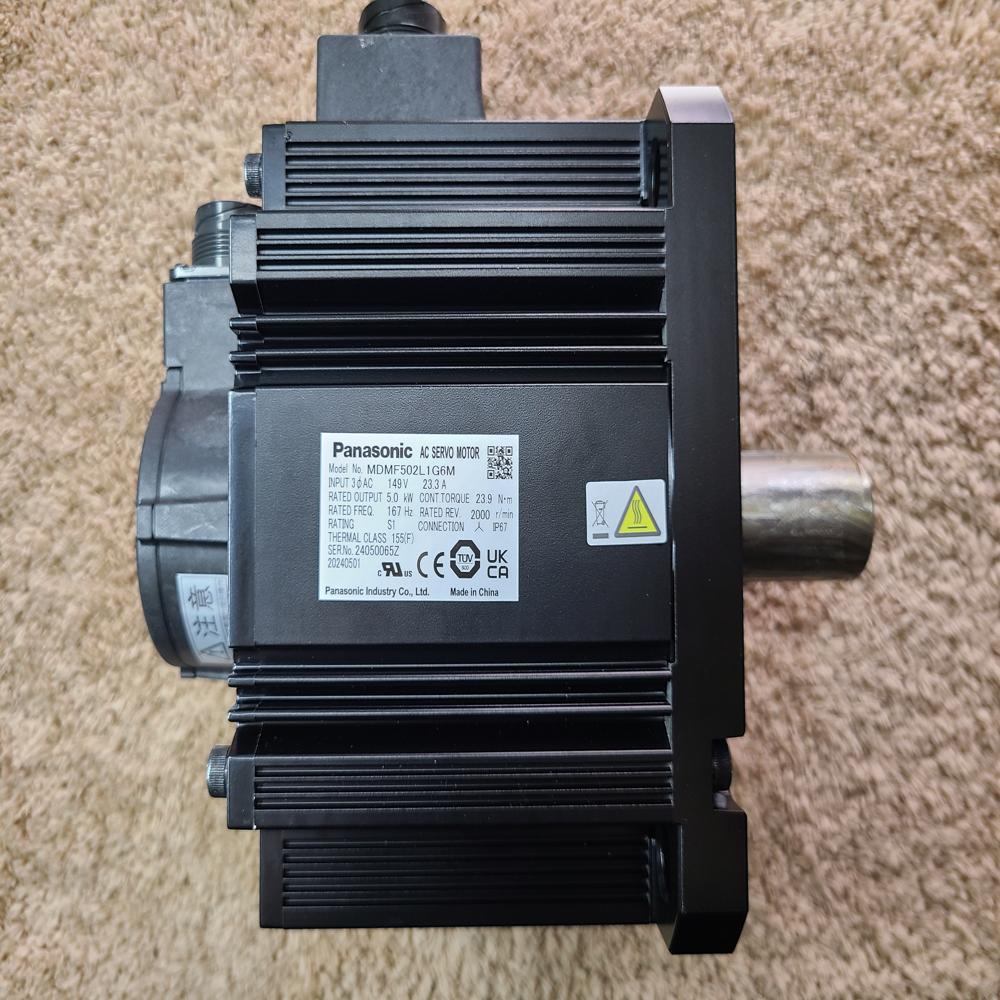

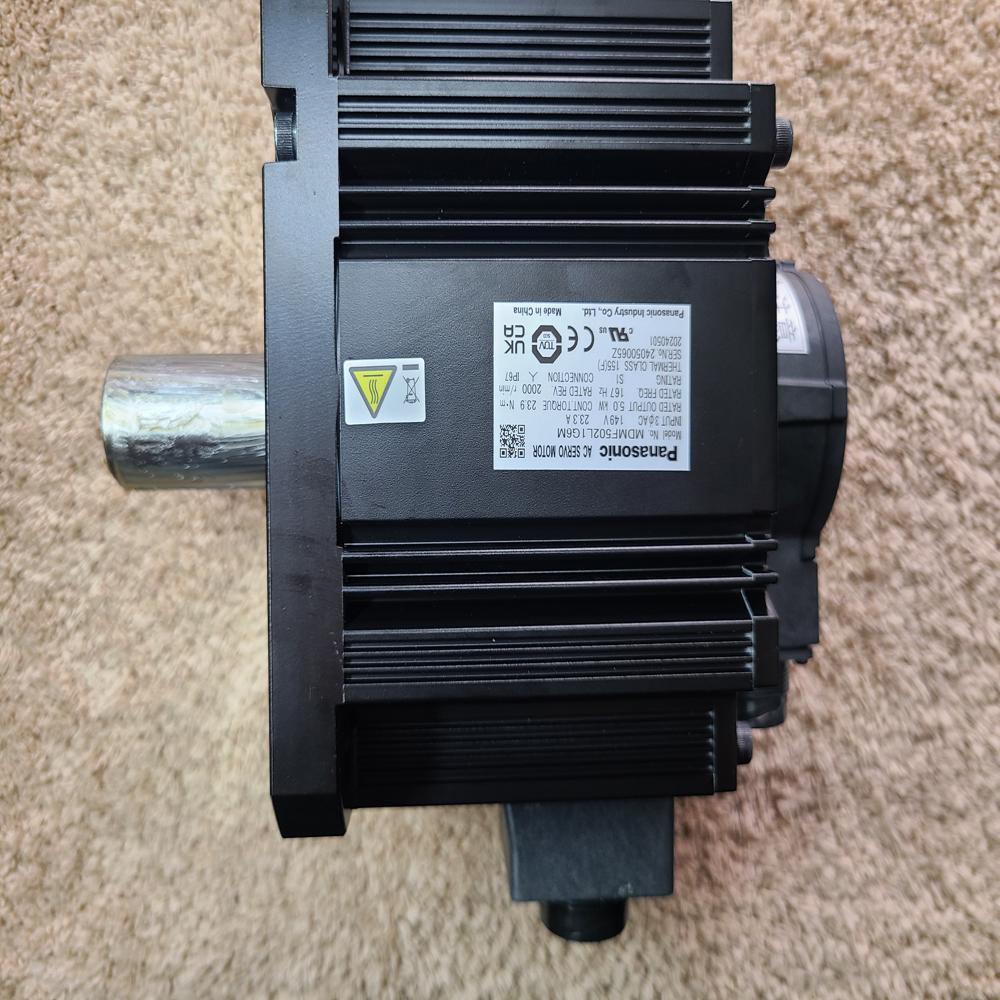

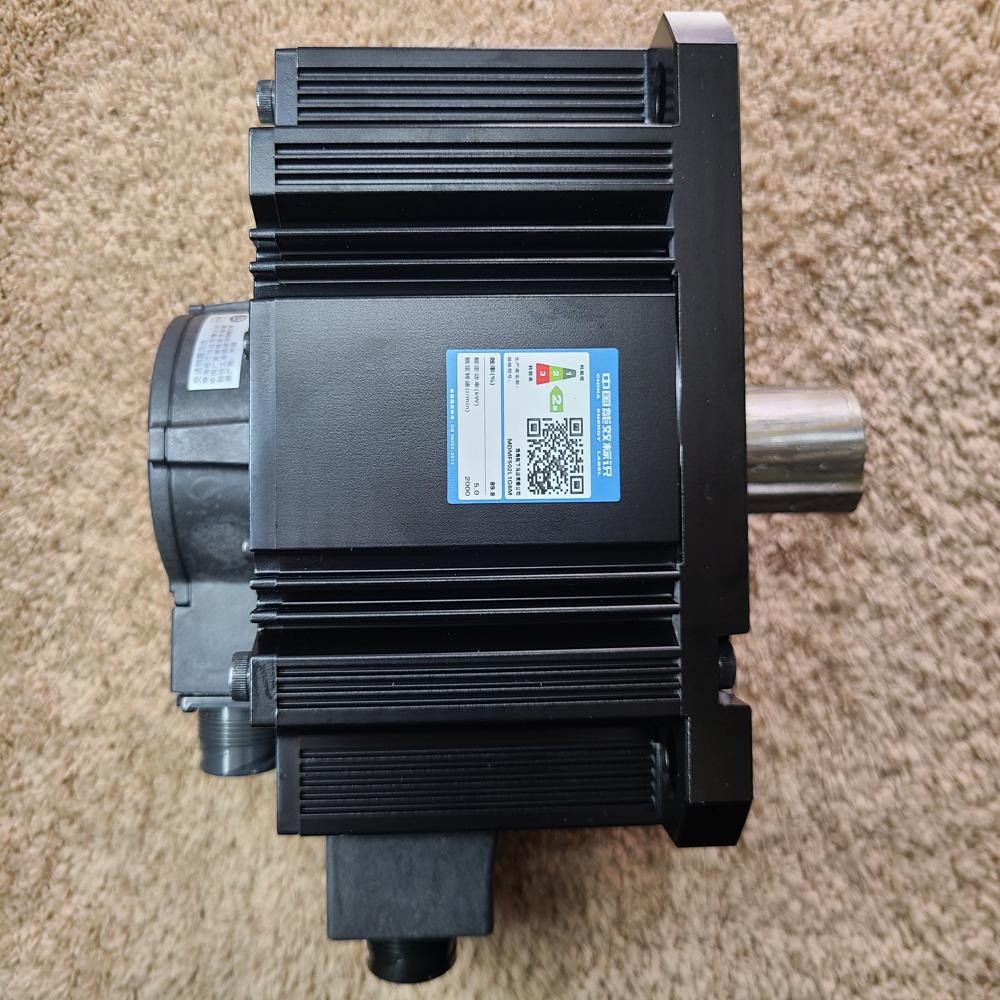

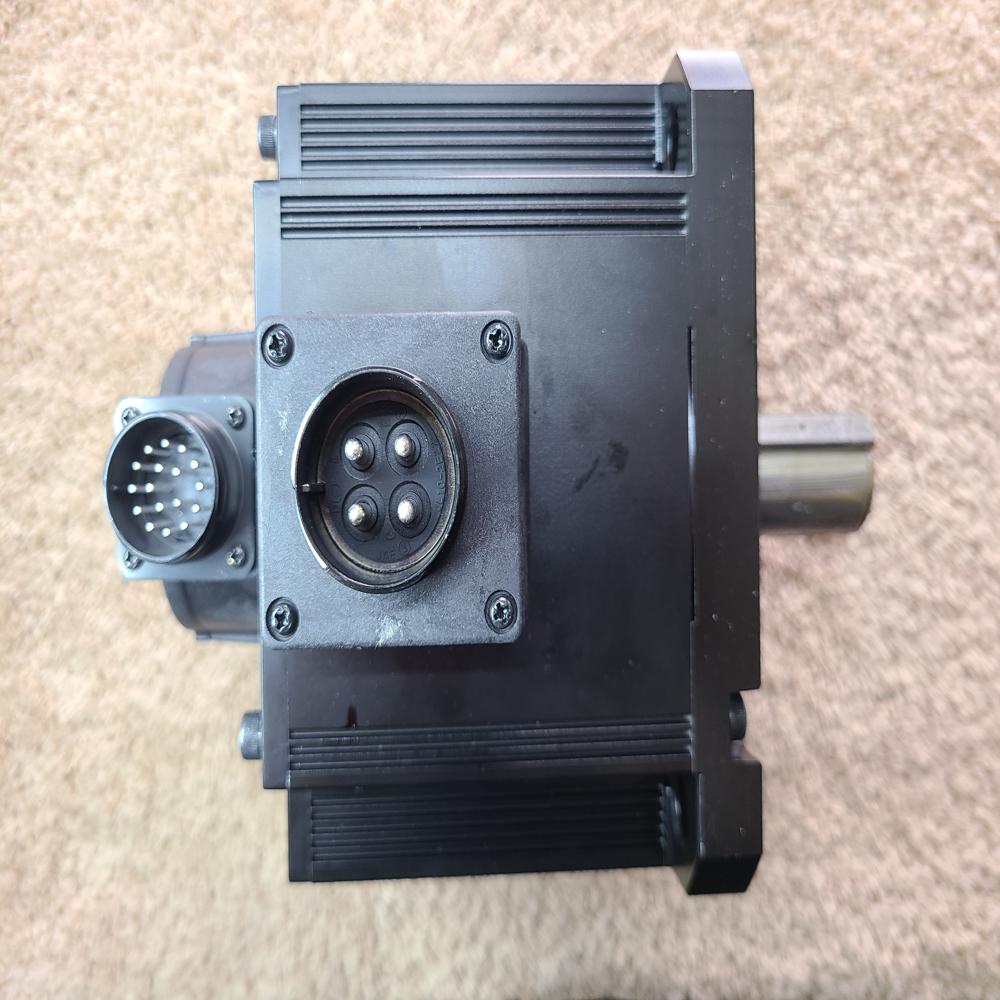

MHMF502L1H6M Panasonic A6 5000W Motor + BRK , Torque Nm - 23.9, RPM - 2000

Price 113100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MHMF502L1H6M Panasonic A6 5000W Motor + BRK , Torque Nm - 23.9, RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
31.9 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MHMF502L1H6M Panasonic A6 5000W Motor + BRK , Torque Nm - 23.9, RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MHMF502L1H6M Panasonic A6 5000W Motor + BRK , Torque Nm - 23.9, RPM - 2000

The Panasonic MHMF502L1H6M is the most powerful and stable motor in the 5.0 kW (5000W) MINAS A6 lineup. It is a High-Inertia model equipped with an integrated holding brake, specifically designed for maximum stability under heavy vertical loads.

Function

Fail-Safe Vertical Security (Brake): The primary role of the built-in brake is to lock the shaft when power is lost. With a massive static friction torque of 25.0 Nm, it prevents heavy machine axes (like a large robotic head or vertical spindle) from crashing down during an emergency stop or power failure.
Maximum Vibration Suppression: The "High-Inertia" rotor acts as a mechanical stabilizer. It provides the best "inertia match" for moving very large industrial loads, ensuring the machine moves smoothly without the "shaking" or resonance that happens with lighter motors.
Surgical Precision: Despite its brute power, it uses a 23-bit encoder to track position within 8.38 million pulses per turn, allowing for micron-level accuracy on heavy-duty machinery.

Technical Specifications

Feature	Specification
Rated Output	5000 W (5.0 kW)
Rated Torque	23.9 Nm (Peak: 71.6 Nm)
Rated / Max Speed	2000 RPM / 3000 RPM
Brake Torque	25.0 Nm or more (Static friction)
Brake Voltage	24 V DC (Power-off engaged)
IP Rating	IP67 (Dust-tight and waterproof)

Physical Dimensions & Weight (Inches & Lbs)

This is the heaviest and largest motor in the A6 family, combining a high-inertia rotor, a 5kW stator, and a brake assembly.

Weight: Approximately 70.33 lbs (31.9 kg).
Width & Height (Flange): 6.93 inches (176 mm square).
Total Body Length: Approximately 11.22 inches (285 mm).
Shaft Diameter: 1.378 inches (35 mm).

Compatible Drivers

This motor requires the high-current H-Frame A6 drivers:

Multifunction (A6SF): MHDLTB3SF
Basic (A6SE): MHDLNB3SE
EtherCAT (A6NE): MHDLNB3NE

The primary function of the Panasonic MHMF502L1H6M is to provide maximum mechanical stability and fail-safe safety for the heaviest vertical loads in the 5.0 kW range. It is the "heavyweight safety" champion of the A6 series.

1. Fail-Safe Vertical Security (Holding Brake)

The "H" designation indicates the integrated electromagnetic brake.

Gravity Defense: Its most critical job is to prevent massive machine axes (like a 200kg robotic head or a heavy vertical spindle) from crashing down when power is lost.
Static Locking: It provides 25.0 Nm of holding torque. Since this is higher than the motor's rated running torque, it can hold the load "frozen" in place indefinitely without consuming motor power.

2. Maximum Vibration Dampening (High-Inertia Advantage)

This motor features the heaviest internal rotor in the entire 5.0 kW lineup.

The "Mechanical Flywheel": The extra mass of the rotor acts as a stabilizer. This provides a perfect inertia match for massive mechanical systems (like large CNC gantries), preventing the vibration and "shaking" that occurs when a lighter motor tries to move a very heavy load.
Smooth Motion: It is the primary choice for applications where steady, powerful force is more important than raw speed.

3. High-Torque Heavy Duty Output

While other motors focus on quick bursts, this motor focuses on raw pushing power.

Constant Force: It delivers a steady 23.9 Nm of torque, with a massive peak capability of 71.6 Nm. This allows it to drive large-diameter ball screws and heavy gearboxes that require immense force to move from a standstill.
Applications: Ideal for large-scale industrial robotics, heavy-duty material handling, and large CNC milling machines.

4. Precision at Massive Scale

Despite its brute force, it maintains surgical accuracy:

23-bit Feedback: It tracks its position within 8,388,608 increments per single turn. This allows a massive machine part to be positioned within microns of its target.
Real-Time Correction: It communicates with the driver 3,200 times per second (3.2 kHz) to instantly correct any deviations in speed or path.

5. Rugged Environmental Shield (IP67)

It is functionally sealed against heavy dust, oil mist, and water splashes. This allows it to work reliably on the "front lines" of heavy manufacturing floors where coolant and metal shavings are constantly present.
