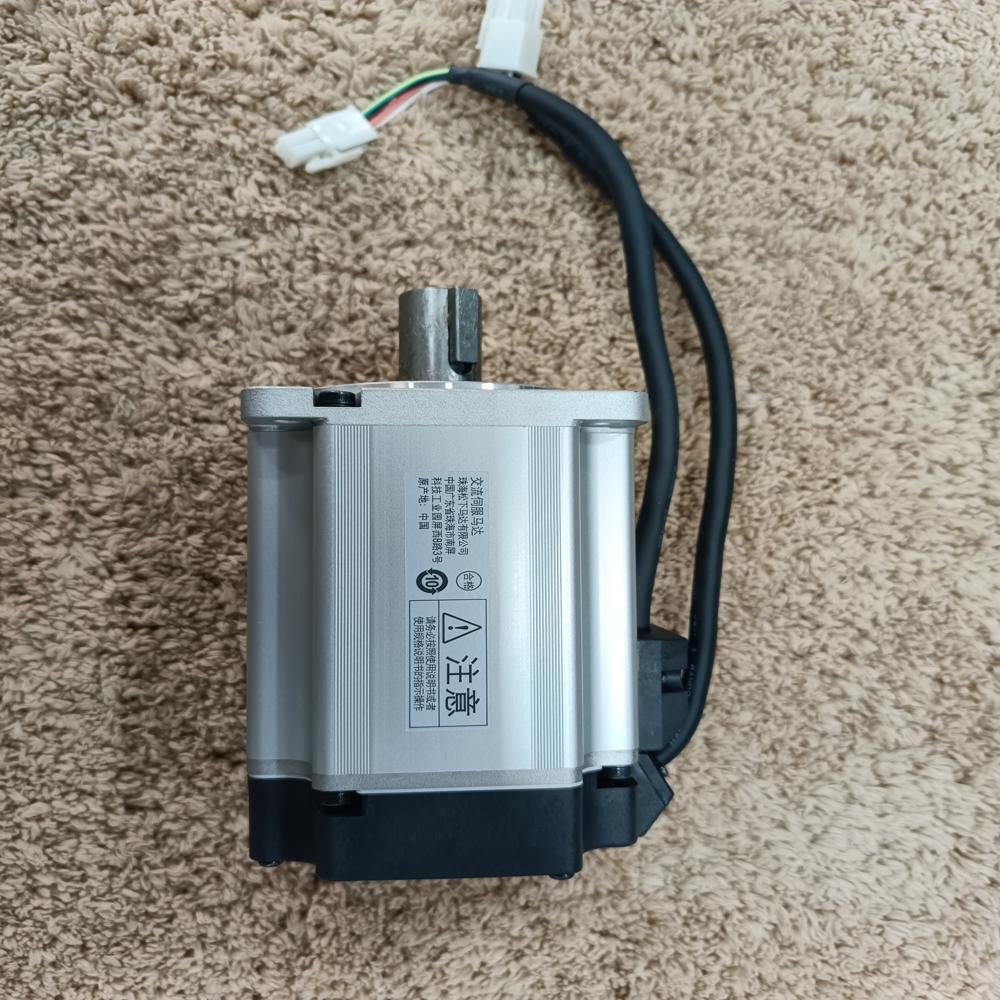

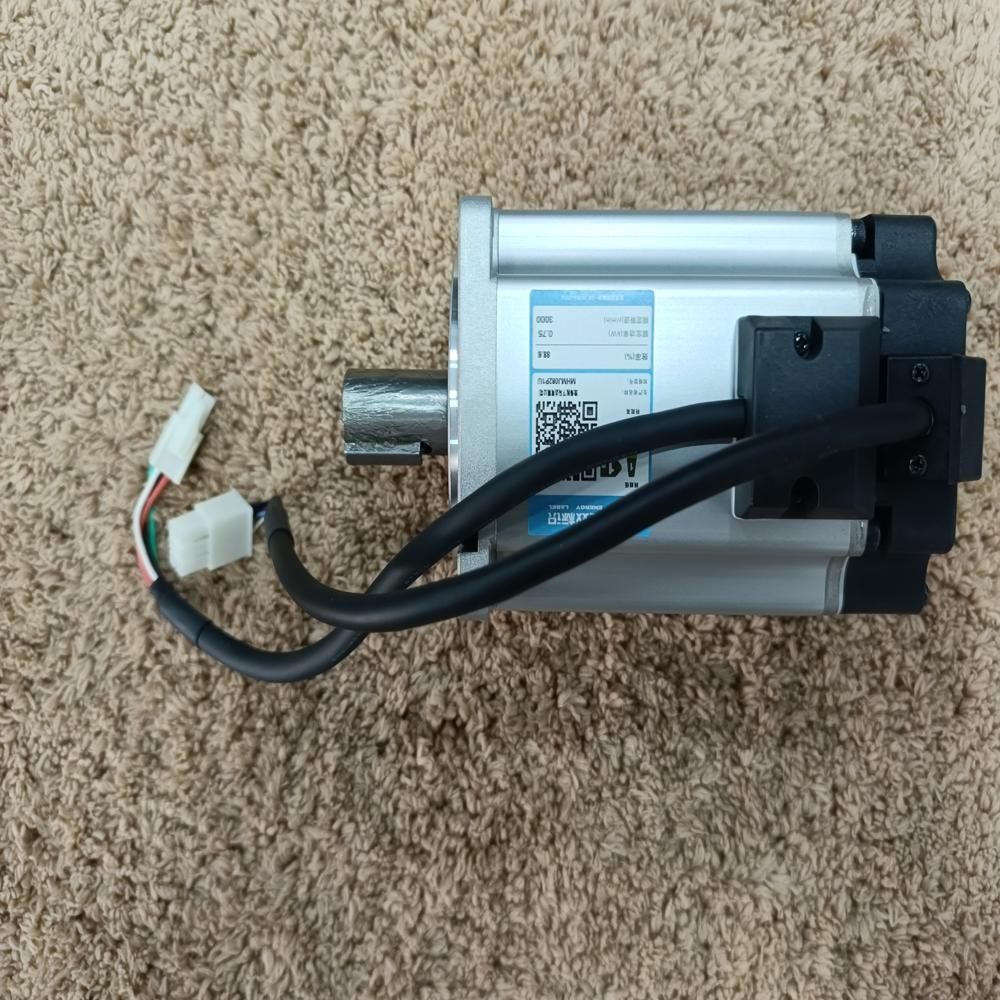

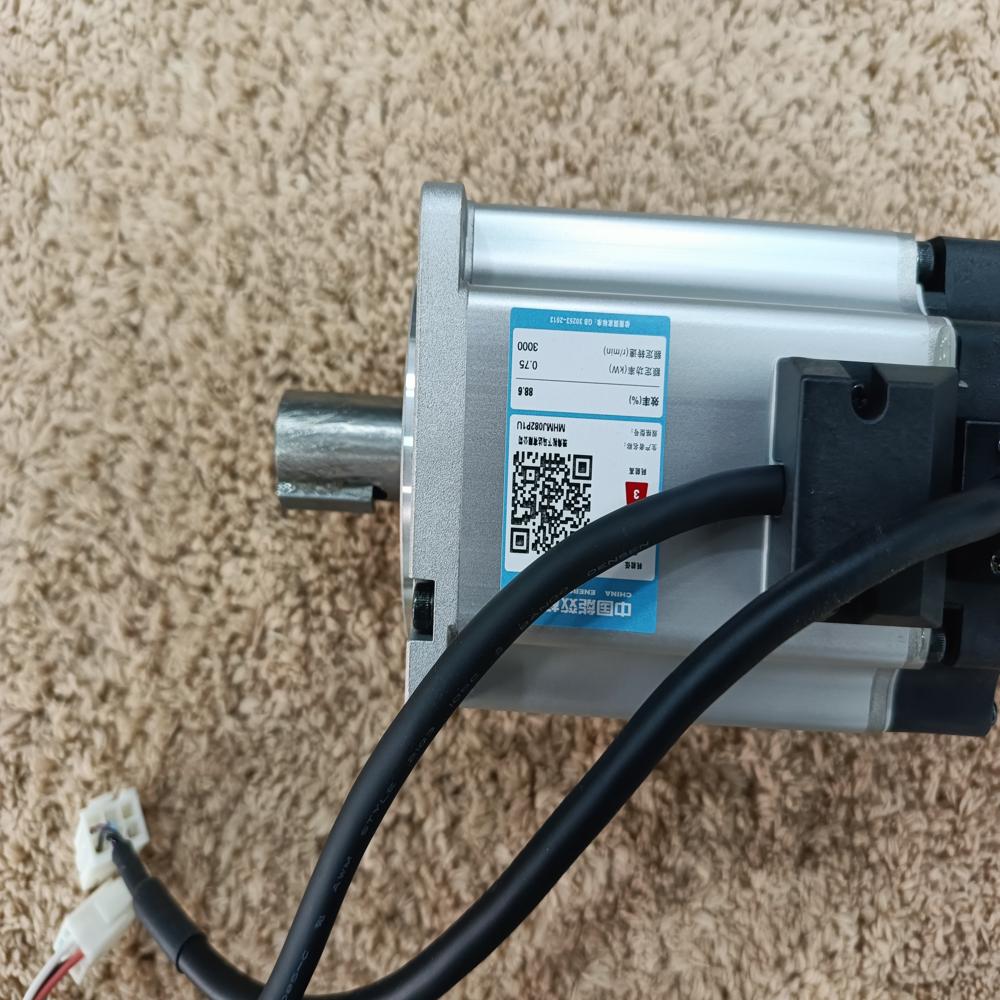

MHMF082L1V2M Panasonic A6 750W Motor + BRK, Torque Nm - 2.39, RPM - 3000

About MHMF082L1V2M Panasonic A6 750W Motor + BRK, Torque Nm - 2.39, RPM - 3000

Key Specifications

• Rated Power: 750 W
• Rated Torque: 2.39 Nm
• Continuous Stall Torque: 2.86 Nm
• Peak Torque: 8.36 Nm
• Rated Speed: 3000 rpm
• Max Speed: 6000 rpm
• Voltage: 200 V AC
• Rated Current: ~3.8 A

Physical Dimensions (In Inches)

• Width (Flange):
  80 mm 3.15 in
• Height (Flange):
  80 mm 3.15 in
• Length (Motor body):
  ~200220 mm ~7.9 to 8.7 in (approx.)

Brake version (V2M) is longer than U2M due to built-in brake

Weight

• Mass: 3.0 kg 6.6 lb

Brake Specifications

• Holding brake: YES
• Brake torque: 3.8 Nm
• Type: Spring applied, power released
• Purpose:
  • Holds load when power OFF
  • Prevents vertical drop

Performance & Features

• Motor Type: High inertia
• Encoder: 23-bit absolute (8.3 million counts/rev)
• Protection: IP65
• Rotor inertia: 1.66 10 kgm

Function (What it does)

• Provides precise motion control (position, speed, torque)
• Designed for heavy-load systems (high inertia type)
• Maintains smooth, stable rotation
• Brake holds position safely when power is OFF

Typical Applications

• CNC machines (heavy axis / Z-axis)
• Industrial robots
• Conveyor systems
• Packaging machines
• Indexing tables

Simple Summary

MHMF082L1V2M is a 750W high-inertia servo motor with brake, delivering 2.39 Nm at 3000 rpm, designed for stable and precise control of heavy loads with safe holding capability.
