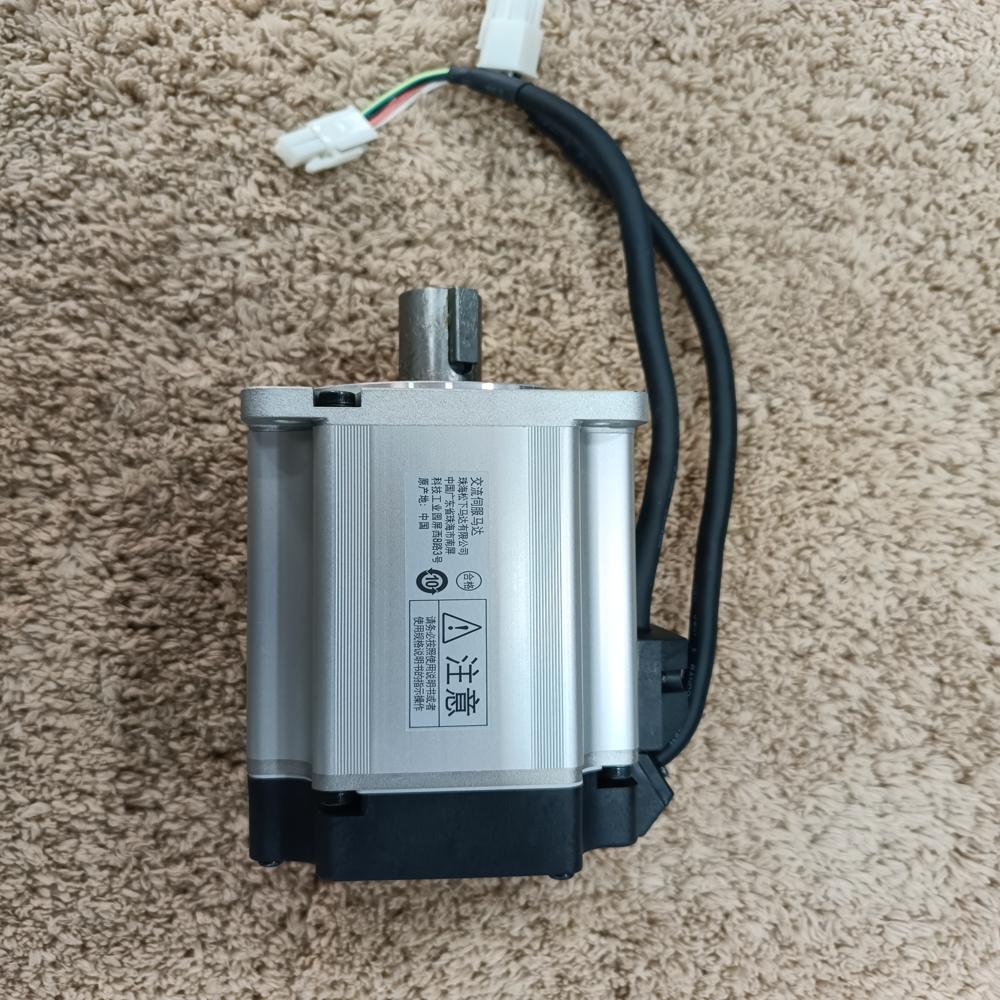

MHMJ082P1U - Panasonic Liqi 750W Motor

Name: MHMJ082P1U - Panasonic Liqi 750W Motor
Brand: Corbital Enterprise
Price: 20910.0 INR
Availability: InStock

Price 20910.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MHMJ082P1U - Panasonic Liqi 750W Motor Specification

Product Type
Motor

Color
Silver

Usage & Applications
Industrial Machinery

Warranty
1 Year

Phase
3 Phase

Material
Aluminium

MHMJ082P1U - Panasonic Liqi 750W Motor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About MHMJ082P1U - Panasonic Liqi 750W Motor

The

MHMJ082P1U

is a 750-watt AC Servo Motor from the Panasonic MINAS LIQI series. It is designed as a cost-effective, high-inertia solution for simple motion control in industries like packaging, food processing, and printing.

MHMJ082P1U

Simple and Cost-effective Servo Motor

10000 ppr Encoder Resolution

Maximum Toque limit is 300%

IP 65

Product category
AC Servo Systems
Partner name
Panasonic
Series name
MINAS LIQI

Attributes

Product
Motor
Watts
750
Encoder Resolution
10000 ppr
Brake
Without
Motor Type
High inertia

Feature	Inches (approx.)	Millimeters
Height (Frame)	3.15"	80 mm
Width (Frame)	3.15"	80 mm
Length (Body)	4.53" to 5.0"	115 mm to 127 mm
Shaft Diameter	0.748"	19 mm
Shaft Length	1.378"	35 mm
Net Weight	5.51 lbs	2.5 kg

Core Specifications

Power Output: 750 Watts (0.75 kW).
Rated Speed: 3000 RPM (Max speed up to 4500 RPM).
Rated Torque: 2.4 Nm (Peak torque up to 7.1 Nm).
Encoder: 2500 pulses/revolution incremental encoder (10,000 ppr resolution).
Brake: Without electromagnetic holding brake.
Protection: IP65 rated (dust and water-jet proof, except for the shaft).

Functional Overview

High-Inertia Stability: Specifically engineered to handle larger mechanical loads smoothly, preventing vibration during rapid starts and stops.
Real-Time Auto-Gain Tuning: Automatically adjusts its internal parameters to match the machine's stiffness, making it easier to set up than traditional complex servos.
Dynamic Response: Features a 1kHz response frequency, ensuring fast reaction times for high-speed automated lines.
