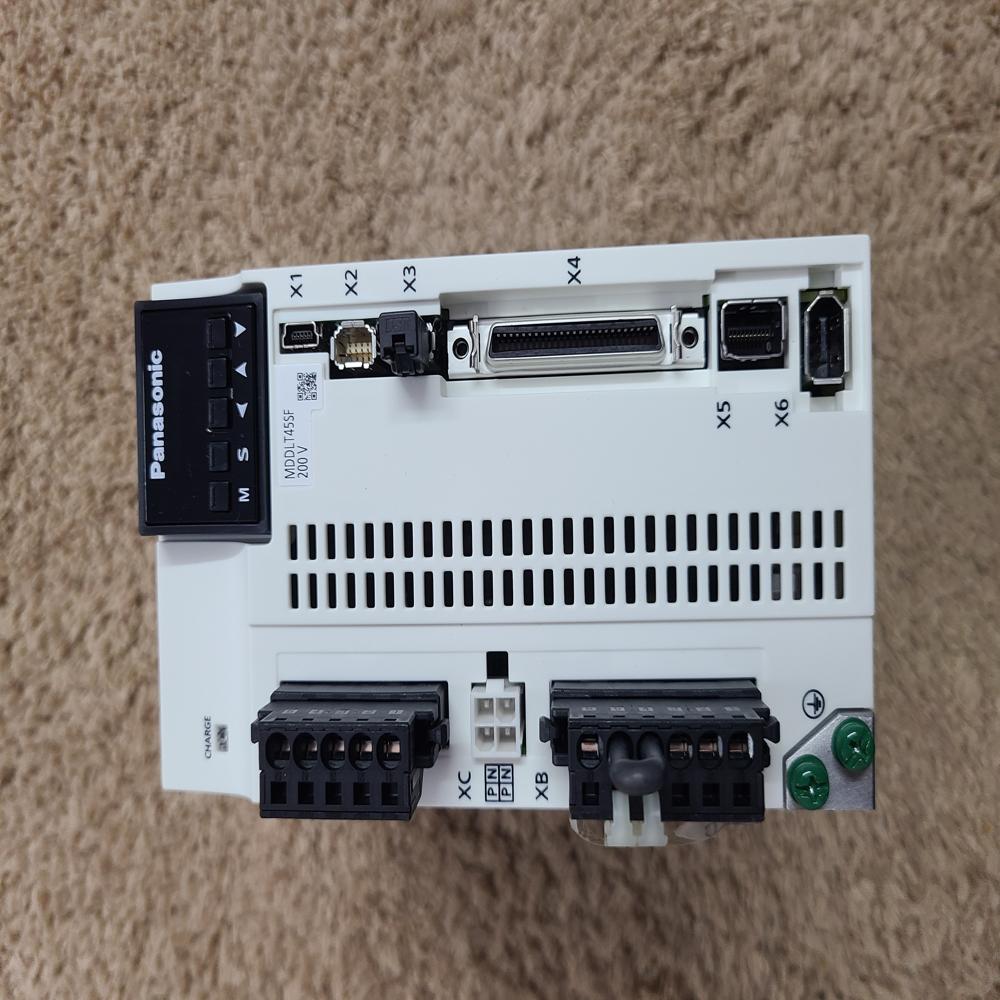

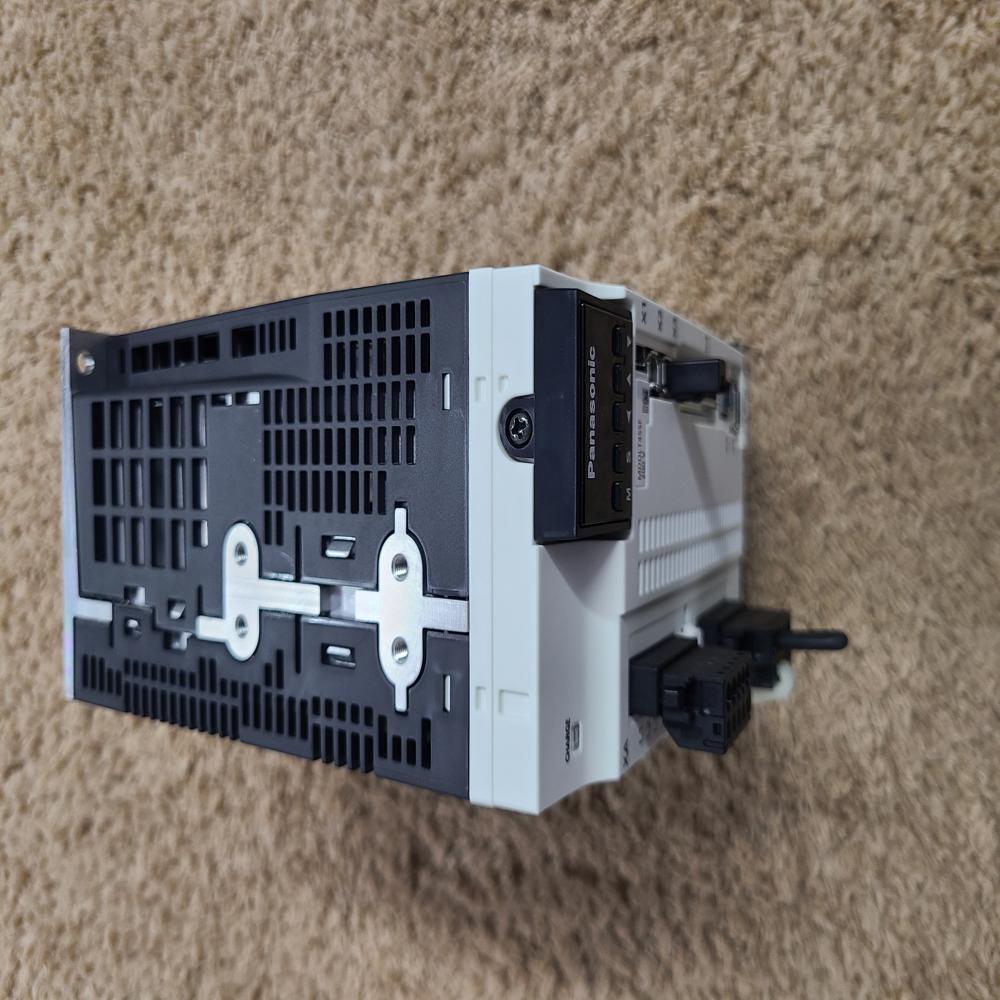

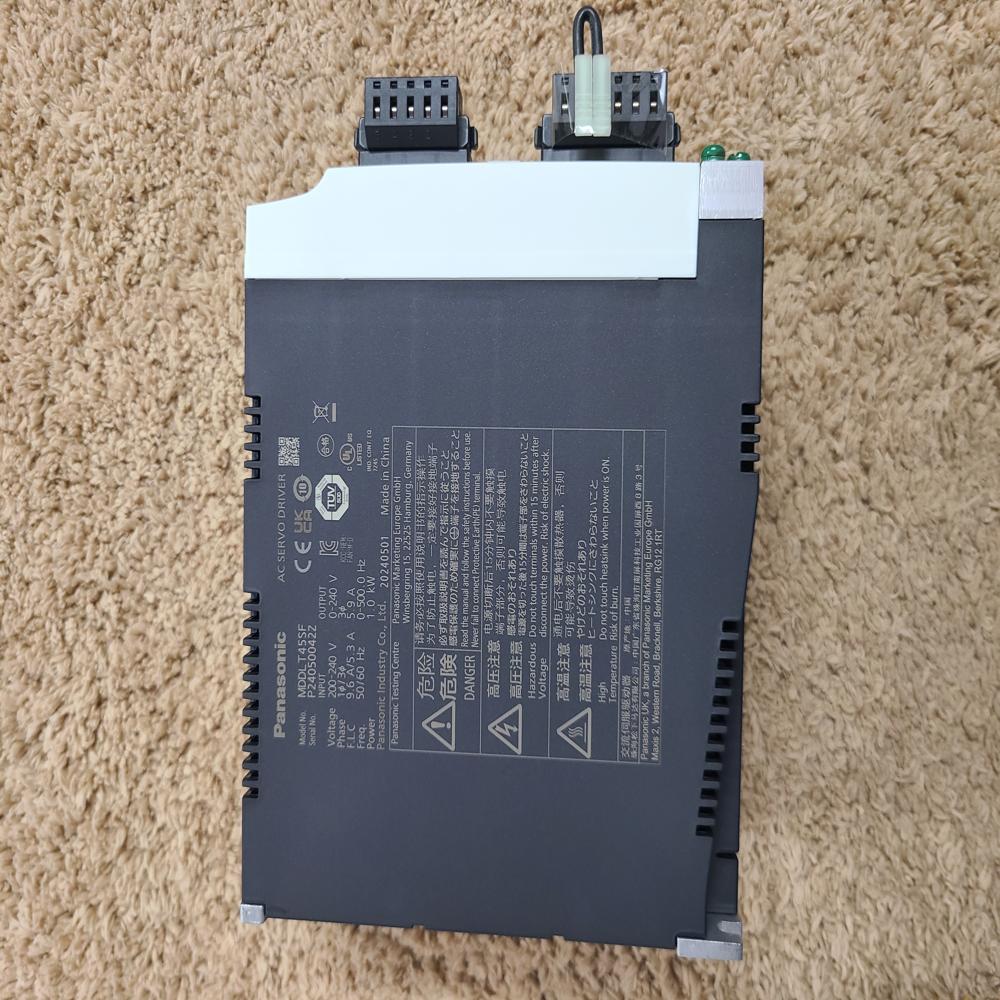

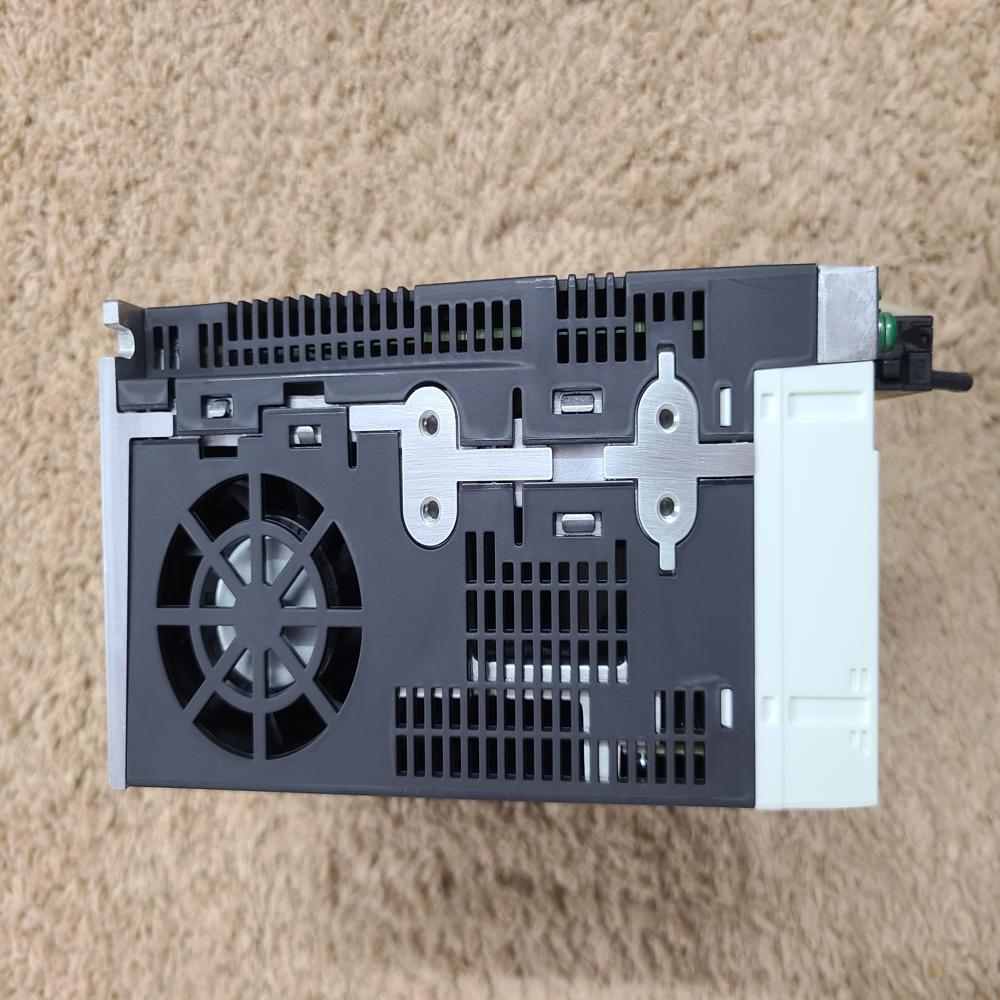

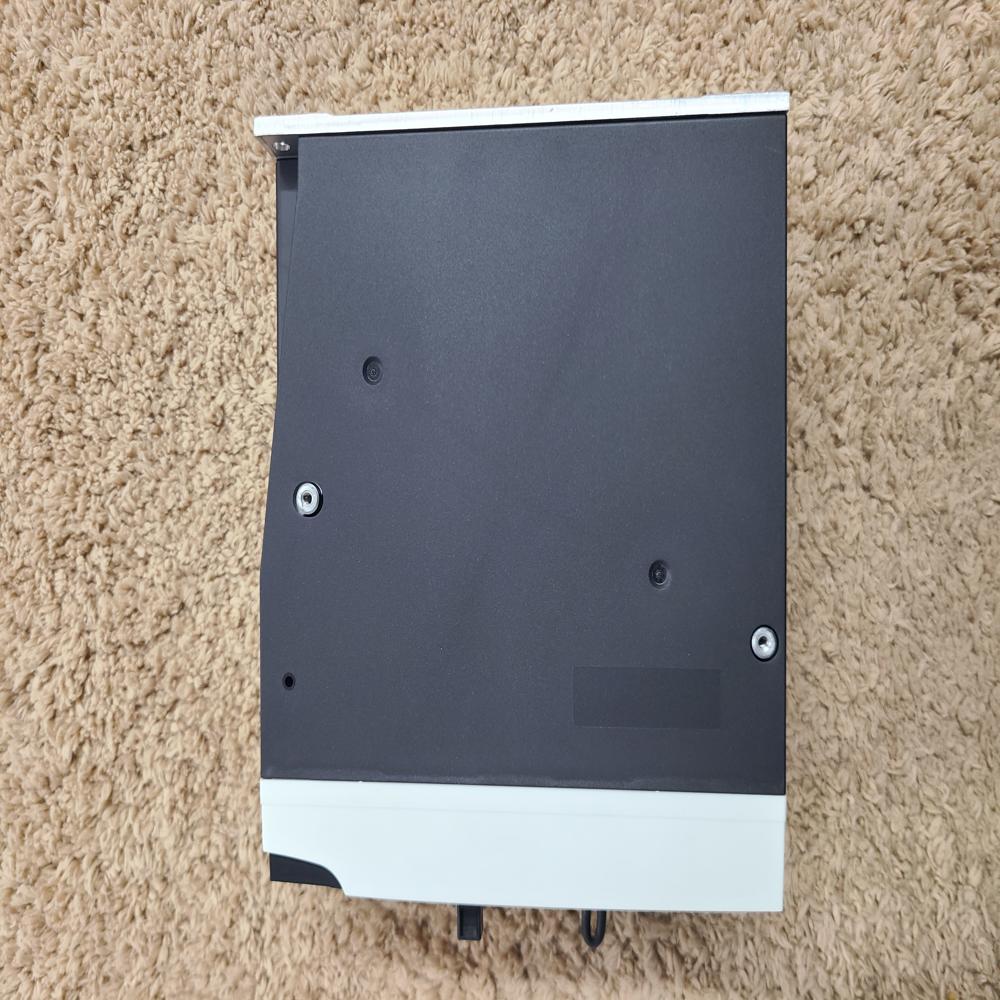

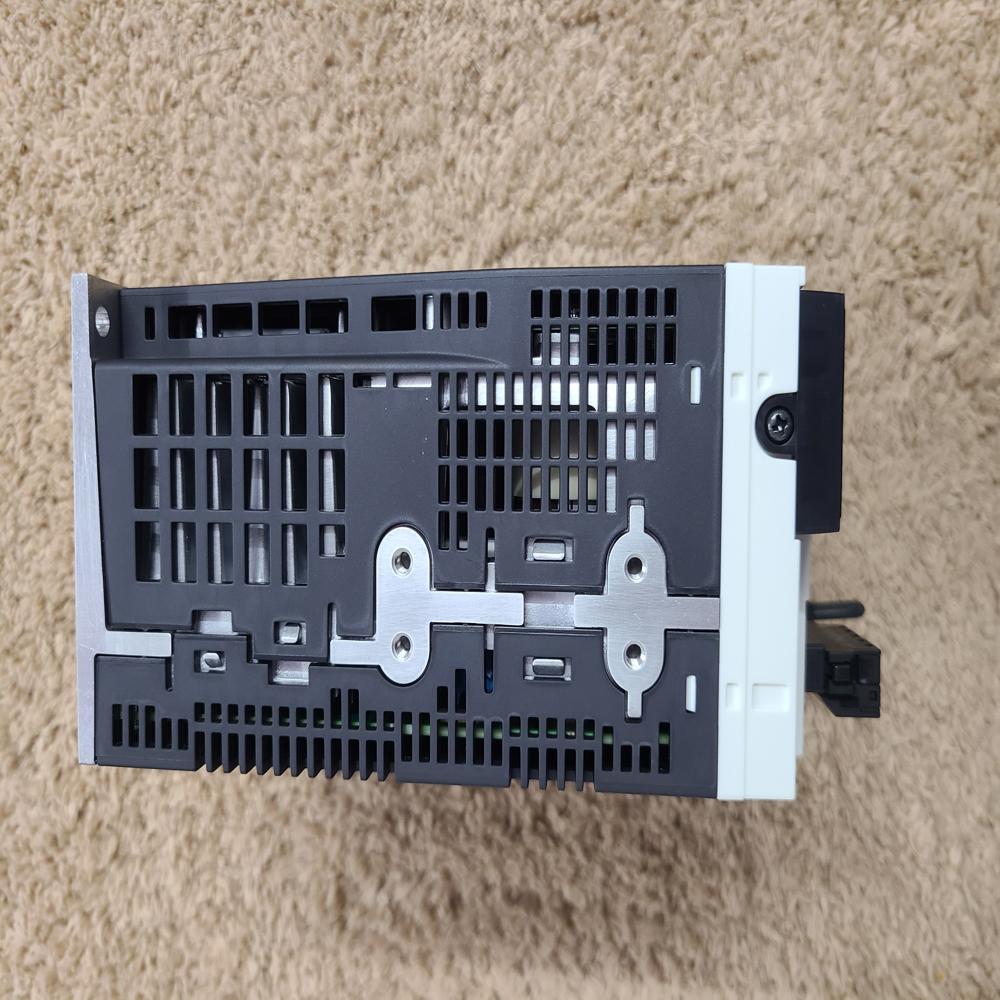

MDDLT45SF - A6SF Panasonic A6 1000W Driver

About MDDLT45SF - A6SF Panasonic A6 1000W Driver

Key Specifications (MDDLT45SF A6SF)

• Power: 1000 W (1 kW)
• Input Voltage: 200240 VAC (single/three-phase)
• Output Current: ~24 A
• Control Modes:
  • Position / Speed / Torque / Full closed loop
• Communication:
  • Pulse + Analog
  • RS-232 / RS-485 (Modbus)
  • USB (for setup)
• Encoder Support: 23-bit absolute encoder
• Frequency Response: 3.2 kHz (high-speed response)
• Built-in Safety: Yes (STO)

What A6SF Means

• A6 = Panasonic MINAS A6 generation
• SF = Multifunction type (Pulse + Analog + Full closed loop + Safety)
• Typically used where PLC pulse control or analog control is required (instead of EtherCAT/RTEX network drives)

Typical Use Cases

• CNC / VMC machines
• Packaging & textile machines
• Robotics & pick-and-place
• Printing / labeling systems

Compatibility Notes

• Works with Panasonic A6 series motors (MSMF / MHMF etc.)
• Can sometimes run older A5/A4 motors, but cable & parameter matching is critical
• Requires proper tuning via Panaterm software

  Quick Summary

  • MDDLT45SF = best choice if your system uses pulse/analog signals (PLC outputs)
  • Choose BF (EtherCAT) or NE (RTEX) versions only if you need network-based motion control
  • Its a high-performance, compact, industry-grade 1 kW servo driveThe Panasonic MDDLT45SF servo drive (MINAS A6 series) is essentially the brain and controller of a servo motor system. Its main function is to precisely control the motion of a connected servo motor.

    ---

    Core Functions

    1. Motion Control (Position / Speed / Torque)

    • Controls exact position (e.g., move to 100 mm precisely)
    • Maintains constant speed (e.g., conveyor systems)
    • Regulates torque/force (e.g., tightening, pressing)

    This is the primary rolehigh-precision motion control

    ---

    2. Feedback Processing (Closed Loop Control)

    • Takes feedback from the encoder (23-bit high-resolution)
    • Continuously compares:
      • Command (target)
      • Actual motor position/speed
    • Adjusts output instantly to eliminate error

    Ensures accuracy, stability, and smooth motion

    ---

    3. Power Conversion

    • Converts AC supply (200240 V) into controlled output for the motor
    • Regulates voltage & current based on motion demand

    Acts like a smart power amplifier

    ---

    4. Command Interface (Communication)

    Receives commands from:

    • PLC (pulse/direction signals)
    • Analog signals (010 V)
    • Serial communication (RS-485 / Modbus)

    Allows integration with automation systems

    ---

    5. Auto Tuning & Optimization

    • Automatically tunes servo parameters
    • Reduces vibration and improves response

    Saves setup time and improves performance

    ---

    6. Safety Functions

    • Built-in STO (Safe Torque Off)
    • Protects system during faults or emergency stops

    Critical for industrial safety compliance

    ---

    7. Monitoring & Diagnostics

    • Detects faults:
      • Overload
      • Overvoltage
      • Encoder errors
    • Displays alarms for troubleshooting

    Helps in maintenance and quick fault detection

    ---

    Simple Explanation

    Think of it like this:

    • PLC / Controller = Brain giving instructions
    • Servo Drive (MDDLT45SF) = Interpreter + Power Controller
    • Servo Motor = Muscle doing the movement

    ---

    Where Its Used

    • CNC machines
    • Textile machinery (very common in Gujarat)
    • Packaging lines
    • Robotics

    • Dimensions (in inches)

      • Height: ~ 6.6 in (168 mm)
      • Width: ~ 2.6 in (65 mm)
      • Depth (Length): ~ 7.1 in (180 mm)

      ---

      Weight

      • Approx: 3.5 4.0 lbs ( 1.6 1.8 kg)
