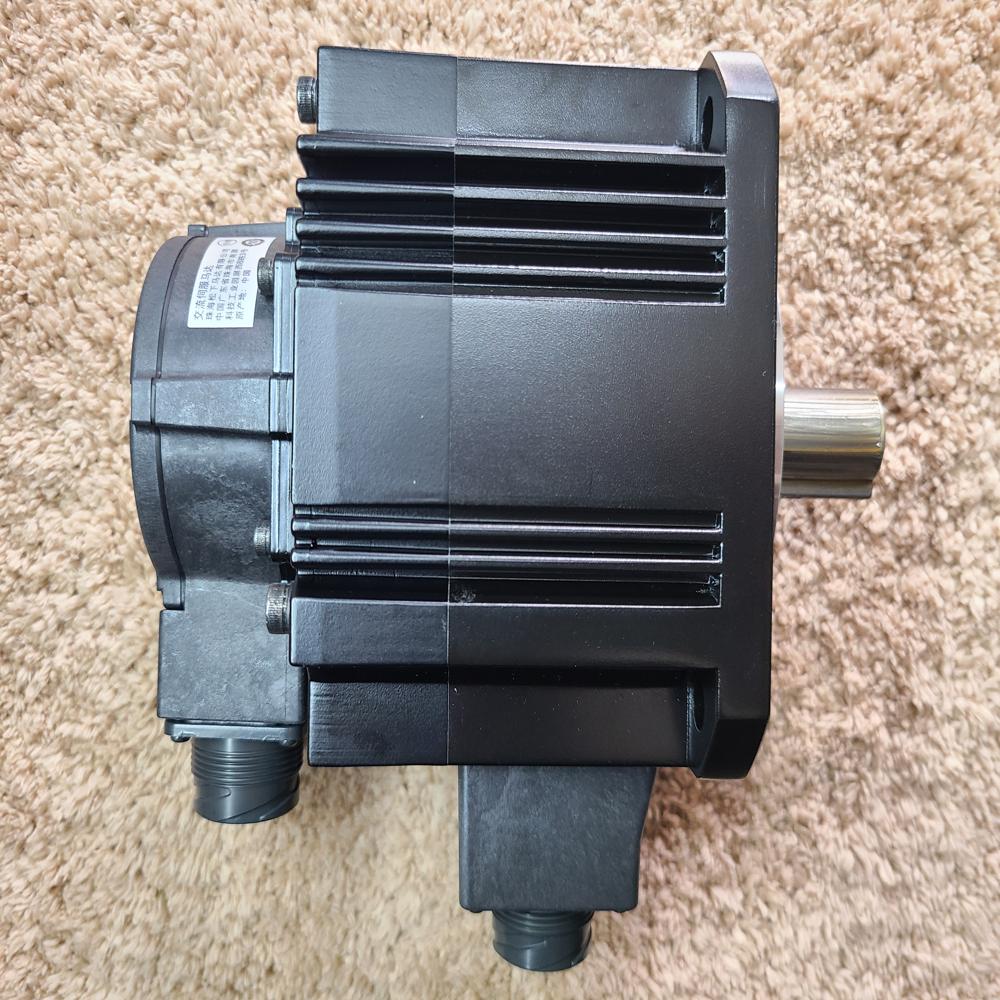

MSMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 4.77, RPM - 3000

Price 78000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MSMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 4.77, RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
6.5 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MSMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 4.77, RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MSMF152L1H6M Panasonic A6 1500W Motor + BRK , Torque Nm - 4.77, RPM - 3000

The Panasonic MSMF152L1H6M is a 1.5 kW high-performance AC servo motor from the MINAS A6 series, specifically engineered for low-inertia applications that require an integrated safety holding brake. [1, 2]

Core Specifications

Based on official data from Panasonic Industry and technical listings at DigiKey and E-motion Supply, here are the detailed electrical and performance specifications:

Feature [1, 2, 3, 4, 5]	Specification
Rated Output	1500 W (1.5 kW)
Rated Torque	4.77 Nm
Peak Torque	14.3 Nm
Rated / Max Speed	3000 RPM / 5000 RPM
Rated Current	8.2 A (rms)
Voltage	200 V AC
Encoder	23-bit (8,388,608 pulses/rev) Absolute/Incremental
IP Rating	IP67 (dust-tight and water-immersion resistant)
Shaft Type	Key-way with Oil Seal

Brake Specifications

The "H" in the model number denotes a built-in electromagnetic holding brake. [1, 2]

Static Friction Torque: 8.0 Nm or more.
Brake Voltage: 24 V DC ( 2.4 V).
Response Time: Engages in 50 ms; Releases in 15 ms.
Function: Primarily for safety; it holds vertical loads in place when power is cut. It is not designed to stop the motor while in motion. [1, 2]

Physical Dimensions & Weight

Converting the metric data from Panasonic Industry to imperial units:

Weight: Approximately 12.35 lbs (5.6 kg).

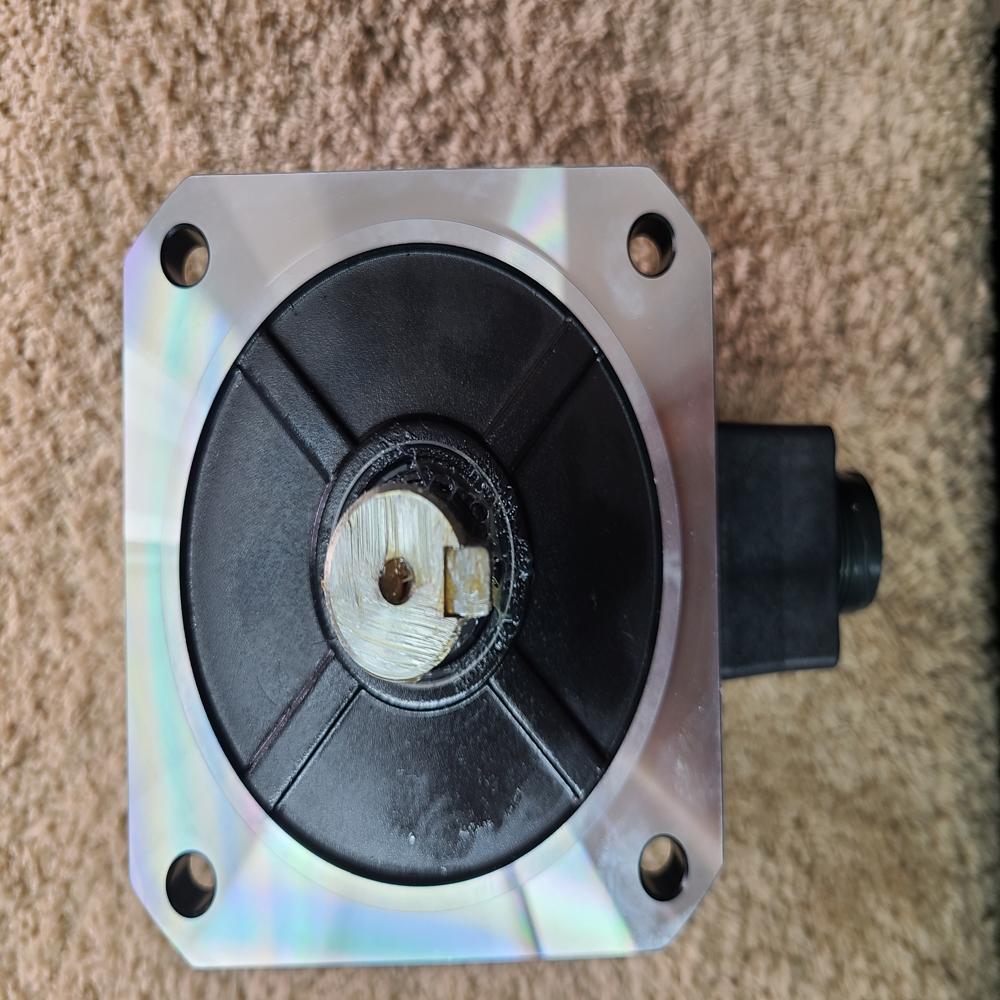

Flange Size: 3.94" x 3.94" (100 mm square).
Total Body Length: Approximately 7.54 inches (191.5 mm).
Shaft Diameter: 0.75 inches (19 mm). [1, 2]

the Panasonic MSMF152L1H6M is the 1500W (1.5 kW) version of the MINAS A6 servo motor equipped with an integrated electromagnetic holding brake.

Function

Precision Control: High-accuracy rotation and positioning for industrial automation using a 23-bit encoder.
Fail-Safe Holding (Brake): The primary function of the "H" model is to lock the shaft when power is cut. This prevents gravity from moving vertical loads (like a Z-axis on a CNC) or holds a load in place during an emergency stop.
Low Inertia: Optimized for high-cycle applications that require "snappy" acceleration and deceleration.

Physical Specifications (Inches & Lbs)

The addition of the brake assembly increases both the length and the total weight compared to the standard G6M model.
