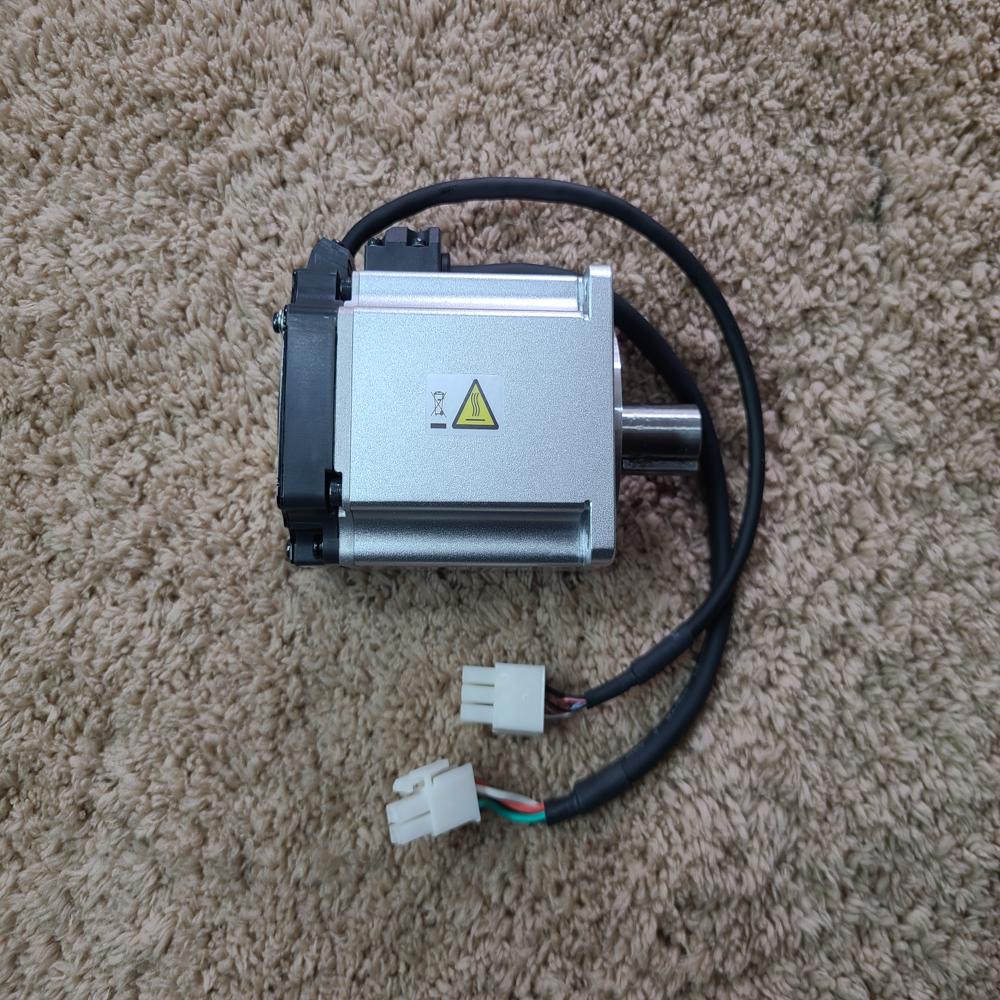

MHMD022J1A - Panasonic Liqi 200W Motor

Name: MHMD022J1A - Panasonic Liqi 200W Motor
Brand: Corbital Enterprise
Price: 11660.0 INR
Availability: InStock

Price 11660.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MHMD022J1A - Panasonic Liqi 200W Motor Specification

Bearing Type
Ball Bearing

Standard
IEC/CE Certified

Pressure
Standard Atmospheric

Features
Compact design, High accuracy, Maintenance-free

Voltage
220V

Starting Type
DOL

Motor Type
AC Servo Motor

Power Rating
200W

Poles Number
8 Poles

Sealed Type
Totally Enclosed

Ambient Temperature
0C to 40C

Horse Power
0.27 HP

Current Type
AC

Rated Frequency
50/60 Hz

Cooling Method
Natural Convection

Efficacy
IE2

Torque
0.637 Nm (rated), 1.91 Nm (max)

Noise Level
Low Noise

Rated Voltage
200-230V AC

Product Type
AC Servo Motor

Output Power
200 W

Frequency (MHz)
50/60 Hz

Protect Feature
Overload, Overheat, Overcurrent Protection

Phase
Single/Three Phase (varies by model)

Speed
3000 rpm

Power
200 Watt

Color
Silver/Black

Dimension (L*W*H)
Approx. 111mm x 45mm x 81mm

Weight
Approx. 1.1 kg

Shaft Diameter
8 mm

Mounting Type
Flange Mount

IP Rating
IP65

Service Life
20,000 hours (typical)

Relative Humidity
20% to 80% (non-condensing)

Application
Robotics, CNC machinery, Factory automation, Conveyors

Altitude
Up to 1000 m above sea level

Vibration Resistance
4.9 m/s2

Encoder Type
2500P/rev Incremental Encoder

Rotation Direction
Bi-directional

Rated Current
1.5A

Max Instantaneous Current
4.5A

Insulation Class
Class B

MHMD022J1A - Panasonic Liqi 200W Motor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About MHMD022J1A - Panasonic Liqi 200W Motor

The

MHMD022J1A

is a 200-watt AC Servo Motor from the Panasonic MINAS LIQI series. It is designed as a cost-effective, reliable solution for simple motion control applications such as packaging, food processing, and small linear robots.

Core Specifications

Feature	Specification
Power Output	200 Watts (0.2 kW)
Rated Speed	3000 RPM
Rated Torque	0.64 Nm
Encoder Type	2500 Pulses/Revolution (Incremental)
Frame Size	60 mm Square
Brake	Without electromagnetic brake
Shaft Design	Keyway shaft
Protection Rating	IP65 (excluding shaft and leadwire ends)

Key Features

Simple Positioning: Supports pulse train commands up to 500kpps for basic positioning tasks.
Real-Time Auto-Gain Tuning: Automatically calculates gain parameters by setting only a stiffness value, making it easier to set up than traditional servo systems.
High Performance: Features a 1kHz response frequency, which ensures quick response times and low vibration.
Compatibility: Typically paired with the MBDJT2207 servo driver or other drivers in the MINAS LIQI lineup.

Typical Applications

Because of its simple interface and cost-effectiveness, the MHMD022J1A is frequently used in:

Bottle Filling and packaging machines.
Printing and metal processing equipment.
Linear Actuators for basic pick-and-place automation.

The primary function of the

MHMD022J1A

is to provide precise position control within an automated system. As a closed-loop AC servo motor, it works by constantly comparing its actual shaft position against a target command from a controller, correcting any errors in real-time.

Functional Capabilities

Unlike standard induction motors that simply spin when powered, this motor is designed for high-performance motion:

Positioning Accuracy: Using its built-in incremental encoder (2500 pulses/rev), it can achieve a resolution of 10,000 pulses per revolution, ensuring exact placement for tasks like bottle filling or pick-and-place.
High Dynamic Response: It has a 1kHz velocity response frequency, allowing it to start, stop, and change directions almost instantly with minimal vibration.
Torque Regulation: It provides a steady rated torque of 0.64 Nm, with the ability to handle peak torque requirements up to 1.91 Nm during rapid acceleration or deceleration.

Advanced Operational Features

Real-time Auto-gain Tuning: Automatically calculates the necessary mechanical "stiffness" to keep motion smooth, even if the load on the motor changes during operation.
Vibration Suppression: Uses notch and damping filters (range 1Hz to 5000Hz) to eliminate "humming" or mechanical resonance that can damage machinery.

Precision Engineering for Automated Systems

Designed with a high-resolution 2500P/rev incremental encoder, the MHMD022J1A motor ensures precise motion control in robotics, CNC machines, and factory automation setups. Its compact profile, high torque-to-size ratio, and bi-directional rotation enable streamlined installations and versatile automation tasks.

Robust Construction and Reliable Operation

Built to withstand challenging conditions, this motor features a totally enclosed, IP65-rated housing and ball bearing support, granting superior vibration resistance (4.9 m/s2) and protection from dust and moisture. The robust insulation (Class B) and overload protection guarantee consistent load performance across single or three-phase supply options.

Energy Efficient and Maintenance-Free

Operating at 200W with an efficacy rating of IE2, the MHMD022J1A is energy-efficient and cost-effective. It uses natural convection for cooling, remains low-noise, and is engineered for a maintenance-free lifespan exceeding typical industrial standards.

FAQ's of MHMD022J1A - Panasonic Liqi 200W Motor:

Q: How is the MHMD022J1A Panasonic Liqi 200W motor typically used in industrial settings?

A: The MHMD022J1A is commonly deployed in robotics, CNC machinery, conveyors, and factory automation systems where precise motion control and reliable servo performance are required.

Q: What are the benefits of the 2500P/rev incremental encoder in this motor?

A: The high-resolution 2500P/rev encoder enables highly accurate position and speed feedback, supporting precise automation and control tasks essential in robotics and CNC applications.

Q: Where can this motor be installed, considering environmental limitations?

A: It is suitable for indoor industrial environments up to 1000 meters above sea level, with ambient temperatures from 0C to 40C, and relative humidity between 20% and 80% (non-condensing), thanks to its IP65 enclosure and vibration resistance.

Q: When is maintenance required for this servo motor?

A: The MHMD022J1A is designed to be maintenance-free due to its ball bearings and totally enclosed construction, typically providing 20,000 hours of reliable service before any service attention may be needed.

Q: What protective features are present in this servo motor?

A: It includes overload, overheat, and overcurrent protection, helping prevent damage from power surges or excessive operational loads, thereby enhancing its operational lifespan and reliability.

Q: How is the motor mounted and what are its dimensions?

A: Installation is straightforward using its flange mounting system. The motor's compact size measures approximately 111mm in length, 45mm in width, and 81mm in height, with a shaft diameter of 8 mm.
