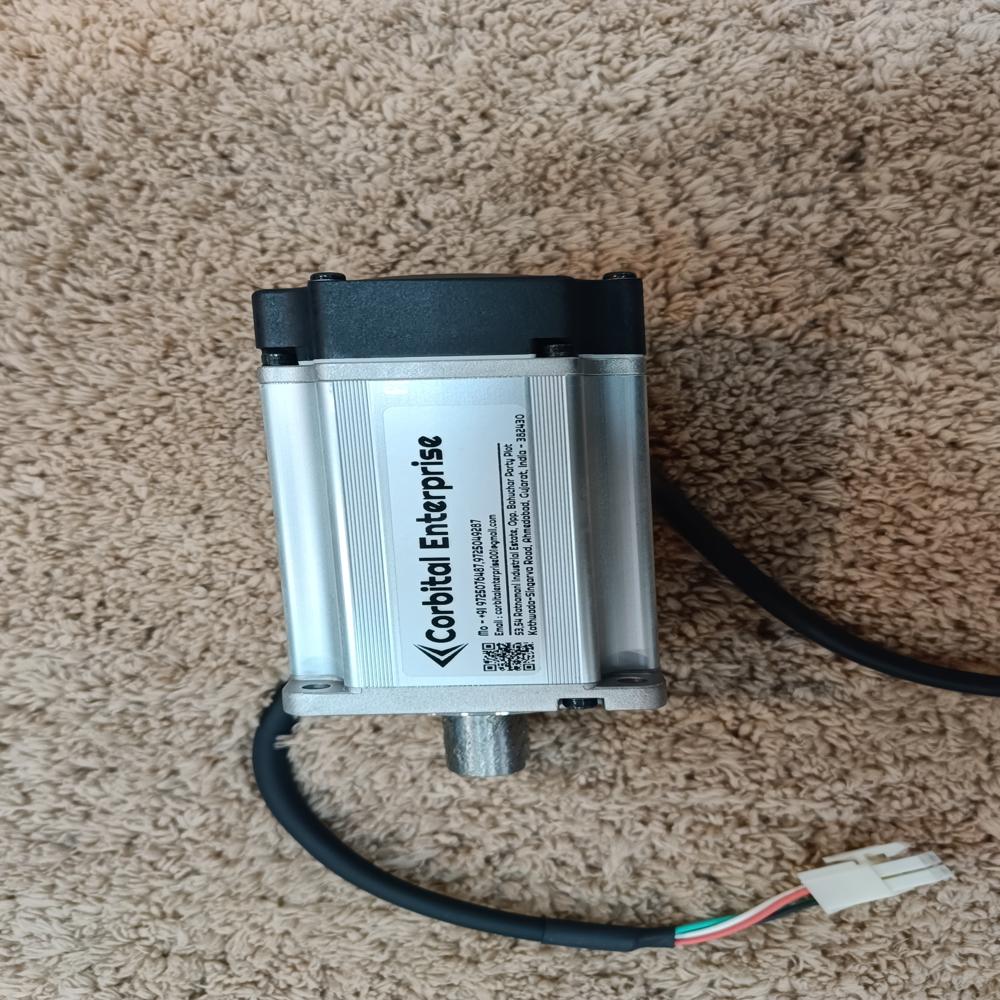

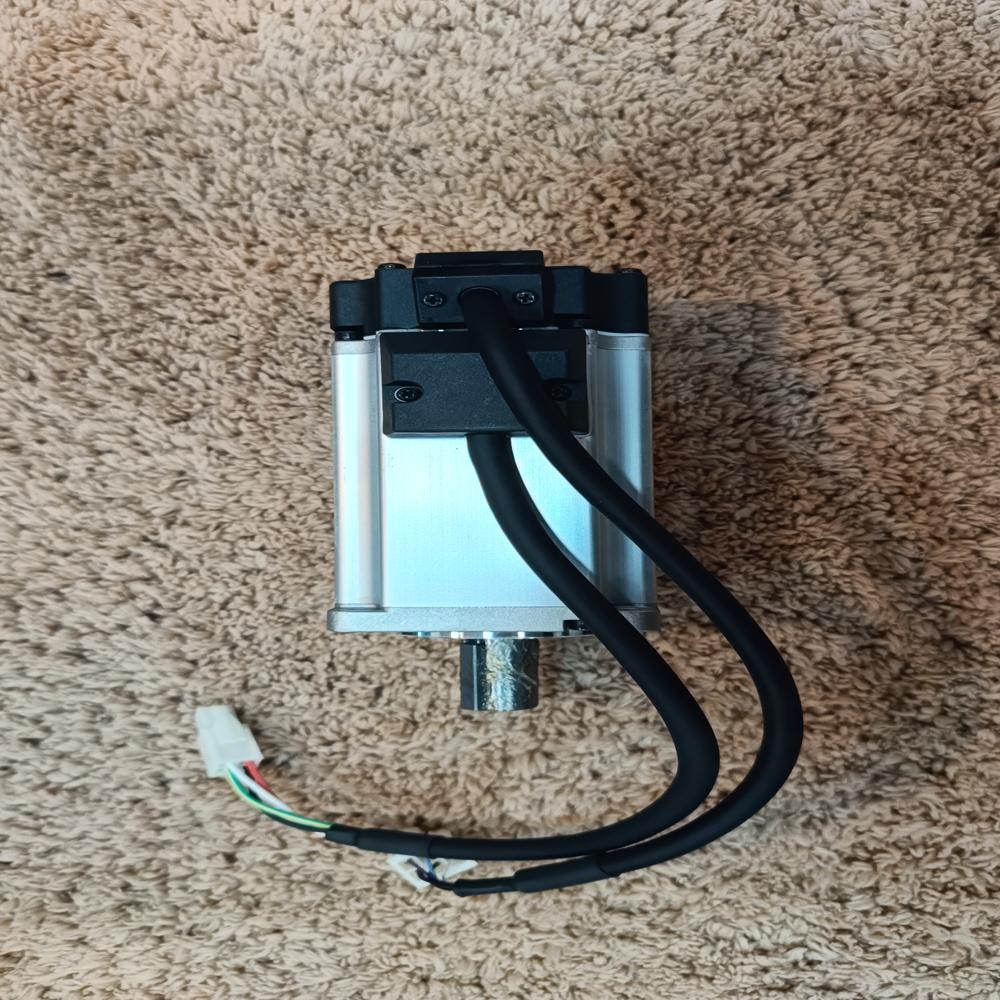

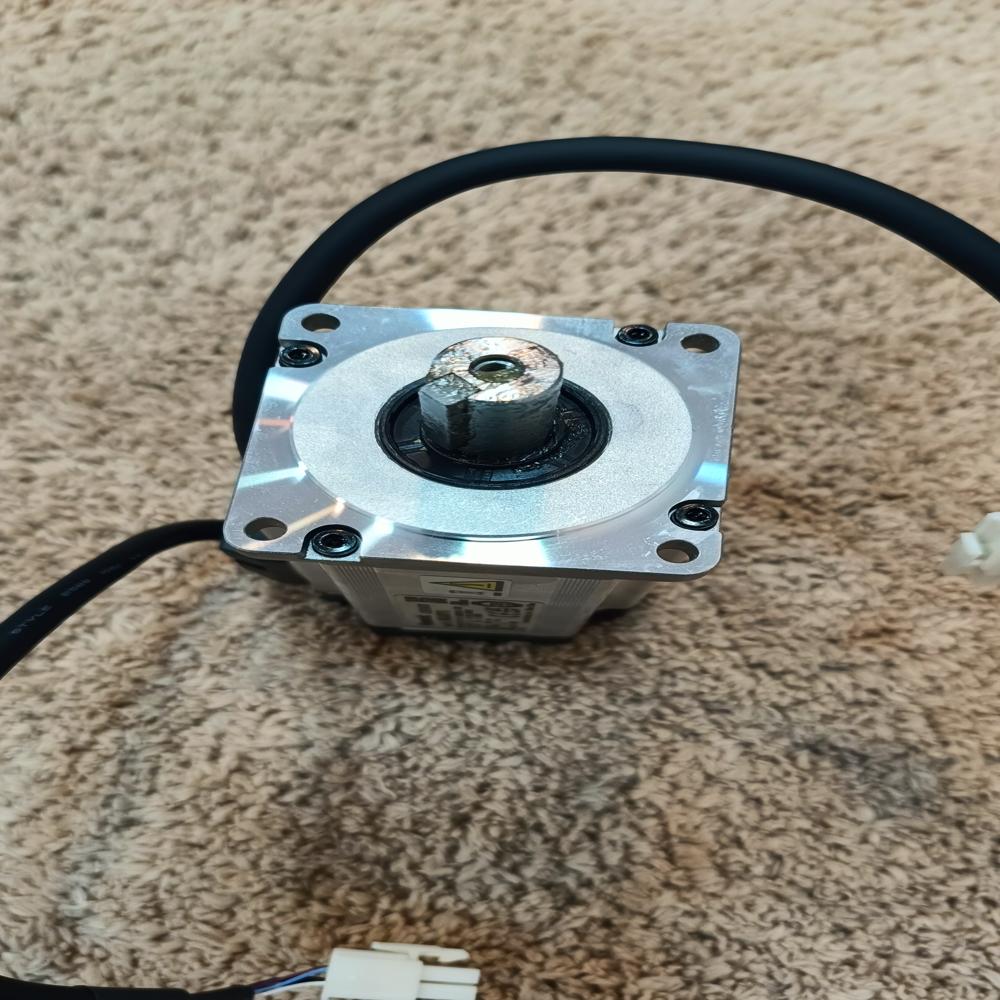

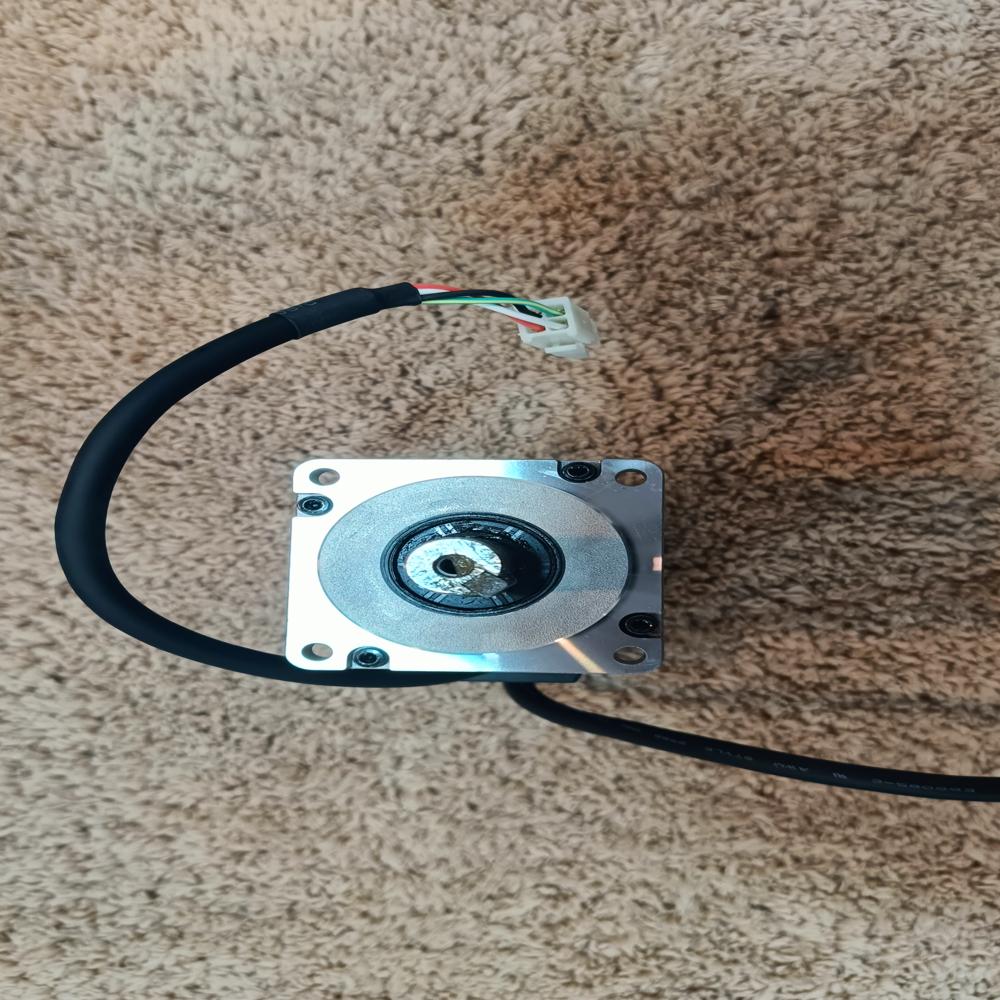

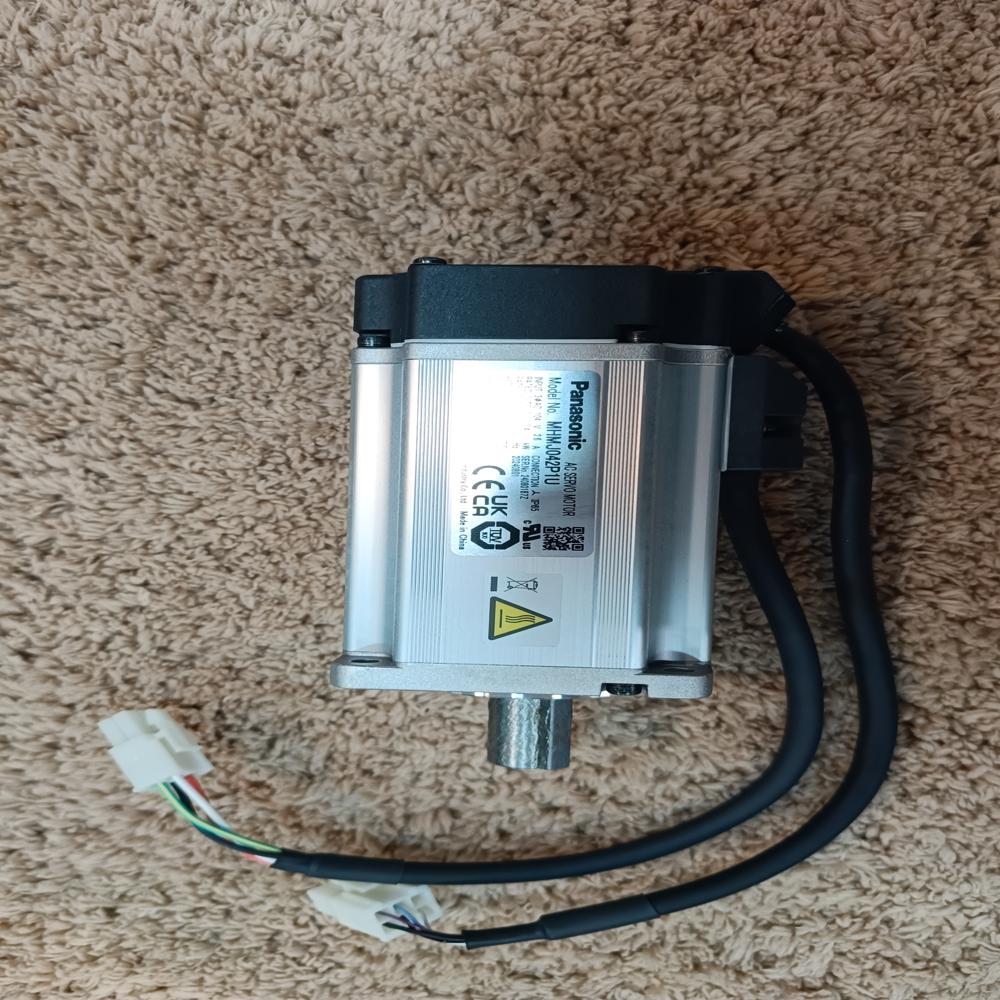

MSMF5AZL1V2M Panasonic A6 50W Motor + BRK , Torque Nm -0.16, RPM - 3000

Send Inquiry

Request To Call Back

MSMF5AZL1V2M Panasonic A6 50W Motor + BRK , Torque Nm -0.16, RPM - 3000

Name: MSMF5AZL1V2M Panasonic A6 50W Motor + BRK , Torque Nm -0.16, RPM - 3000
Brand: Corbital Enterprise
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MSMF5AZL1V2M Panasonic A6 50W Motor + BRK , Torque Nm -0.16, RPM - 3000 Specification

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
0.53 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MSMF5AZL1V2M Panasonic A6 50W Motor + BRK , Torque Nm -0.16, RPM - 3000 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
24 Hours

About MSMF5AZL1V2M Panasonic A6 50W Motor + BRK , Torque Nm -0.16, RPM - 3000

The

Panasonic MSMF5AZL1V2M

is a 50 W low-inertia AC servo motor from the MINAS A6 series. The "V" in the part number indicates that this specific model includes a built-in electromagnetic holding brake, which distinguishes it from the standard "U" models.

Dimensions and Weight (Imperial)

The addition of the holding brake increases both the length and the weight compared to the non-brake version. These values are converted from the manufacturer's metric specifications.

Weight: 1.17 lbs (0.53 kg)
Length (Excluding Shaft): 3.72 inches (94.5 mm)
Total Length (Including Shaft): 4.90 inches (124.5 mm)
Width (Frame Size): 1.50 inches (38 mm sq.)
Height (Frame Size): 1.50 inches (38 mm sq.)

Key Specifications

Rated Output: 50 W
Rated Torque: 0.16 Nm
Rated Speed: 3000 RPM (Maximum 6000 RPM)
Input Voltage: 200 V (1-Phase/3-Phase)
Inertia Type: Low Inertia
Brake Status: With Holding Brake (Used to hold position when power is off)
Encoder: 23-bit Absolute/Incremental (8,388,608 pulses/rev)
Protection Class: IP65

Features

Holding Brake: The integrated brake is designed to prevent the load from falling or moving when the motor is de-energised, making it essential for vertical axes.
High Resolution: The 23-bit encoder allows for extreme positioning accuracy and smoother rotation at low speeds compared to older A5 or LIQI series.
Oil Seal: Includes a protective oil seal with a lip to prevent liquid and dust ingress into the motor housing.

The Panasonic MSMF5AZL1V2M serves as a high-speed, precision actuator for compact automated systems. Because it belongs to the MINAS A6 series, its functions are significantly more advanced than standard motors.

Primary Functions

Vertical Axis Safety (Holding Brake): The core function of this "V" model is its electromagnetic brake. It automatically locks the shaft when power is lost, preventing heavy tools or mechanical parts from falling due to gravity.
Ultra-High Precision Positioning: With its 23-bit encoder, it can divide a single rotation into over 8 million steps. This allows it to perform functions like micro-milling, precise semiconductor placement, or medical lab automation with near-zero error.
Absolute Position Memory: It functions as an "Absolute" system. This means it remembers exactly where it is even after being turned off, so you don't have to "home" or reset the machine every morning.
High-Speed Cycling: Its Low Inertia design allows it to function in "pulse" moderapidly starting and stopping up to 6000 times a minute without overheating or losing its place.

Advanced Performance Functions

Vibration Suppression: It works with the driver to "feel" the machine's vibration and automatically creates a counter-frequency to cancel it out, ensuring silent and smooth operation.
Friction Compensation: It can automatically adjust its torque output to overcome the physical friction of the machine's bearings or slides, ensuring consistent speed even as the machine wears down over time.

Superior Performance for Industrial Machinery

The Panasonic A6 50W Motor delivers high efficiency and control for modern industrial applications. Its impressive 3000 RPM speed and 0.16 Nm torque ensure optimal operation for a variety of equipment, making it a reliable choice for businesses seeking improved productivity.

Quality Construction and Lightweight Design

Manufactured from durable aluminum, the motor offers both strength and reduced weight at only 0.53 kg. This blend of materials provides strong performance while maintaining easy installation and integration into existing machinery, ensuring minimal maintenance.

Comprehensive Warranty and Reliable Support

Every Panasonic A6 50W Motor is backed by a 1-year warranty, safeguarding your investment and offering confidence in long-term performance. With supply from trusted traders and wholesalers, you can expect consistent product support and prompt service.

FAQ's of MSMF5AZL1V2M Panasonic A6 50W Motor + BRK , Torque Nm -0.16, RPM - 3000:

Q: How is the Panasonic A6 50W Motor typically used in industrial machinery?

A: This motor is mainly utilized to drive components requiring precise speed and torque control within industrial equipment, supporting automation and mechanical operations for consistent performance.

Q: What are the benefits of the Panasonic MSMF5AZL1V2M's aluminum construction?

A: The aluminum body makes the motor both lightweight and durable, facilitating easy installation and reducing wear, which translates to longer service life and lower maintenance costs.

Q: When should I consider installing this three-phase motor in my equipment?

A: The Panasonic A6 50W Motor is ideal for integration when your machine requires high-speed operation (up to 3000 RPM) and moderate torque, and where reliability and compactness are important.

Q: Where can I purchase the Panasonic MSMF5AZL1V2M A6 50W Motor?

A: This model is available through industrial suppliers, traders, and wholesalers who specialize in equipment for automation and manufacturing sectors.

Q: What applications are best suited for this motor's specifications?

A: It is well-suited for industrial automation, conveyors, robotics, and other machinery demanding a combination of speed, manageable torque, and reliable performance.

Q: What process should I follow to ensure proper installation and operation?

A: Follow manufacturer guidelines for wiring and mounting in three-phase systems, and consult the manual to confirm voltage and load compatibility for optimal performance and warranty coverage.

Q: How does the 1-year warranty benefit me as a user?

A: The warranty provides protection against manufacturing defects and early-life failures, giving you security and support from the supplier should issues arise within the first year.
