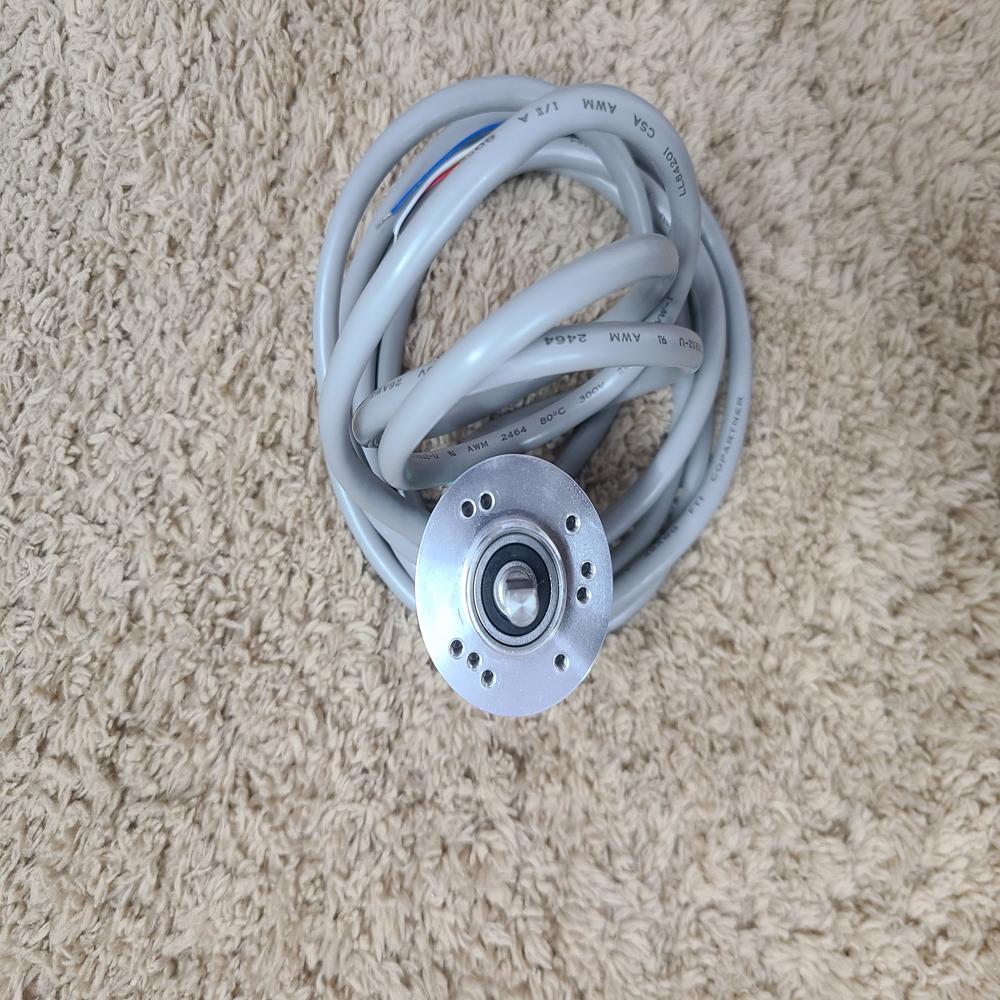

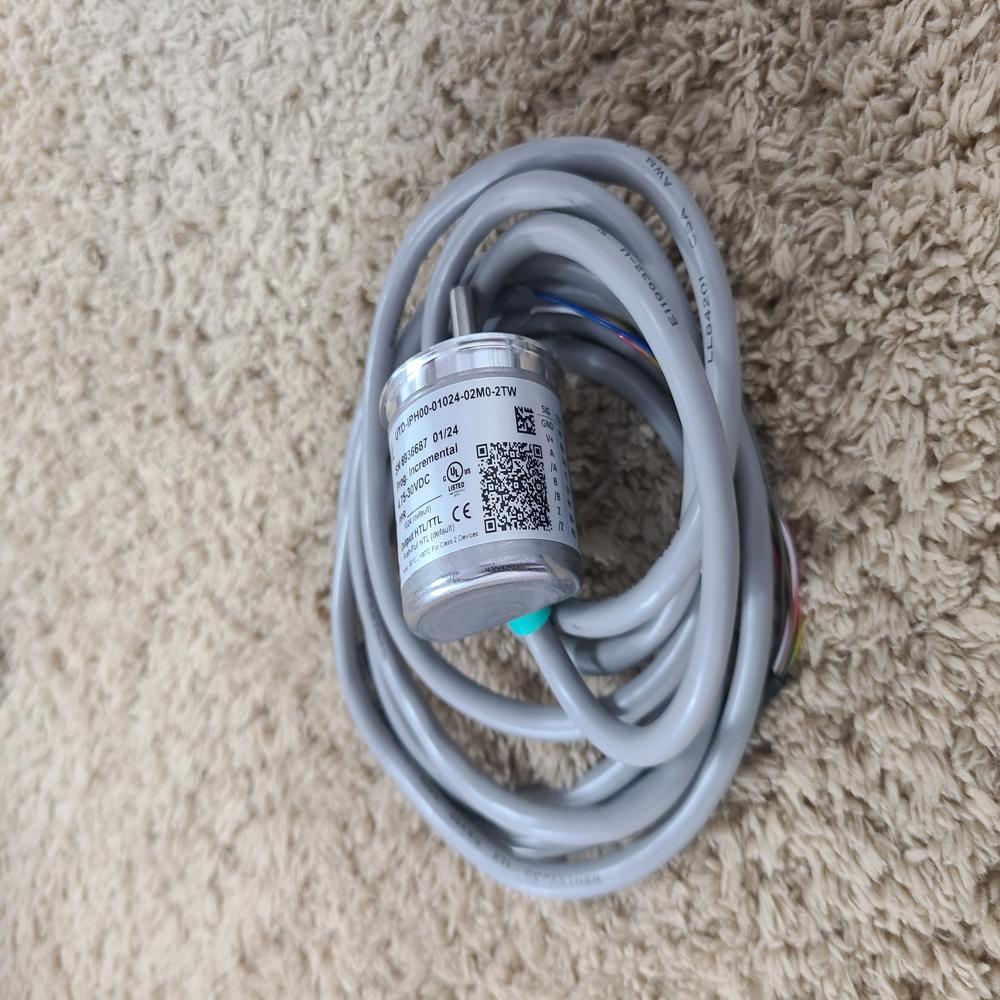

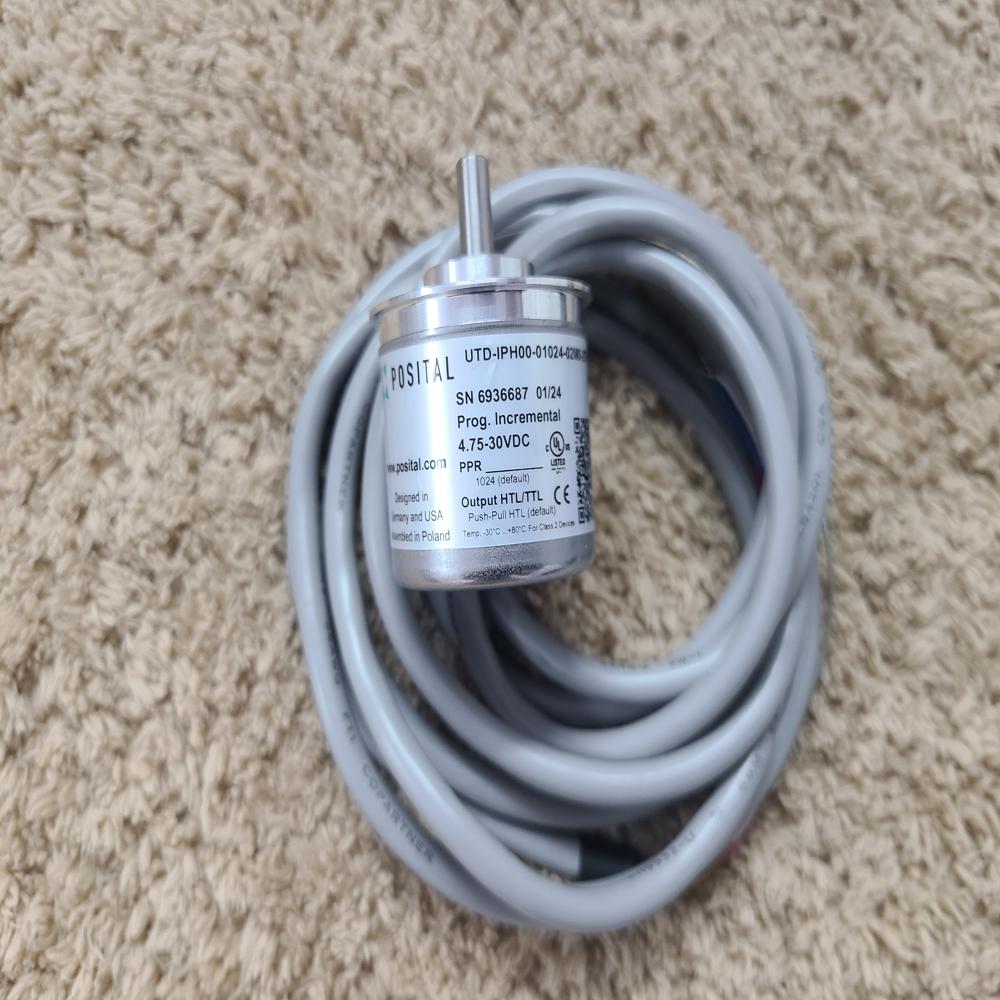

UTD-IPH00-01024-02M0-2TW 6mm Shaft - Posital Fraba Encoder

Name: UTD-IPH00-01024-02M0-2TW 6mm Shaft - Posital Fraba Encoder
Brand: Corbital Enterprise
Price: 5500.0 INR
Availability: InStock

Price 5500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

UTD-IPH00-01024-02M0-2TW 6mm Shaft - Posital Fraba Encoder Specification

Usage
Industrial Machinerry

IP Rating
64

Product Type
Encoder

Application
Industrial Machinerry

Function
Motion Tracking

Color
Zinc-plated steel

Weight
480 Grams (g)

Warranty
1 Year

Usage & Applications
Industrial Machinerry

Material
Cathodic Corrosion Protected Steel

UTD-IPH00-01024-02M0-2TW 6mm Shaft - Posital Fraba Encoder Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About UTD-IPH00-01024-02M0-2TW 6mm Shaft - Posital Fraba Encoder

The Posital Fraba UTD-IPH00-01024-02M0-2TW is a programmable incremental rotary encoder from the IXARC series, featuring a 6mm solid shaft. It is designed for precise position sensing in industrial automation applications like robotics and machinery. [1, 2, 3, 4, 5]

Core Specifications

Resolution: 1024 Pulses Per Revolution (PPR).
Shaft Details: 6mm diameter solid shaft with a single flat; 15mm length.
Output Signal: Programmable interface supporting Push-Pull (HTL) or RS422 (TTL).
Supply Voltage: 4.75 to 30 VDC.
Protection Rating: IP64/IP65 ingress protection.

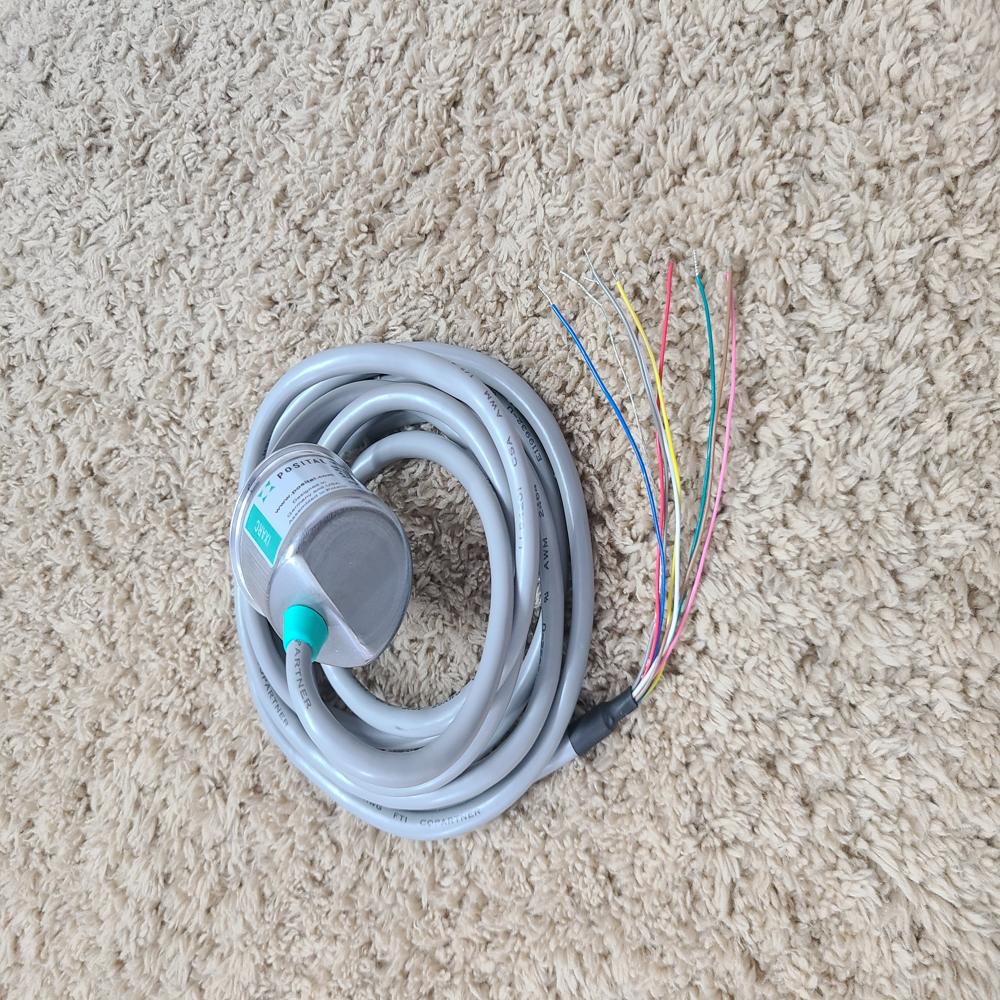

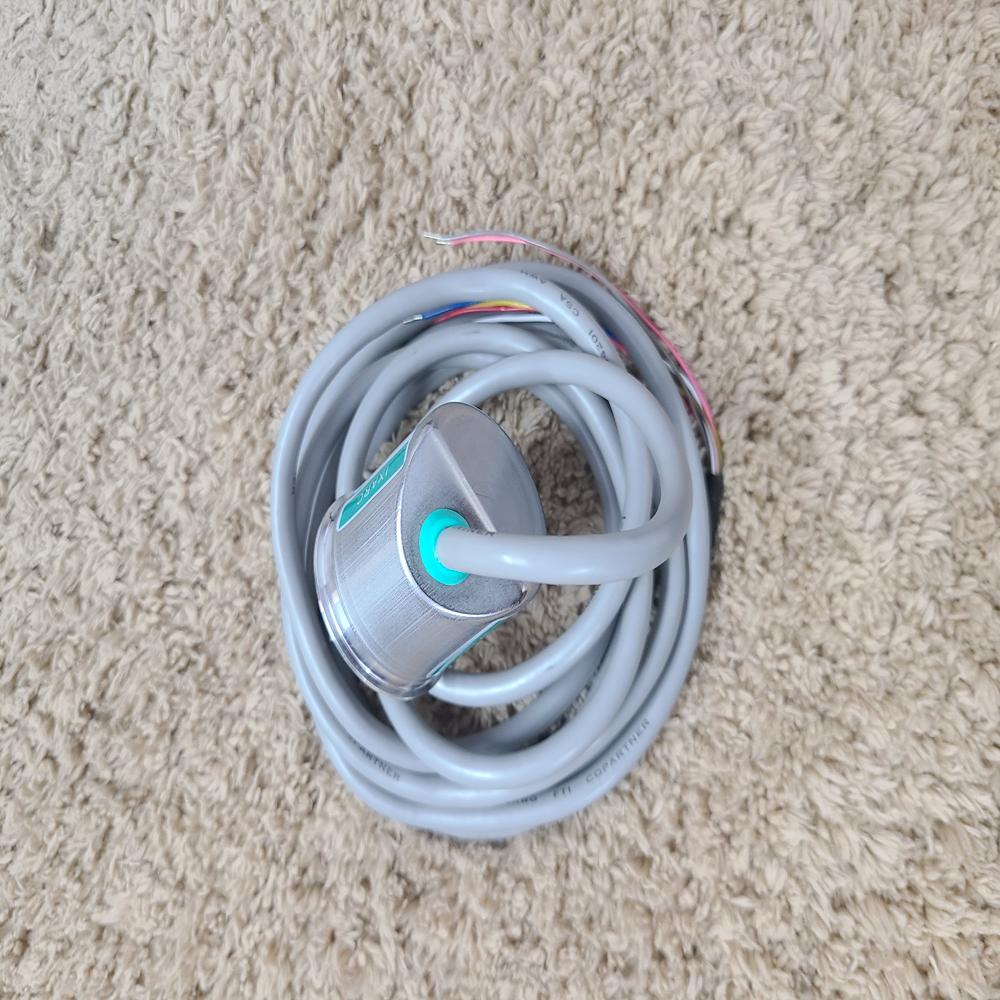

Connection: 2-meter radial cable.
Flange: 40mm diameter clamp flange.

Key Operational Functions

Motion Tracking: It generates a specific number of pulses (default: 1024 PPR) per full rotation. These pulses allow a connected controller to calculate distance, angle, and position relative to a starting point.
Speed Measurement: By measuring the frequency of the pulses over time, the system can accurately determine the rotational velocity of the machinery.
Direction Sensing: It uses a quadrature signal (Channels A and B offset by 90). By identifying which signal leads the other, the controller determines if the shaft is turning clockwise or counter-clockwise.
Reference Point (Z-Channel): It emits one "Index" pulse per revolution, which acts as a precise mechanical zero point for system calibration. [1, 2, 3, 4, 5, 6, 7]

Special Features

Programmable Parameters: Unlike standard fixed encoders, this models Pulses Per Revolution (PPR) can be reconfigured (from 1 to 16,384) using the UBIFAST Configuration Tool.
Flexible Output: The output driver is programmable to support either Push-Pull (HTL) for long cable runs or RS422 (TTL) for high-speed compatibility with most PLCs.
Magnetic Sensing Technology: It uses TMR (tunnel magneto-resistance) sensors, making it highly robust against physical shock, vibration, and dust compared to traditional optical encoders. [1, 2, 3, 4, 5]
