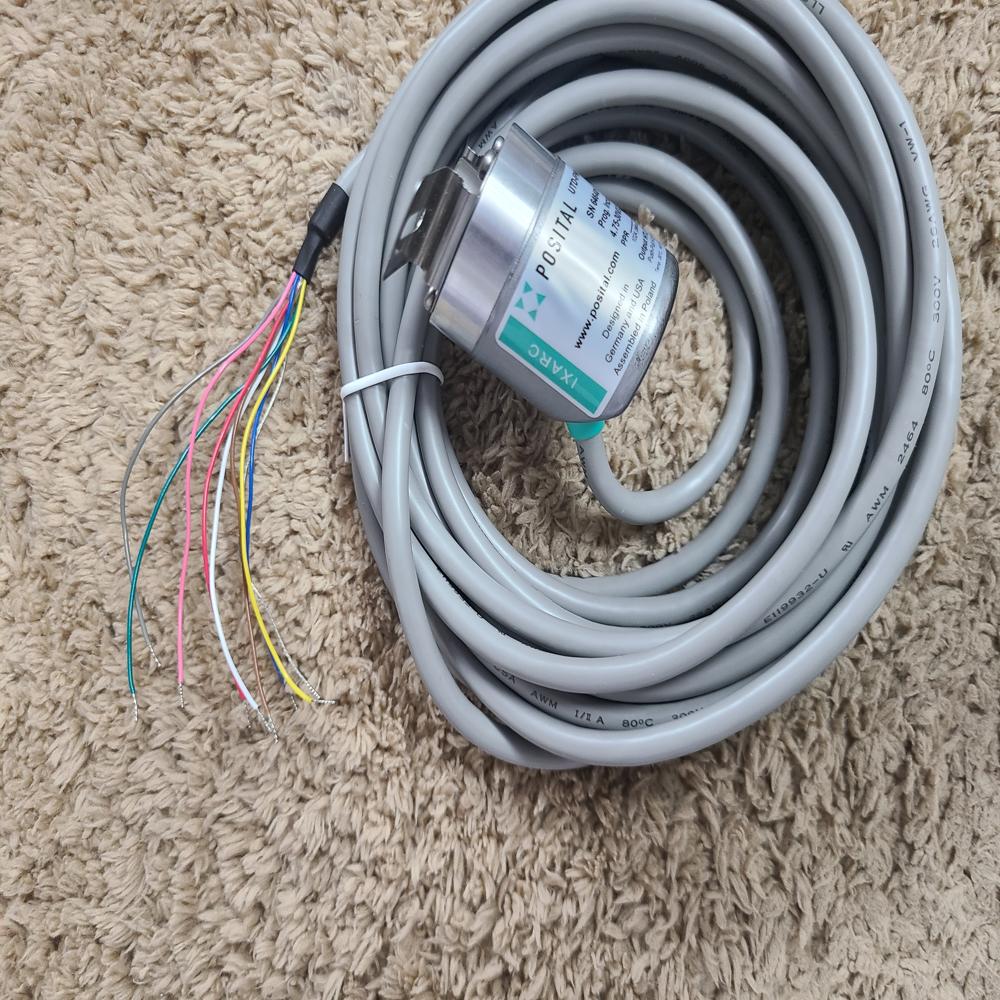

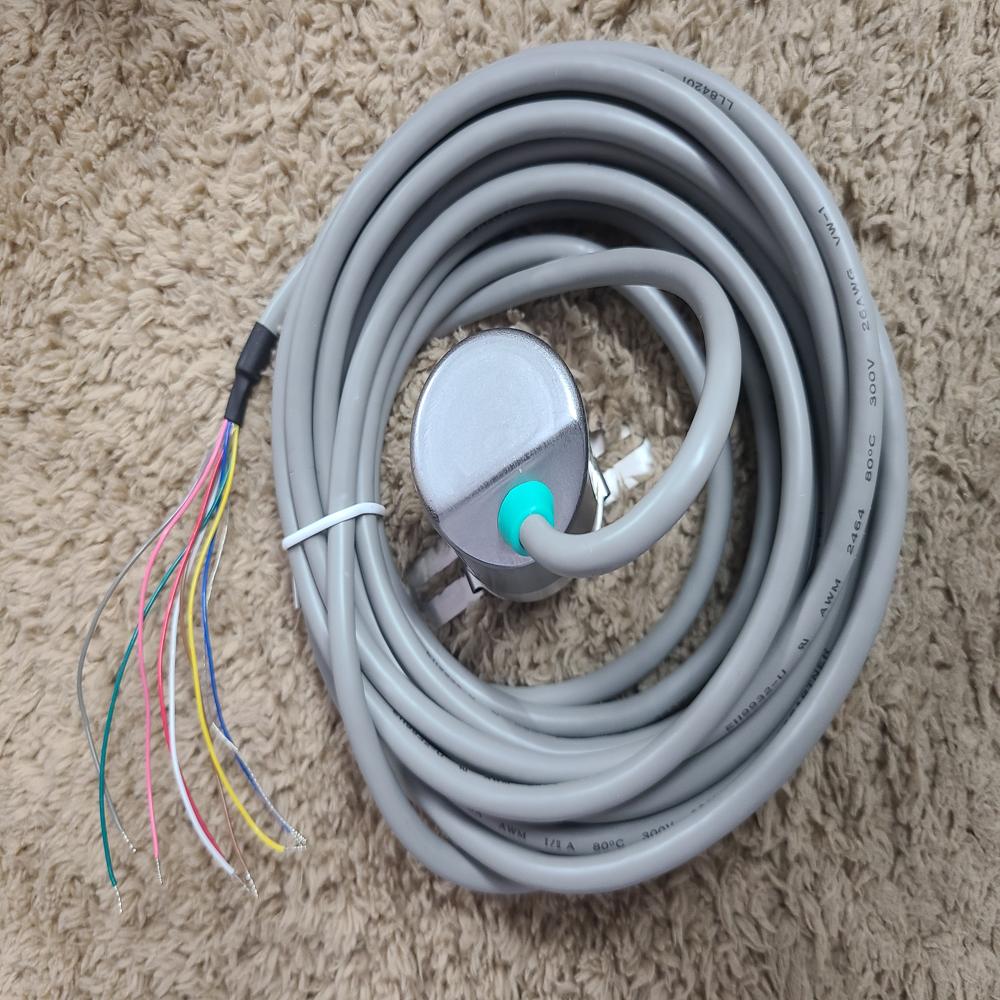

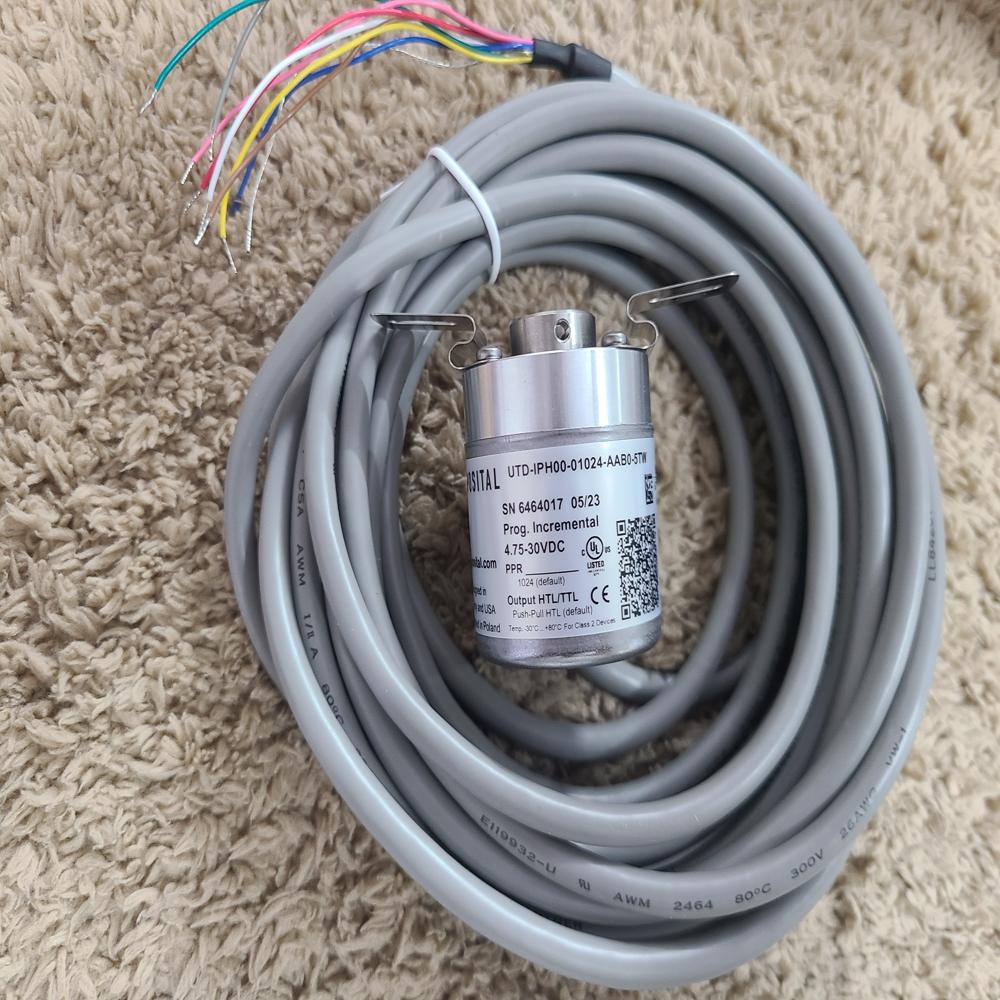

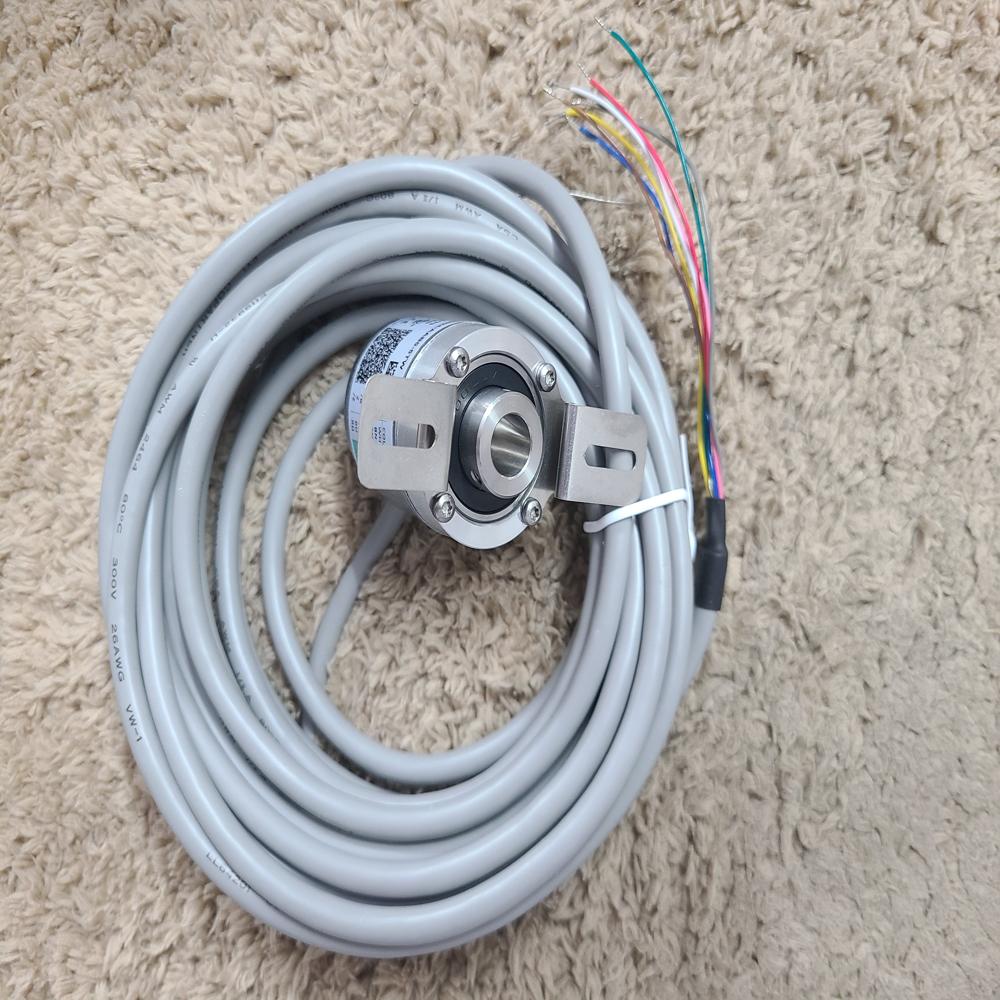

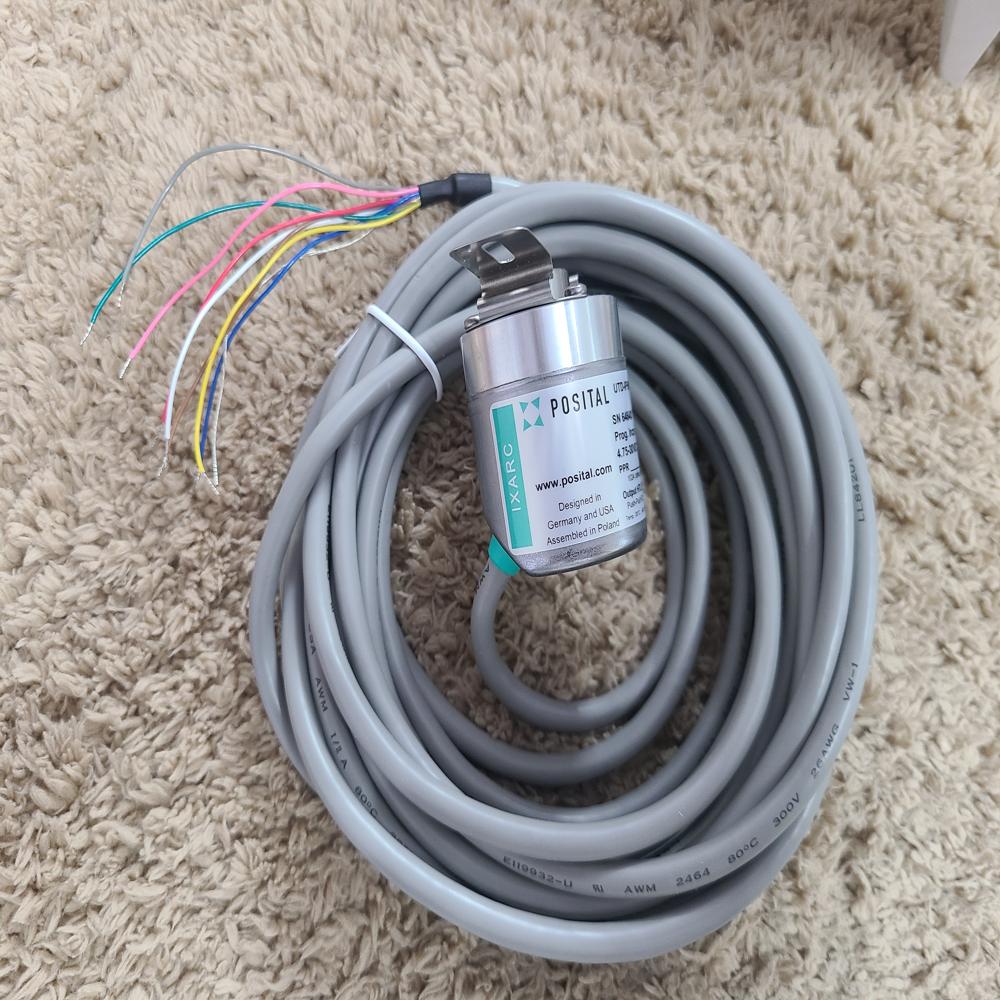

UTD-IPH00-01024-AAB0-5TW 10mm Hollow Shaft - Posital Fraba Encoder

Name: UTD-IPH00-01024-AAB0-5TW 10mm Hollow Shaft - Posital Fraba Encoder
Brand: Corbital Enterprise
Price: 6900.0 INR
Availability: InStock

Price 6900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

UTD-IPH00-01024-AAB0-5TW 10mm Hollow Shaft - Posital Fraba Encoder Specification

Usage
Industrial Machinerry

IP Rating
65

Product Type
Encoder

Application
Industrial Machinerry

Function
Speed Determination

Color
Zinc-plated steel

Weight
805 Grams (g)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Material
Cathodic Corrosion Protected Steel

UTD-IPH00-01024-AAB0-5TW 10mm Hollow Shaft - Posital Fraba Encoder Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About UTD-IPH00-01024-AAB0-5TW 10mm Hollow Shaft - Posital Fraba Encoder

Interface
Interface	Programmable Incremental
Programming Functions	PPR (1-16384), Output, Counting Direction
Configuration Tool	UBIFAST Configuration Tool (Version 1.6.10)

Outputs
Output Driver	Push-Pull (HTL)
Output Voltage High Level Push-Pull (HTL)	> 4 V @ 4.75-9 V Supply Voltage > V-3 V @ 9-30 V Supply Voltage
Output Voltage Low Level Push-Pull (HTL)	< 0.5 V
Output Voltage High Level RS422 (TTL)	> 4 V
Output Voltage Low Level RS422 (TTL)	< 0.5 V
Maximum Frequency Response	1 MHz
Maximum Switching Current	50 mA per Channel

Electrical Data
Supply Voltage	4.75 30 VDC
Current Consumption	60 mA @ 5V DC, 30 mA @ 10V DC, 25 mA @ 24V DC
Power Consumption	1.0 W
Start-Up Time	< 1 s
Min. Load Resistance	120
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
EMC: Emitted Interference	DIN EN 61000-6-4
EMC: Noise Immunity	DIN EN 61000-6-2
MTTF	280 years @ 40 C

Sensor
Technology	Magnetic
Accuracy (INL)	0.0878 ( 12 bit)
Duty Cycle	180 12 (Speed > 100RPM)
Phase Angle	90 6 (Speed > 100RPM)

Environmental Specifications
Protection Class (Shaft)	IP65
Protection Class (Housing)	IP65
Operating Temperature	-30 C fixed (-22 F), -5 C flexible (+23 F) - +80 C (+176 F)
Humidity	98% RH, no condensation

Mechanical Data

Mechanical Data
Housing Material	Steel
Housing Coating	Zinc Plated
Flange Type	Blind Hollow, 36 mm (A)
Flange Material	Aluminum
Shaft Type	Blind Hollow, Depth = 18 mm
Shaft Diameter	10 mm (0.39")
Shaft Material	Stainless Steel V2A (1.4305, 303)
Friction Torque	3 Ncm @ 20 C (4.2 oz-in @ 68 F)
Max. Permissible Mechanical Speed	6000 1/min
Shock Resistance	100 g (half sine 6 ms, EN 60068-2-27)
Permanent Shock Resistance	10 g (half sine 16 ms, EN 60068-2-29)
Vibration Resistance	10 g (10 Hz 1000 Hz, EN 60068-2-6)
Length	50,2 mm (1.98")
Weight	805 g (1.77 lb)
Maximum Axial / Radial Misalignment	Static 0.3 mm / 0.5 mm; Dynamic 0.1 mm / 0.2 mm
