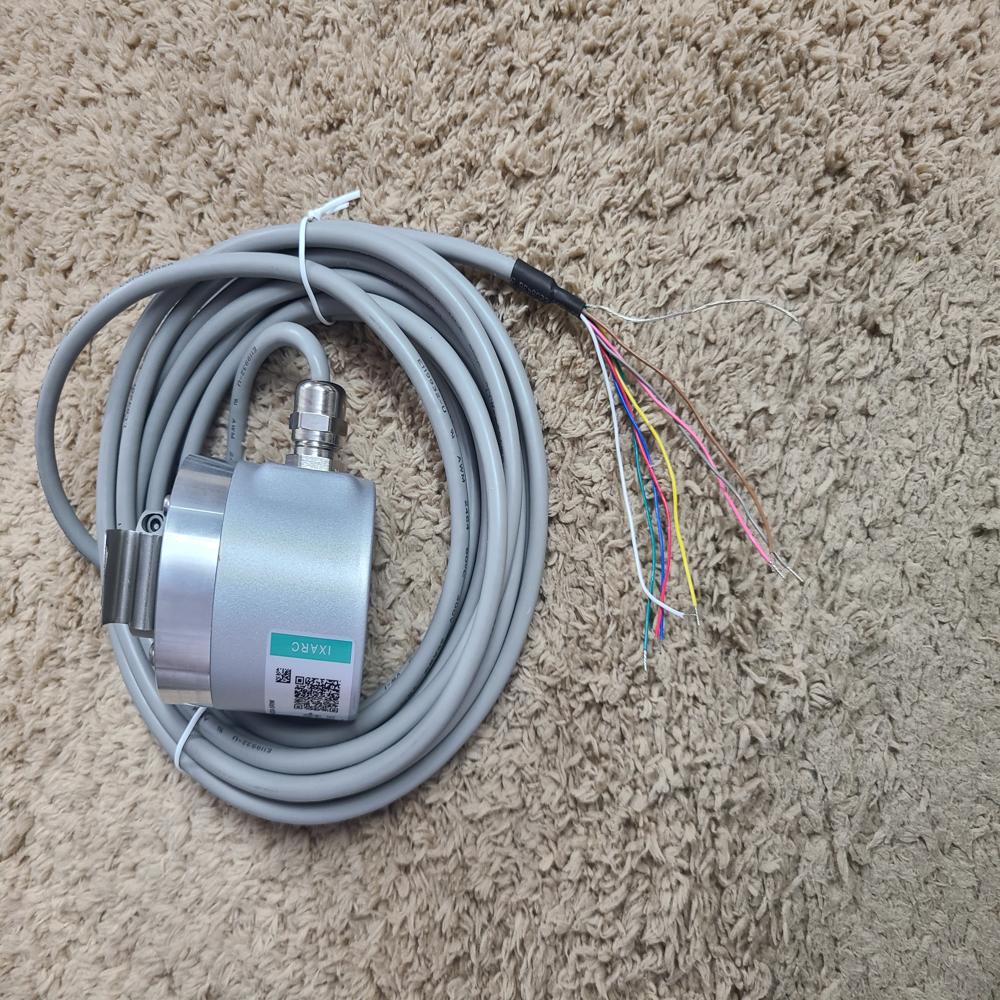

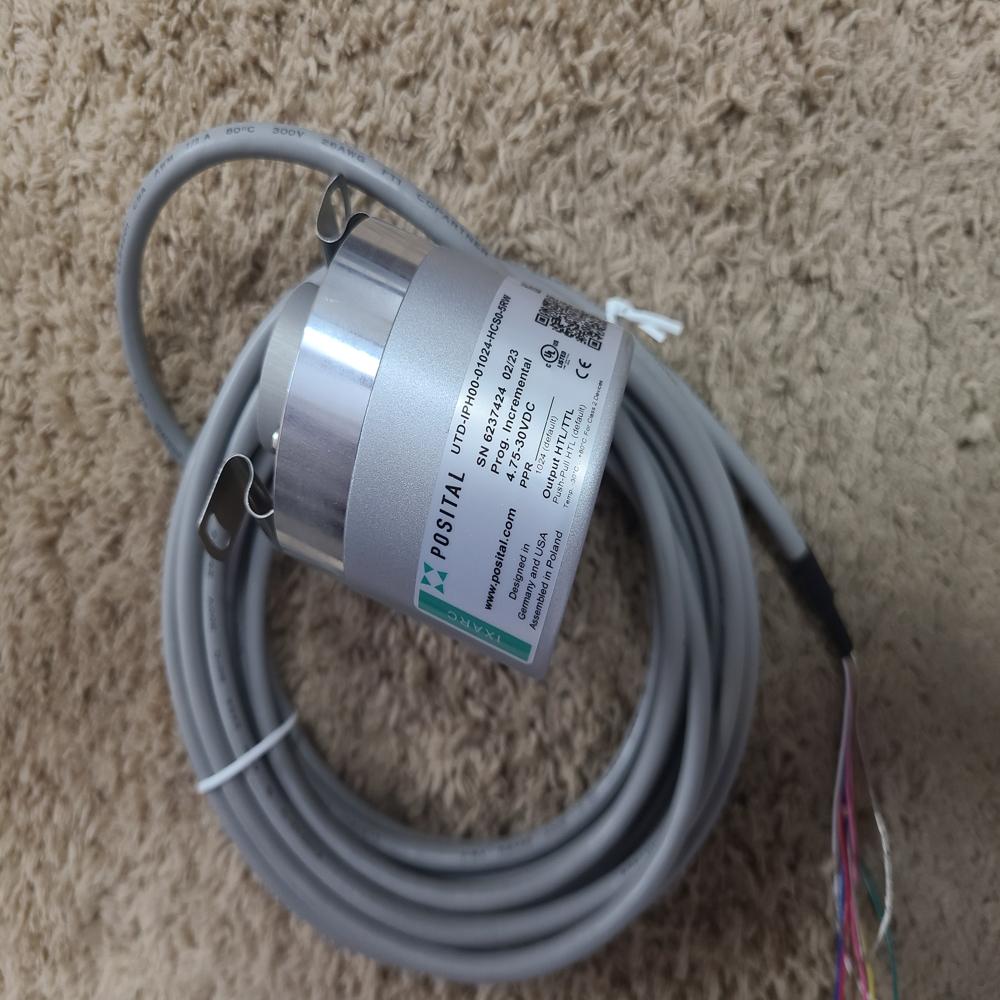

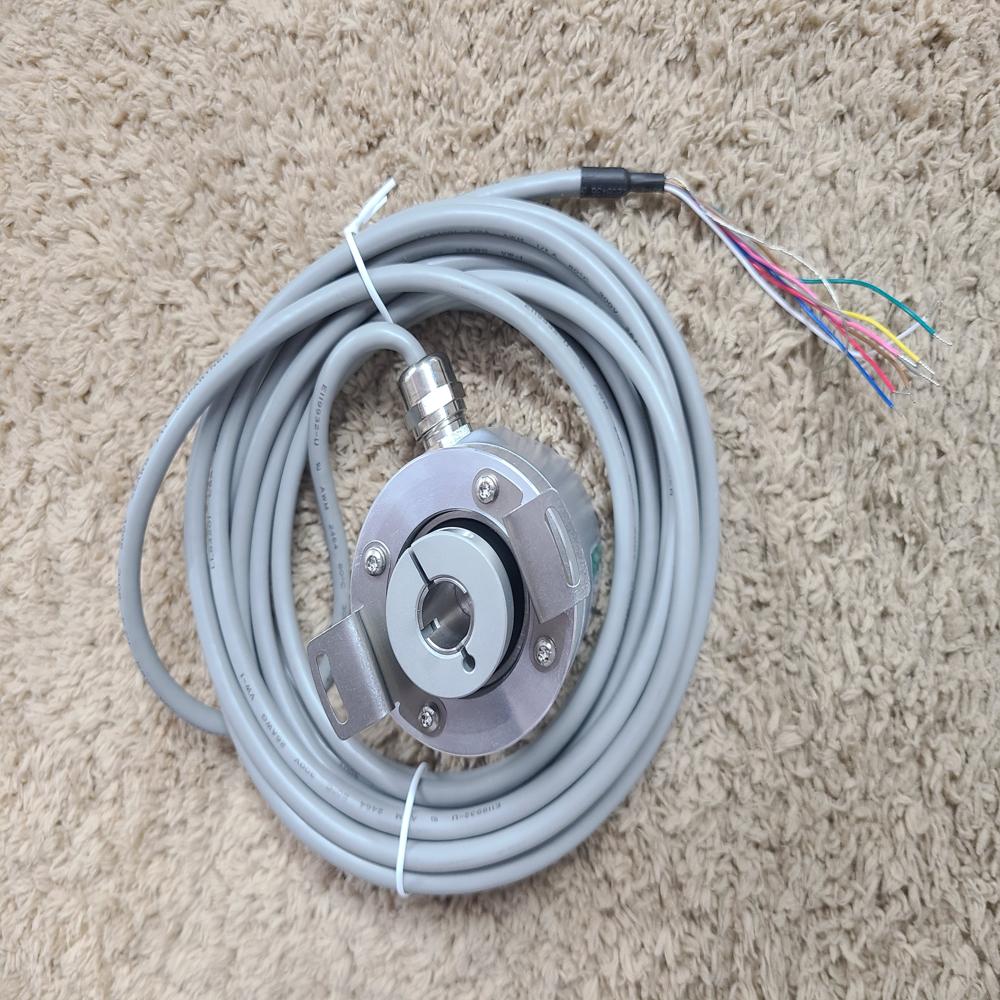

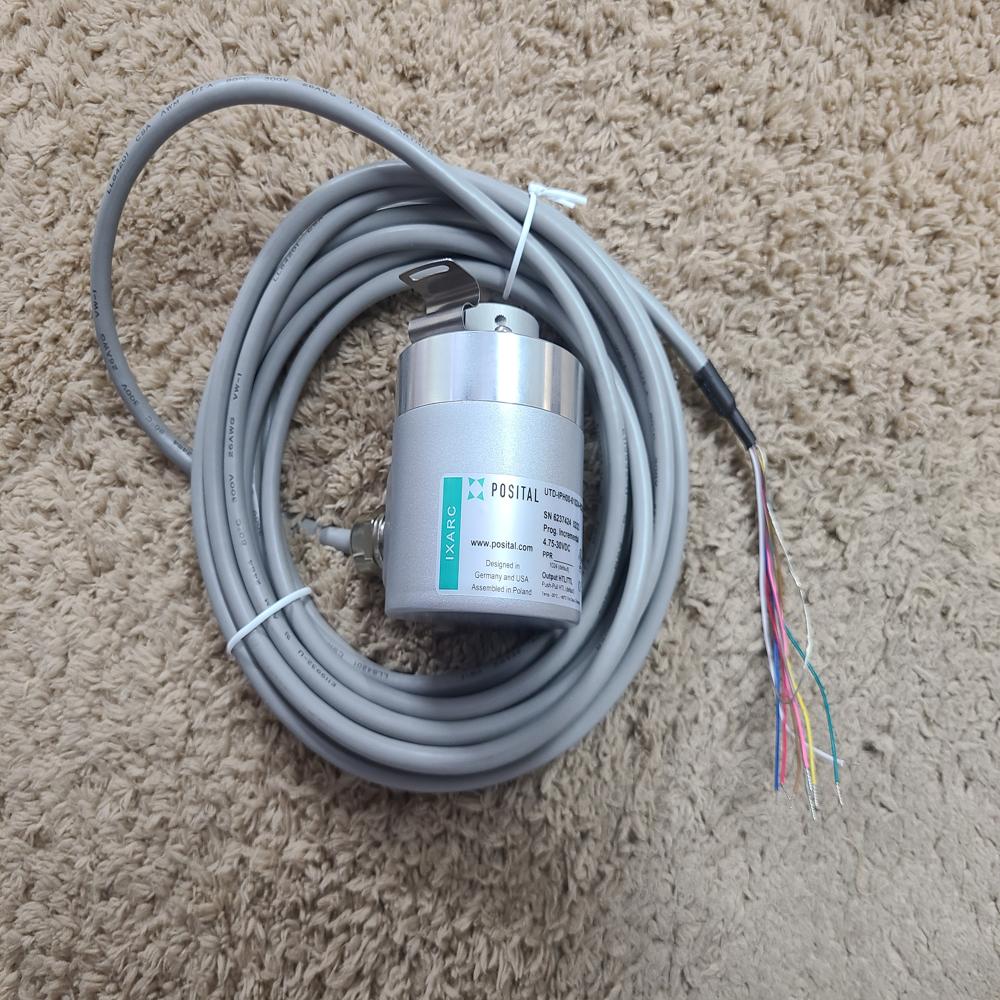

Send InquiryUTD-IPH00-01024-HCS0-5RW 12mm Hollow - Posital Fraba Encoder
Price 7200.0 INR/ Number
MOQ : 1 Number
UTD-IPH00-01024-HCS0-5RW 12mm Hollow - Posital Fraba Encoder Specification
- IP Rating
- 65
- Usage
- Industrial Machinerry
- Product Type
- Encoder
- Application
- Industrial Machinerry
- Function
- Speed Determination
- Color
- Zinc-plated steel
- Weight
- 920 Grams (g)
- Warranty
- 1 Year
- Usage & Applications
- Industrial Machinerry
- Material
- Cathodic Corrosion Protected Steel
UTD-IPH00-01024-HCS0-5RW 12mm Hollow - Posital Fraba Encoder Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 24 Hours
About UTD-IPH00-01024-HCS0-5RW 12mm Hollow - Posital Fraba Encoder
| Interface |
|
| Interface | Programmable Incremental |
| Programming Functions | PPR (1-16384), Output, Counting Direction |
| Configuration Tool | UBIFAST Configuration Tool (Version 1.6.10) |
| Outputs |
|
| Output Driver | Push-Pull (HTL) |
| Output Voltage High Level Push-Pull (HTL) | > 4 V @ 4.75-9 V Supply Voltage > V-3 V @ 9-30 V Supply Voltage |
| Output Voltage Low Level Push-Pull (HTL) | < 0.5 V |
| Output Voltage High Level RS422 (TTL) | > 4 V |
| Output Voltage Low Level RS422 (TTL) | < 0.5 V |
| Maximum Frequency Response | 1 MHz |
| Maximum Switching Current | 50 mA per Channel |
| Electrical Data |
|
| Supply Voltage | 4.75 30 VDC |
| Current Consumption | 60 mA @ 5V DC, 30 mA @ 10V DC, 25 mA @ 24V DC |
| Power Consumption | 1.0 W |
| Start-Up Time | < 1 s |
| Min. Load Resistance | 120 |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| EMC: Emitted Interference | DIN EN 61000-6-4 |
| EMC: Noise Immunity | DIN EN 61000-6-2 |
| MTTF | 280 years @ 40 C |
| Sensor |
|
| Technology | Magnetic |
| Accuracy (INL) | 0.0878 ( 12 bit) |
| Duty Cycle | 180 12 (Speed > 100RPM) |
| Phase Angle | 90 6 (Speed > 100RPM) |
| Environmental Specifications |
|
| Protection Class (Shaft) | IP65 |
| Protection Class (Housing) | IP66/IP67 |
| Operating Temperature | -30 C fixed (-22 F), -5 C flexible (+23 F) - +80 C (+176 F) |
| Humidity | 98% RH, no condensation |
| Mechanical Data |
|
| Mechanical Data |
|
| Housing Material | Steel |
| Housing Coating | Wet coating (RAL 9006 White Aluminium) + Cathodic corrosion protection (>720 h salt spay resistance) |
| Flange Type | Blind Hollow, 58 mm (H) |
| Flange Material | Aluminum |
| Shaft Type | Blind Hollow, Depth = 28 mm |
| Shaft Diameter | 12 mm (0.47") |
| Shaft Material | Stainless Steel V2A (1.4305, 303) |
| Rotor Inertia | 30 gcm [ 0.17 oz-in] |
| Friction Torque | 3 Ncm @ 20 C (4.2 oz-in @ 68 F) |
| Max. Permissible Mechanical Speed | 12000 1/min |
| Shock Resistance | 100 g (half sine 6 ms, EN 60068-2-27) |
| Permanent Shock Resistance | 10 g (half sine 16 ms, EN 60068-2-29) |
| Vibration Resistance | 10 g (10 Hz 1000 Hz, EN 60068-2-6) |
| Length | 71,2 mm (2.80") |
| Weight | 920 g (2.03 lb) |
| Maximum Axial / Radial Misalignment | Static 0.3 mm / 0.5 mm; Dynamic 0.1 mm / 0.2 mm |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Posital Fraba Encoder Category
UTD-IPH00-01024-HES0-5RW Posital Fraba Encoder
Price 5500 INR / Piece
Minimum Order Quantity : 1 Piece
Function : Rotary position feedback
Application : Motion control systems
Product Type : Rotary encoder
Usage : Industrial
UTD-IPH00-01024-02M0-2TW 6mm Shaft - Posital Fraba Encoder
Price 5500.0 INR / Number
Minimum Order Quantity : 1 Number
Function : Motion Tracking
Application : Industrial Machinerry
Product Type : Encoder
Usage : Industrial Machinerry
UTD-IPT00-01024-N060-5TW 6mm Synchro - Posital Fraba Encoder
Price 6800.0 INR / Number
Minimum Order Quantity : 1 Number
Function : Speed Determination
Application : Industrial Machinerry
Product Type : Encoder
Usage : Industrial Machinerry

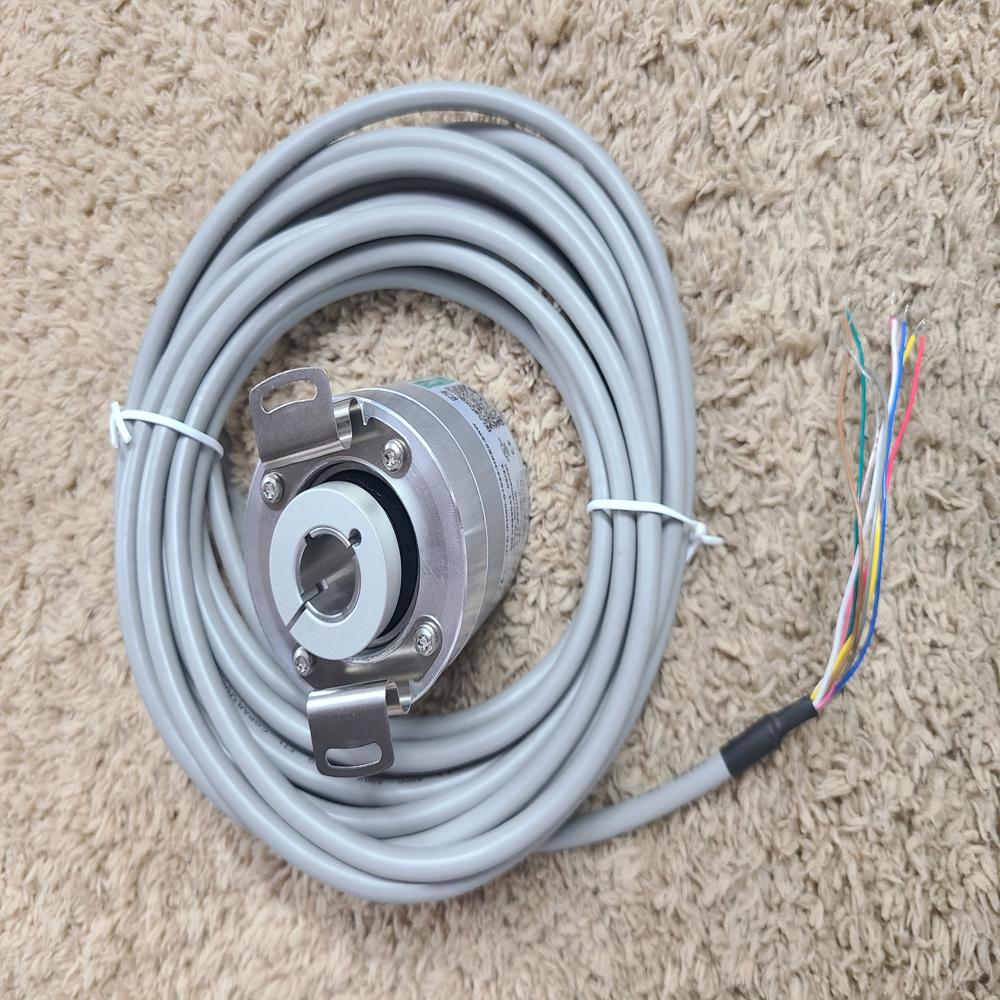

UTD-IPH00-01024-HES0-5RW 14mm Hollow - Posital Fraba Encoder
