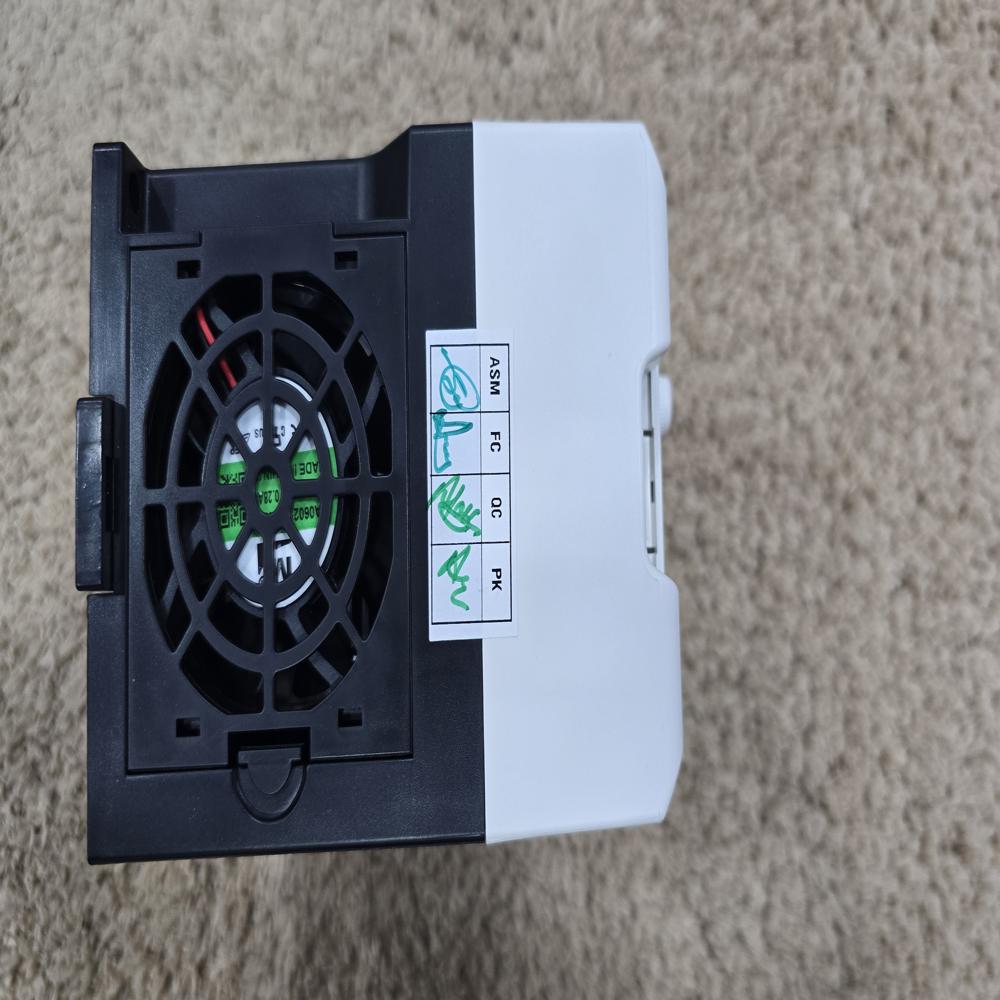

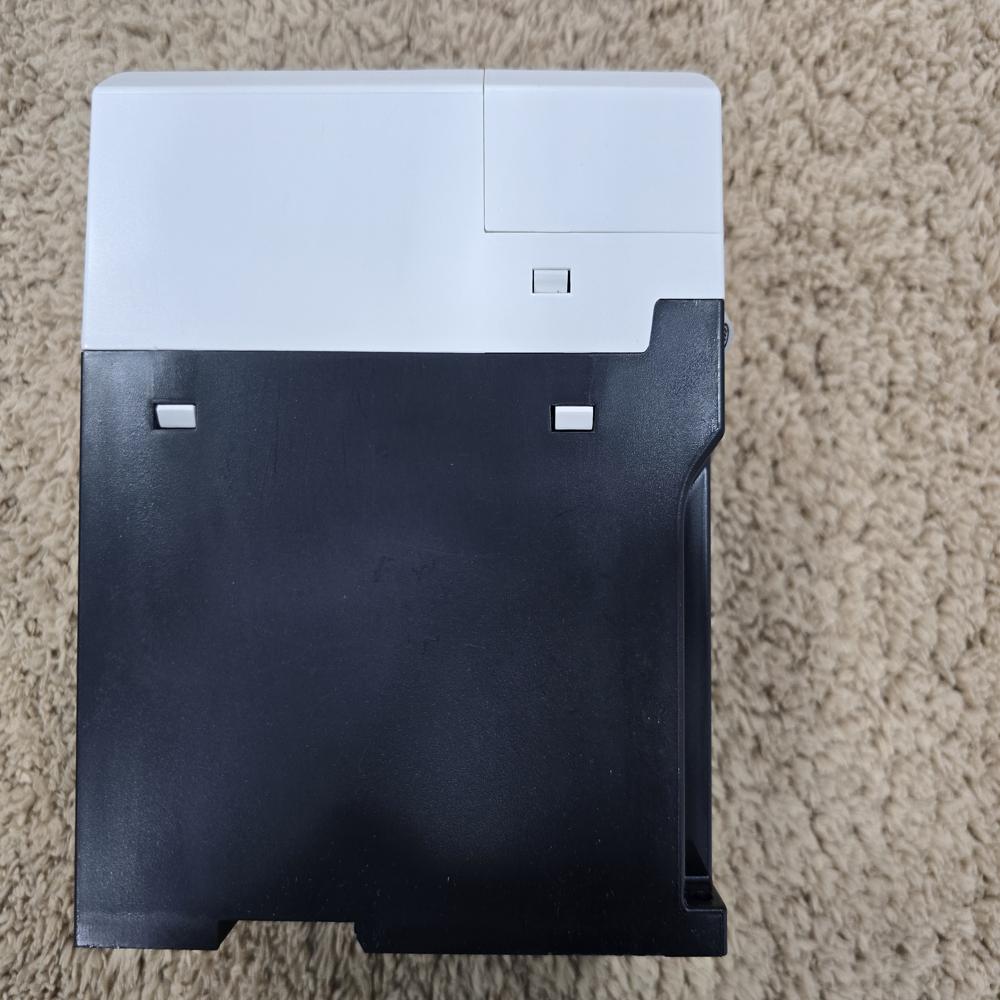

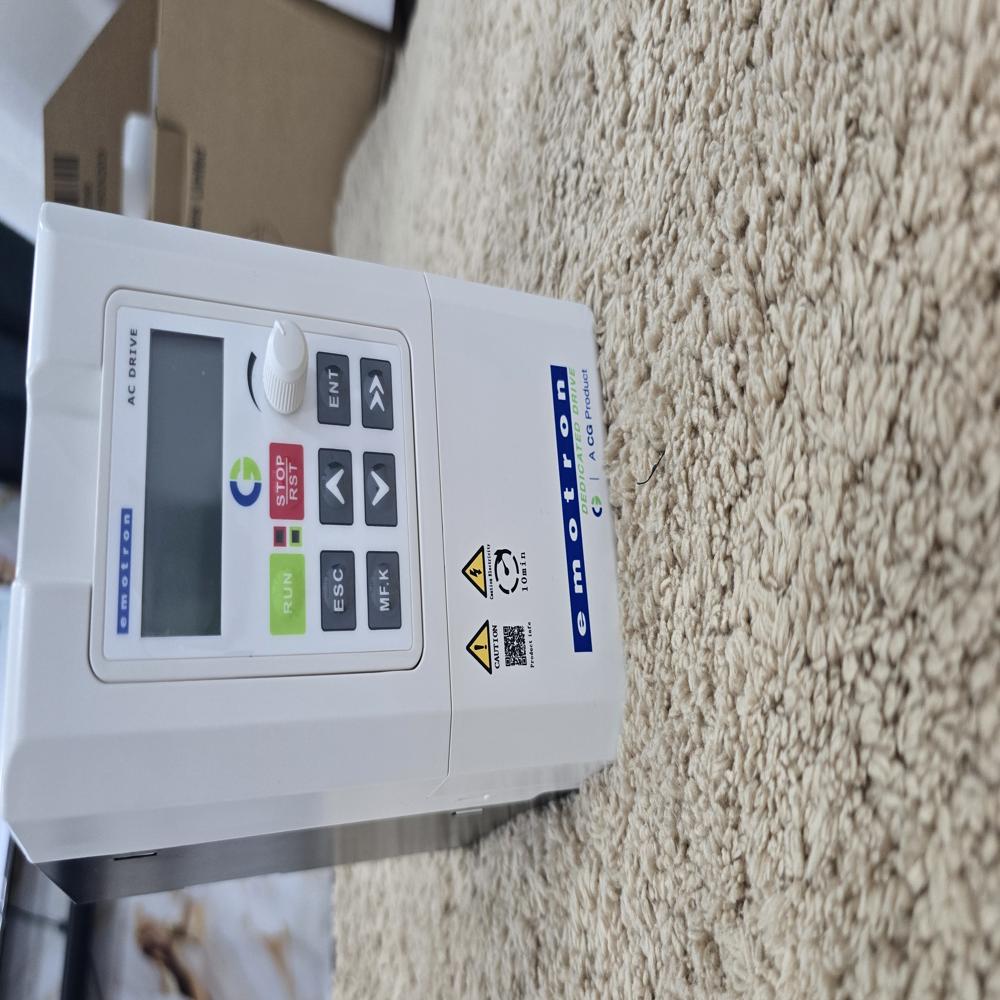

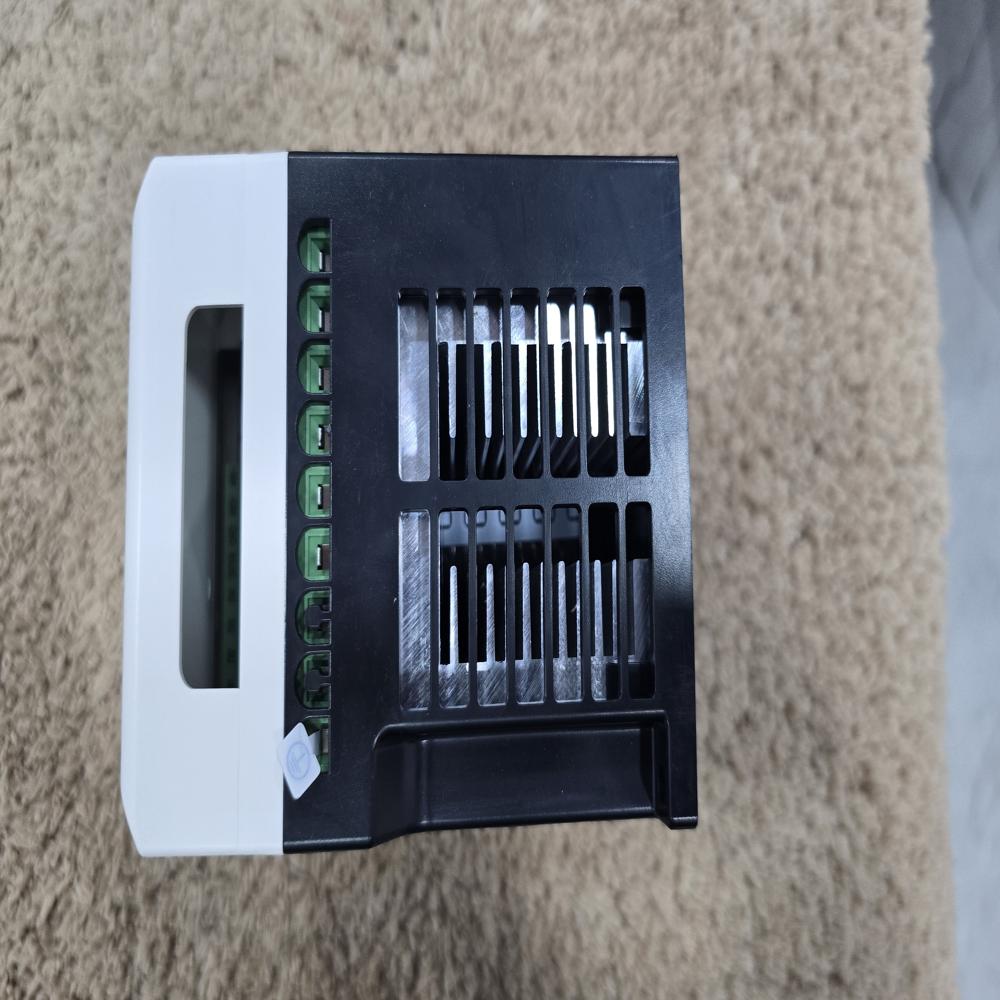

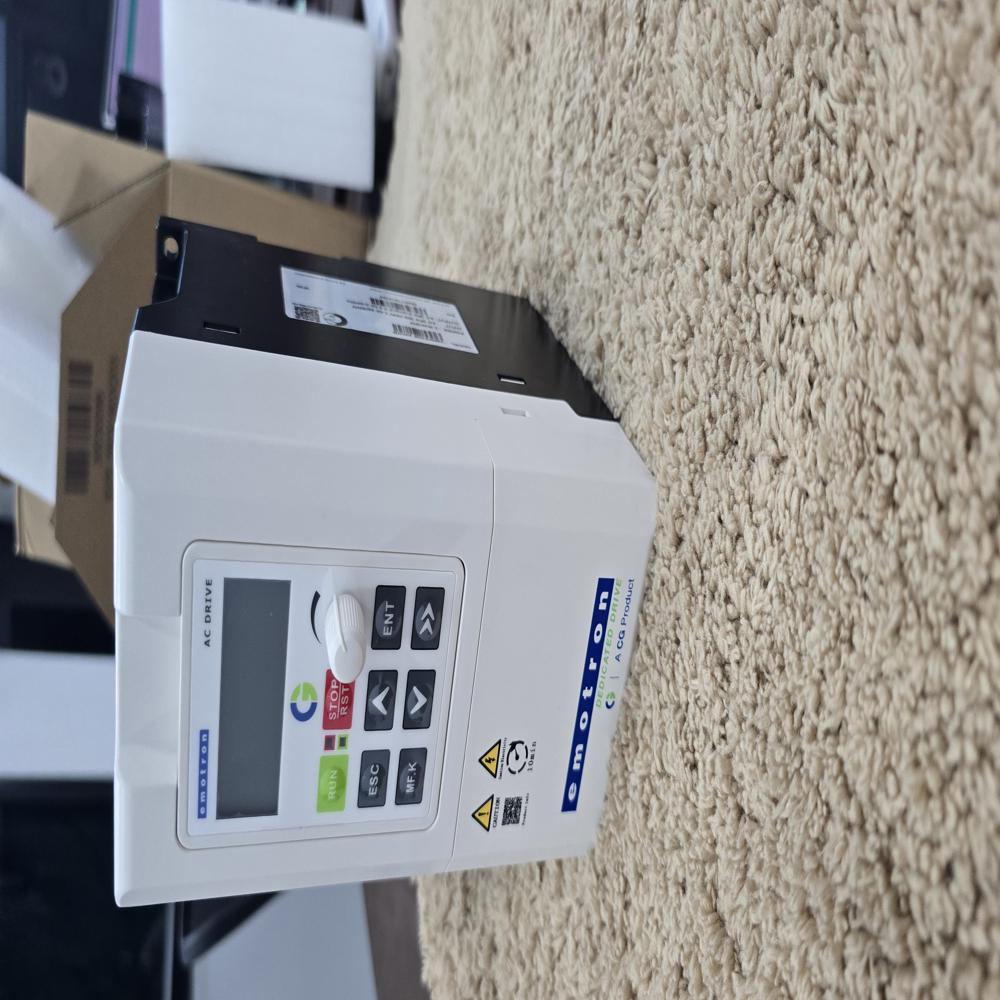

VSS23-7P5-20CNB - Crompton VFD - VSS23 - 1.5 kW / 2HP 1-Phase 220V

Name: VSS23-7P5-20CNB - Crompton VFD - VSS23 - 1.5 kW / 2HP 1-Phase 220V
Brand: Corbital Enterprise
Price: 9200.0 INR
Availability: InStock

Price 9200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSS23-7P5-20CNB - Crompton VFD - VSS23 - 1.5 kW / 2HP 1-Phase 220V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
1.45 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSS23-7P5-20CNB - Crompton VFD - VSS23 - 1.5 kW / 2HP 1-Phase 220V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSS23-7P5-20CNB - Crompton VFD - VSS23 - 1.5 kW / 2HP 1-Phase 220V

The Crompton Greaves Emotron VSS23-7P5-20CNB is a general-purpose, line-powered 2 HP (1.5 kW) Variable Frequency Drive (VFD). Operating on the VSS2 frame size, it accepts standard single-phase 220V grid electricity and converts it to a 3-phase AC output to safely drive induction motors (IM) and permanent magnet synchronous motors (PMSM). [1, 2, 3]

Physical Dimensions (Inches & Pounds)

The official engineering manual physical specifications for this 2 HP model converted to imperial units are: [1]

Weight: 3.20 lbs (1.45 kg)
Height: 6.73 inches (171 mm)
Width: 3.66 inches (93 mm)
Depth (Thickness): 5.12 inches (130 mm) [1, 2, 3, 4]

Mounting Dimensions

For drilling layout or backplate integration within electrical cabinets, use these exact metric spacings:

Mounting Height (H1): 6.30 inches (160 mm)
Mounting Width (W1): 3.23 inches (82 mm)
Installation Aperture (Screw Hole Diameter): 0.18 inches (4.5 mm) [1, 2]

Technical Specifications

The standard electrical limits and communication attributes engineered into this unit include:

Feature [1, 2, 3, 5]	Specification
Model Number	VSS23-7P5-20CNB / 20CEB
Motor Power Rating	1.5 kW / 2 HP
Input Supply Power	1-Phase 200V to 240V AC (20%), 50/60 Hz
Rated Input Current	15.7 Amps
Rated Output Current	7.5 Amps continuous
Overload Capacity	150% heavy-duty / 200% for 1 second
Protection Rating	IP20 (Requires clean, dust-free enclosure deployment)
Control Logic Interface	5 Digital Inputs (DI), 2 Analog Inputs (AI), 1 Relay Output
Brake Chopper	Integrated / Built-in
Communication Terminal	Built-in RS-485 Modbus protocol interface
