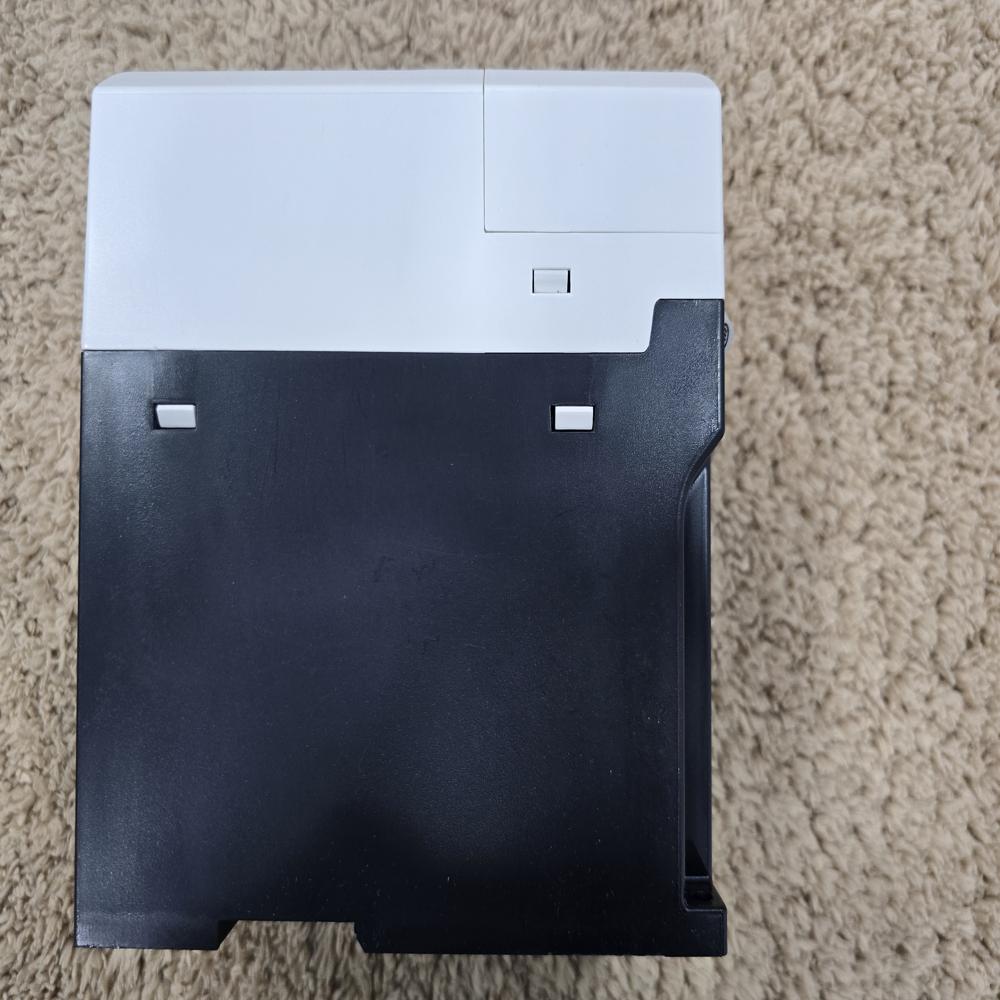

VFX48- 045-20 - Crompton VFD - 22kW / 30HP 3-Phase 380-480

Name: VFX48- 045-20 - Crompton VFD - 22kW / 30HP 3-Phase 380-480
Brand: Corbital Enterprise
Price: 49100.0 INR
Availability: InStock

Price 49100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VFX48- 045-20 - Crompton VFD - 22kW / 30HP 3-Phase 380-480 Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
17 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VFX48- 045-20 - Crompton VFD - 22kW / 30HP 3-Phase 380-480 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VFX48- 045-20 - Crompton VFD - 22kW / 30HP 3-Phase 380-480

The CG Emotron VFX48-045-20 is a highly powerful 45-Amp industrial Variable Frequency Drive (VFD). It marks the upper power limits of the C2 Frame Size in this product lineup. Because it is built into the identical physical housing as the smaller 025 and 030 models, it retains the exact same dimensional footprint and weight while managing a much higher energy payload. [1, 2]

Core Technical Specifications

Parameter [1, 2, 3, 4]	Specification Details
Model Number	VFX48-045-20
Input Voltage	3-Phase, 380V to 480V AC (10%), 50/60 Hz
Heavy-Duty Power Rating	18.5 kW / 25 HP
Normal-Duty Power Rating	22 kW / 30 HP
Rated Output Current	45 A (Nominal) \| 68 A Max for 60 seconds
Enclosure Rating	IP20 (Panel mount)
Frame Size	C2

Physical Dimensions and Weight (Inches & Pounds)

Weight: 37.5 lbs (17 kg)
Length (Height): 19.53 in (496 mm)
Width: 6.57 in (167 mm)
Depth: 10.51 in (267 mm) [1, 2]

Application & Thermal Considerations

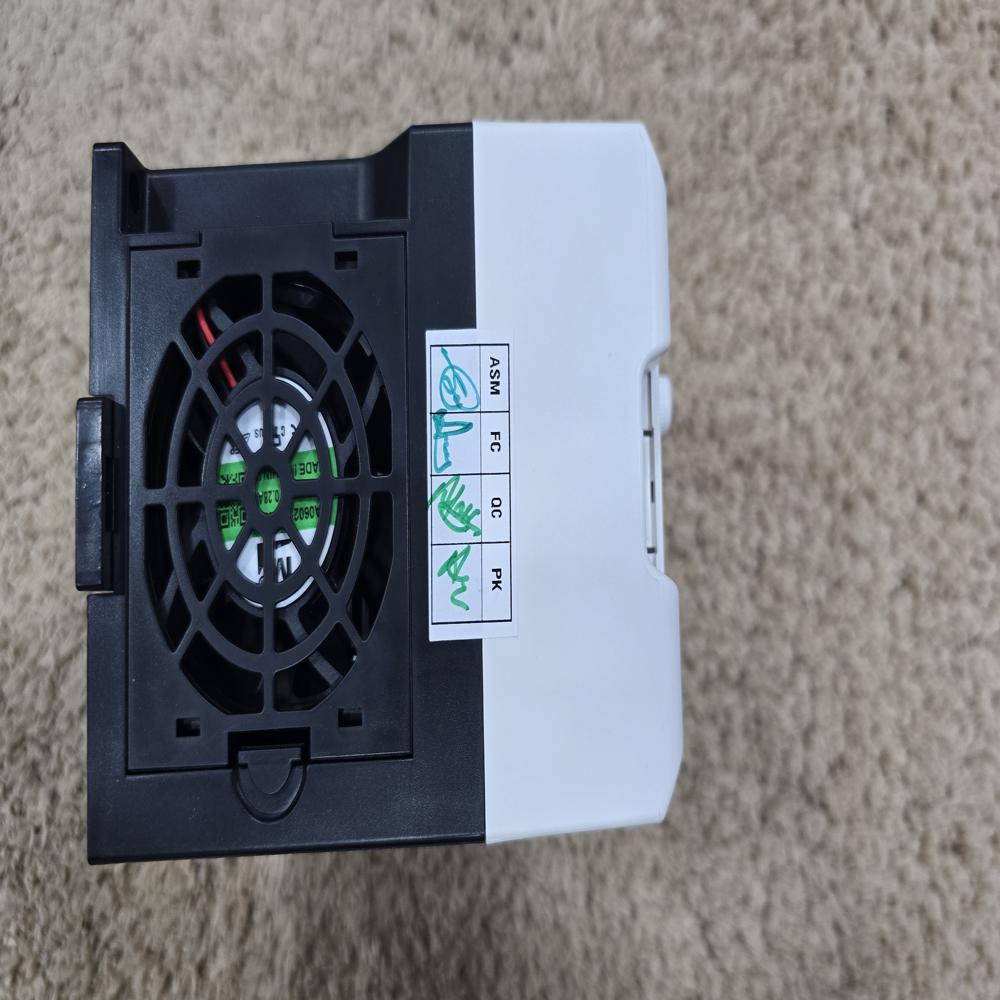

Because this unit runs at 45 Amps inside a compact C2 frame footprint, managing its heat output is critical. [1, 2]

Ventilation: Maintain a clear minimum gap of 3.94 inches (100 mm) at both the top and bottom of the unit to support proper airflow.
Cabinet Selection: Ensure your panel enclosure has proper air exchange volume or forced fan cooling to manage the thermal dissipation of a 22 kW load. [1]
