VSX48-060-20CEB - Crompton VFD - VSX48 - 30 kW / 40HP 3-Phase 380-480

Name: VSX48-060-20CEB - Crompton VFD - VSX48 - 30 kW / 40HP 3-Phase 380-480
Brand: Corbital Enterprise
Price: 44200.0 INR
Availability: InStock

Price 44200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSX48-060-20CEB - Crompton VFD - VSX48 - 30 kW / 40HP 3-Phase 380-480 Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
8.66 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSX48-060-20CEB - Crompton VFD - VSX48 - 30 kW / 40HP 3-Phase 380-480 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSX48-060-20CEB - Crompton VFD - VSX48 - 30 kW / 40HP 3-Phase 380-480

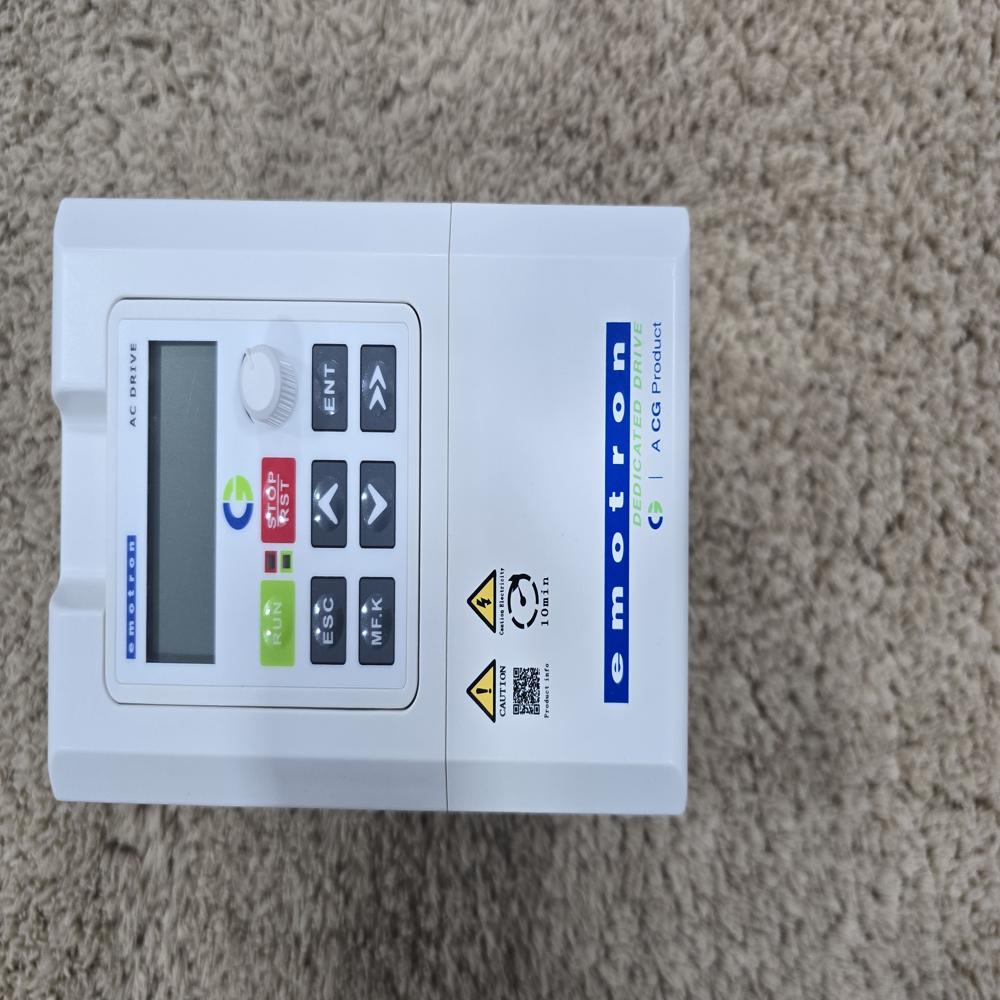

The Crompton Greaves Emotron VSX48-060-20CEB is a premium, high-performance 40 HP (30 kW) three-phase Variable Frequency Drive (VFD) from the advanced Emotron VSX series. [1, 2]

Engineered for heavy industrial applications requiring serious torque management, this drive runs on a standard 3-phase grid power supply (380V480V AC). It delivers a substantial 60 Amps continuous output current, driving both three-phase AC induction motors and modern high-efficiency permanent magnet synchronous motors (PMSM) with sensorless vector control. Like the other premium models in the VSX portfolio, it features a prominent LCD graphical interface with a built-in real-time diagnostic oscilloscope and extensive programmable PLC logic blocks. [1, 3, 4, 5]

Physical Dimensions (Inches & Pounds)

To properly dissipate the heat generated by managing a massive continuous 60-Amp industrial load, this drive steps up to a heavy, robust industrial chassis block:

Weight: 26.46 lbs (12.0 kg Chassis)
Height: 15.75 inches (400 mm)
Width: 9.84 inches (250 mm)
Depth (Thickness): 8.66 inches (220 mm) [, 2, 3]

Mounting Dimensions

For cutting panel backplates or prepping your electrical enclosure array:

Mounting Height (H1): 15.16 inches (385 mm)
Mounting Width (W1): 9.06 inches (230 mm)
Installation Aperture (Screw Hole Diameter): 0.28 inches (7 mm)

Technical Specifications

The electrical threshold metrics and structural protections calibrated into this 40 HP unit include:

Feature [, 2, 3, 4, 5]	Specification
Model Number	VSX48-060-20CEB
Motor Power Rating (Heavy Duty)	30.0 kW / 40 HP
Motor Power Rating (Normal Duty)	37.0 kW / 50 HP
Input Supply Power	3-Phase 380V to 480V AC (\(\pm20\%\) continuity variance)
Rated Output Current	60.0 Amps continuous
Peak Overload Capacity	150% for 60 seconds / 200% heavy-duty for 1 second
Enclosure Rating	IP20 (Requires clean, weather-protected indoor panel layout)
Noise Protection	Integrated C3 Class EMC Filter for electromagnetic noise dampening
I/O Connectivity	High-speed pulse input/output tracking up to 100 kHz
Circuit Shielding	Conformal-coated internal PCBs to resist dust and moisture

Core Functionality & Applications

The drive features an independent, fully separated cooling air duct channel that passes air across the heat sinks without exposing the internal computer logic boards to ambient factory contaminants. It is highly utilized in demanding constant-torque and variable-torque workflows such as: [1]

Heavy Processing Plants: Large commercial flour mills (Atta Chakki), oil expeller plants, plastic extruders, rubber mixers, and large processing crushers.
Bulk Material Handling: Heavy industrial conveyor matrices, automated quarry handling lines, crushing machinery, and heavy industrial cranes/hoists.
Fluid & Fan Management: Large multi-pump booster stations, water cooling towers, deep borewell submersibles, and commercial HVAC exhaust complexes. [1]
