VSX48-009-20CEB - Crompton VFD - VSX48 - 3.7 kW / 5HP 3-Phase 380-480V

Name: VSX48-009-20CEB - Crompton VFD - VSX48 - 3.7 kW / 5HP 3-Phase 380-480V
Brand: Corbital Enterprise
Price: 17800.0 INR
Availability: InStock

Price 17800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSX48-009-20CEB - Crompton VFD - VSX48 - 3.7 kW / 5HP 3-Phase 380-480V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
2.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSX48-009-20CEB - Crompton VFD - VSX48 - 3.7 kW / 5HP 3-Phase 380-480V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSX48-009-20CEB - Crompton VFD - VSX48 - 3.7 kW / 5HP 3-Phase 380-480V

The Crompton Greaves Emotron VSX48-009-20CEB is a premium, high-performance 5 HP (3.7 kW) three-phase Variable Frequency Drive (VFD) from the advanced Emotron VSX series. [1, 2]

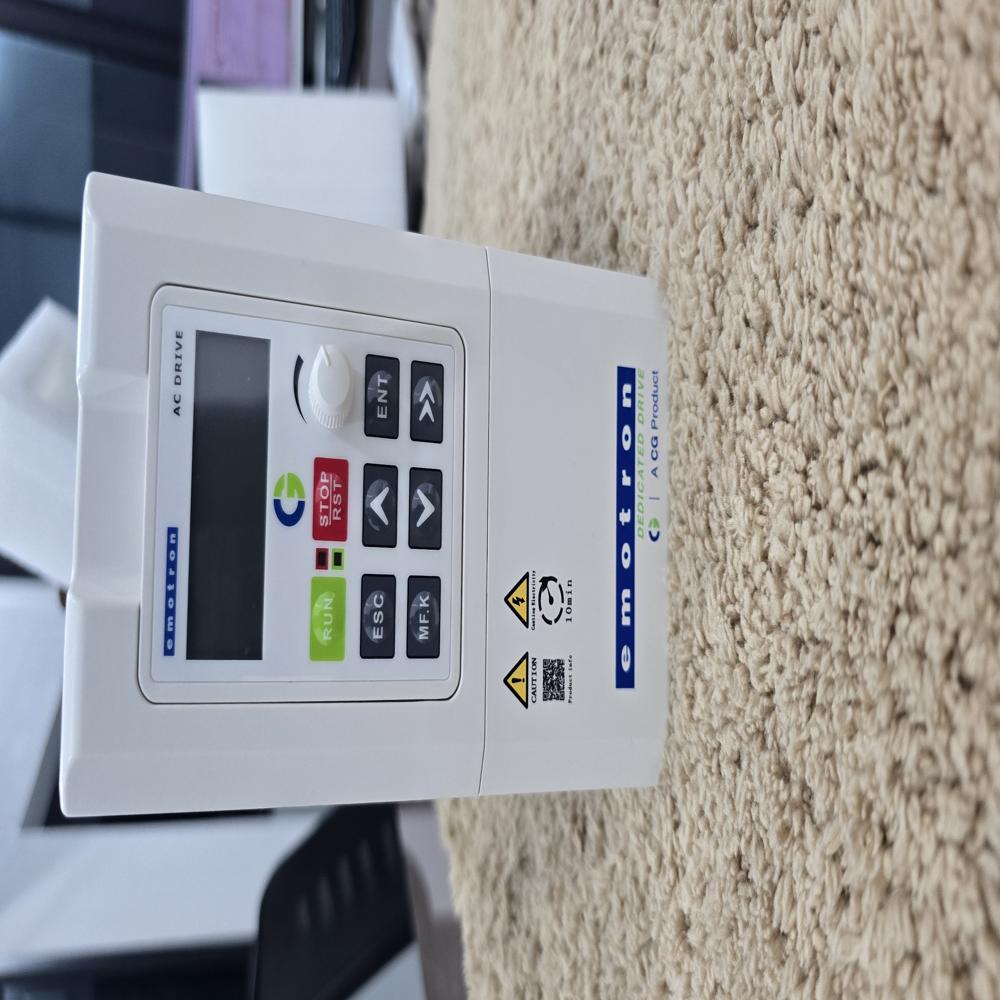

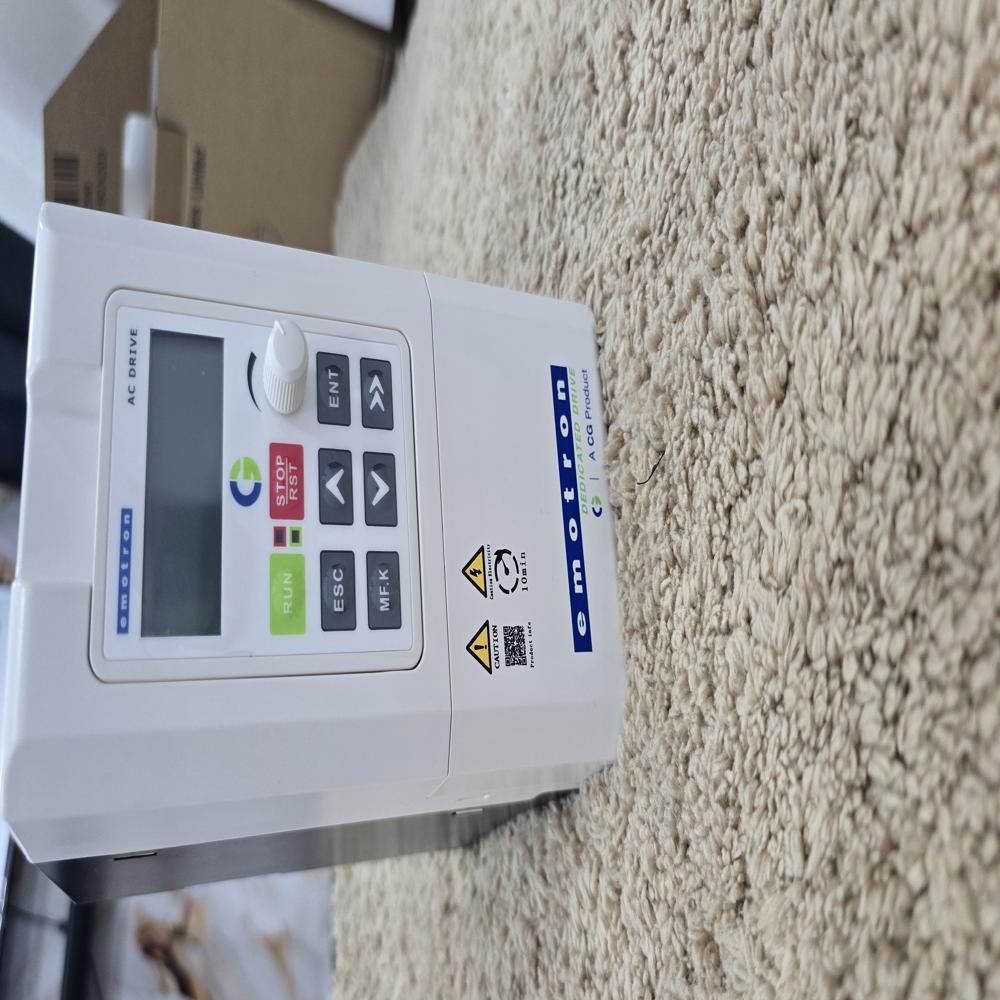

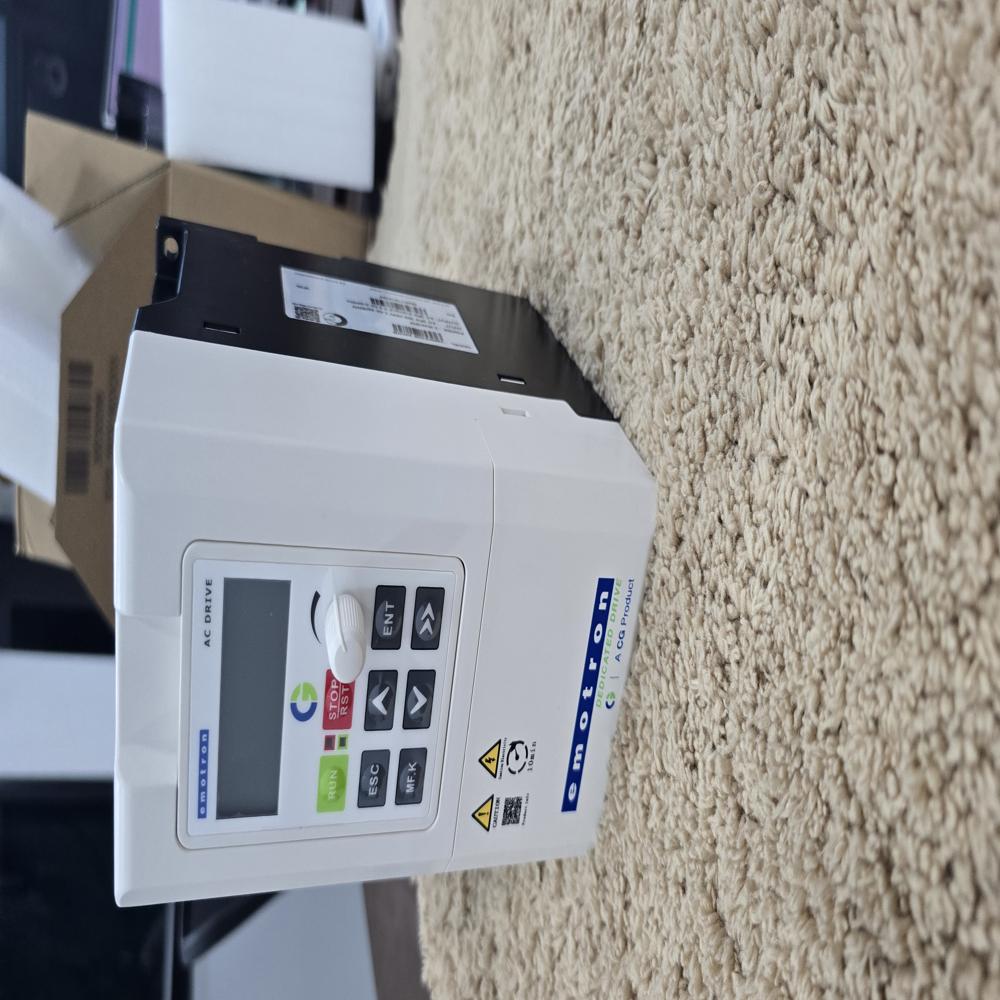

This industrial-grade drive operates on 3-phase grid power (380V480V AC) and utilizes sensorless vector control for precise speed regulation of AC induction motors and permanent magnet synchronous motors (PMSM). The VSX series distinguishes itself with an integrated LCD graphical display featuring real-time oscilloscope tracking and advanced built-in PLC functionality. [1, 2, 3, 4, 5]

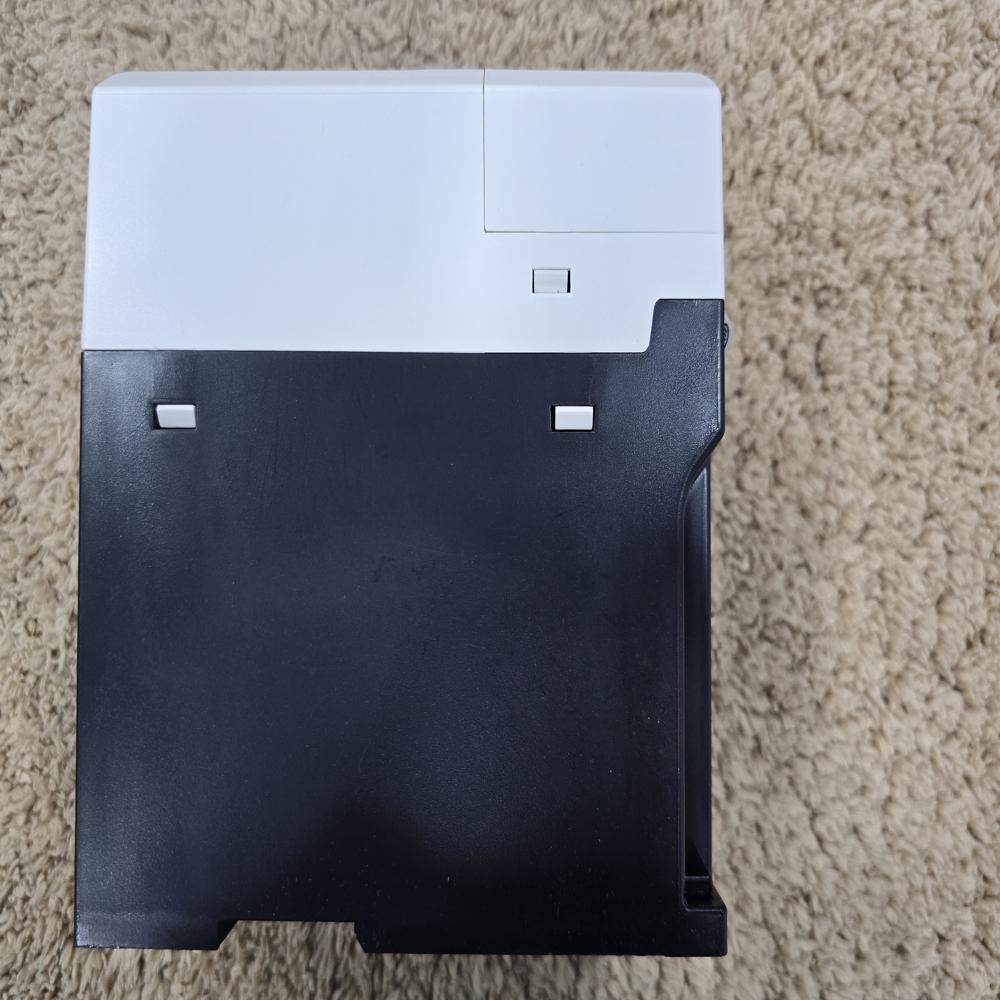

Physical Dimensions (Inches & Pounds)

The VSX48-009 utilizes an expanded VSR3-style chassis to accommodate higher power electronics, with physical parameters converted to imperial units as follows:

Weight: 5.51 lbs (2.5 kg)
Height: 7.35 inches (186.6 mm)
Width: 4.59 inches (116.6 mm)
Depth (Thickness): 6.89 inches (175 mm) [1, 3]

Mounting Dimensions

For backplate drilling templates or electrical cabinet integration: [1]

Mounting Height (H1): 6.95 inches (176.6 mm)
Mounting Width (W1): 4.20 inches (106.6 mm)
Installation Aperture (Screw Hole Diameter): 0.18 inches (4.5 mm) [1]

Technical Specifications

The drive is designed to manage a continuous load of 9.5 Amps with substantial surge overhead for industrial applications: [1]

Feature [1, 3, 4, 5]	Specification
Model Number	VSX48-009-20CEB
Motor Power Rating	3.7 kW / 5 HP
Input Supply Power	3-Phase 380V to 480V AC (\(\pm20\%\) continuity variance)
Rated Output Current	9.5 Amps continuous
Peak Overload Capacity	150% heavy-duty for 60s / 200% for 1 second
Enclosure Rating	IP20 (Protected indoor panel deployment required)
Noise Protection	Integrated C3 Class EMC Filter
Diagnostic Terminal	LCD Graphical Scope / EmoWizard compatibility

Core Functionality & Applications

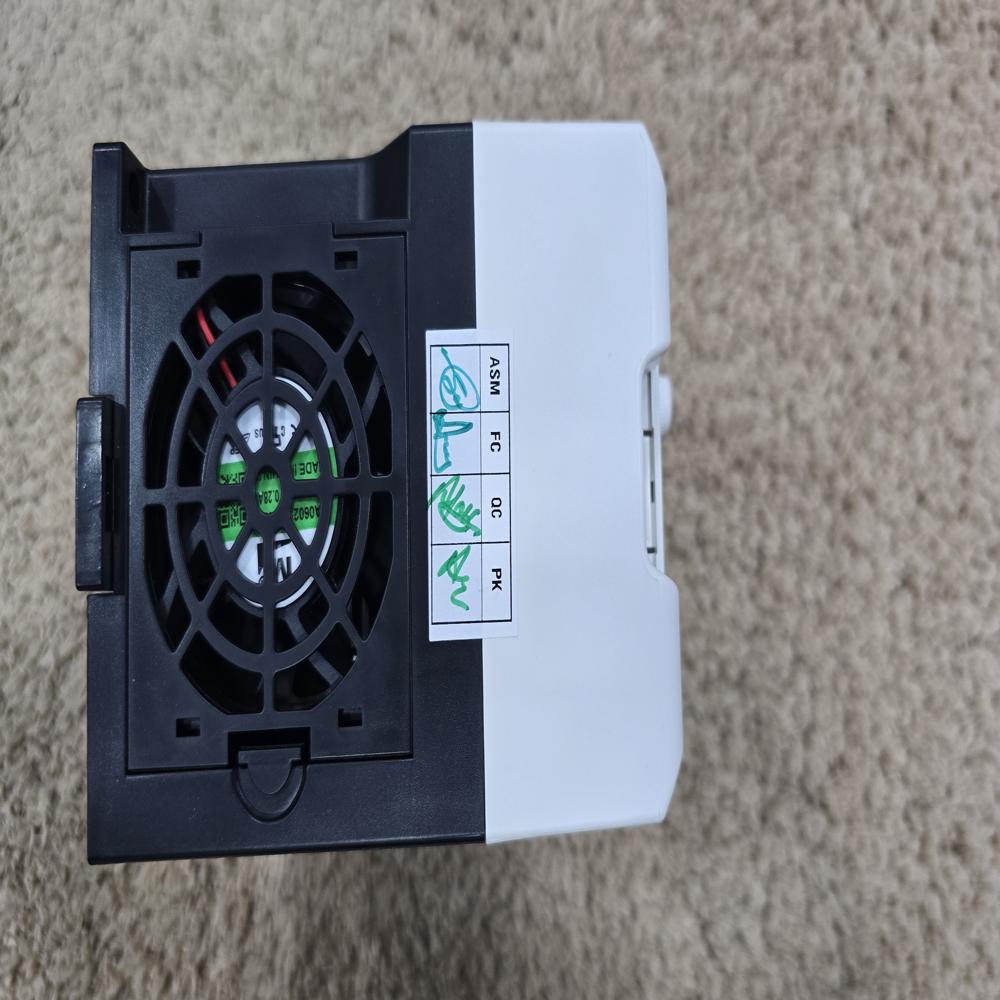

This premium series is engineered for high-torque industrial environments, featuring tropicalized conformal-coated circuit boards and a fully separated air duct design to protect internal electronics from heat, dust, and manufacturing debris. Typical deployments include:

High-Torque Machinery: Extruders, industrial mixers, heavy-duty conveyor systems, and crane hoists.
Fluid & Air Processing: Multi-pump commercial water arrays, cooling towers, and localized extraction blowers.
