VSX48-045-20CEB - Crompton VFD - VSX48 - 22 kW / 30HP 3-Phase 380-480

Name: VSX48-045-20CEB - Crompton VFD - VSX48 - 22 kW / 30HP 3-Phase 380-480
Brand: Corbital Enterprise
Price: 42100.0 INR
Availability: InStock

Price 42100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSX48-045-20CEB - Crompton VFD - VSX48 - 22 kW / 30HP 3-Phase 380-480 Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
9.20 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSX48-045-20CEB - Crompton VFD - VSX48 - 22 kW / 30HP 3-Phase 380-480 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSX48-045-20CEB - Crompton VFD - VSX48 - 22 kW / 30HP 3-Phase 380-480

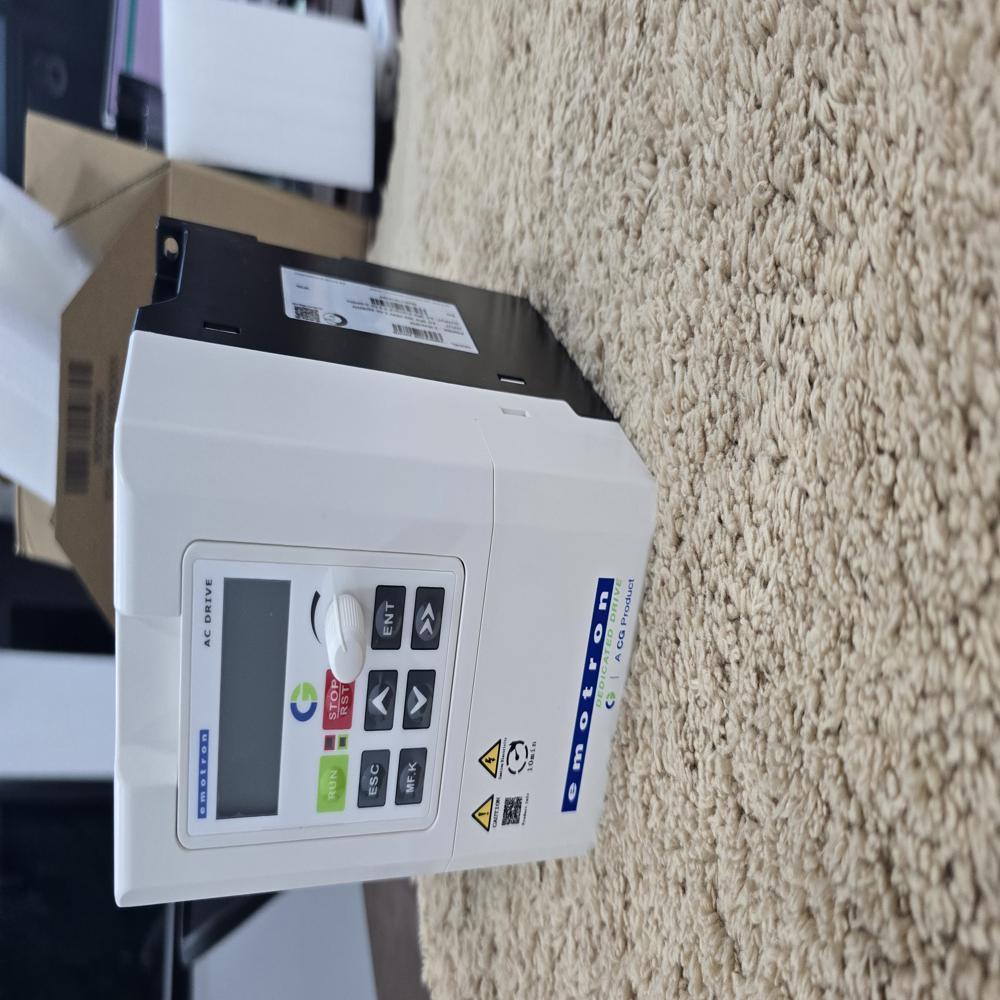

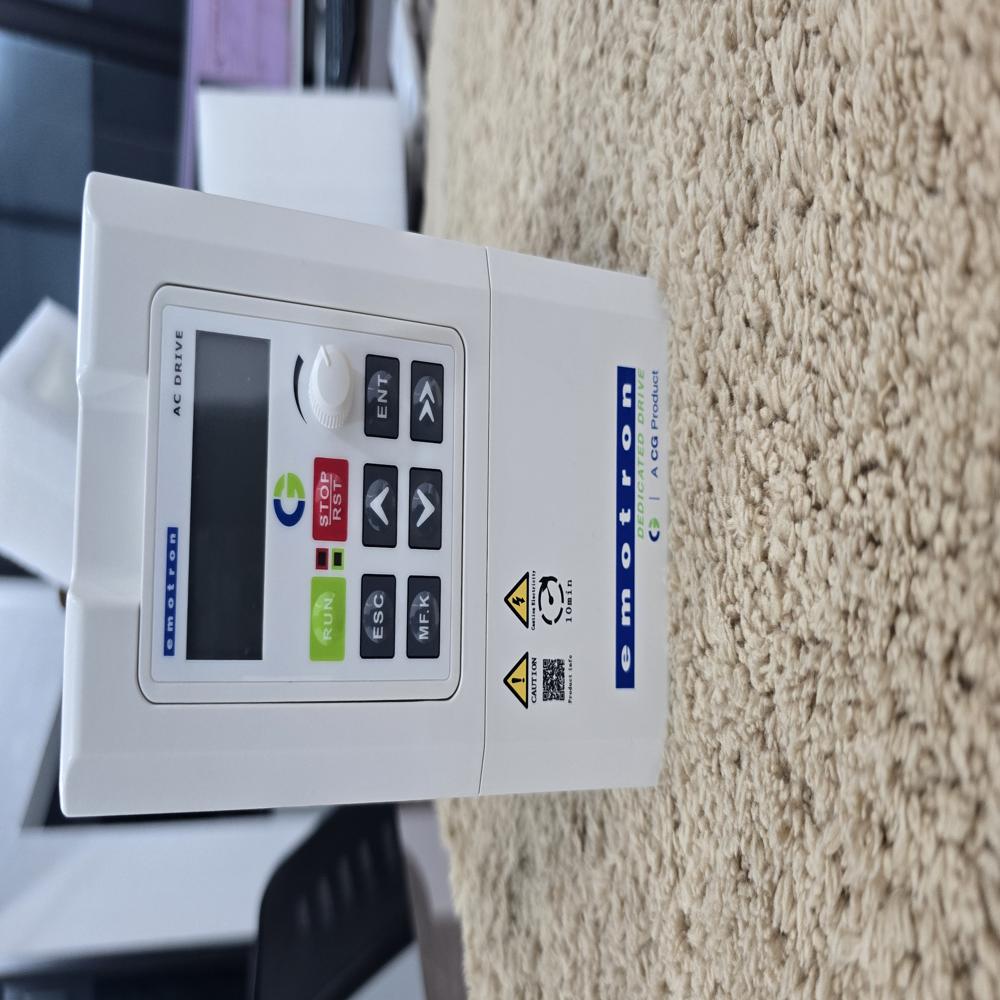

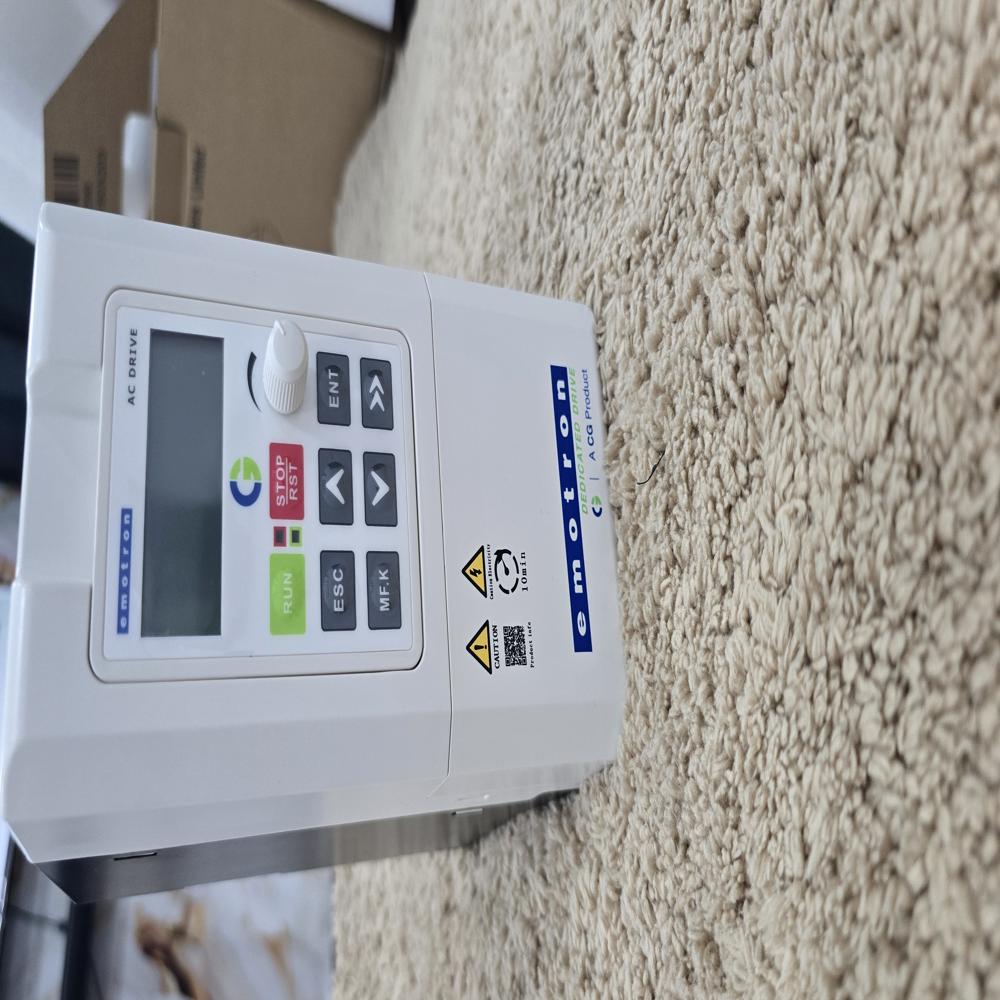

The Crompton Greaves Emotron VSX48-045-20CEB is a premium, high-performance 30 HP (22 kW) three-phase Variable Frequency Drive (VFD) from the advanced Emotron VSX series. [1, 2]

Engineered for highly demanding, high-torque industrial machinery, it operates on a standard 3-phase grid power supply (380V480V AC). It provides smooth sensorless vector speed and torque regulation for both three-phase AC induction motors and modern high-efficiency permanent magnet synchronous motors (PMSM). A core benefit of the premium VSX series is its high-contrast LCD graphical display with an integrated real-time diagnostic oscilloscope and extensive programmable PLC logic blocks. [1, 2, 3]

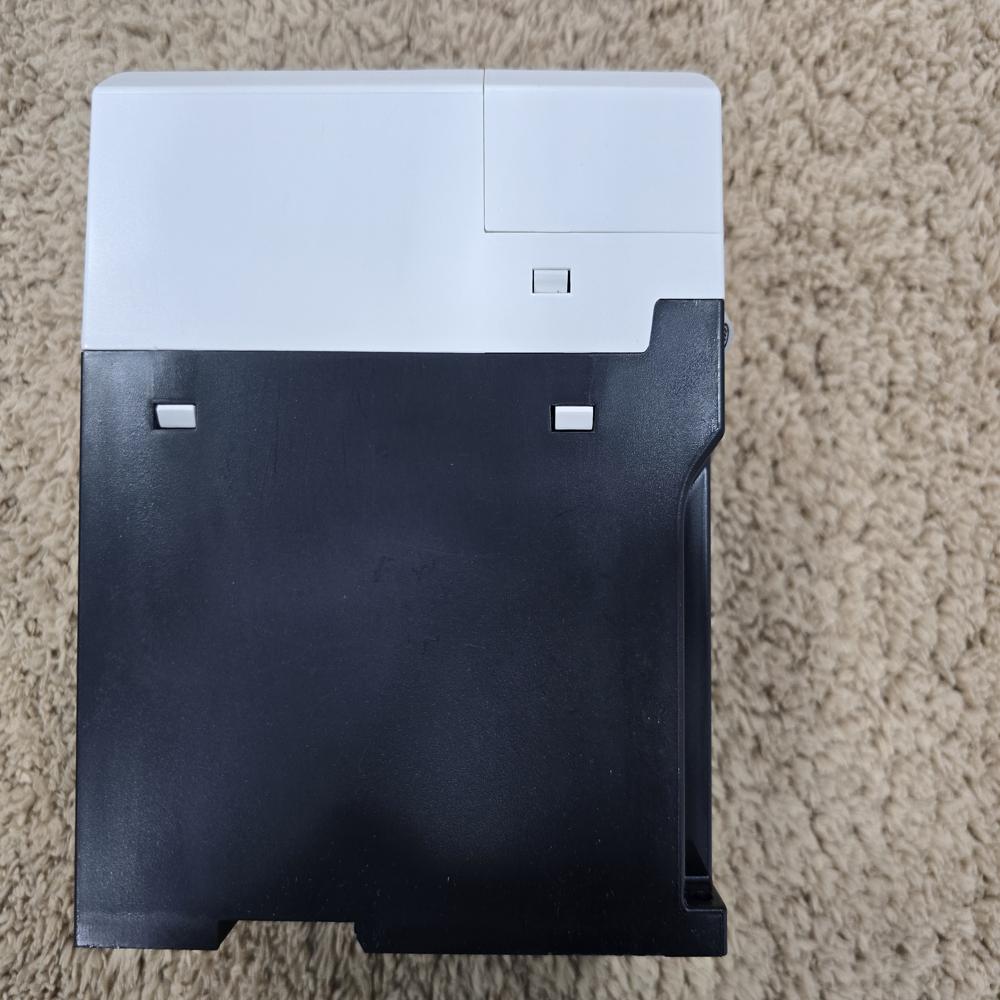

Physical Dimensions (Inches & Pounds)

To properly dissipate the heat generated by managing a continuous 45-Amp industrial load, this drive steps up to a larger, robust chassis block:

Weight: 20.28 lbs (9.20 kg Chassis / 9.80 kg gross weight)
Height: 13.98 inches (355 mm)
Width: 9.06 inches (230 mm)
Depth (Thickness): 8.39 inches (213 mm)

Mounting Dimensions

For cutting panel backplates or prepping your electrical enclosure array:

Mounting Height (H1): 13.39 inches (340 mm)
Mounting Width (W1): 8.27 inches (210 mm)
Installation Aperture (Screw Hole Diameter): 0.28 inches (7 mm)

Technical Specifications

The electrical threshold metrics and structural protections calibrated into the unit include:

Feature [1, 2]	Specification
Model Number	VSX48-045-20CEB
Motor Power Rating	22.0 kW / 30 HP
Input Supply Power	3-Phase 380V to 480V AC (\(\pm20\%\) continuity allowance)
Rated Output Current	45.0 Amps continuous
Peak Overload Capacity	150% for 60s / 200% heavy-duty for 1 second
Enclosure Rating	IP20 (Requires clean, weather-protected indoor panel layout)
Noise Protection	Integrated C3 Class EMC Filter for electromagnetic noise dampening
I/O Connectivity	High-speed pulse input/output tracking up to 100 kHz
Circuit Shielding	Conformal-coated internal PCBs to resist dust and moisture

Core Functionality & Applications

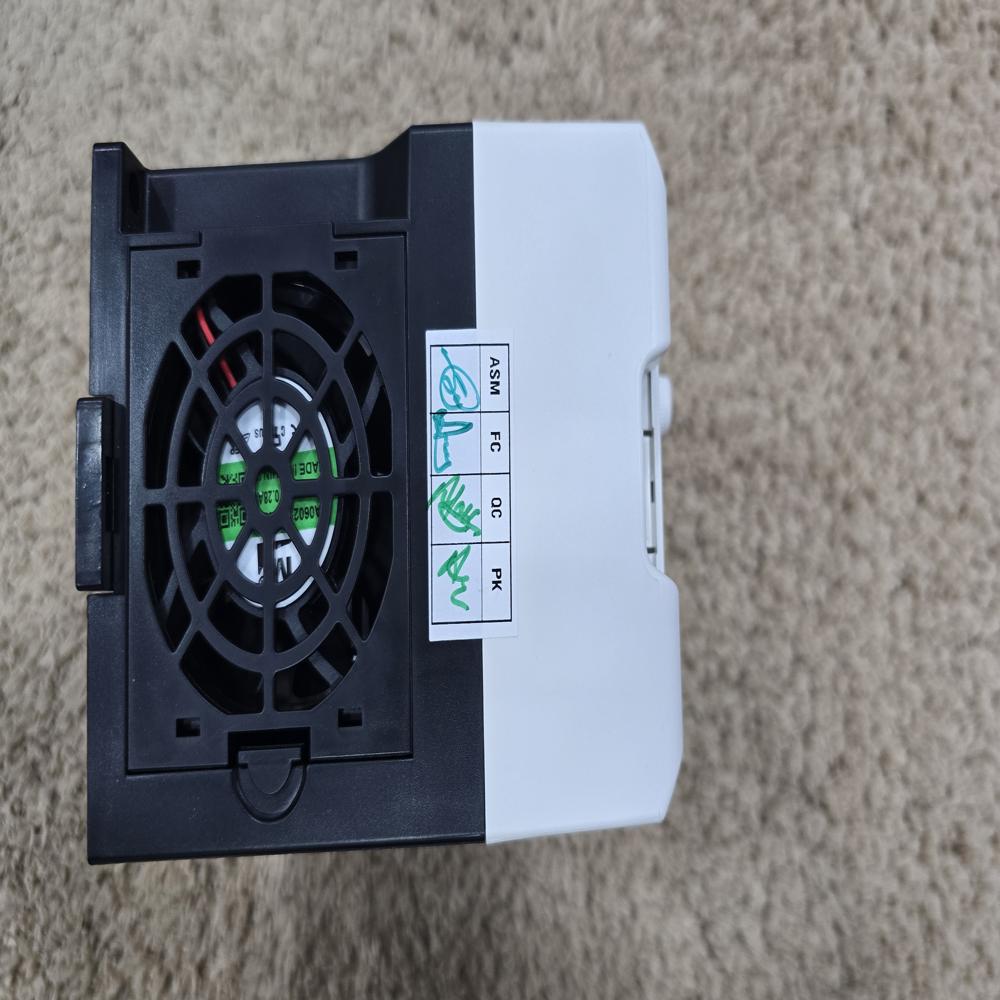

The drive features an independent, fully separated cooling air duct channel that passes air across the heat sinks without exposing the internal computer logic boards to ambient factory contaminants. It is highly utilized in demanding constant-torque and variable-torque workflows such as:

Industrial Processing: Large commercial flour mills (Atta Chakki), oil expeller plants, plastic extruders, and heavy-duty rubber blenders.
Material Handling: Heavy industrial conveyor matrices, automated quarry handling lines, crushing machines, and heavy cranes/hoists.
Fluid & Fan Management: Multi-pump booster stations, water cooling towers, deep borewell submersibles, and commercial HVAC exhaust complexes.
