VSX48-024-20CEB - Crompton VFD - VSX48 - 11 kW / 15HP 3-Phase 380-480V

Name: VSX48-024-20CEB - Crompton VFD - VSX48 - 11 kW / 15HP 3-Phase 380-480V
Brand: Corbital Enterprise
Price: 28600.0 INR
Availability: InStock

Price 28600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSX48-024-20CEB - Crompton VFD - VSX48 - 11 kW / 15HP 3-Phase 380-480V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
3.5 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSX48-024-20CEB - Crompton VFD - VSX48 - 11 kW / 15HP 3-Phase 380-480V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSX48-024-20CEB - Crompton VFD - VSX48 - 11 kW / 15HP 3-Phase 380-480V

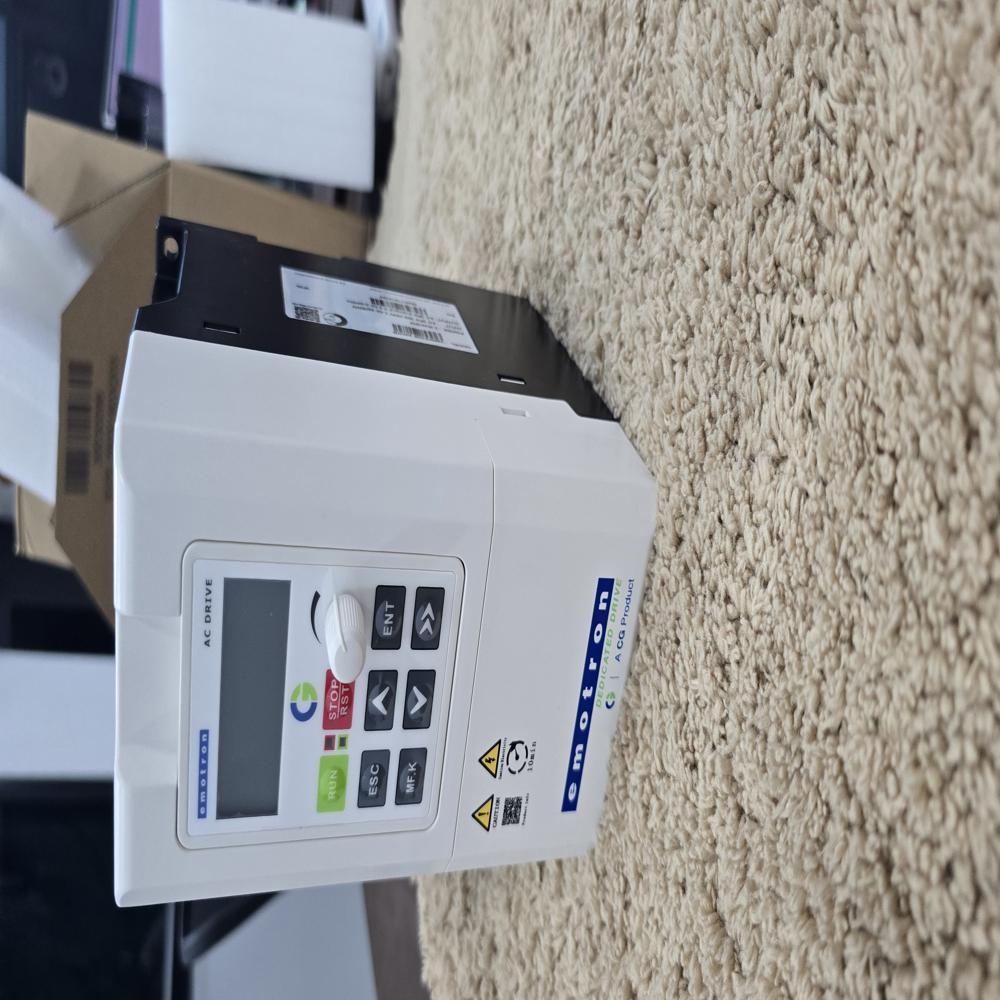

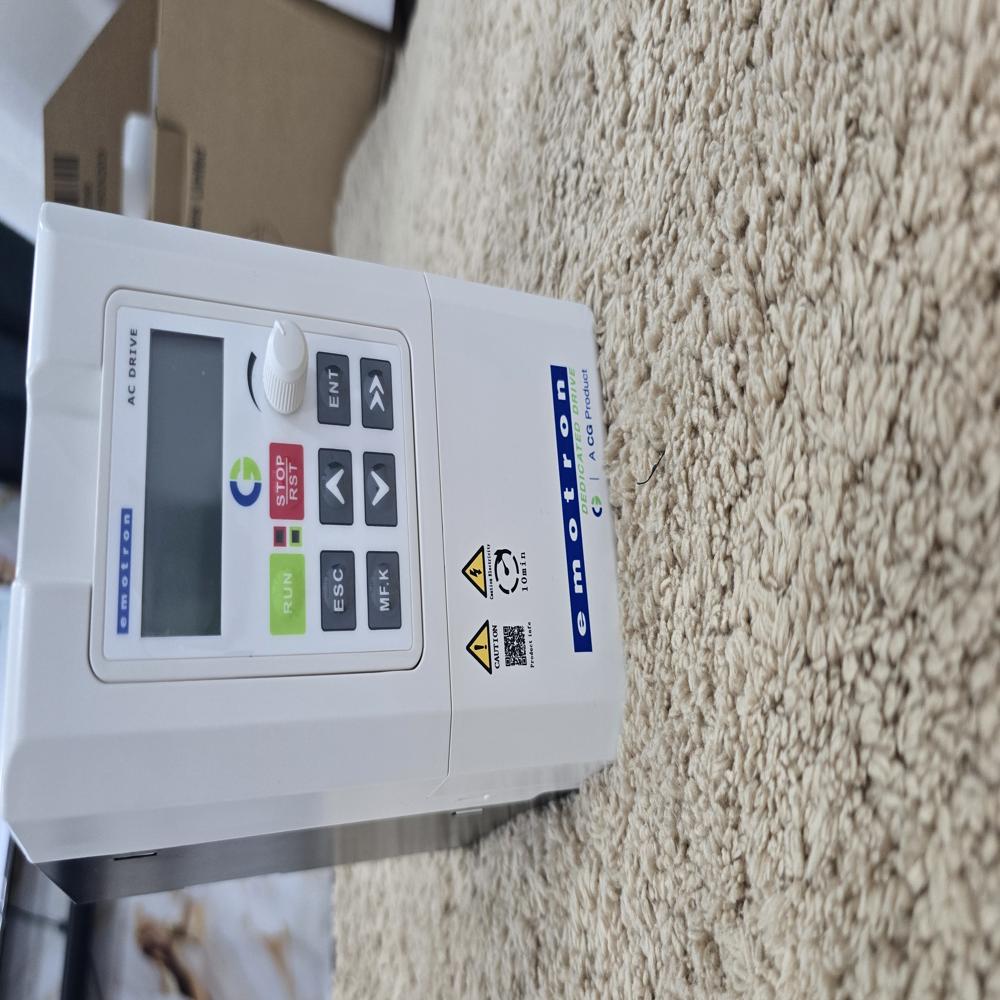

The Crompton Greaves Emotron VSX48-024-20CEB is a premium, high-performance 15 HP (11 kW) three-phase general-purpose Variable Frequency Drive (VFD) from the advanced Emotron VSX series. [1, 2]

Engineered for highly demanding industrial machinery, it operates on a standard 3-phase grid power supply (380V480V AC). It provides smooth sensorless vector speed and torque regulation for both three-phase AC induction motors and modern high-efficiency permanent magnet synchronous motors (PMSM). The premium VSX series features a prominent LCD graphical interface with a built-in real-time diagnostic oscilloscope and extensive programmable PLC logic blocks. [, 2, 3, 4, 5]

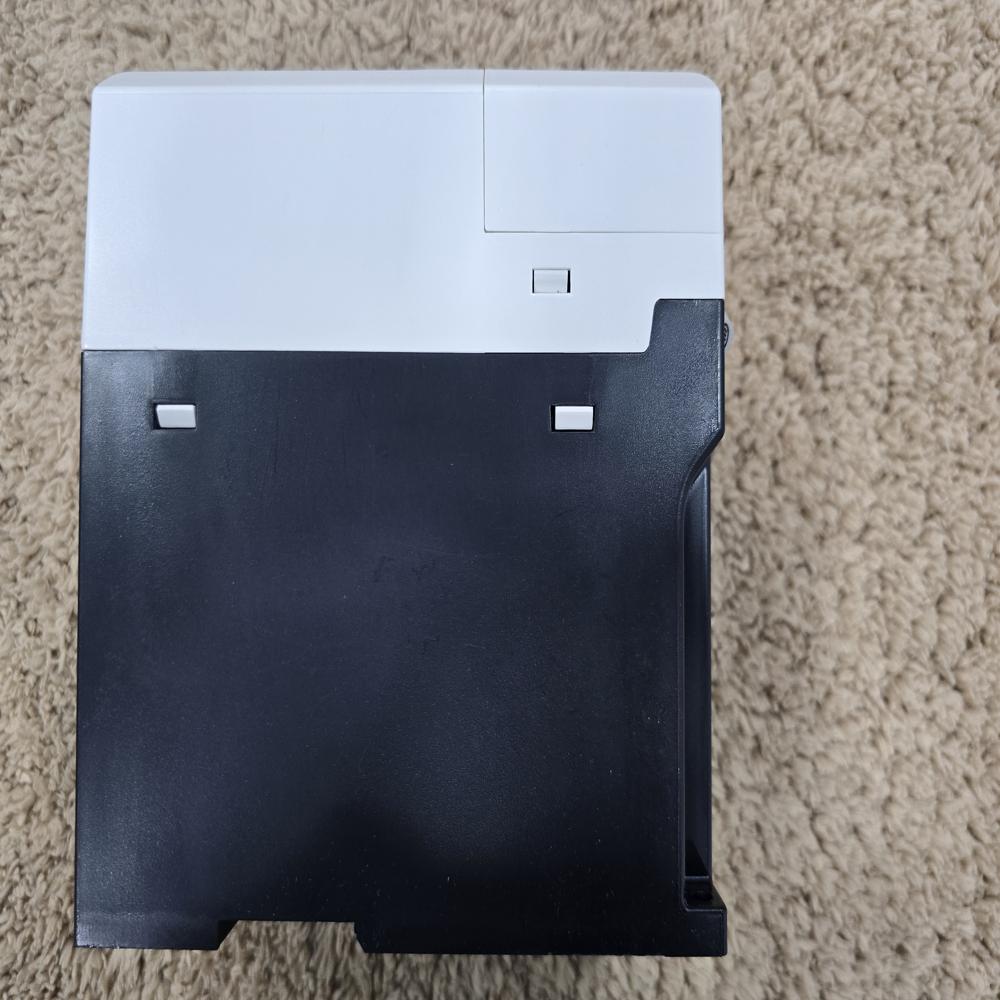

Physical Dimensions (Inches & Pounds)

To properly house the heavy-duty power transistors and heat sinks required for a 15 HP industrial load, this drive features an expanded chassis footprint:

Weight: 7.72 lbs (3.5 kg)
Height: 9.80 inches (249 mm)
Width: 5.75 inches (146 mm)
Depth (Thickness): 7.15 inches (181.7 mm) [, 2, 3]

Mounting Dimensions

For cutting panel backplates or prepping your electrical enclosure array:

Mounting Height (H1): 9.29 inches (236 mm)
Mounting Width (W1): 5.16 inches (131 mm)
Installation Aperture (Screw Hole Diameter): 0.22 inches (5.5 mm)

Technical Specifications

The electrical threshold metrics and structural protections calibrated into the unit include:

Feature [, 2, 3, 4, 5]	Specification
Model Number	VSX48-024-20CEB
Motor Power Rating	11.0 kW / 15 HP
Input Supply Power	3-Phase 380V to 480V AC (\(\pm20\%\) continuity allowance)
Rated Output Current	24.0 Amps continuous
Peak Overload Capacity	150% for 60s / 200% heavy-duty for 1 second
Enclosure Rating	IP20 (Requires clean, weather-protected indoor panel layout)
Noise Protection	Integrated C3 Class EMC Filter for electromagnetic noise dampening
I/O Connectivity	High-speed pulse input/output tracking up to 100 kHz
Circuit Shielding	Conformal-coated internal PCBs to resist dust and moisture

Core Functionality & Applications

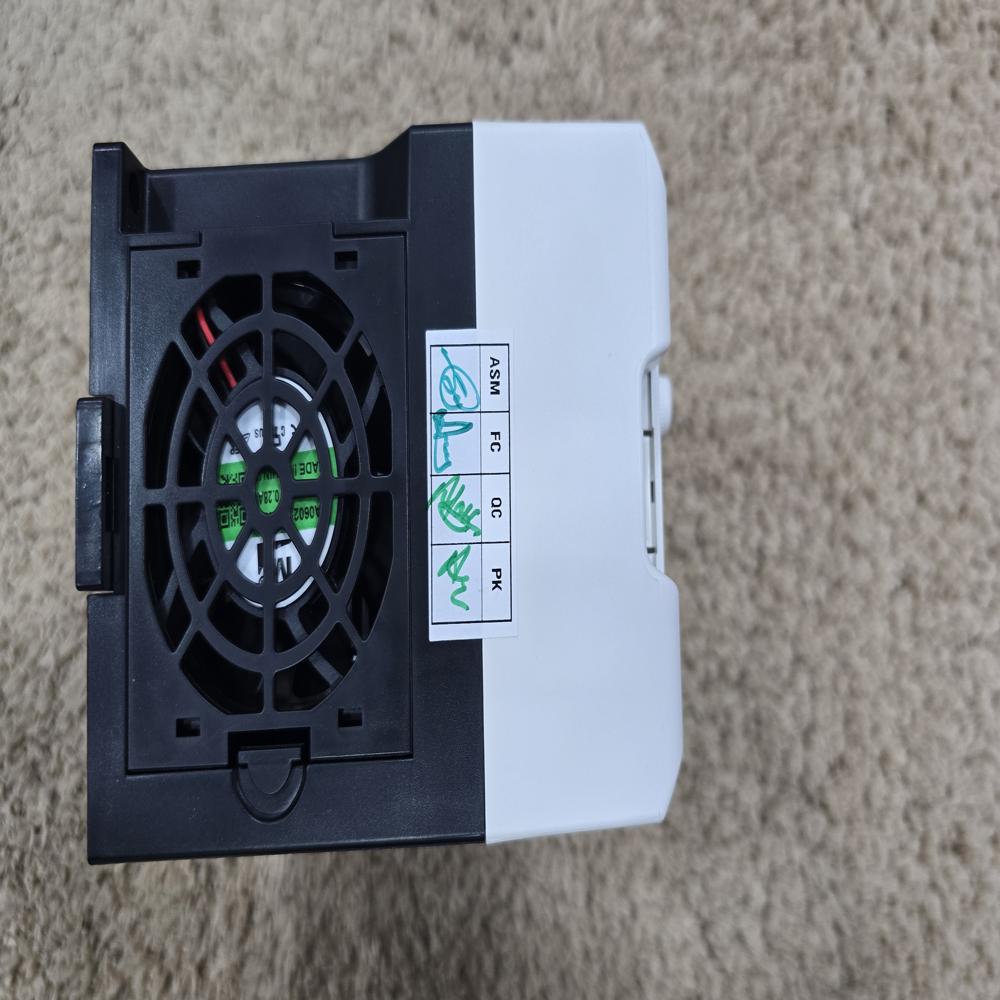

The drive features an independent, fully separated cooling air duct channel that passes air across the heat sinks without exposing the internal computer logic boards to ambient factory contaminants. It is highly utilized in demanding constant-torque and variable-torque workflows such as: [1]

Industrial Processing: Mid-sized commercial flour mills (Atta Chakki), oil expeller plants, and large blending agitators.
Material Handling: Heavy industrial conveyor matrices, automated pallet packaging lines, and crane hoists.
Fluid & Fan Management: Multi-pump booster stations, water cooling towers, and commercial HVAC exhaust complexes. [1]
