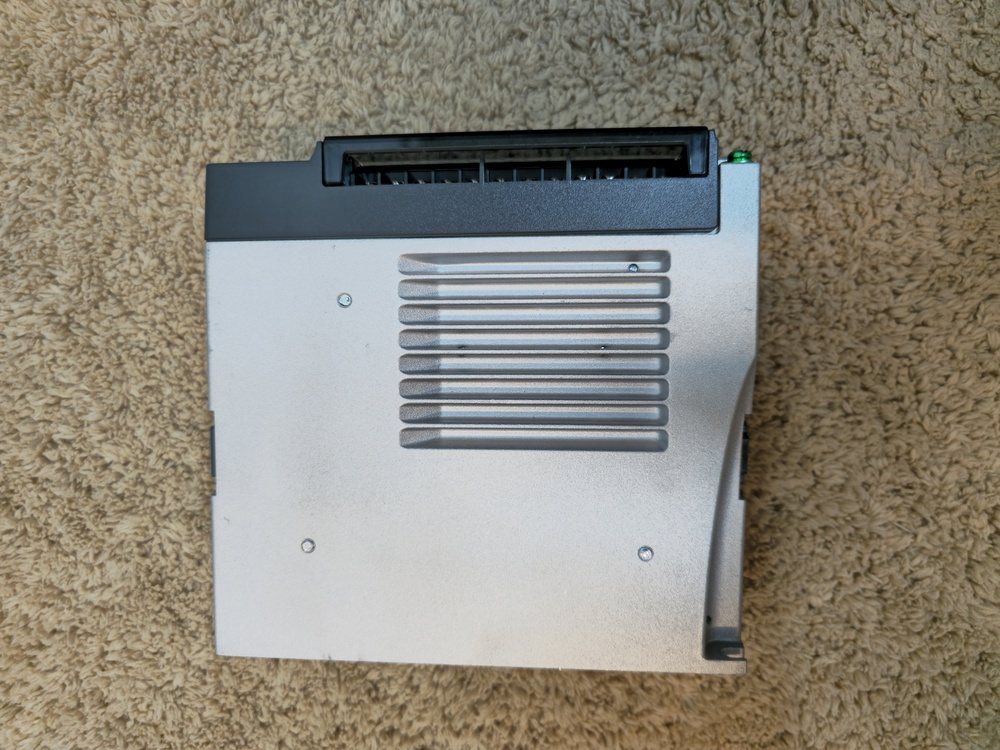

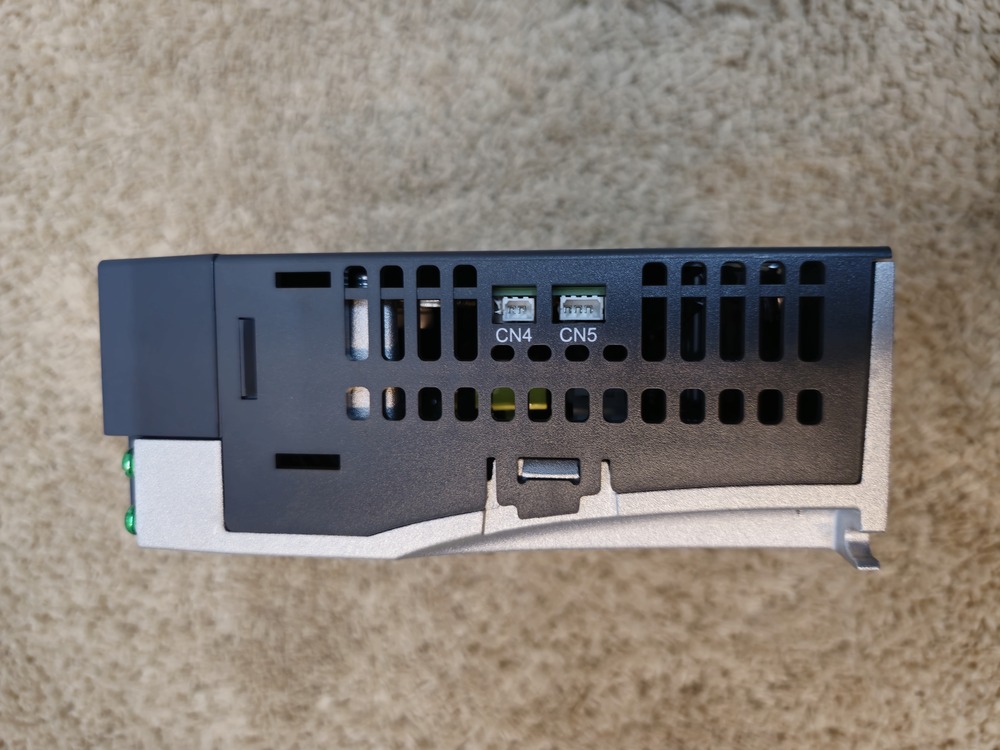

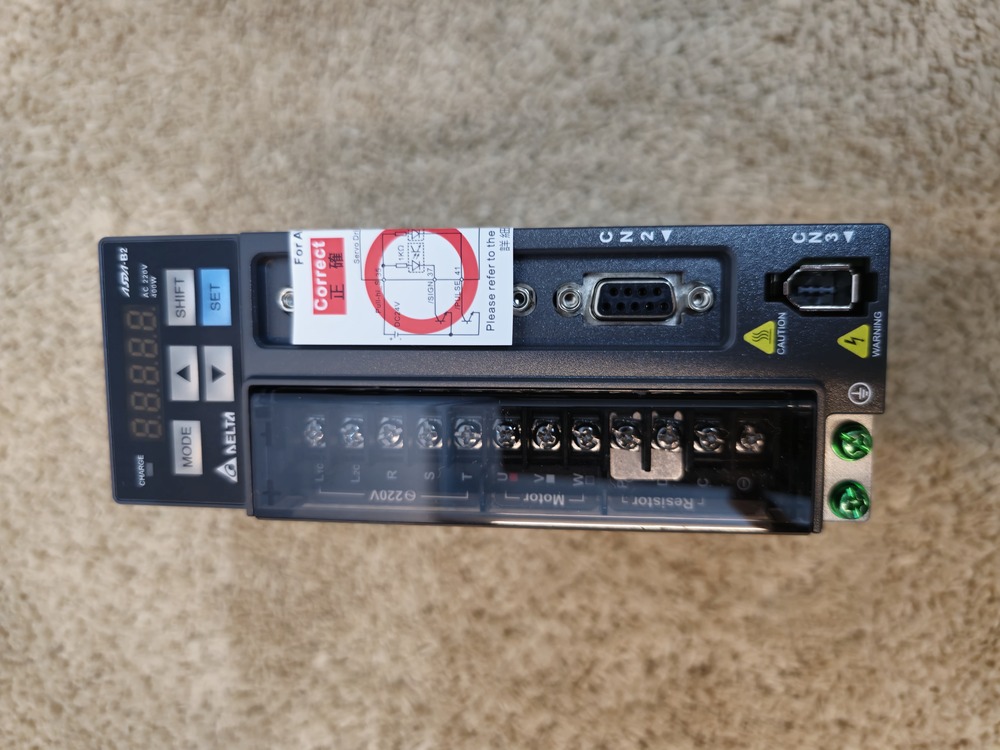

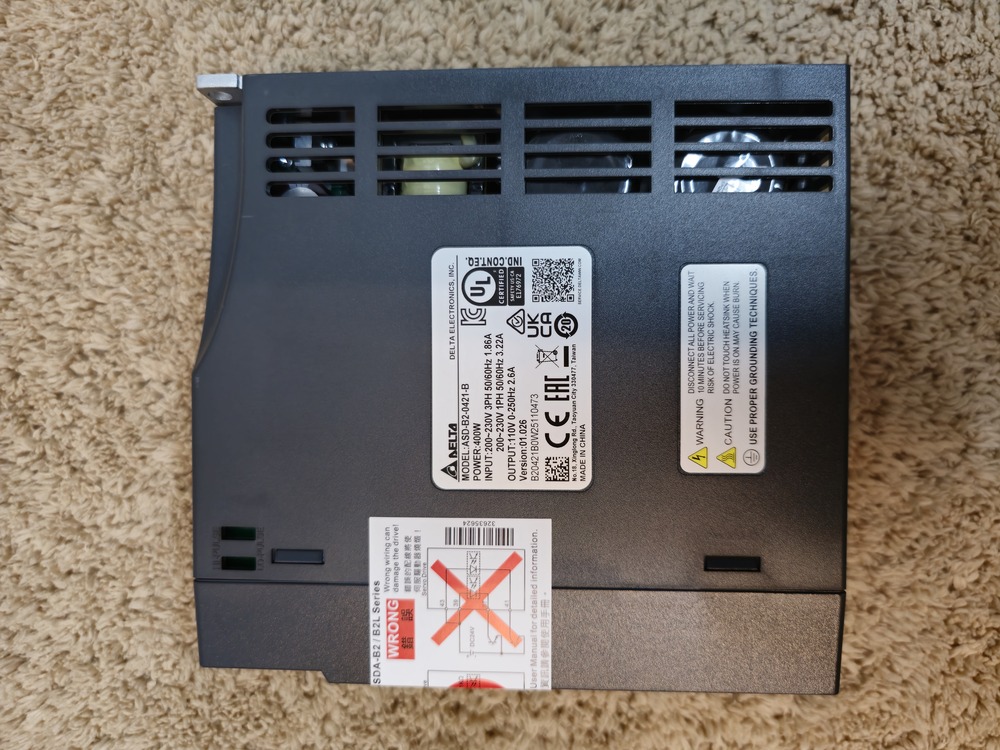

ASD-A2-0421-U* Delta A2 Series Driver - 400W

Name: ASD-A2-0421-U* Delta A2 Series Driver - 400W
Brand: Corbital Enterprise
Price: 26800.0 INR
Availability: InStock

Price 26800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

For the ASD-A2-0421-U Delta A2 Series Servo Drive (400W), here are the detailed technical specifications:

Power & Performance

Control Features

Control Modes: Position, Speed, and Torque (can be switched via communication)
Feedback Resolution: Supports 20-bit (1,280,000 pulses/rev) incremental/absolute encoders
Communication: RS-485 / RS-232 / USB (Mini-USB port for PC connection)
Built-in Motion Functions:
- E-CAM: Electronic Cam (720 points max)
- Capture & Compare: High-speed position latching
- Vibration Suppression: Built-in automatic notch filters for mechanical resonance

Inputs & Outputs (I/O)

Safety & Protection

Safety Function: Built-in STO (Safe Torque Off), SIL2 / PL d compliant
Protective Functions: Overcurrent, Overvoltage, Undervoltage, Overheating, Regeneration error, Communication error, and Encoder error.

Physical & Environmental

For the ASD-A2-0421-U Delta A2 Series Servo Drive (400W), here are the specifications in inches:

Dimensions & Weight

This drive shares the same slim frame size as the 200W model, designed for compact panel mounting.

Note: Shipping weight is typically around 6.6 lbs (3.0 kg) including packaging. [1, 2]

Function

The ASD-A2-0421-U is the high-performance controller for your 400W system. Its primary roles include:

Precision Driving: Converts single or three-phase 220V AC input into precise current to control motor position, speed, and torque.
Motion Control (E-CAM): Features a built-in Electronic Cam (E-CAM) function with up to 720 points, ideal for synchronized motion like rotary cutting or flying shears.
High-Speed Response: Delivers a 1 kHz frequency response and settling times below 1ms for rapid, vibration-free movements.
Communication: The "U" version supports advanced digital communication (RS-485/Fieldbus) and features an extension port for additional digital inputs, making it versatile for complex industrial networks.
