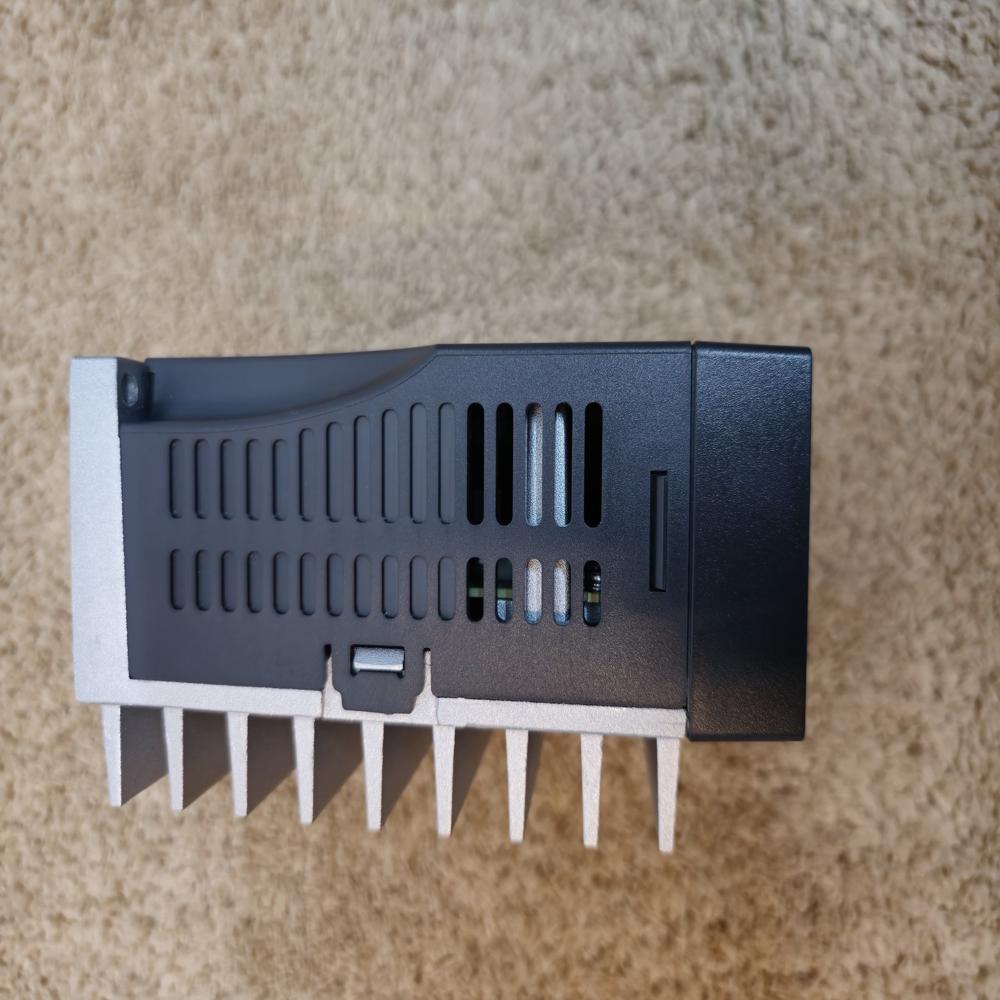

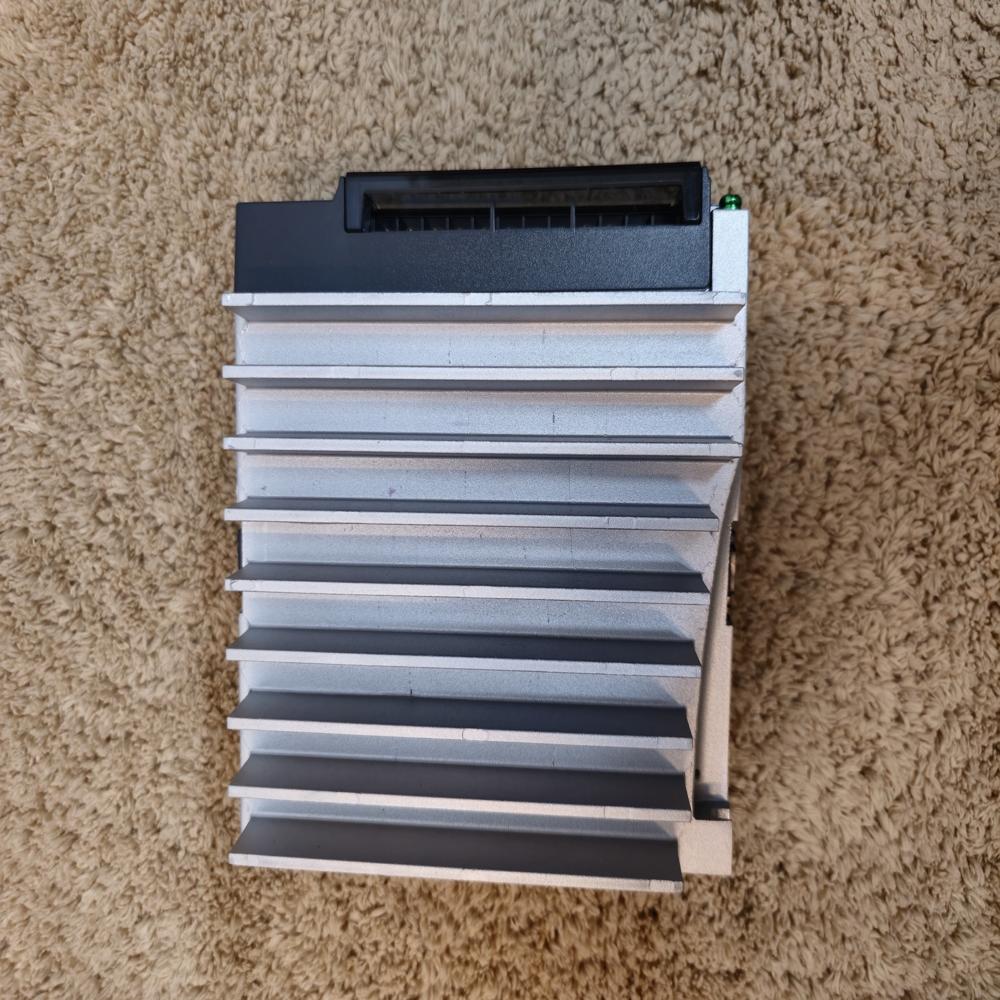

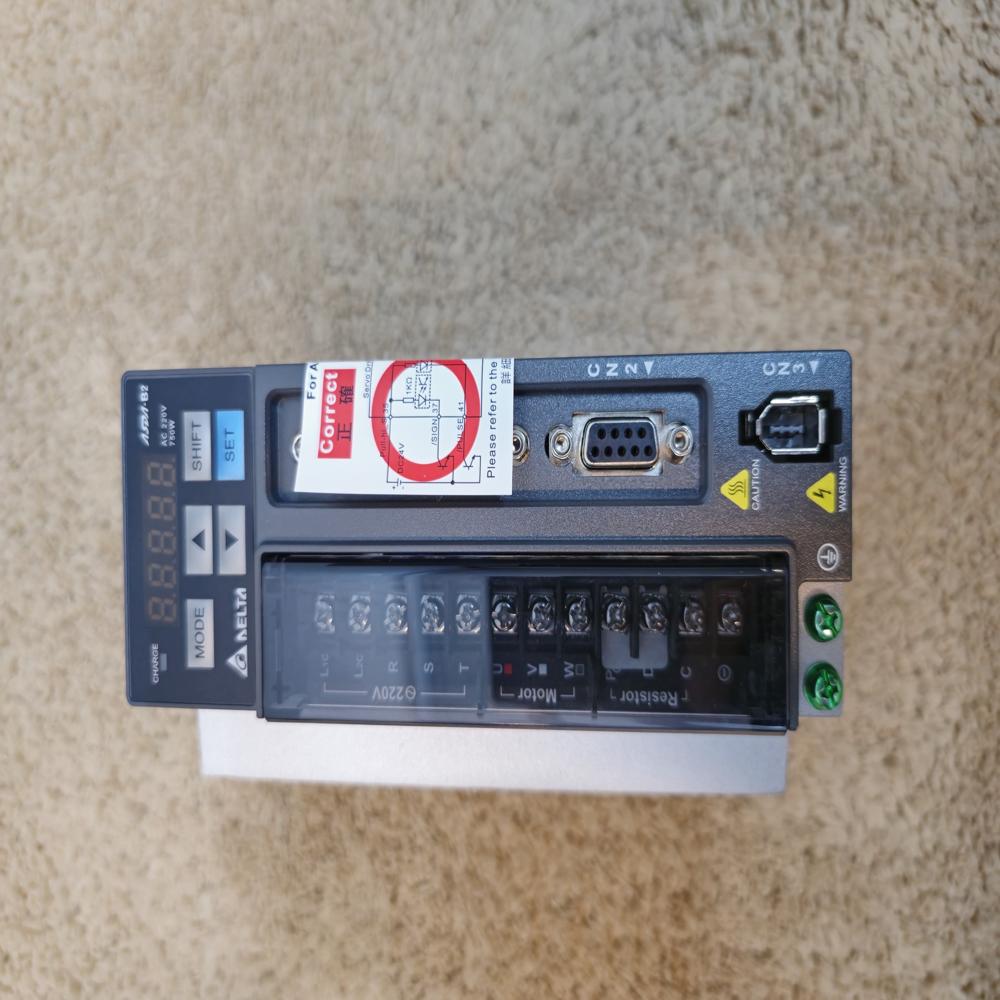

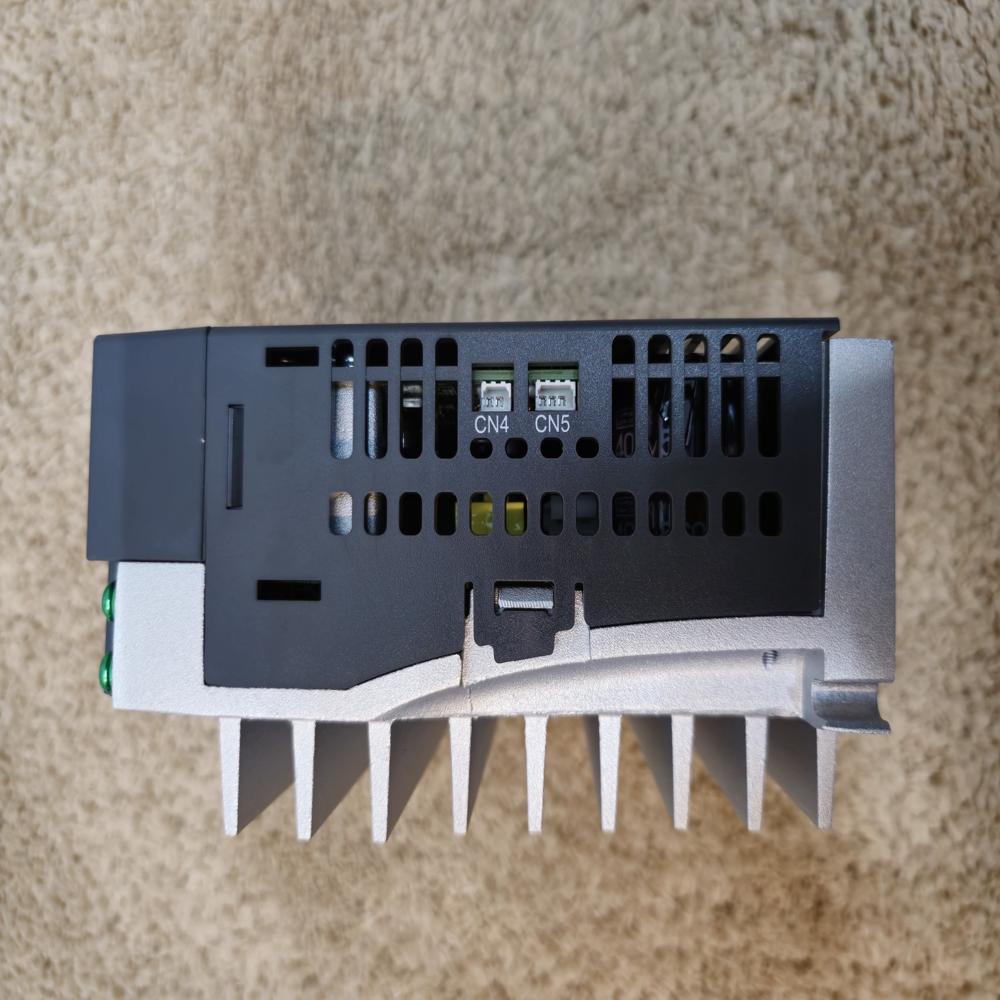

ASD-B2L-0721-B 750W Driver

Name: ASD-B2L-0721-B 750W Driver
Brand: Corbital Enterprise
Price: 14000.0 INR
Availability: InStock

Price 14000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-B2L-0721-B 750W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
1.6 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-B2L-0721-B 750W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-B2L-0721-B 750W Driver

The ASD-B2L-0721-B is a 750W (0.75 kW) AC servo drive from Delta's ASDA-B2L Series. Similar to the 400W version, the "L" signifies an economic, pulse-type entry in the B2 family, specifically optimized for high-performance motion control using pulse-train commands. [1, 2, 3, 4]

Key Specifications

Rated Power Output: 750 Watts (0.75 kW).
Input Voltage: Single-phase or Three-phase 200V230V AC.
Output Current: Rated at 5.1 Arms continuous (with high peak capacity for bursts).
Encoder Support: 17-bit incremental encoder (160,000 p/rev).
Frequency Response: 550 Hz for fast dynamic response.
Control Modes: Position (Pulse/Direction), Speed, and Torque. [1, 2, 3, 4, 5]

Physical Dimensions (Inches)

Width: 2.17 inches (55 mm)
Height: 6.30 inches (160 mm)
Depth (Length): 6.69 inches (170 mm)
Weight: 3.53 lbs (1.6 kg) [1]

Functions & Features

Economic Precision: Designed for standard industrial applications like labeling machines, conveyors, and simple CNC axes where cost-efficiency is a priority.
Vibration Suppression: Built-in notch filters to eliminate mechanical resonance.
Communication: RS-232 and RS-485 ports using MODBUS protocol for easy parameter tuning.
Protective Functions: Includes overcurrent, overvoltage, undervoltage, overheating, and overload protection.
