ASD-E3-0721-L Delta B2 Series Driver - 750W

Name: ASD-E3-0721-L Delta B2 Series Driver - 750W
Brand: Corbital Enterprise
Price: 23200.0 INR
Availability: InStock

Price 23200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-E3-0721-L Delta B2 Series Driver - 750W Specification

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
1.1 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-E3-0721-L Delta B2 Series Driver - 750W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-E3-0721-L Delta B2 Series Driver - 750W

The Delta ASD-E3-0721-L is a 750W high-performance AC servo drive from the modern ASDA-E3 series. It is designed to be approximately 20% smaller than previous models while offering 2.5x the response bandwidth. [1, 2]

Core Specifications

Rated Power Output: 750 W (0.75 kW).
Input Voltage: Single-phase or Three-phase 200230 VAC.
Continuous Output Current: 5.1 Arms.
Maximum Instantaneous Output Current: 14.14 Arms.
Response Bandwidth: 2.5 kHz.
Resolution: 24-bit (16,777,216 pulses/rev). [, 2, 3, 4, 5, 6]

Physical Dimensions & Weight

The drive is built for compact control cabinets, featuring significantly reduced dimensions compared to the older B2 series. [1, 2]

Dimension [1, 2, 3]	Metric (mm)	Imperial (Inches)
Width	60 mm	2.36 in
Height	162 mm	6.38 in
Depth	155.85 mm	6.14 in
Weight	1.2 kg	2.64 lbs

Operational Features

Control Modes (-L Basic Type): Supports Pulse Train (PT Mode) for position control, Analog Voltage for speed/torque, and RS-485 Modbus communication.
Safety: Includes built-in Safe Torque Off (STO) SIL2 for enhanced machine safety.
Vibration Suppression: Features automatic resonance scanning and suppression for frequencies up to 5,000 Hz.
Tuning: Equipped with advanced auto-tuning and mechanism stiffness diagnosis tools to simplify setup. [1, 2, 3, 4]

Environmental Specs

Operating Temp: 0C to 45C (32F to 113F).
Protection Rating: IP20 (intended for installation in a shielded control cabinet).
Max Altitude: 2,000 m or lower above sea level. [1, 2]

The ASD-E3-0421-L is a 750W high-performance servo drive from the ASDA-E3 series. It is the upgraded, modern successor to the older B2 series, offering significantly better speed and precision in a smaller package.

Key Functions

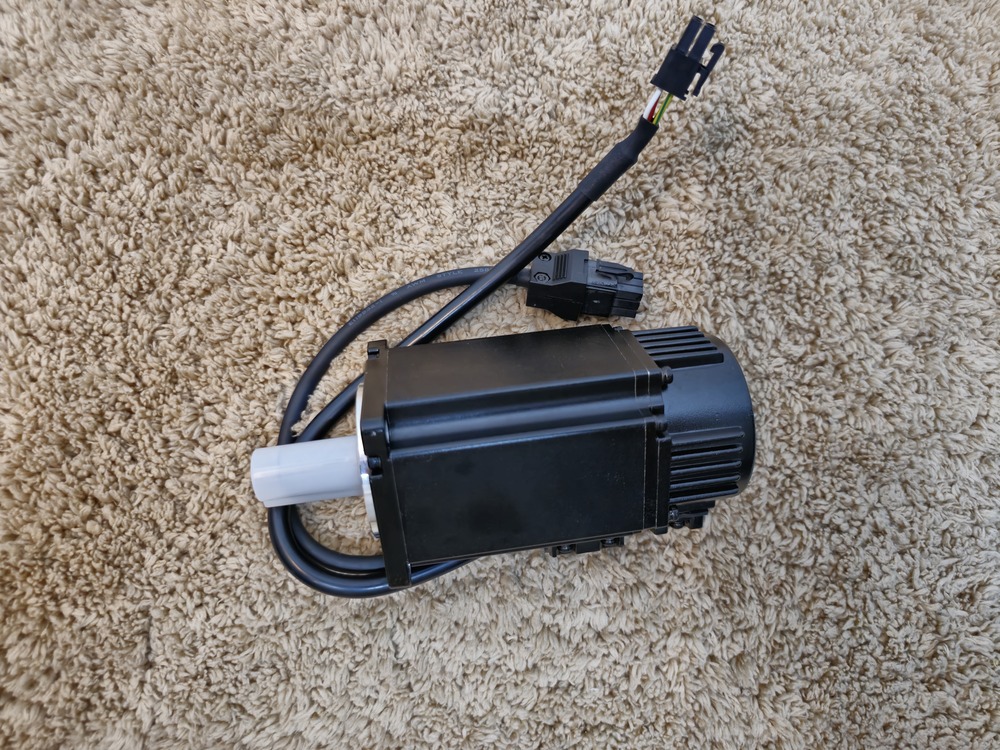

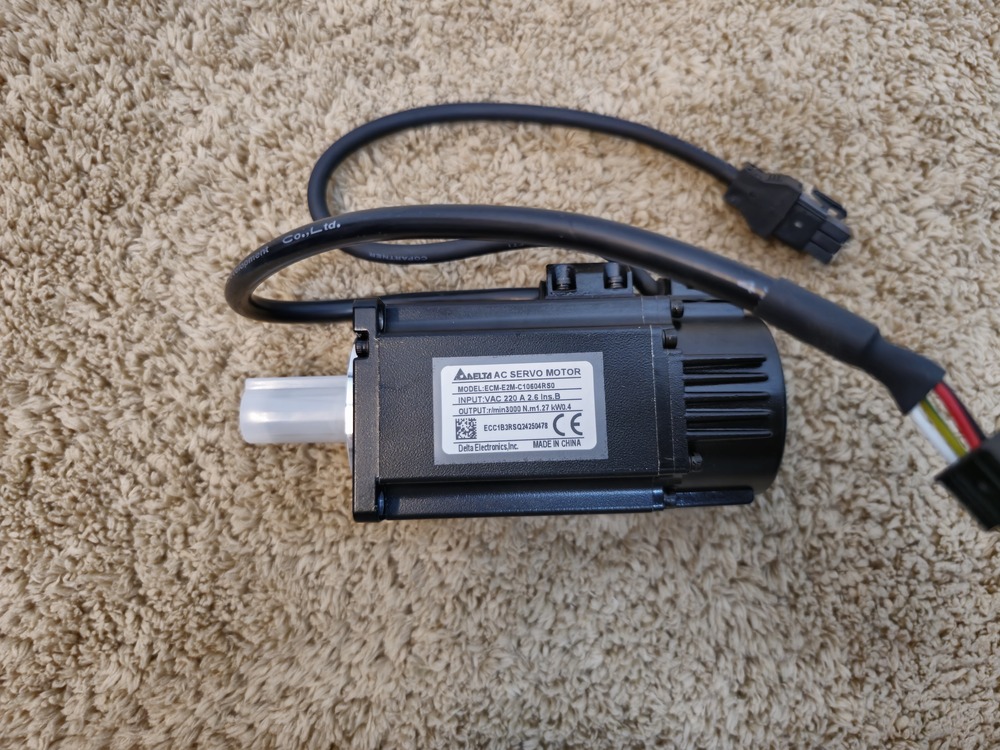

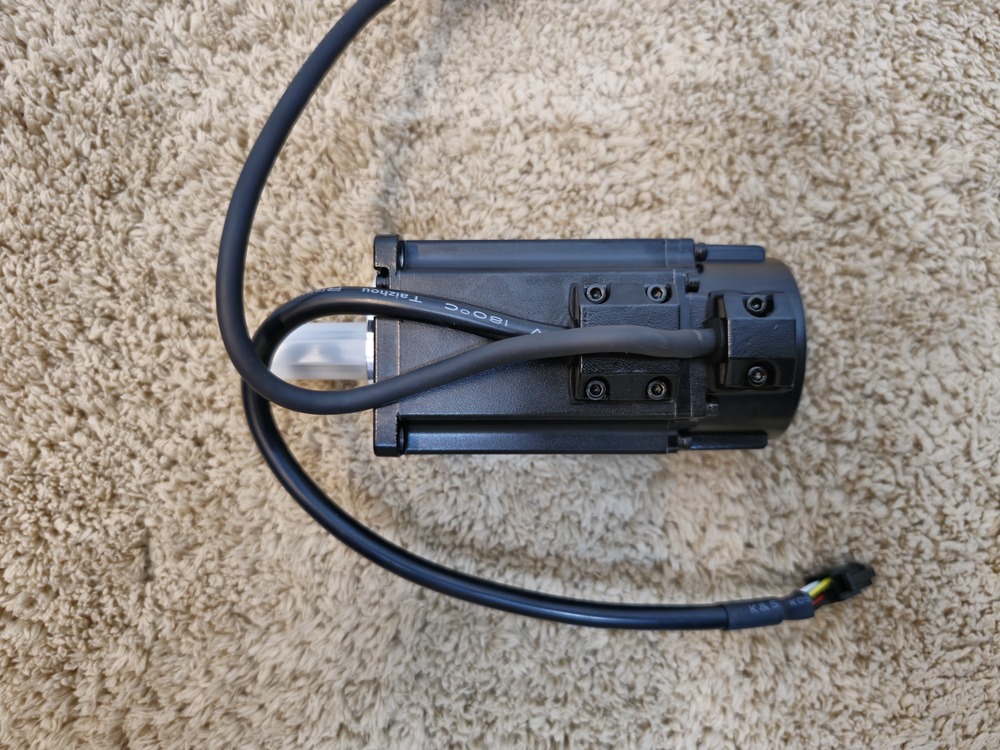

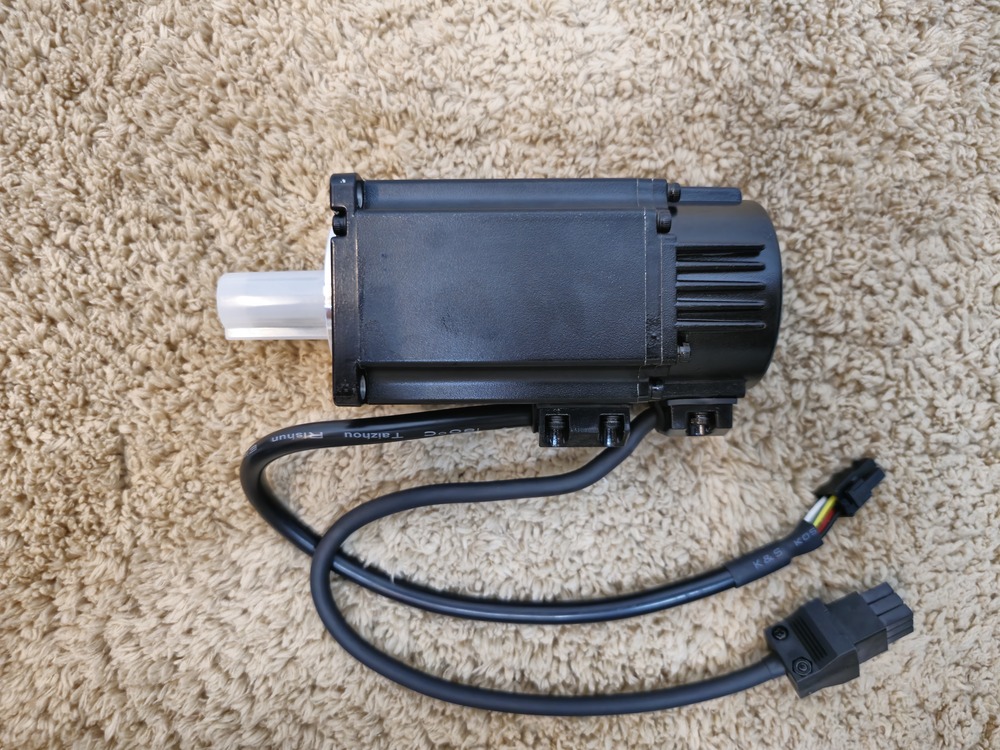

High-Speed Control: It functions as the "brain" for your ECM-E3M-C20807SSE motor, processing commands up to 2.5 times faster than the older B2 series.
Vibration Suppression: It automatically detects mechanical shaking (resonance) in your machine and uses notch filters to cancel it out, ensuring smooth motion.
Command Modes (-L Model):
- Pulse/Direction: For traditional PLC positioning.
- Analog Input: For variable speed or torque control.
- RS-485: For digital parameter setup and monitoring via Modbus.

Physical Dimensions & Weight (Inches)

The E3 drive is designed to be slim to save space in your electrical cabinet.

Dimension	Metric (mm)	Imperial (Inches)
Width	60 mm	2.36 in
Height	162 mm	6.38 in
Depth	156 mm	6.14 in
Weight	1.1 kg	2.43 lbs

Technical Specifications

Rated Power: 750 W
Input Voltage: 1-Phase / 3-Phase 200230 VAC
Rated Output Current: 5.1 Arms
Response Bandwidth: 2.5 kHz (Extremely fast reaction time)
Encoder Support: Fully supports the motors 24-bit resolution (16.7M pulses/rev).

Why use E3 instead of B2?

While you noted it as a B2 series, the E3 series offers:

Higher Resolution: Better positioning accuracy for your 750W motor.
Smaller Size: Takes up less rail space in your panel.
Auto-Tuning: Much easier to set up; the drive tunes itself to your machine's weight automatically.
