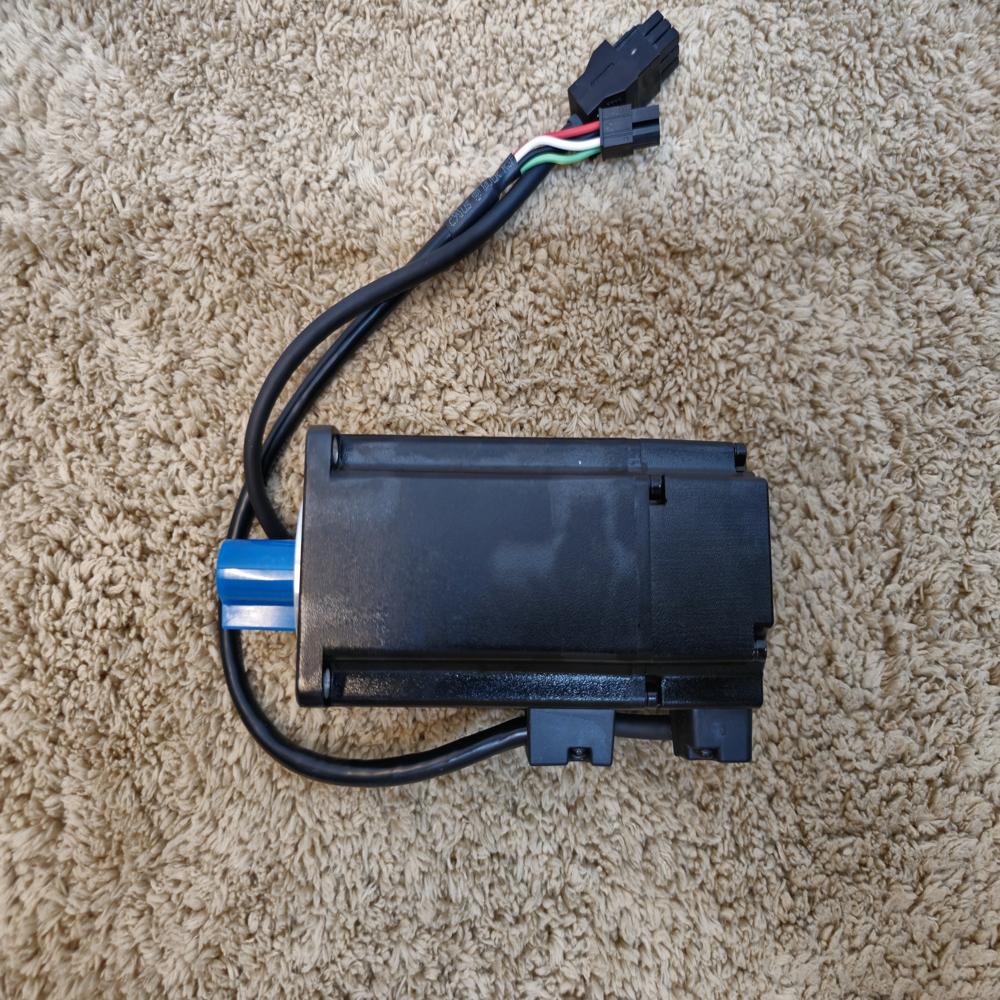

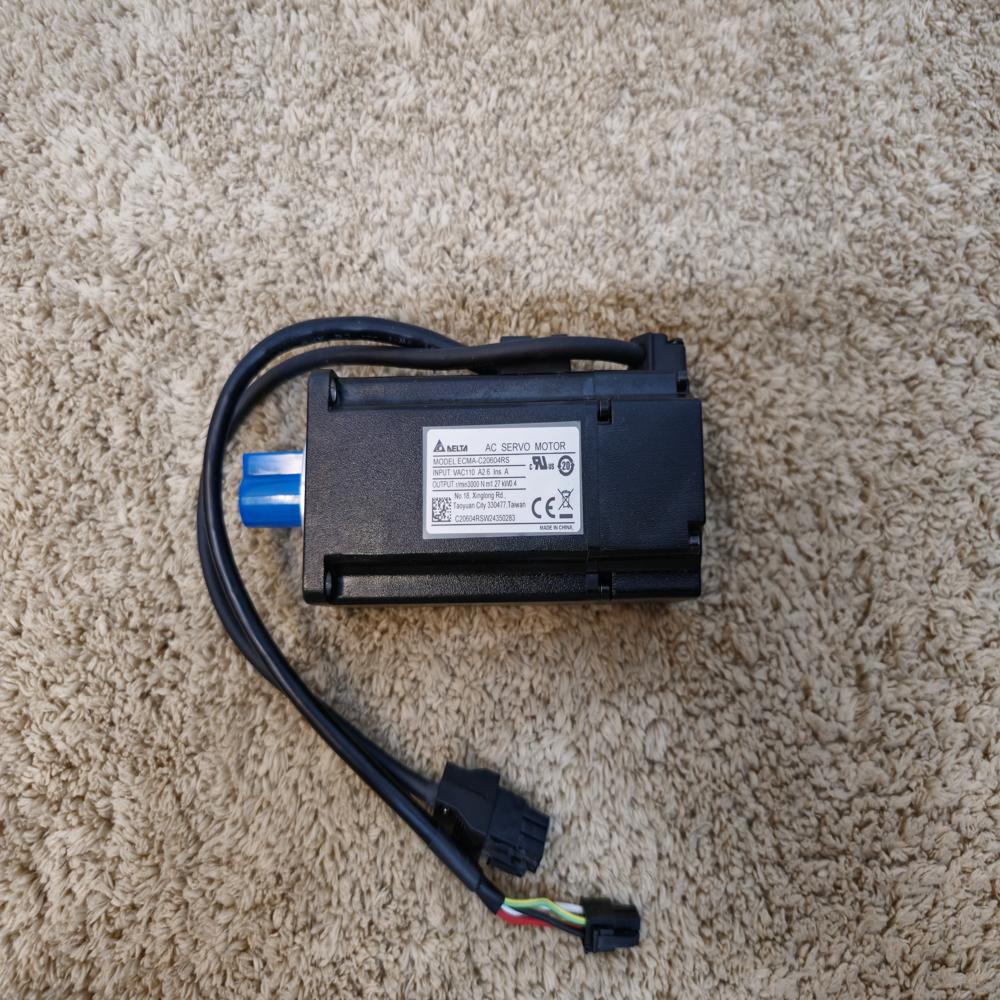

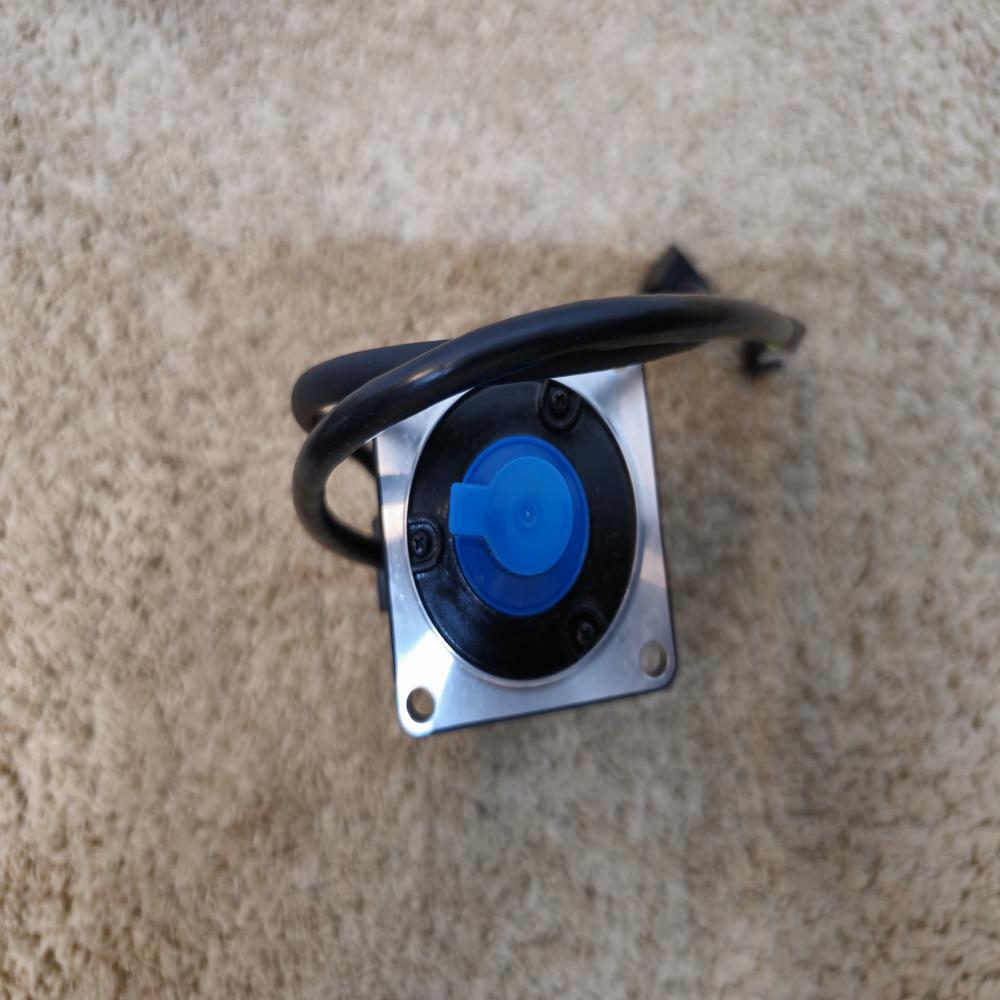

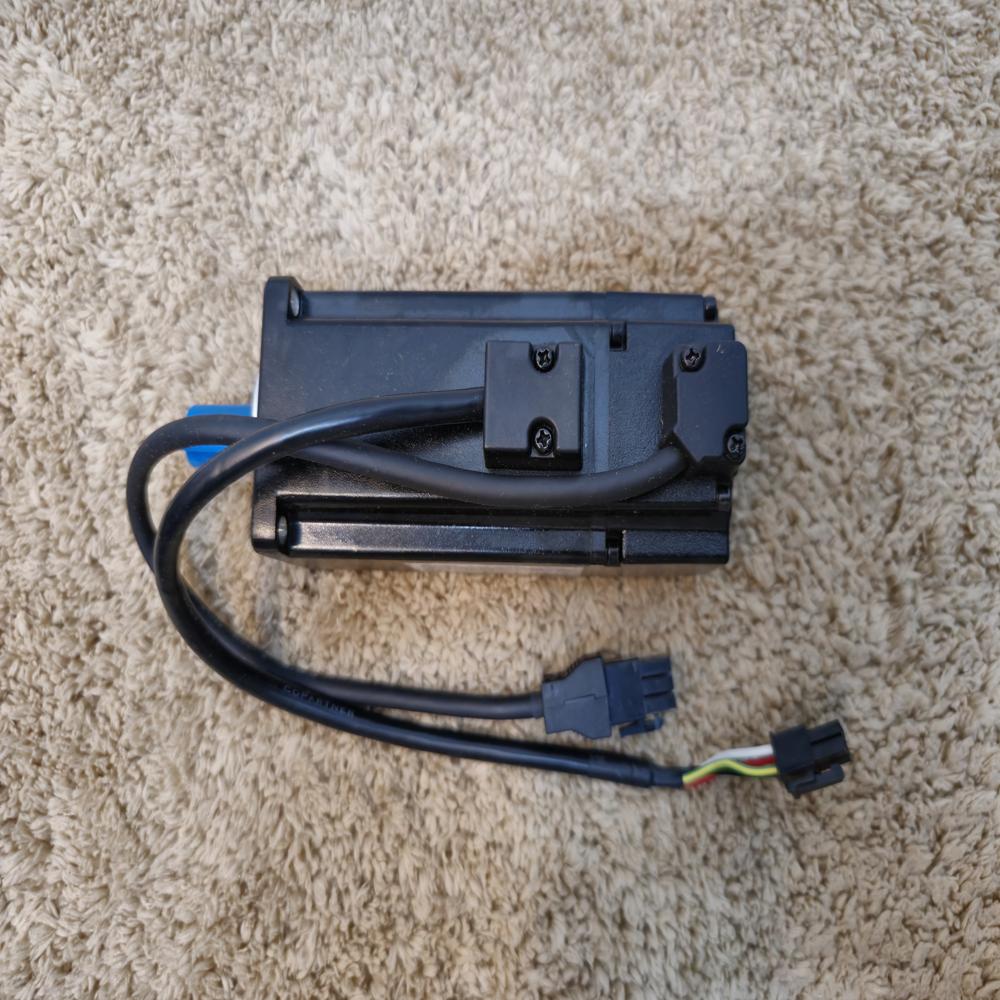

Send InquiryECMA-CA0807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000
Price 32000.0 INR/ Number
MOQ : 1 Number
ECMA-CA0807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000 Specification
- Sealed Type
- Packing seal
- Product Type
- Servo Motor
- Usage & Applications
- Industrial Machinerry
- Color
- Black and Silver
- Weight
- 2.89 Kilograms (kg)
- Phase
- Three Phase
- Warranty
- 1 Year
- Material
- Aluminum
ECMA-CA0807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000 Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 24 Hours
About ECMA-CA0807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000
The Delta ECMA-CA0807RS is a 750W low-inertia AC servo motor from the ASDA-A2 series. Its primary function is high-speed, high-precision positioning in machines where gravity isn't a factorsince the "RS" suffix means it does not have a brake.
It features a 17-bit absolute encoder, allowing the machine to track its position even after power is turned off, which saves time by removing the need for "homing" routines.
Physical Specifications
This motor uses an 80 mm frame and is significantly lighter and shorter than the brake-equipped "SS" version.
| Attribute | Metric Value | Inches / US Units |
|---|---|---|
| Height (Frame) | 80 mm | 3.15 in |
| Width (Frame) | 80 mm | 3.15 in |
| Length (Body) | 152.3 mm | 6.00 in |
| Weight | 2.89 kg | 6.37 lbs |
Key Technical Specs
- Rated Torque: 2.39 Nm (Peak 7.16 Nm).
- Rated Speed: 3000 RPM (Max 5000 RPM).
- Shaft Diameter: 19 mm (approx. 0.75 in) with keyway.
- Protection: IP65 rated with an integrated oil seal.
- Encoder: 17-bit Absolute (131,072 pulses/rev).
