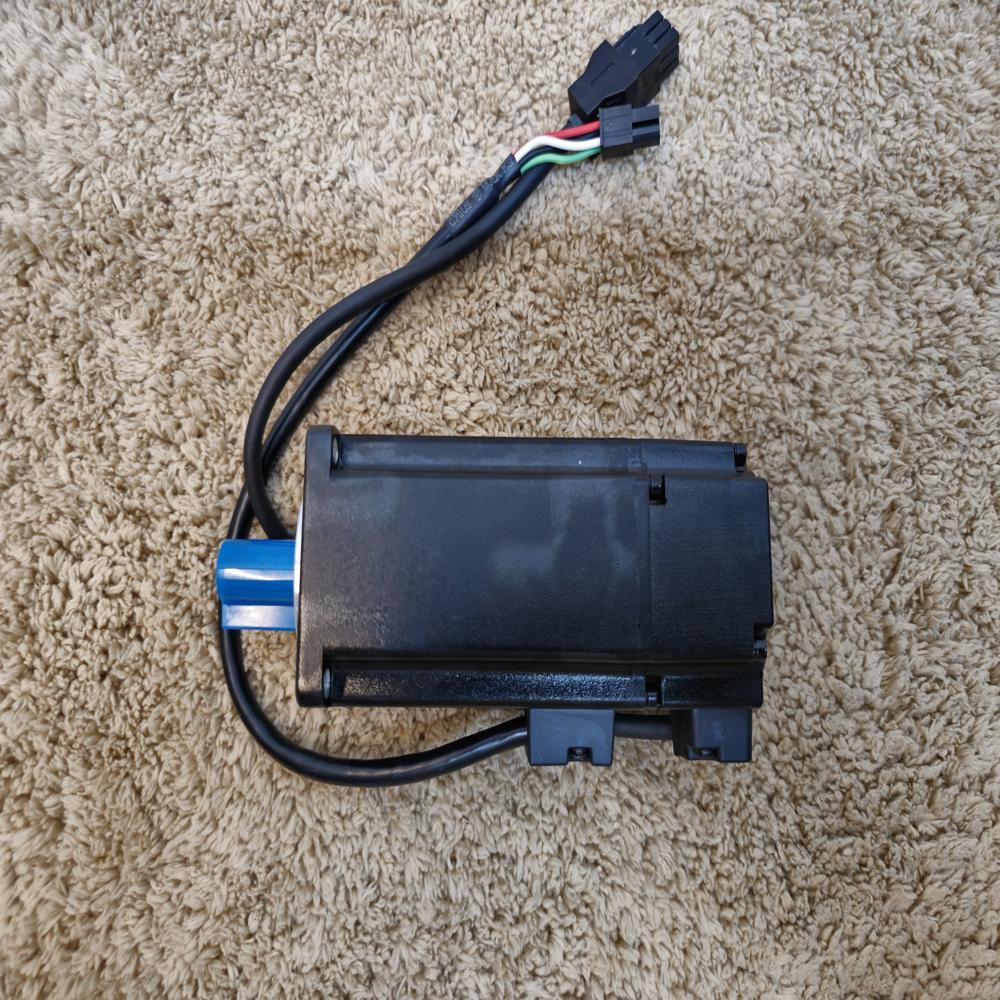

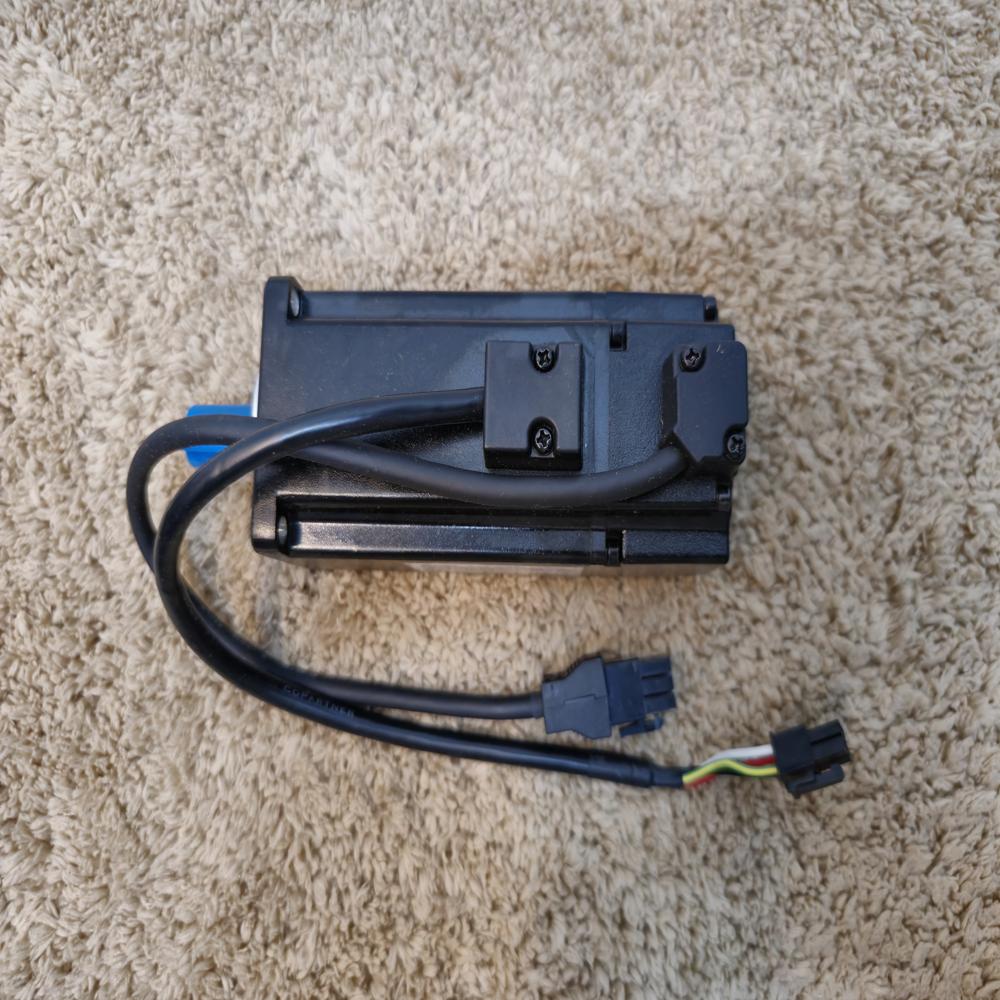

ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000
ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000

ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000

Price 75800.0 INR/ Number

MOQ : 1 Number

ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000 Specification

  • Sealed Type
  • Packing seal
  • Product Type
  • Servo Motor
  • Color
  • Black and Silver
  • Usage & Applications
  • Industrial Machinerry
  • Weight
  • 10.7 Kilograms (kg)
  • Warranty
  • 1 Year
  • Phase
  • Three Phase
  • Material
  • Aluminum


ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000 Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 24 Hours


About ECMA-CA1330S4 Delta Servo Motor 3000W L , Torque Nm - 9.55 , RPM - 3000



The Delta ECMA-CA1330S4 is a high-power 3000W AC servo motor used for heavy-duty industrial automation, providing superior torque and precision. It is part of the ASDA-A2 series, meaning it can handle advanced motion profiles directly.

Primary Functions
  • High Torque Powerhouse: Delivering a rated torque of 9.55 Nm (with peaks up to 300%), it is designed for heavy-load applications like CNC lathe turrets and large-scale industrial machinery.
  • Fail-Safe Holding: The "S4" suffix indicates an integrated electromagnetic brake. This function holds the axis firmly in position when power is removed, which is essential for vertical movement or heavy industrial axes to prevent unintended movement.
  • Absolute Position Feedback: It features a 17-bit absolute encoder, providing 131,072 pulses per revolution. This allows the system to remember its exact position even after a power loss, eliminating the need for homing routines.
  • Advanced Control Modes: When paired with an ASDA-A2 drive, it supports:
    • Electronic Cam (E-CAM): Up to 720 points for smooth synchronized motion like rotary cutting and flying shears.
    • Vibration Suppression: Built-in filters minimize resonance and machine-edge vibration automatically.
    • Full Closed-Loop Control: It can interface with external linear scales to compensate for mechanical backlash. [1, 2, 3]
Common Applications
  • Metalworking: Powering CNC milling machines, grinders, and heavy-duty turrets.
  • Material Handling: Controlling synchronized gantry systems or large conveyors.
  • Printing & Packaging: Ideal for high-speed rotary cut-offs and precision labeling.

The physical specifications for the Delta ECMA-CA1330S4 (3000W model with brake) in inches and pounds are as follows:
Dimensions & Weight
Attribute [1, 2, 3, 4] Measurement (Inches) Measurement (Metric)
Total Length 8.95 in 227.3 mm
Height (Frame) 5.12 in 130 mm
Width (Frame) 5.12 in 130 mm
Shaft Diameter 0.866 in 22 mm
Shaft Length 1.772 in 45 mm
Net Weight 23.59 lbs 10.7 kg
Key Technical Notes
  • Frame Size: This motor uses a much larger 130 mm square frame to handle the 3kW power output.
  • Weight Factor: At 23.59 lbs (10.7 kg), this is a heavy-duty industrial unit. The weight includes the integrated electromagnetic brake (indicated by the "S4" suffix), which is essential for holding heavy loads.
  • Mounting: The standard mounting hole spacing for a 130mm frame is 5.709 inches (145 mm).
  • Encoder: It features a high-resolution 17-bit absolute encoder for precision motion control. [1, 2, 3, 4]
