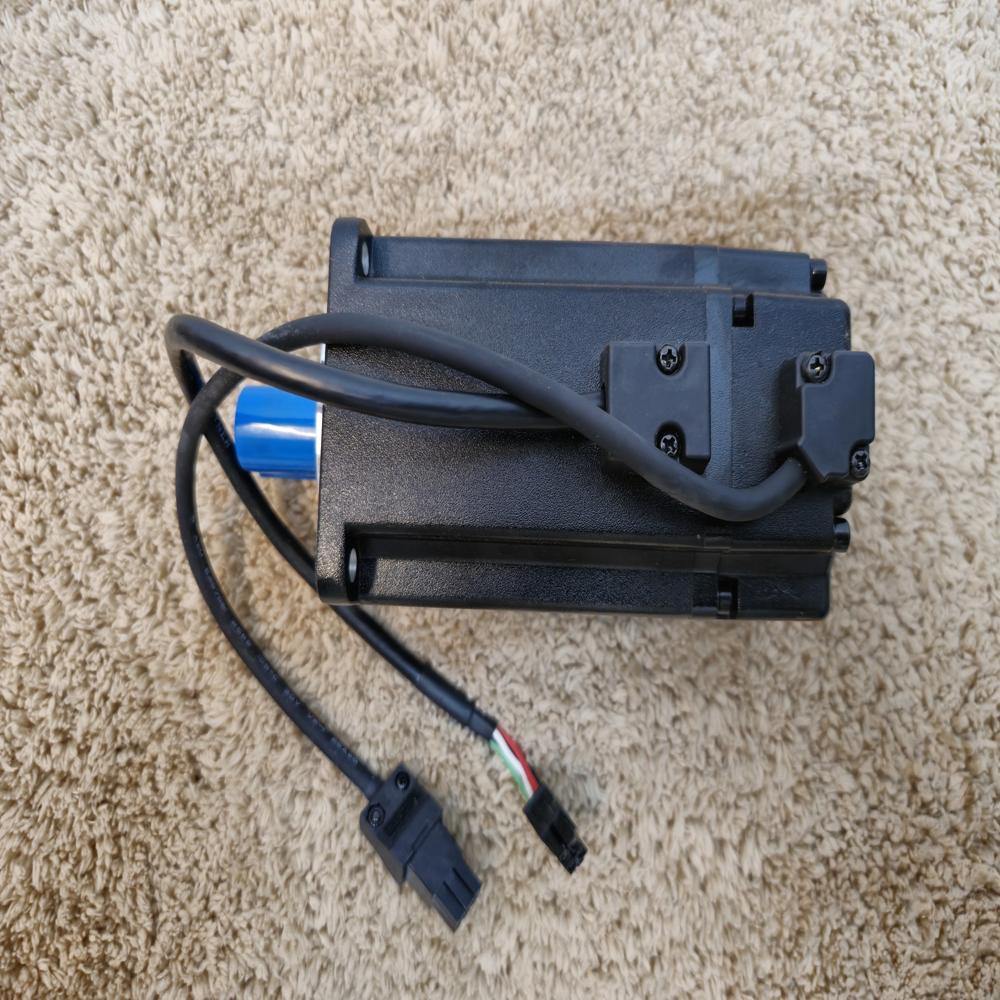

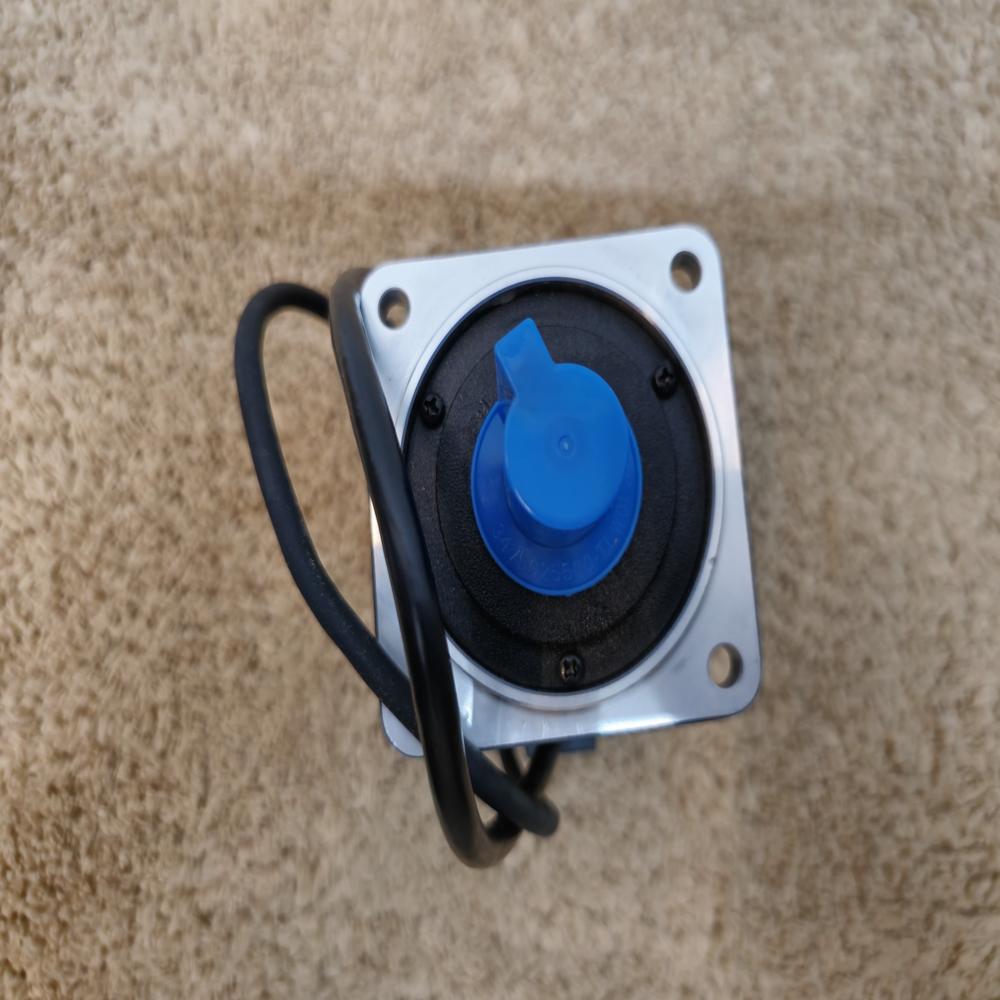

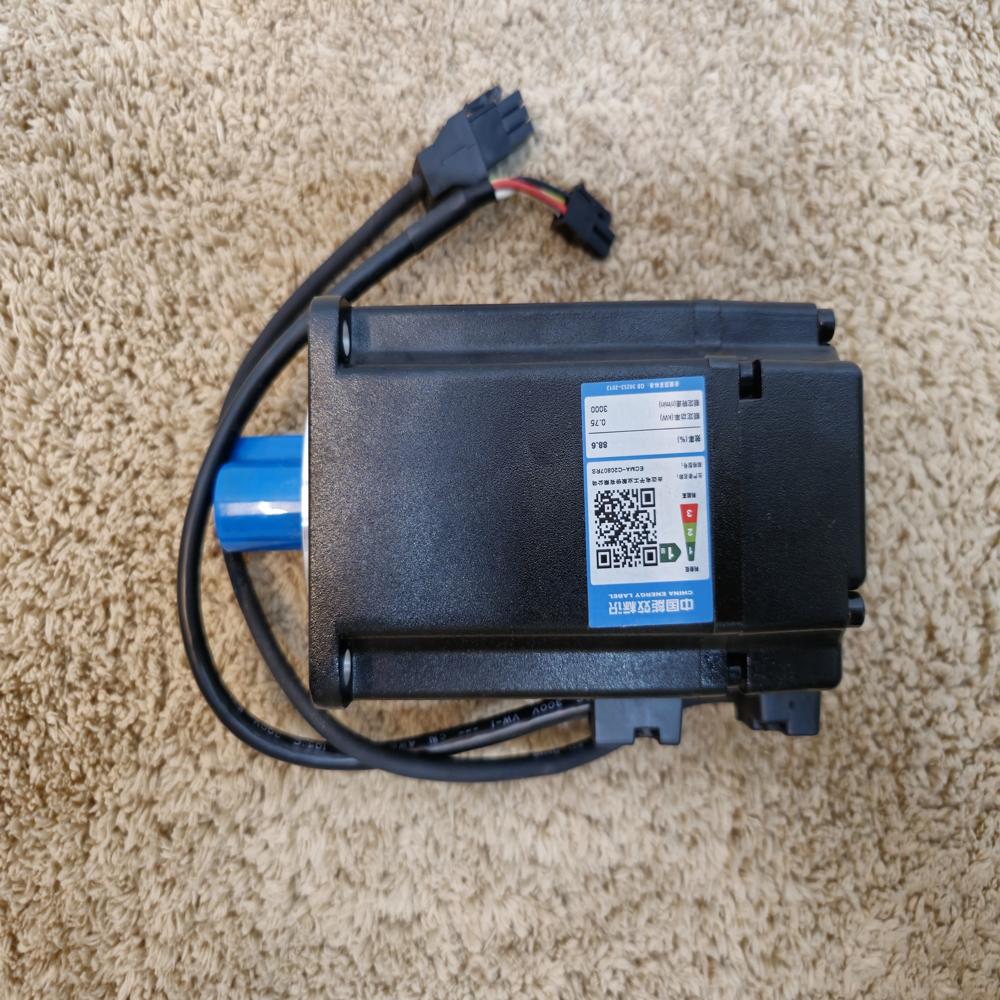

ECMA-EA1830SS Delta Servo Motor 3000W M , Torque Nm - 14.3 , RPM - 2000

Price 91000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-EA1830SS Delta Servo Motor 3000W M , Torque Nm - 14.3 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
18.5 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECMA-EA1830SS Delta Servo Motor 3000W M , Torque Nm - 14.3 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-EA1830SS Delta Servo Motor 3000W M , Torque Nm - 14.3 , RPM - 2000

The Delta ECMA-EA1830SS is a heavy-duty 3000W AC servo motor from the ASDA-A2 series, specifically designed for high-stability motion in industrial environments. [1, 2]

Performance Specifications

Rated Power: 3.0 kW (3000 W)
Rated Torque: 14.32 Nm
Maximum Torque: 42.96 Nm (approx. 300% of rated)
Rated Speed: 2000 RPM
Maximum Speed: 3000 RPM
Rated Current: 16.1 A
Maximum Current: 48.3 A [1, 2, 3, 5]

Mechanical & Electrical

Frame Size: 180 mm square
Shaft Diameter: 35 mm
Inertia: Medium Inertia
Encoder: 17-bit Absolute encoder (131,072 pulses/rev)
Brake: Integrated electromagnetic holding brake
Brake Holding Torque: 25.0 Nm (minimum)
Weight: ~49.6 lbs (22.5 kg) with brake
IP Rating: IP65 [1, 3, 4, 5, 8, 9]

The Delta ECMA-EA1830SS is a heavy-duty 3000W medium-inertia motor. It is significantly larger and more powerful than the 130mm frame models, designed for high-torque industrial applications. [1]

Dimensions & Weight

Attribute	Measurement (Inches)	Measurement (Metric)
Total Length	~9.26 in	235.2 mm
Height (Frame)	7.09 in	180 mm
Width (Frame)	7.09 in	180 mm
Shaft Diameter	1.378 in	35 mm
Shaft Length	3.11 in	79 mm
Net Weight	40.78 lbs	18.5 kg

Key Technical Notes

Frame Size: This motor jumps to a massive 180 mm square frame to manage the heat and torque of a 3kW medium-inertia system.
Massive Torque: It delivers a rated torque of 14.32 Nm, which is nearly 50% more than the 3kW low-inertia model (CA1330S4), making it much better for heavy-duty lifting or pushing.
Integrated Brake: The "SS" suffix indicates the inclusion of a high-capacity electromagnetic brake.
Mounting: The mounting hole spacing is 7.874 inches (200 mm).

Function

This motor functions as a high-stability power source for heavy industrial axes. Its medium inertia rotor is specifically designed to prevent mechanical resonance when moving large, heavy components at 2000 RPM. With its 17-bit absolute encoder, it provides sub-millimetre precision without requiring a home sensor. [1]

Common Uses: Large-scale CNC bridge mills, heavy-duty material handling robots, and industrial metal-forming presses.
